Description

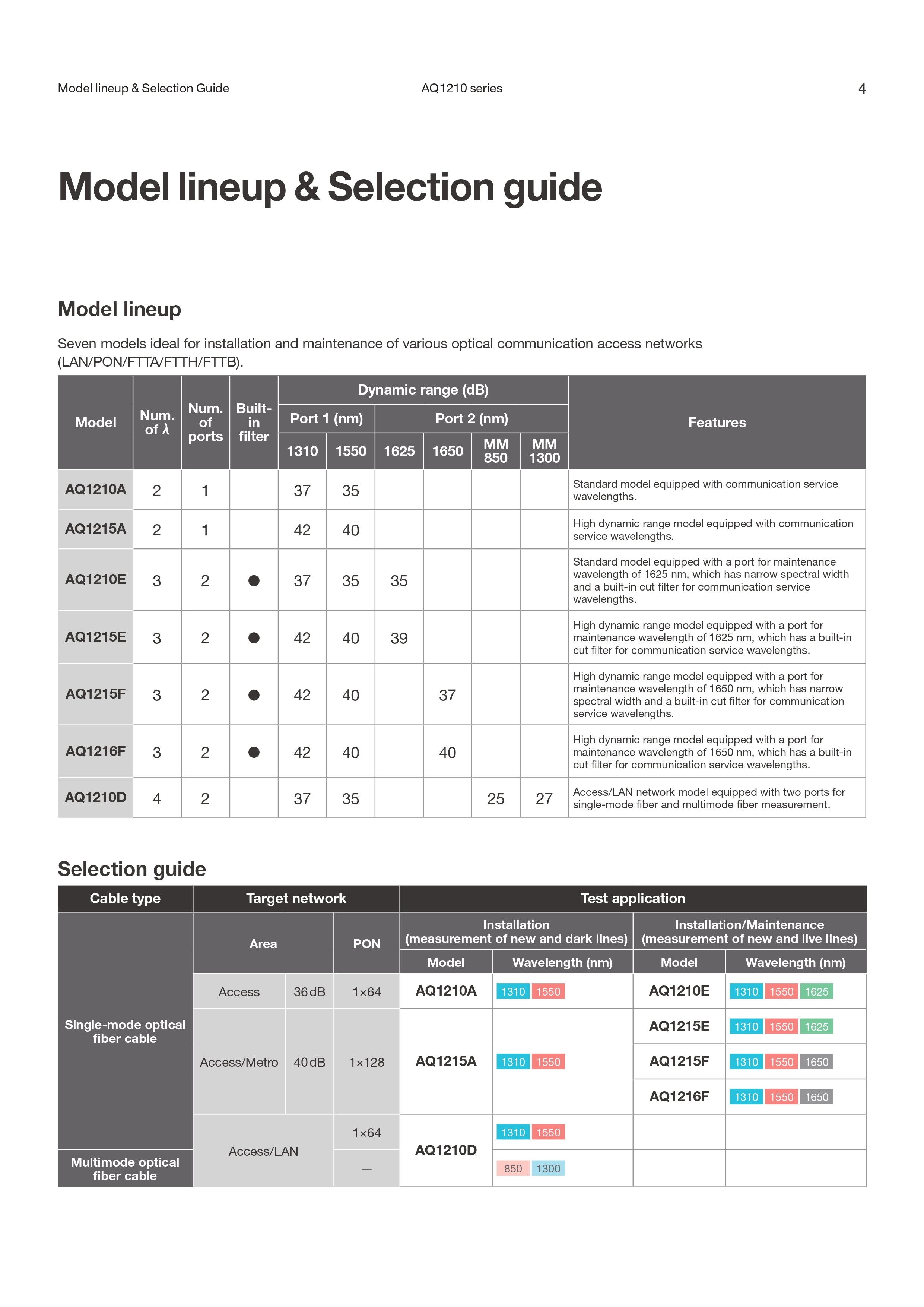

- Number of wavelength : 4
- Number of OTDR port : 2
- wavelength :
-Port 1 : 1310 / 1550 nm
-Port 2 : MM 850 / MM 1300 nm
- Dynamic range :
-Port 1 : 37 / 35 dB
-Port 2 : 25 / 27 dB

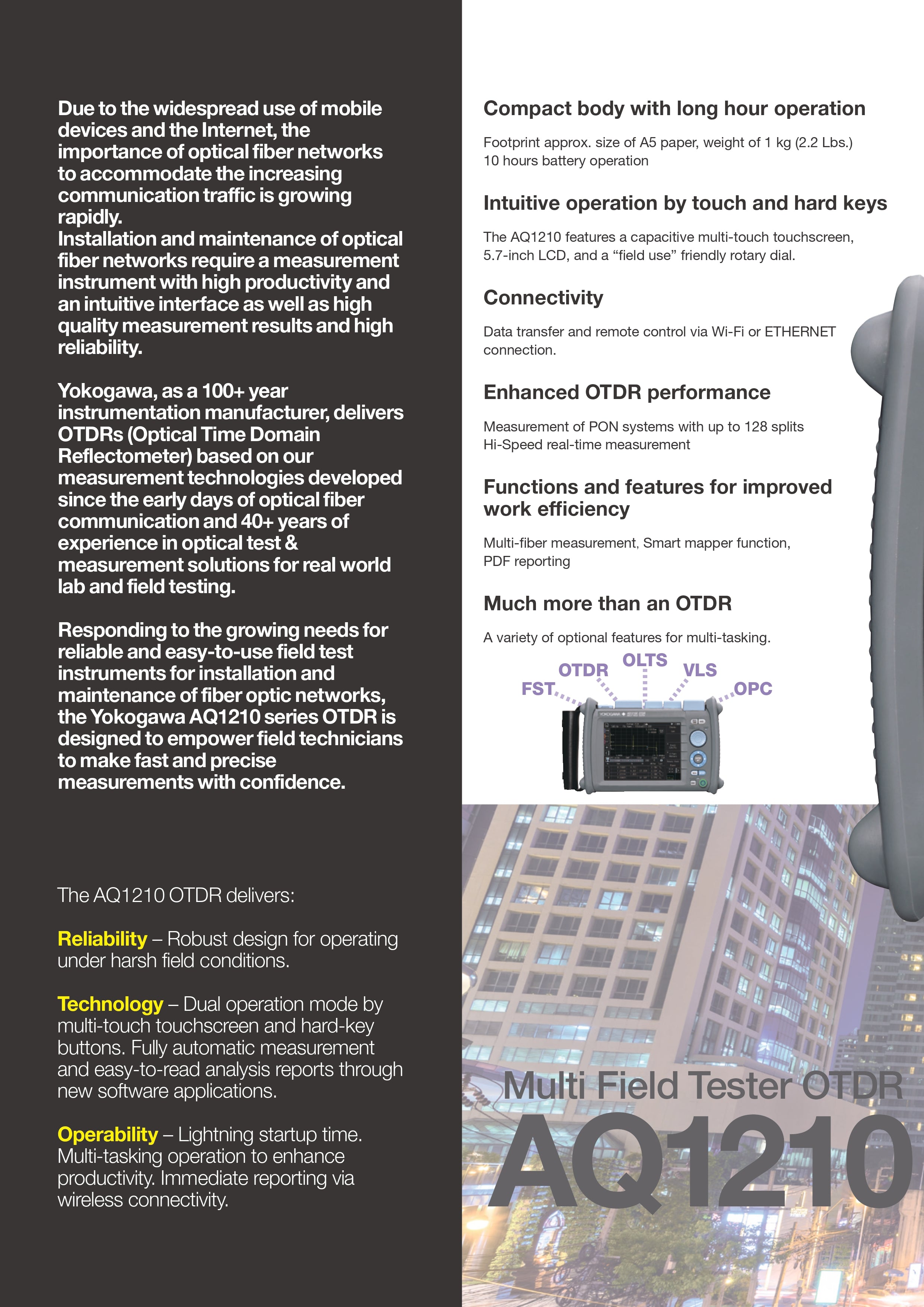

- Compact body with long hour operation :
-Footprint approx. size of A5 paper, weight of 1 kg (2.2 Lbs.)
-10 hours battery operation

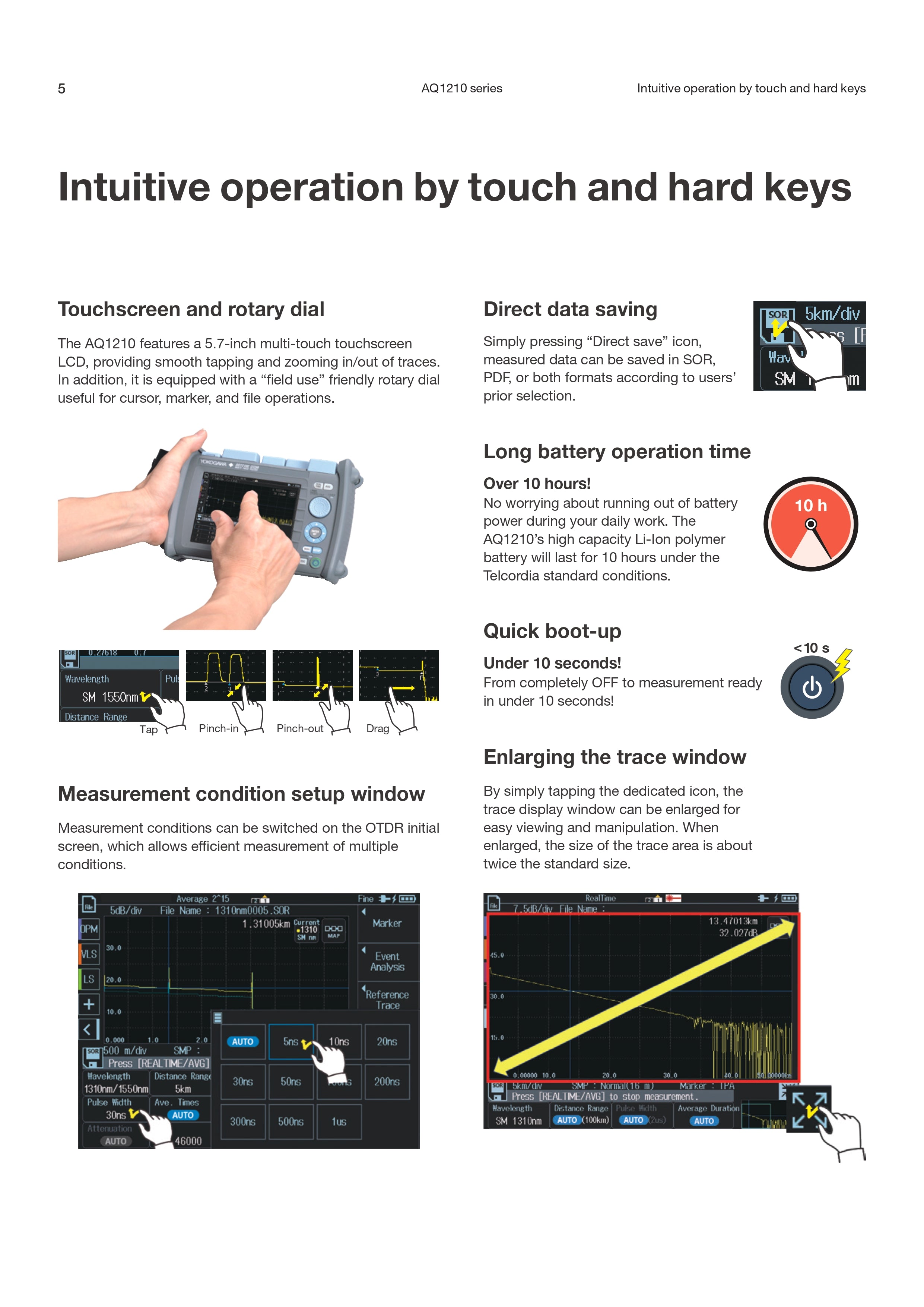

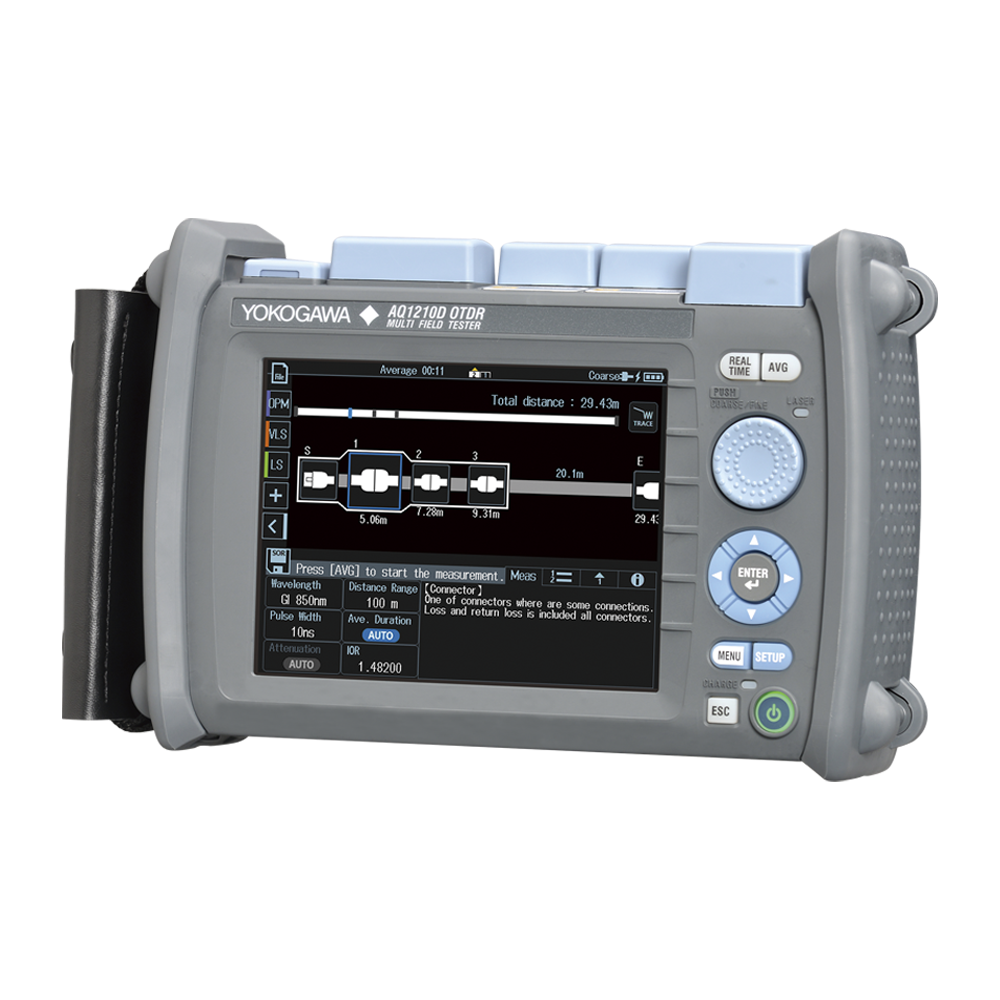

- The AQ1210A features a capacitive multi-touch touchscreen, 5.7-inch LCD, and a “field use” friendly rotary dial.

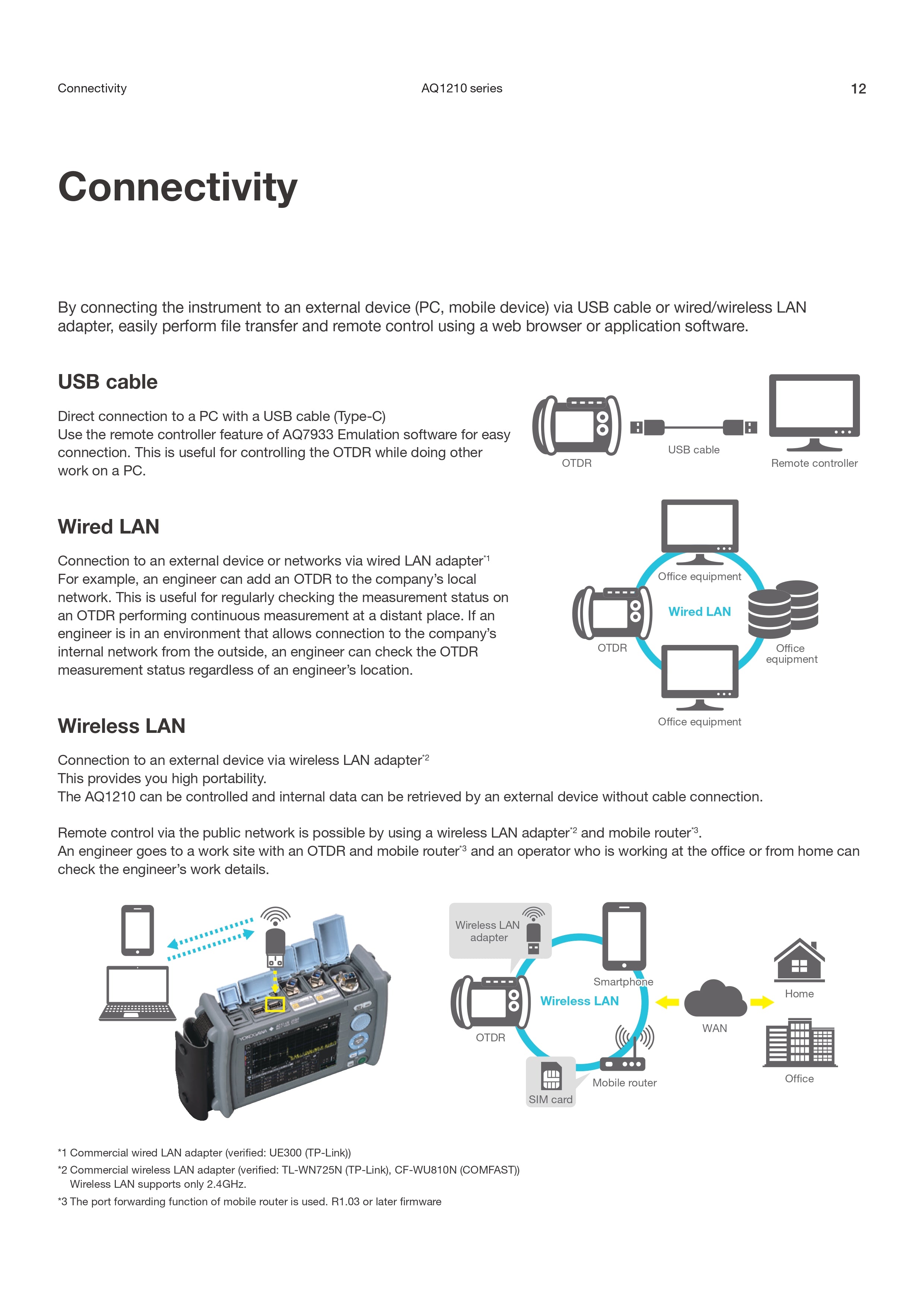

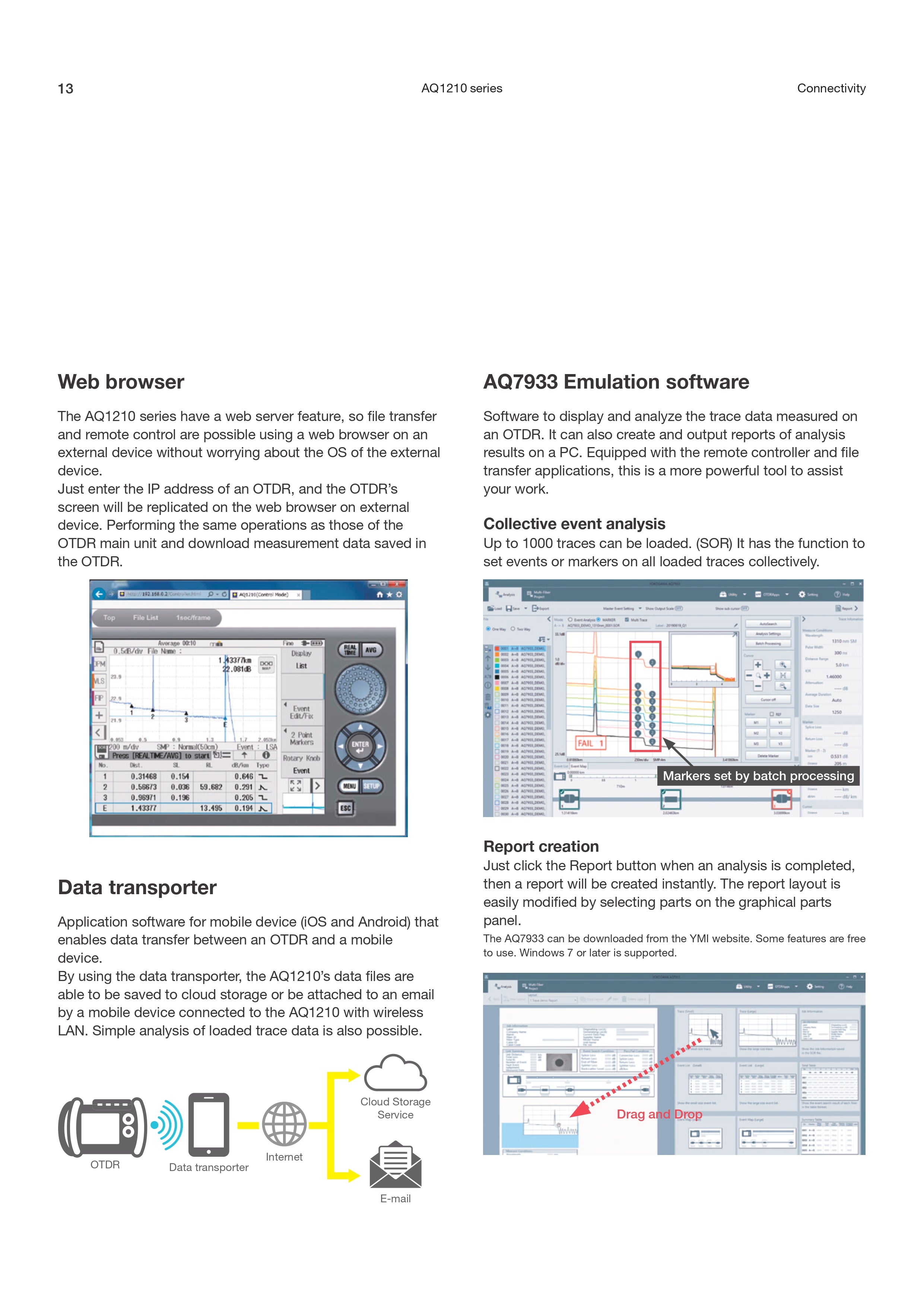

- Data transfer and remote control via Wi-Fi or ETHERNET connection.

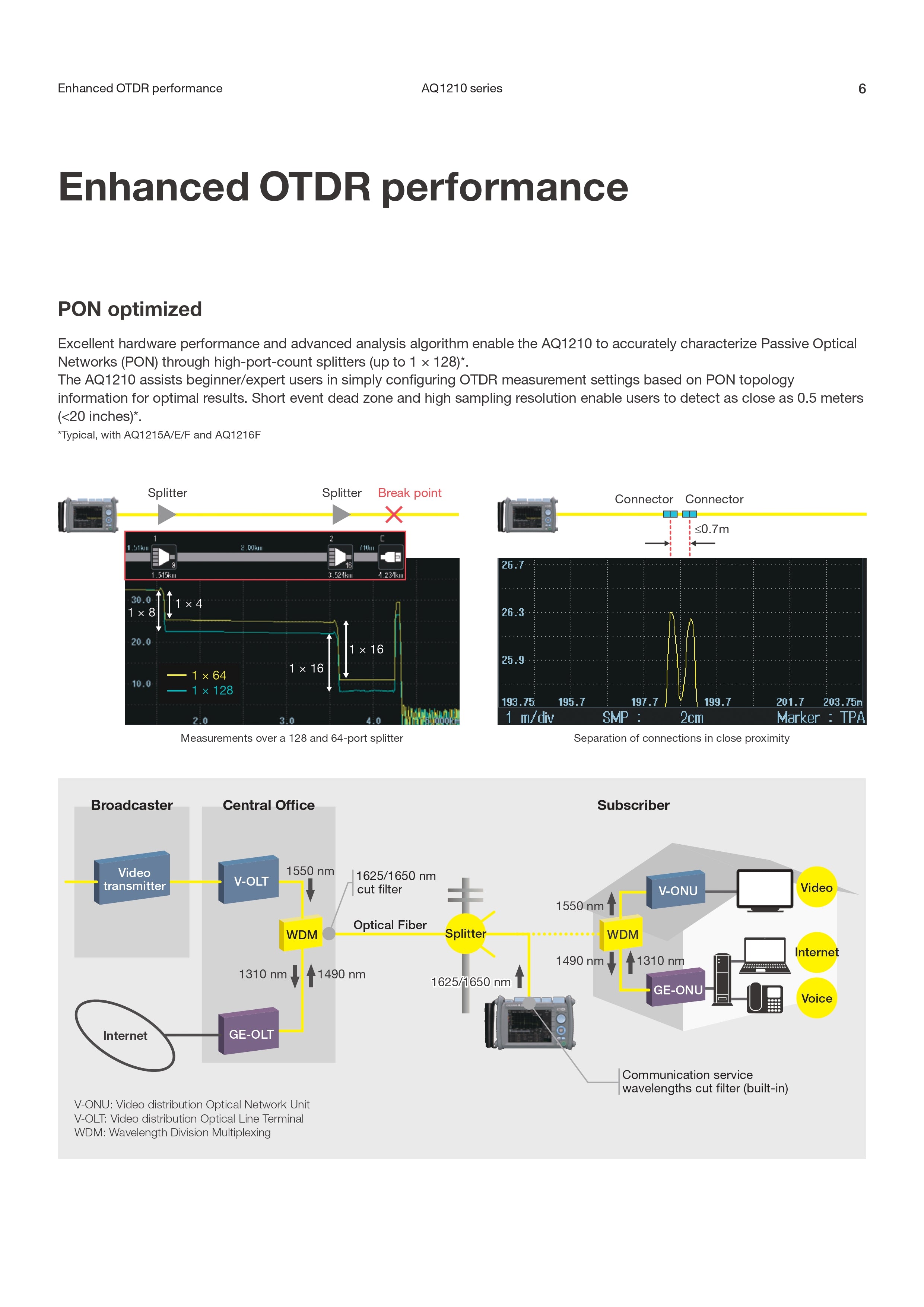

- Measurement of PON systems with up to 128 splits

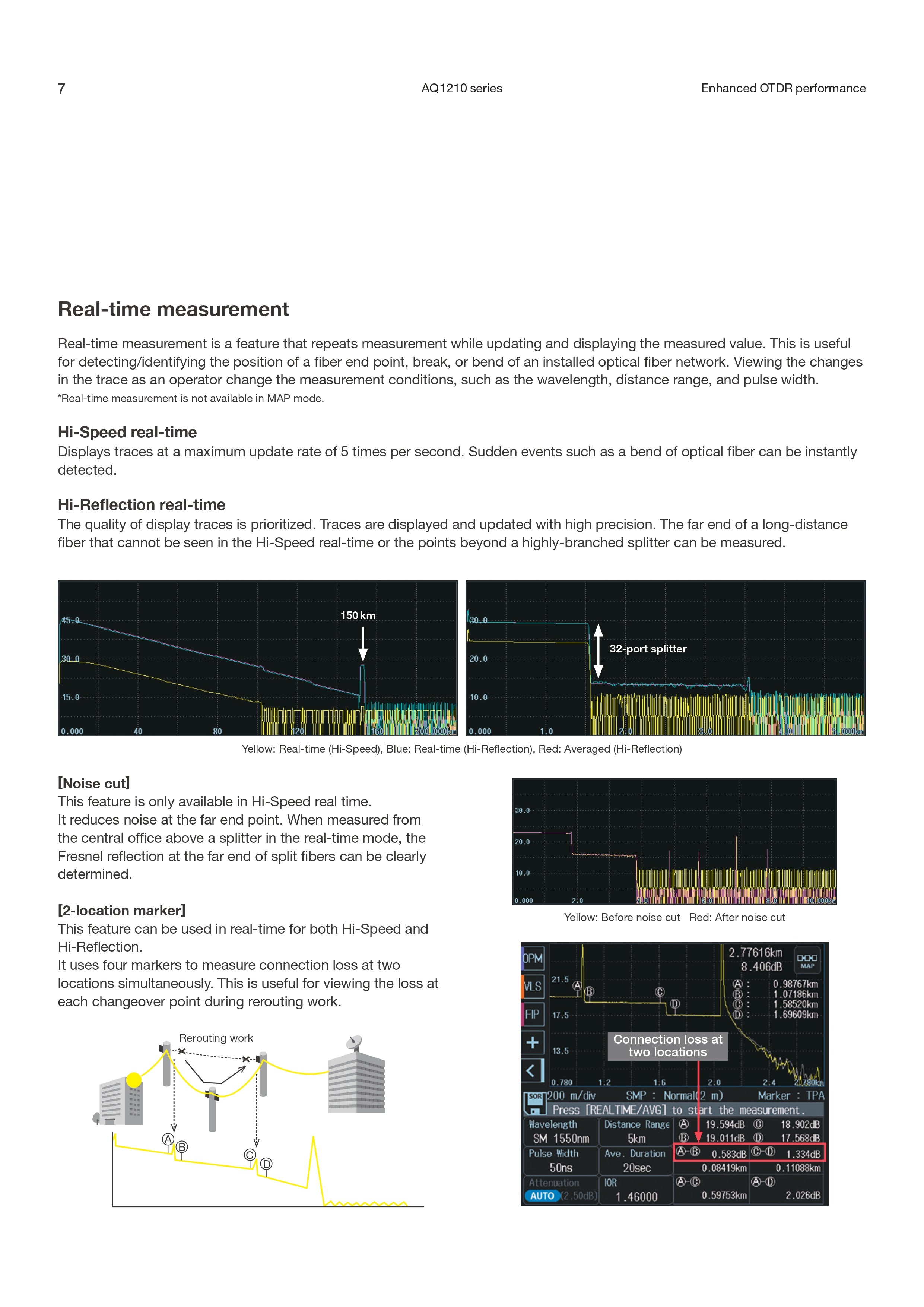

- Hi-Speed real-time measurement

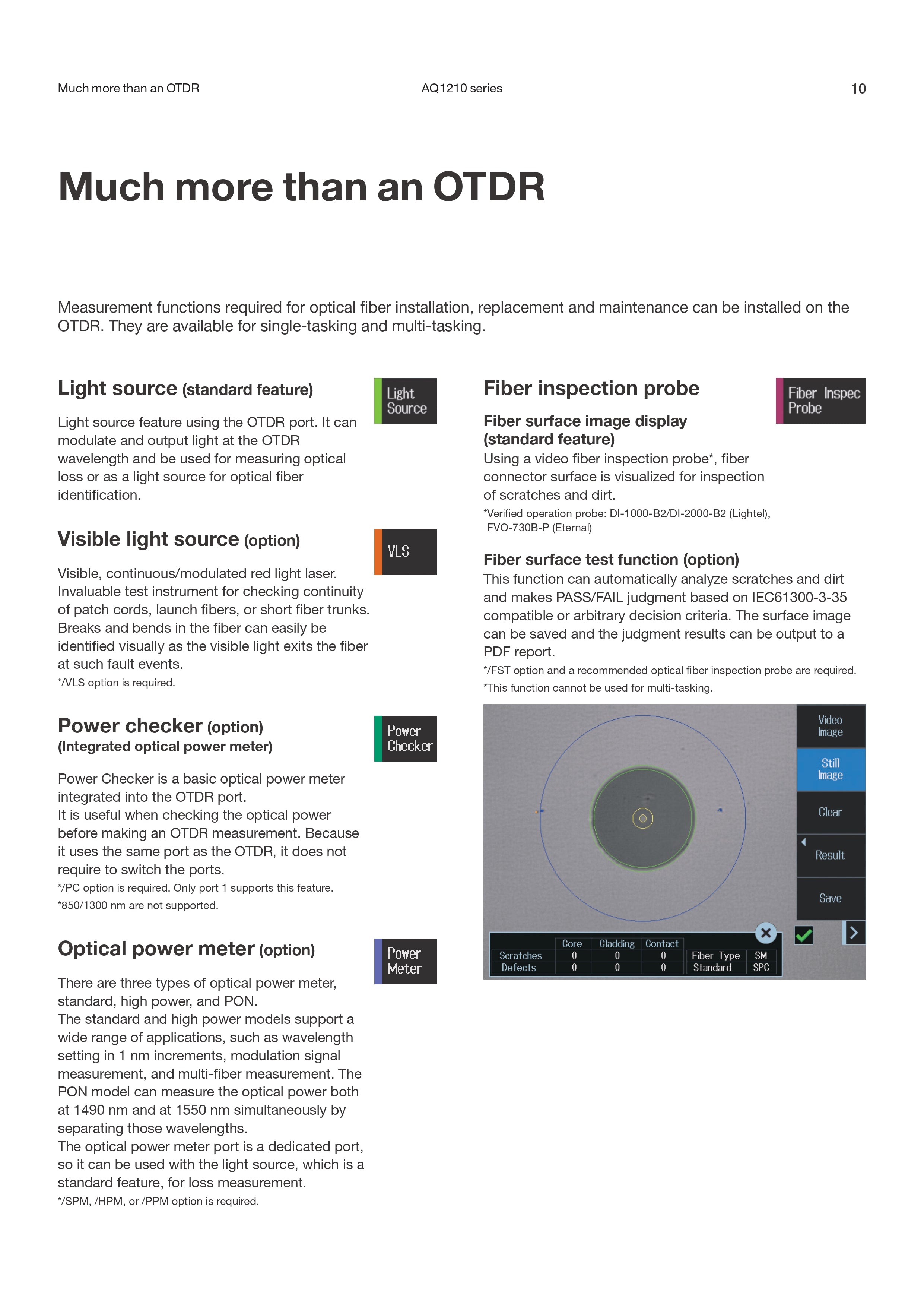

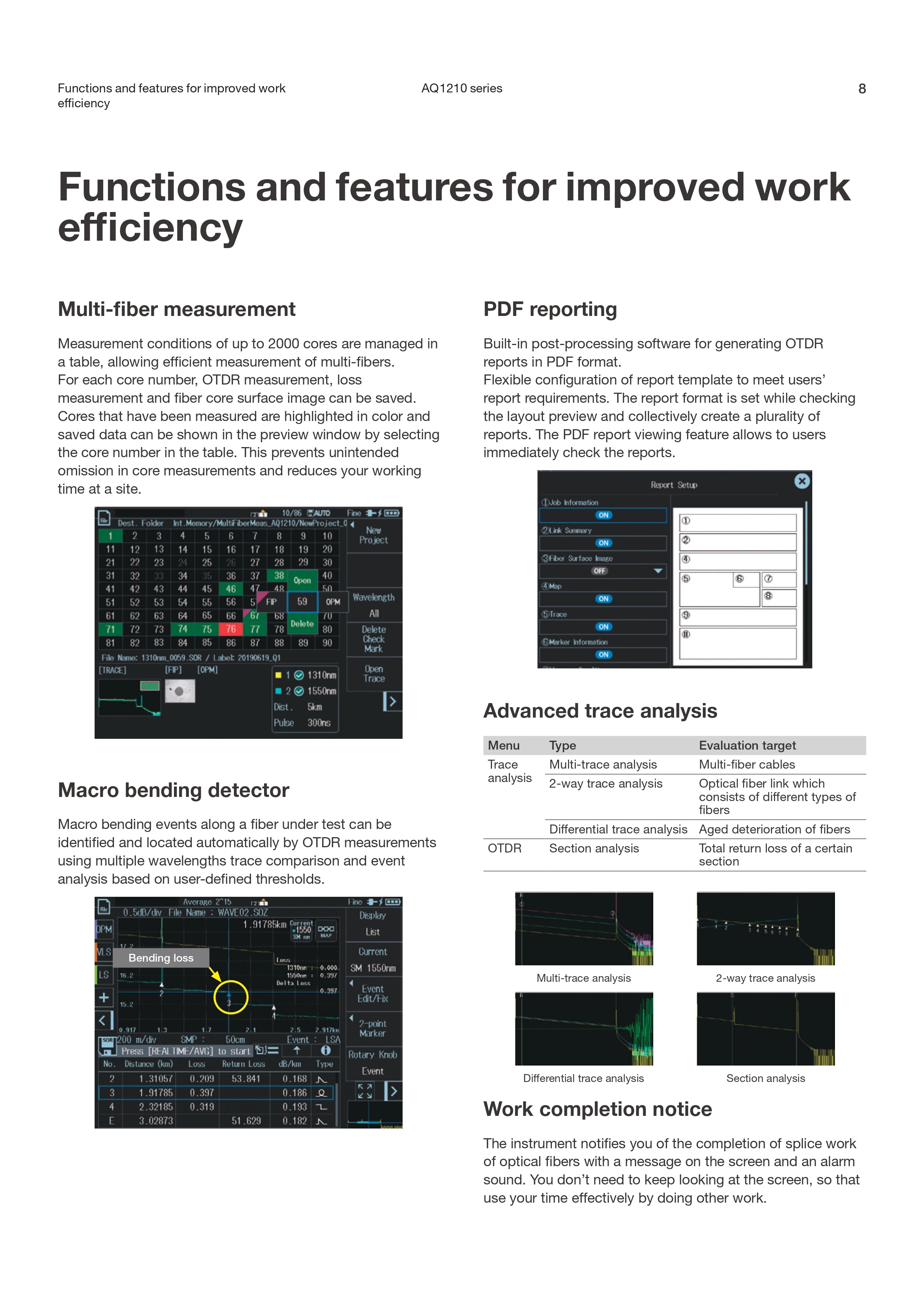

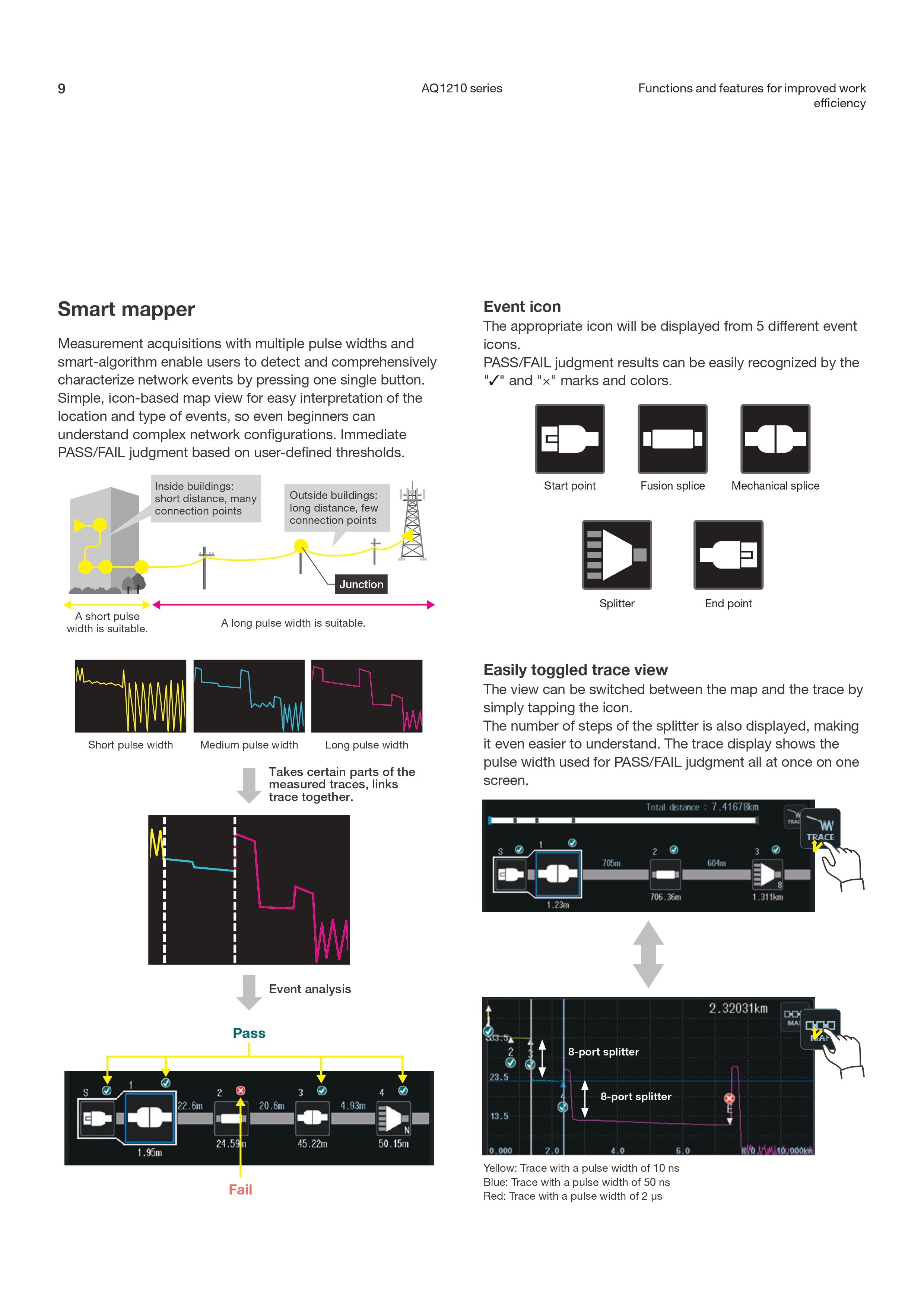

- Multi-fiber measurement, Smart mapper function, PDF reporting
