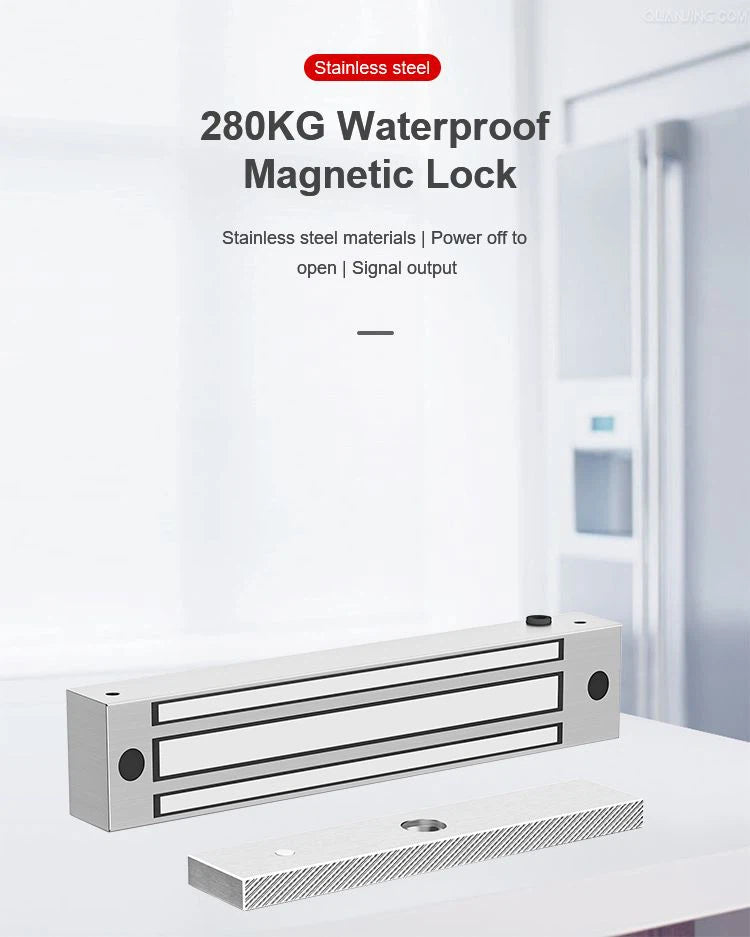

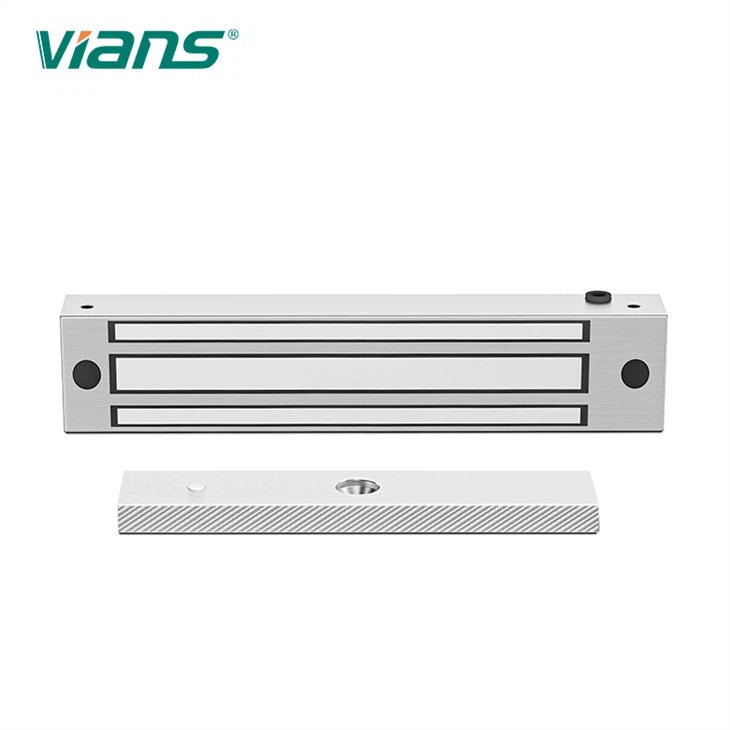

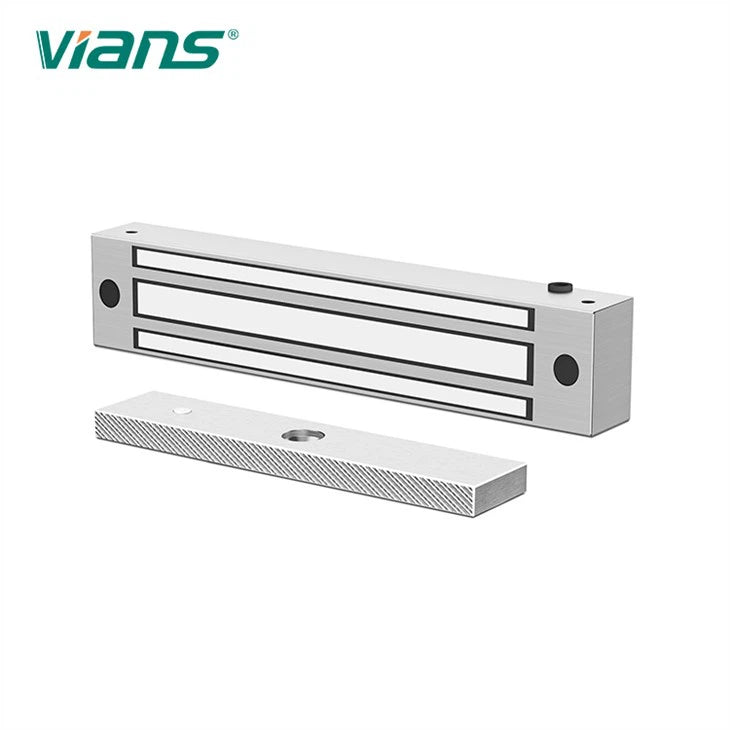

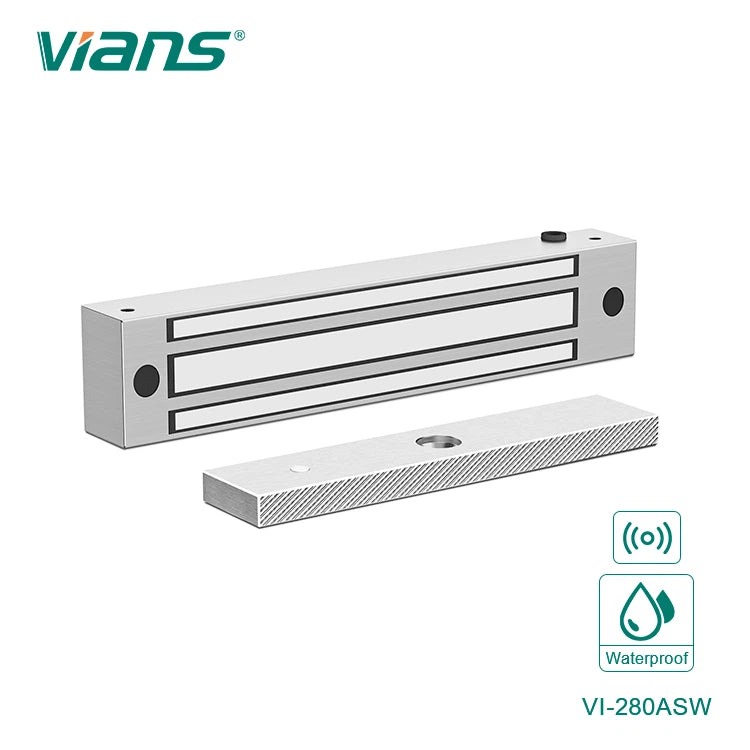

Lock Size: 210L x 42W x 28.5H (mm)
-
Armature Plate Dimension: 185L x 38W x 12H (mm)
-
Holding Force: 280kg (600Lbs)
-
Signal Output: NO
-
Input Voltage: DC12V or DC24V
-
Working Current: 12V/460mA, 24V/220mA
-
Door Type Applicable: Wooden door, Glass door, Metal door, Fireproof door
-
Time Delay: NO
-
Security Type: Power off to open
-
Weight: 2.3kg
