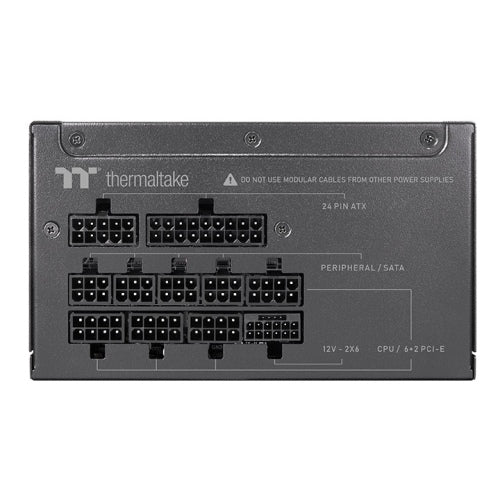

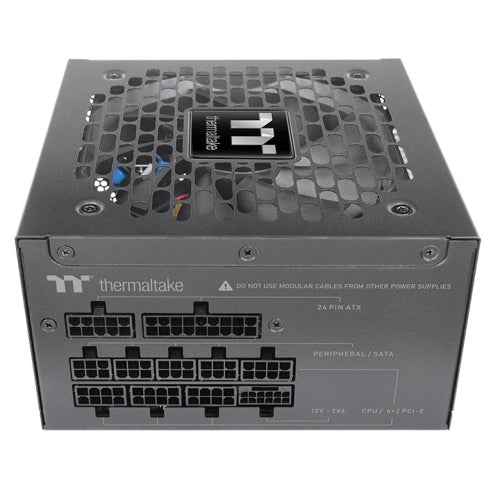

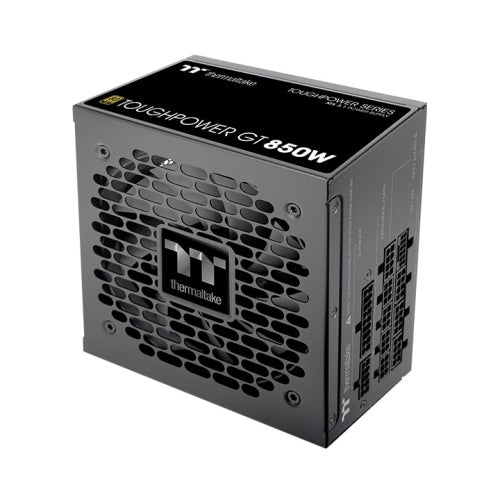

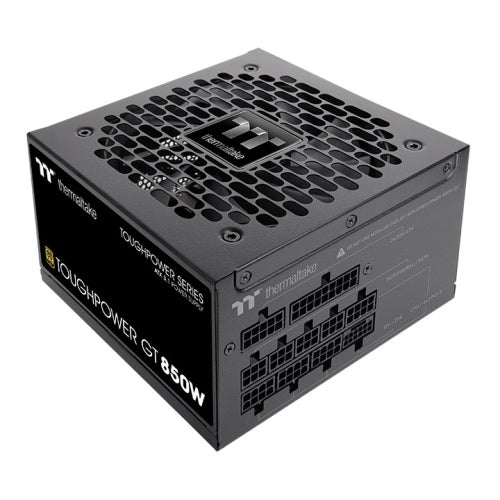

Form Factor & Output: 850 W continuous power, ATX 12V v3.1 / EPS v2.93 compliant, fully modular.
-
Efficiency & Certification: 80 PLUS Gold certified, offers high energy efficiency and low power waste.
-
PCIe Gen 5.1 Ready: Includes native 12V-2×6 (12+4-pin) PCIe connector, capable of delivering up to 450 W to modern GPUs.
-

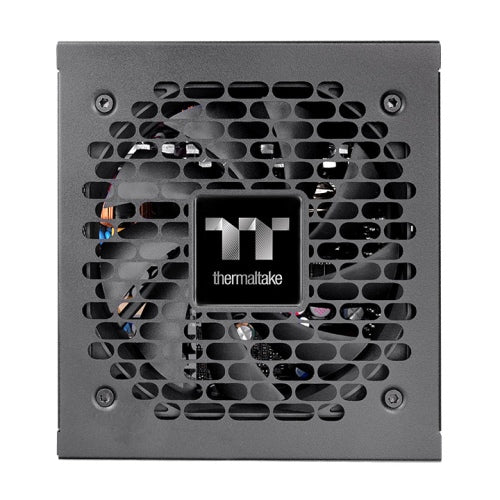

Smart Zero Fan: Quiet 120 mm hydraulic-bearing fan with automatic zero-RPM mode at low loads.
-
Voltage Stability: High-amperage single +12 V rail with LLC resonant and DC-DC design for stable voltage delivery.
-
Protection & Reliability: Comprehensive protections (OCP, OVP, UVP, OPP, SCP, OTP), and MTBF ~100,000 hours.
-
Low Load Efficiency: Complies with ATX 3.1—supports up to 200% power excursions, maintains ≥60% efficiency at low load.
-
Power Specs: AC input 100–240 V, 50/60 Hz; Power Good signal 100–250 ms; Hold-up time > 17 ms at 80% load.
-
Dimensions & Warranty: Measures 150 × 86 × 140 mm; includes a 5-year manufacturer’s warranty.
