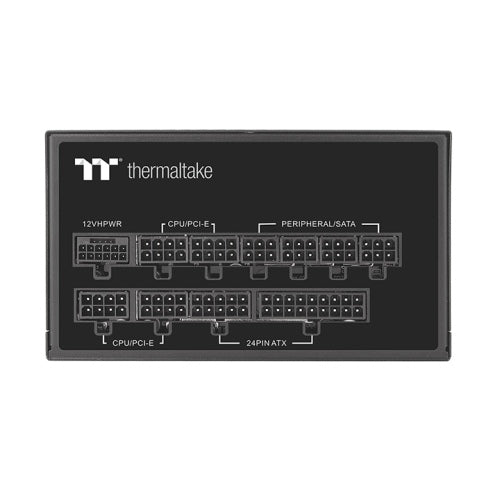

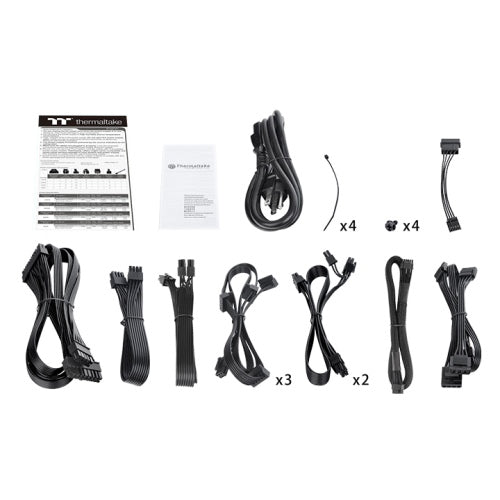

Form Factor & Output: ATX 12V v3.0 / EPS v2.93 compliant, delivers 850 W continuous power. Fully modular design for clean cable management.
-
Efficiency & Certification: 80 PLUS Gold certification with Cybenetics Gold efficiency (87–89%), optimized for Intel C6/C7 idle power states.
-
PCIe 5.0 Ready: Native 12+4 pin (16-pin) 12VHPWR connector, capable of delivering up to 450 W to next-gen GPUs.
-
Voltage Stability & Components: < 30mV ripple noise, ±2% voltage regulation on major rails, LLC + DC-DC design, 100% Japanese 105 °C capacitors.
-
Single +12 V Rail: High-amperage design with one unified +12 V rail (up to ~70.8 A) for stable delivery.
-

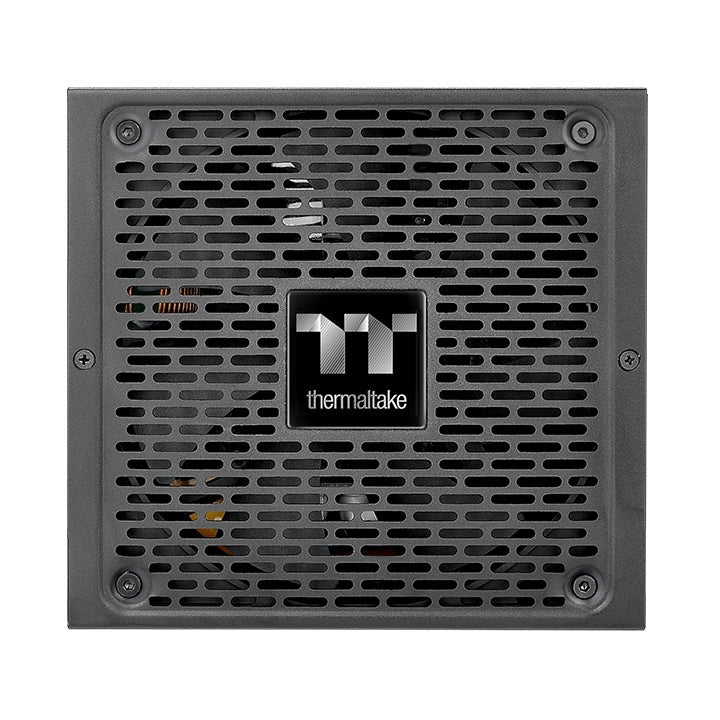

Cooling & Noise: 135 mm hydraulic bearing “Smart Zero” fan—silent at low load, Cybenetics A- noise grade.
-
Protection Features: Comprehensive protections: OCP, OVP, UVP, OPP, SCP, OTP, surge, inrush. MTBF of 100,000 hours.
-
Regulatory Approvals: CE, UKCA, TÜV, FCC, BSMI, IC, CB, EAC, BIS, KCC—all supported.
-

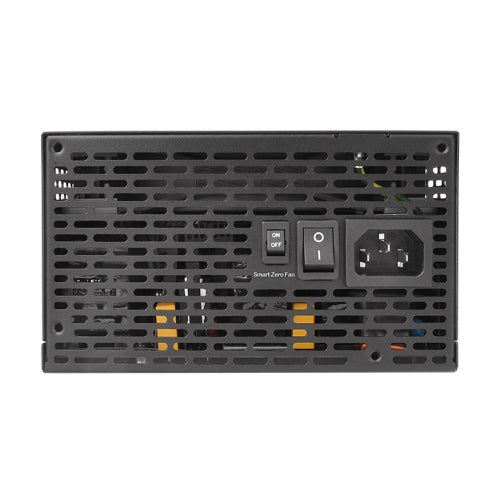

Electrical Specs: Input: 100–240 VAC, 50/60 Hz, 10 A/5 A; Hold-up time > 17 ms; Power-Good signal: 100–150 ms.
-
Dimensions & Weight: 150 × 86 × 160 mm; weight: 1.69 kg.
