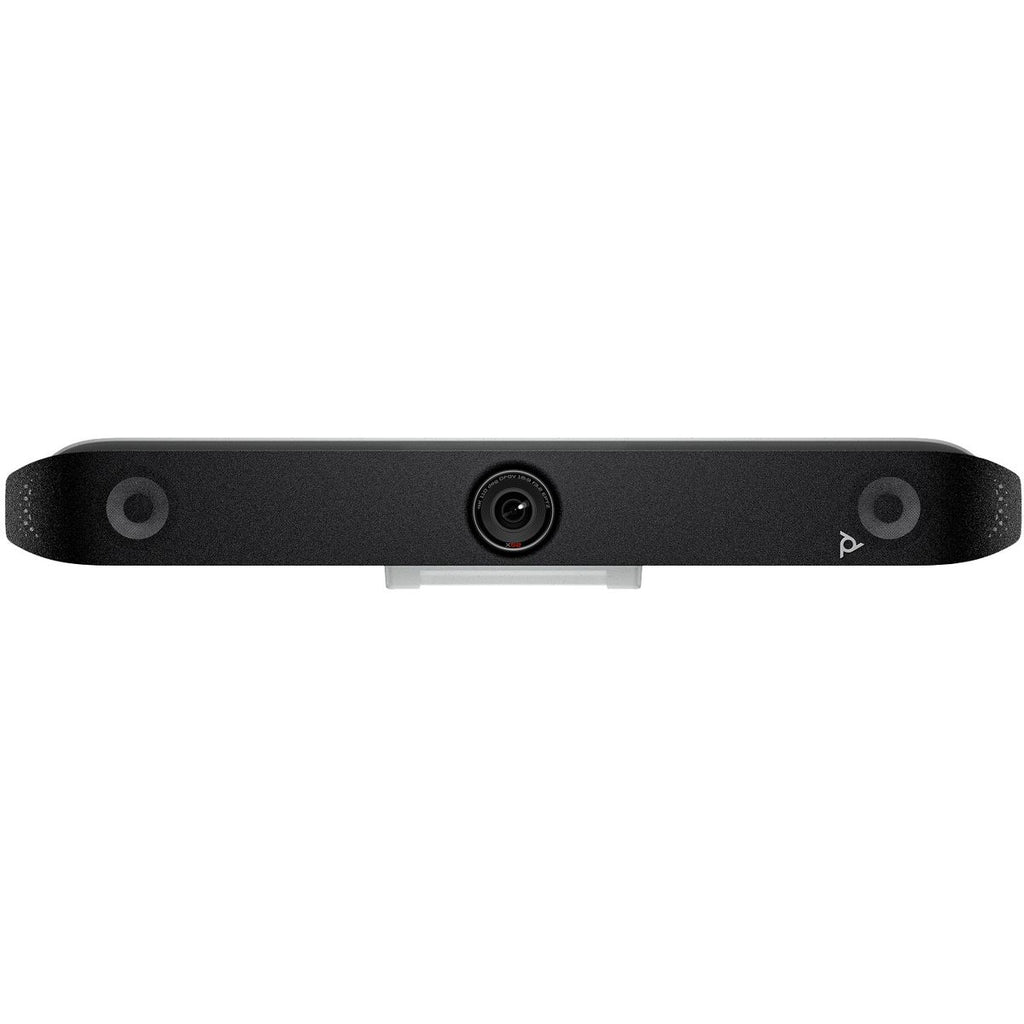

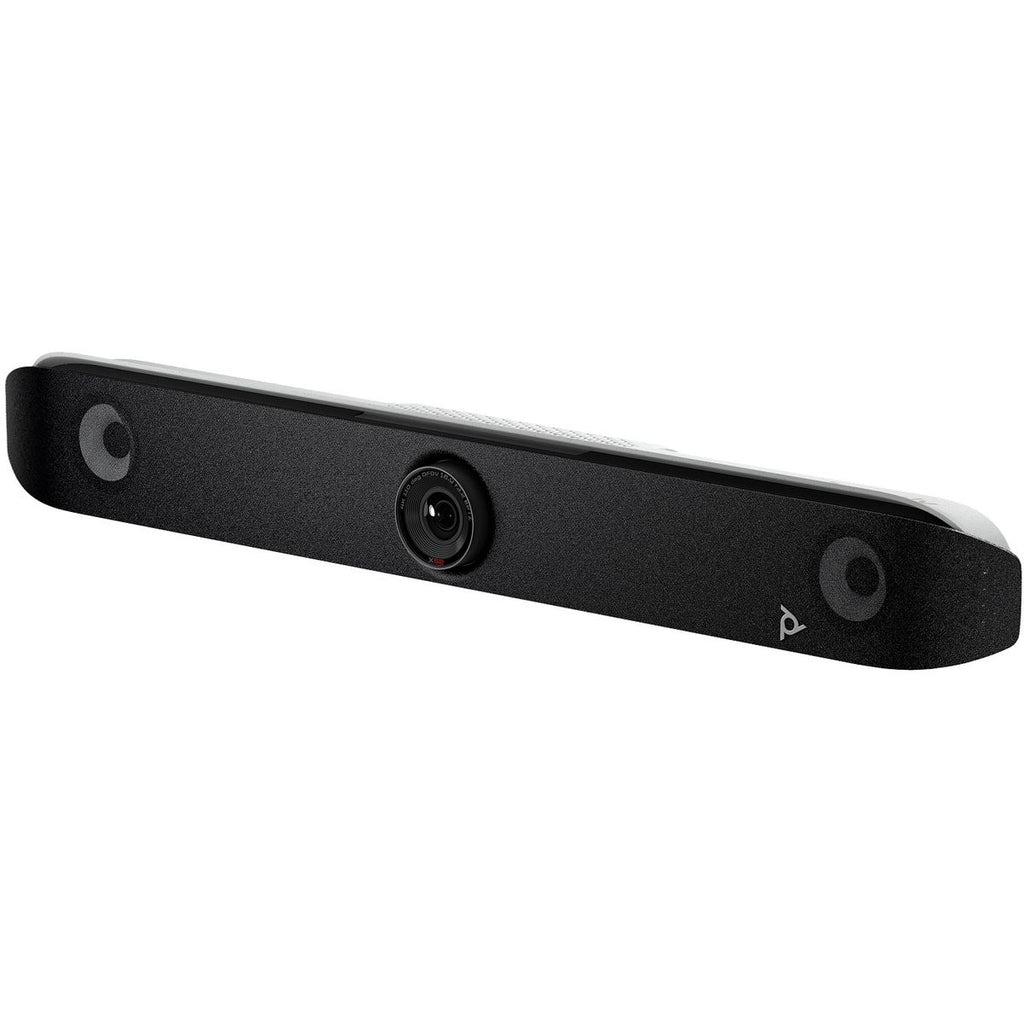

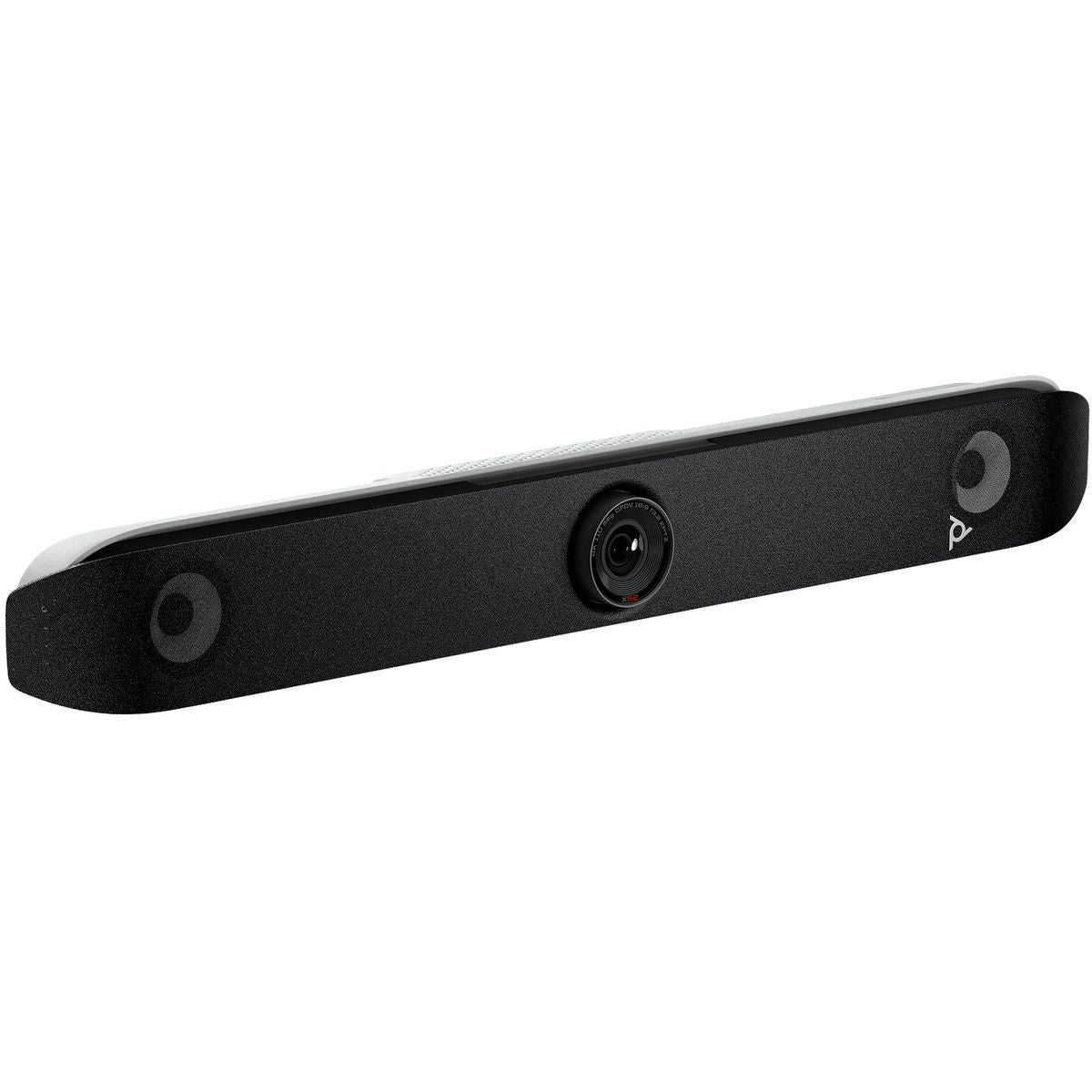

The Studio X52 + TC10 kit upgrades medium rooms with a single device that includes a 20 MP 4K camera, beamforming mics, stereo speakers, and the TC10 PoE touch controller. DirectorAI auto-framing, dual HDMI outputs, and built-in cloud video apps make meetings simple and consistent.
-

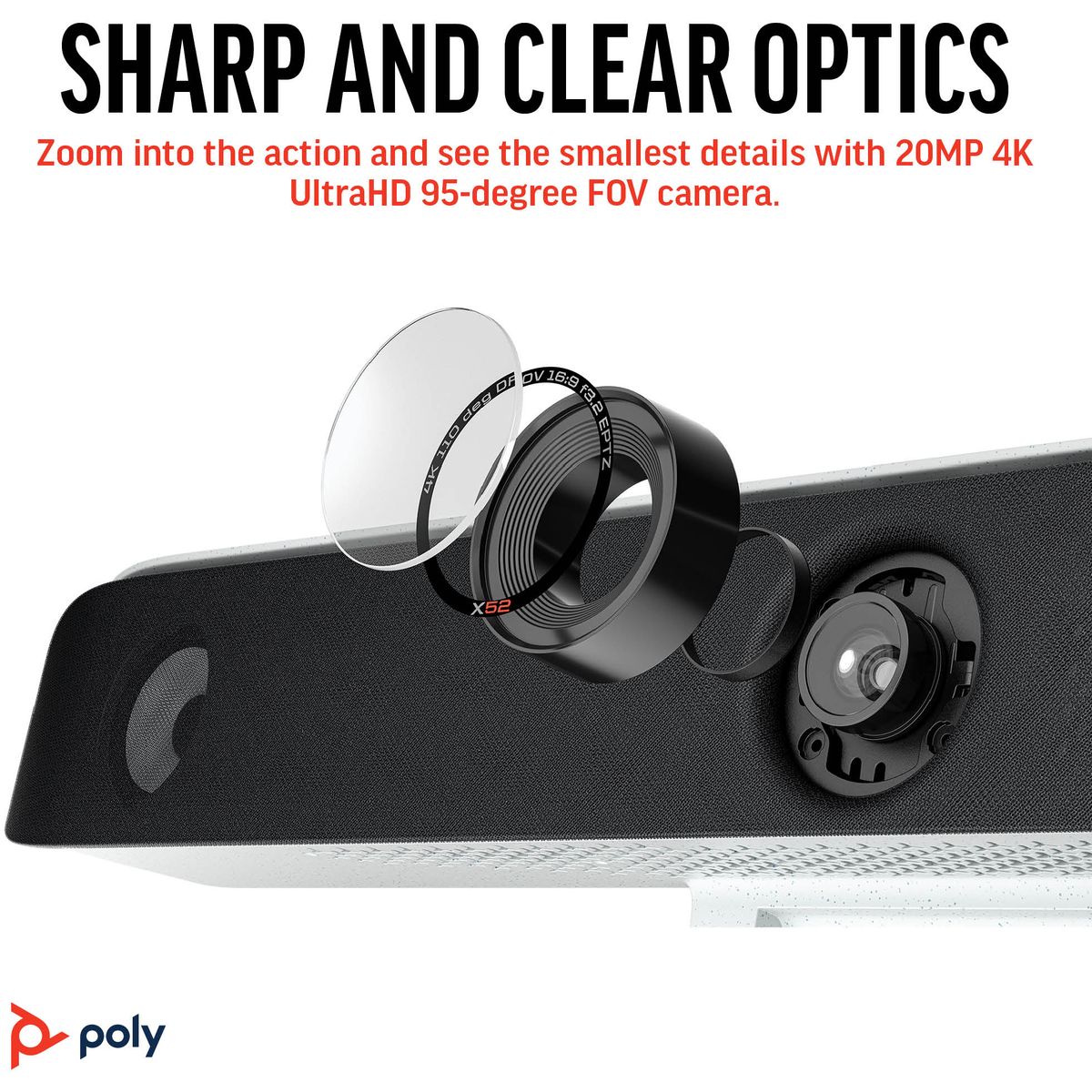

See everyone clearly – 20 MP 4K camera, 95° HFOV, 5× digital zoom, DirectorAI framing.
-
Hear every word – Poly noise-filtering tech with up to 20 ft mic pickup and stereo speakers.
-
Flexible connectivity – HDMI in for content, dual HDMI out for displays, USB-A/C, Ethernet, Wi-Fi 6, BT 5.0.
-
Join your way – Native Zoom / Teams / Google Meet apps, H.323/SIP (Poly Video App), or USB device mode.
-
Easy control – TC10 10.1″ touch panel for call control or room scheduling; manage fleets with Poly Lens.
Technical Specifications
| Parameter |
Value |
| Kit Contents |
Poly Studio X52 video bar + Poly TC10 touch controller |
| Camera |
20 MP sensor; 4K UHD capture; 110° dFoV / 95° hFoV; 5× digital zoom; DirectorAI auto-framing |
| People Video (max) |
4K@30 fps TX/RX; 1080p@60; 1080p@30; 720p@60/30 |
| Content Sharing |
HDMI in, Apple AirPlay, Miracast, whiteboarding |
| Audio |
Stereo speakers (20 W RMS total); Poly noise filtering |
| Microphones |
2× MEMS + 2× second-order mics; up to 20 ft pickup; optional table mic |
| Video I/O |
Input: 1× HDMI; Output: 2× HDMI (touch display compatible) |
| USB & Other I/O |
2× USB-A 3.0, 1× USB-C; Bluetooth® 5.0; 1× 10/100/1G Ethernet |
| Wireless |
Wi-Fi 6 (802.11a/b/g/n/ac/ax) |
| Protocols |
H.264/H.265; H.323 & SIP up to 6 Mbps (Poly Video App mode) |
| Supported Apps |
Native Zoom, Microsoft Teams, Google Meet; USB device mode |
| Management |
Poly Lens (cloud/device management) |
| Power & Thermal |
Typical 25 W heavily loaded; 8 W idle; autosensing PSU |
| Dimensions / Weight (X52) |
769.5 × 115.2 × 103 mm; 2.54 kg |
What’s in the Box
- Studio X52 video bar
- Power supply
- HDMI cable & Ethernet cable
- Monitor clamp & privacy cover
- TC10 touch controller (mounting accessories vary by kit)
- Quick start / regulatory info
