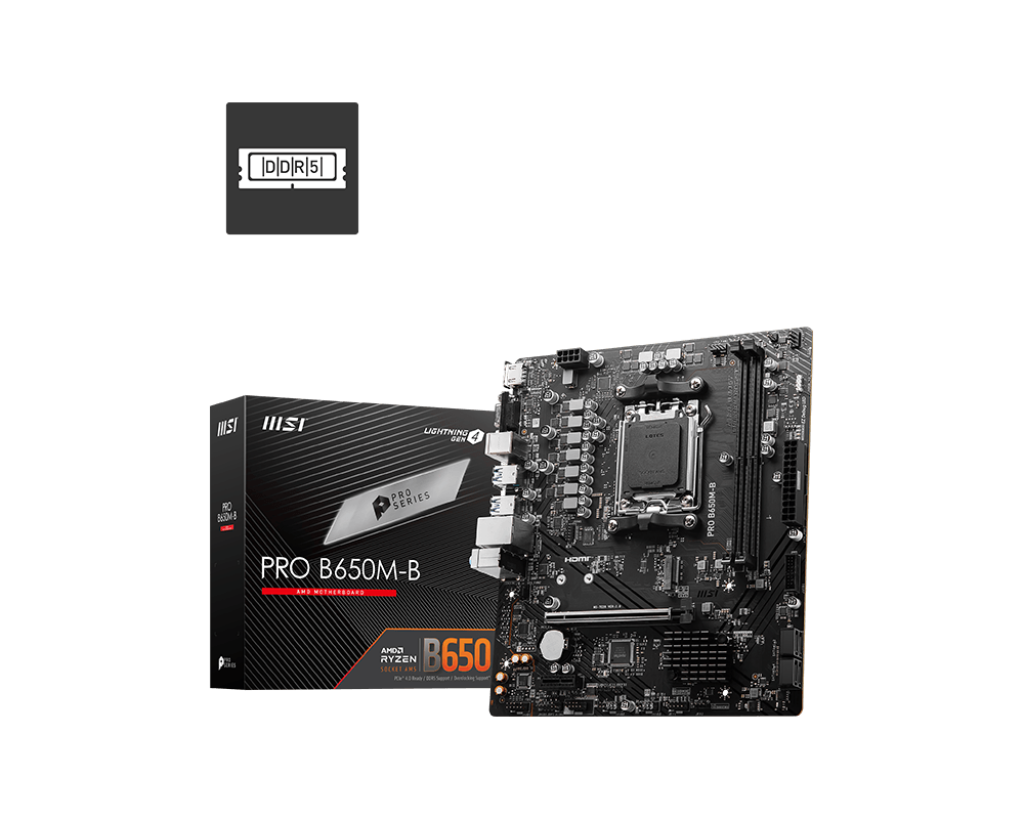

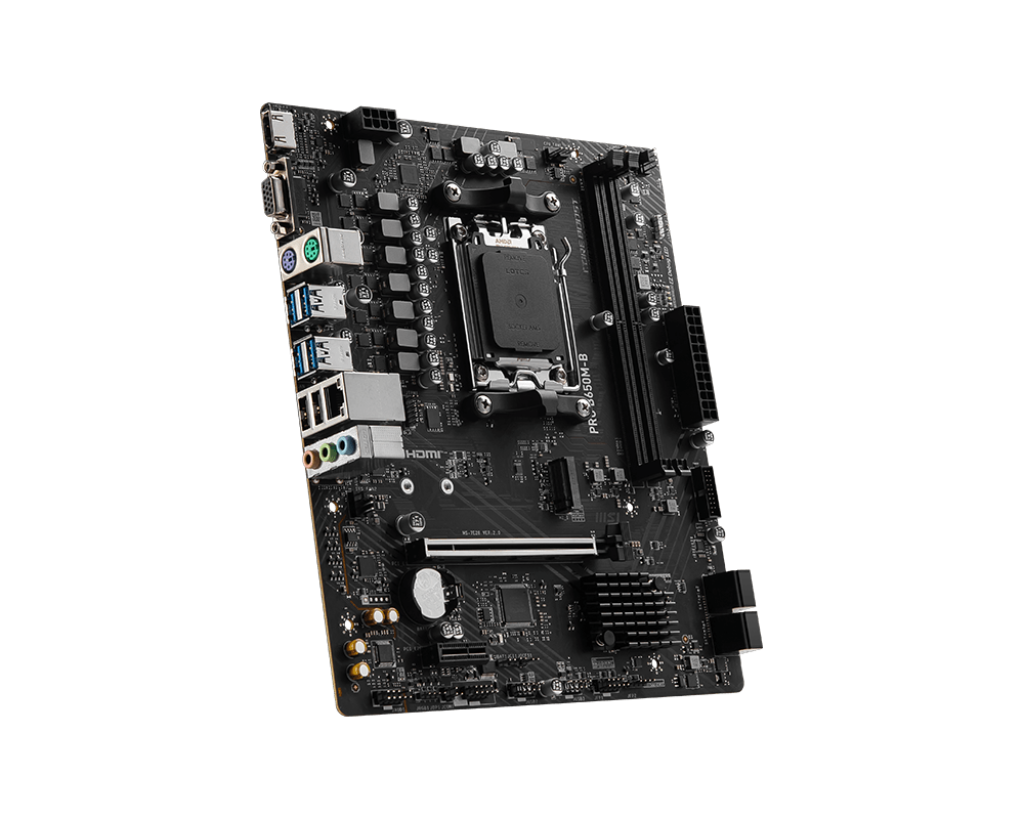

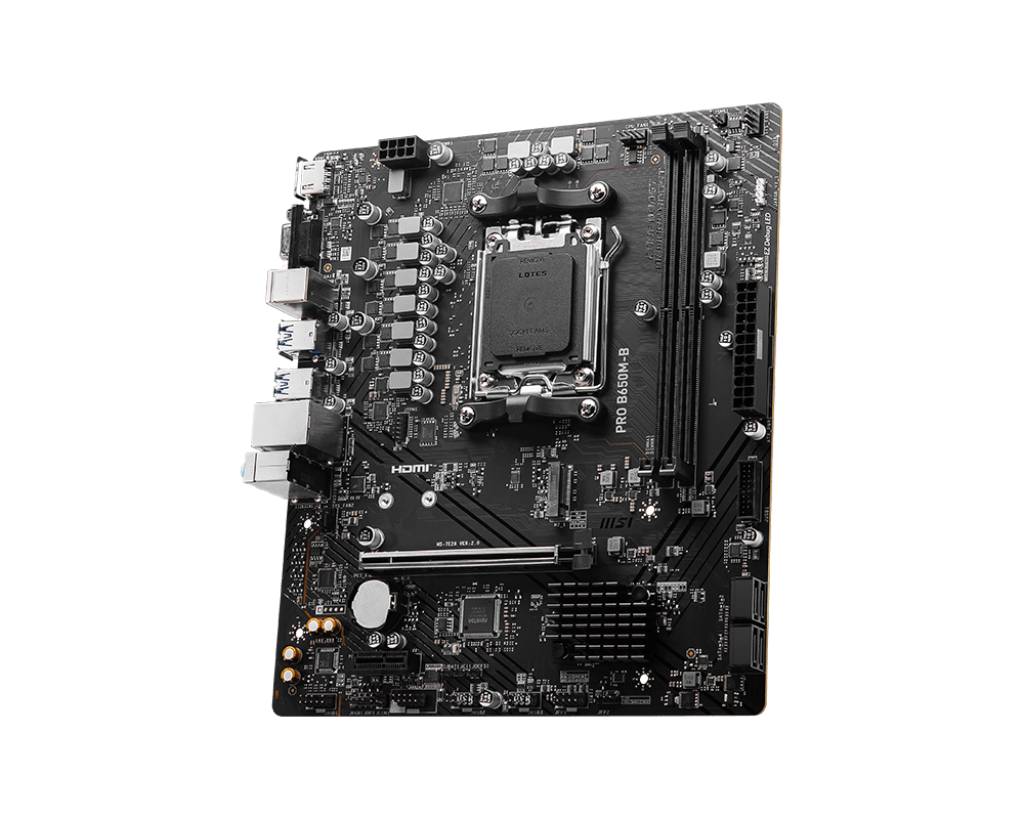

Chipset & CPU Support: AMD B650; supports AMD Ryzen 7000 / 8000 / 9000 Series desktop processors on Socket AM5. Form Factor: micro-ATX (mATX) board.
-
Memory Support:
- 2 × DDR5 DIMM slots, Dual-Channel setup.
- Maximum capacity: 128 GB (some listings mention 96 GB for certain markets) depending on memory configuration and CPU.
- Speed: JEDEC & OC up to around 6800+ MHz.
-
Graphics Outputs (when using a CPU with iGPU): 1 × HDMI 2.1 (4K @ 60Hz); 1 × VGA.Expansion Slots:
- 1 × PCIe x16 slot (PCIe 4.0) for graphics card.
- 1 × PCIe x1 (Gen3).
-
خيارات التخزين:
- 1 × M.2 slot (PCIe 4.0 x4) for NVMe SSDs.
- 4 × SATA 6Gb/s ports for 2.5"/3.5" HDDs/SSDs.
-
USB & I/O Ports:

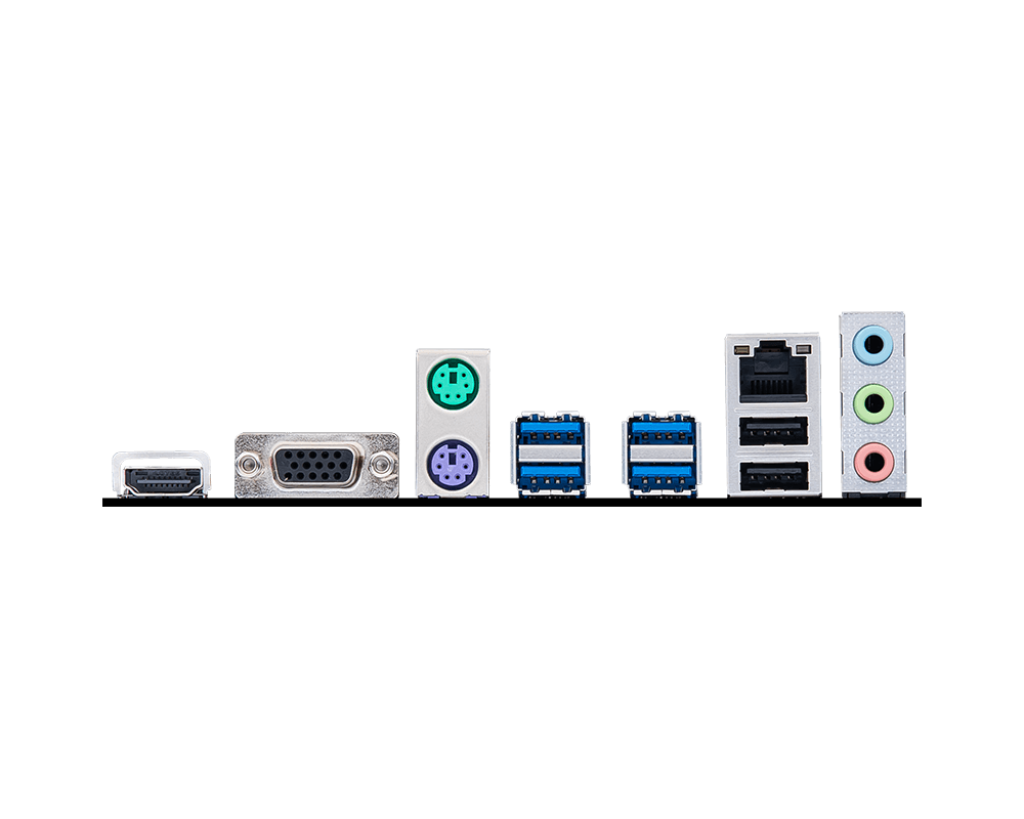

- Rear I/O: USB 3.2 Gen1 Type-A, USB 2.0, etc.
- Internal front-panel USB headers (USB 2.0, USB 3.2) available.
-
Networking & LAN: Realtek RTL8125BG 2.5 Gb LAN.
-
Audio Codec: Realtek ALC897, supports 7.1-channel high-definition audio.
-
BIOS / Firmware Features: MSI features like “Core Boost”, “Memory Boost”, Lightning Gen4 PCIe, Frozr AI Cooling.
-
Debug / Utility Features: EZ Debug LED, various fan headers, front panel connectors, TPM 2.0 header.
-
Operating System Support: Windows 10 64-bit, Windows 11 64-bit.
