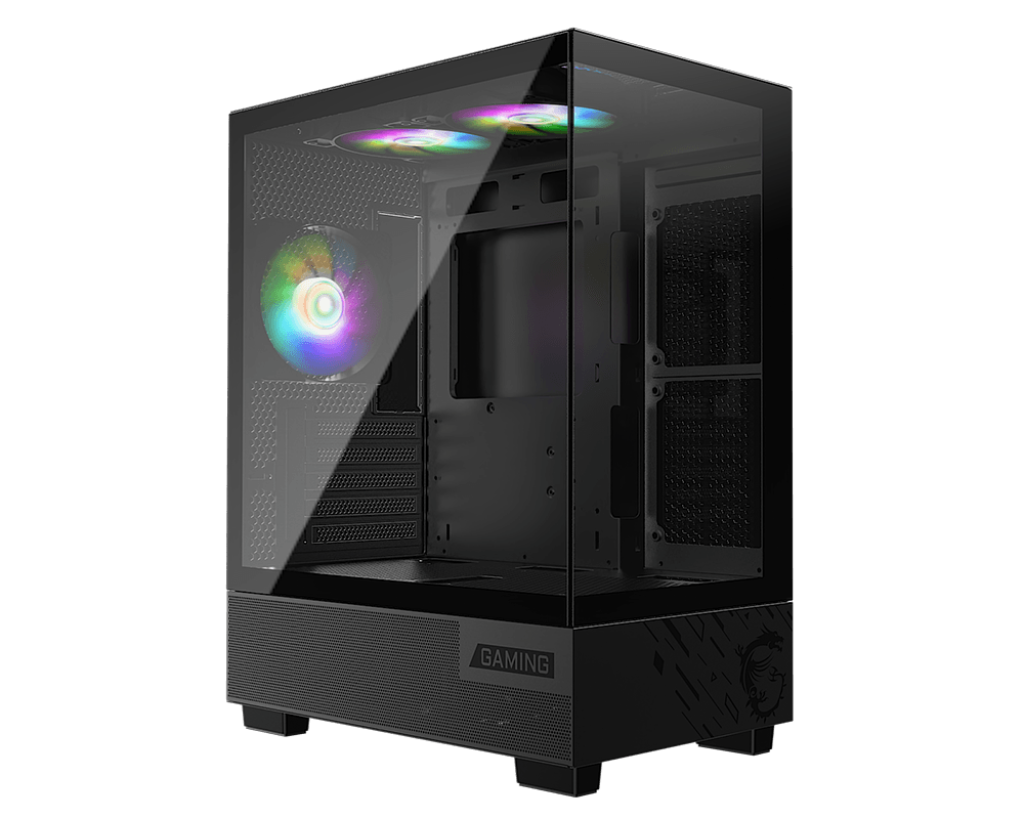

Case Name: MSI PAG PANO M110A Mid-Tower Gaming Chassis
-
Motherboard Compatibility: Micro-ATX & Mini-ITX form factors supported.
-
Maximum GPU Length: 330 mm / 12.99 inches.
-
Maximum CPU Cooler Height: 160 mm / 6.29 inches.
-
PSU Compatibility: ATX PSU; maximum PSU length 160 mm / 6.29 inches.
-
Drive Bays: 1 × 2.5″ + 2 × 3.5″.
-
Expansion Slots: 5 slots.
-
Pre-Installed Fans: 2 × 120 mm at top, 1 × 120 mm at rear.
-
Fan/Radiator Support:
- Rear: 1 × 120 mm
- Top: 2 × 120 mm or 2 × 140 mm, supports up to 240 mm radiator
- Side: 2 × 120 mm
- Bottom: 2 × 120 mm
-

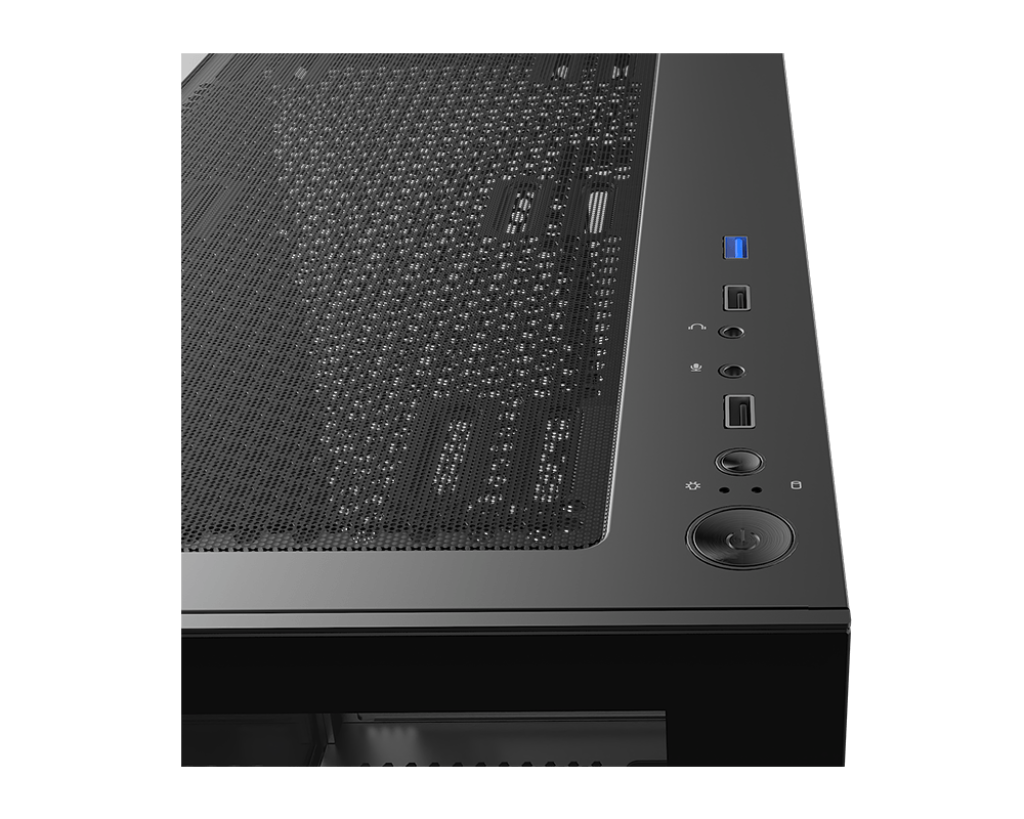

I/O Ports: 1 × USB Type-A (5 Gbps), +1 × standard USB-A, 1 × Audio Out / Mic In, Power and Reset buttons.
-
Case Dimensions (D × W × H): 369 × 210 × 448 mm (≈ 14.52 × 8.26 × 17.63 inches).
-
RGB / Lighting: Auto RGB fans: 2 on top + 1 at rear are RGB pre-installed.
-
Features: Magnetic top dust filter; optimized airflow supporting up to ~7 or 8 fans; side panel likely transparent (or styled for showing ARGB).
