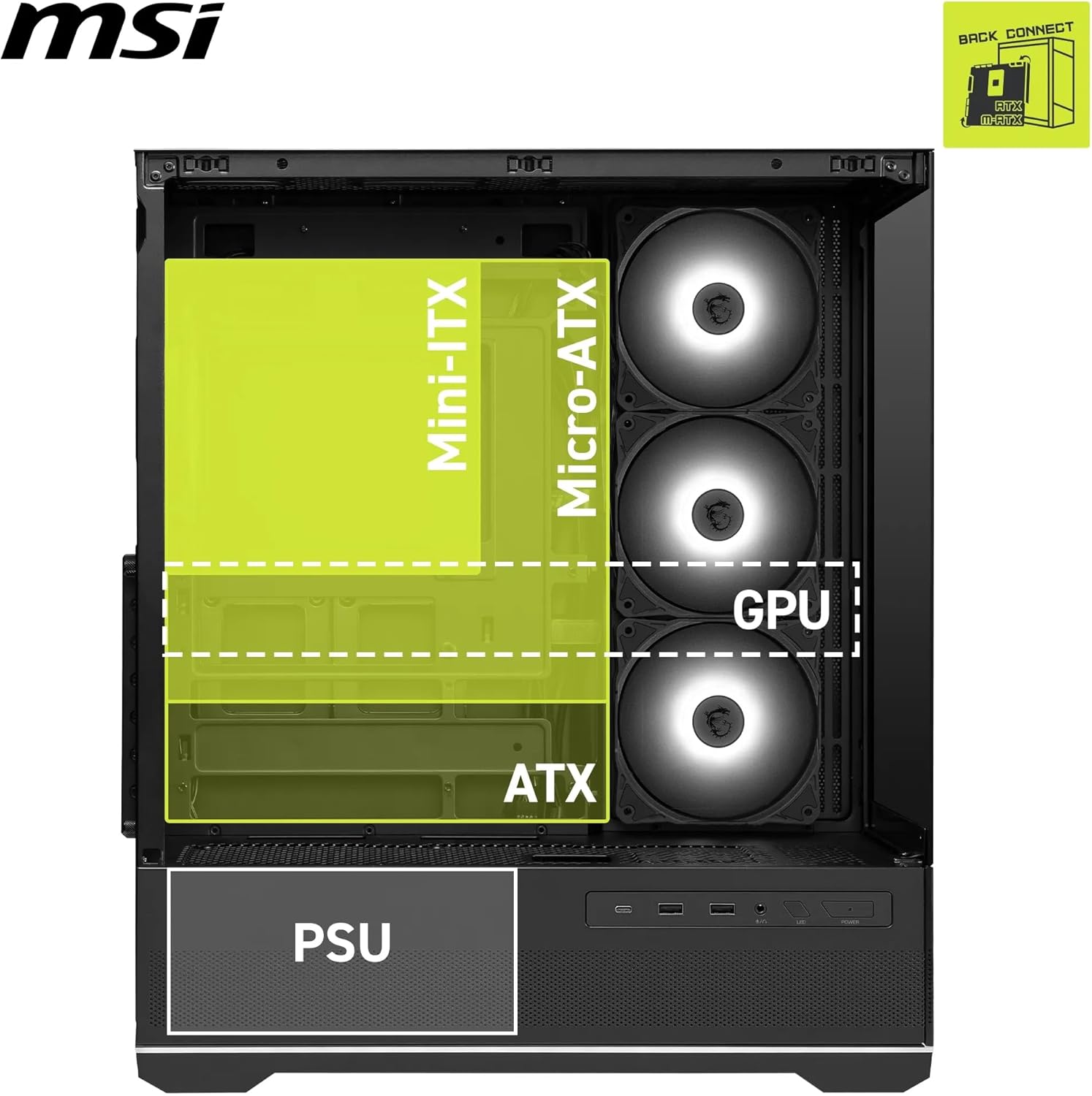

Case Type & Motherboard Support: Mid-tower chassis; supports ATX, micro-ATX, Mini-ITX; also ATX & mATX back-connect boards.
-

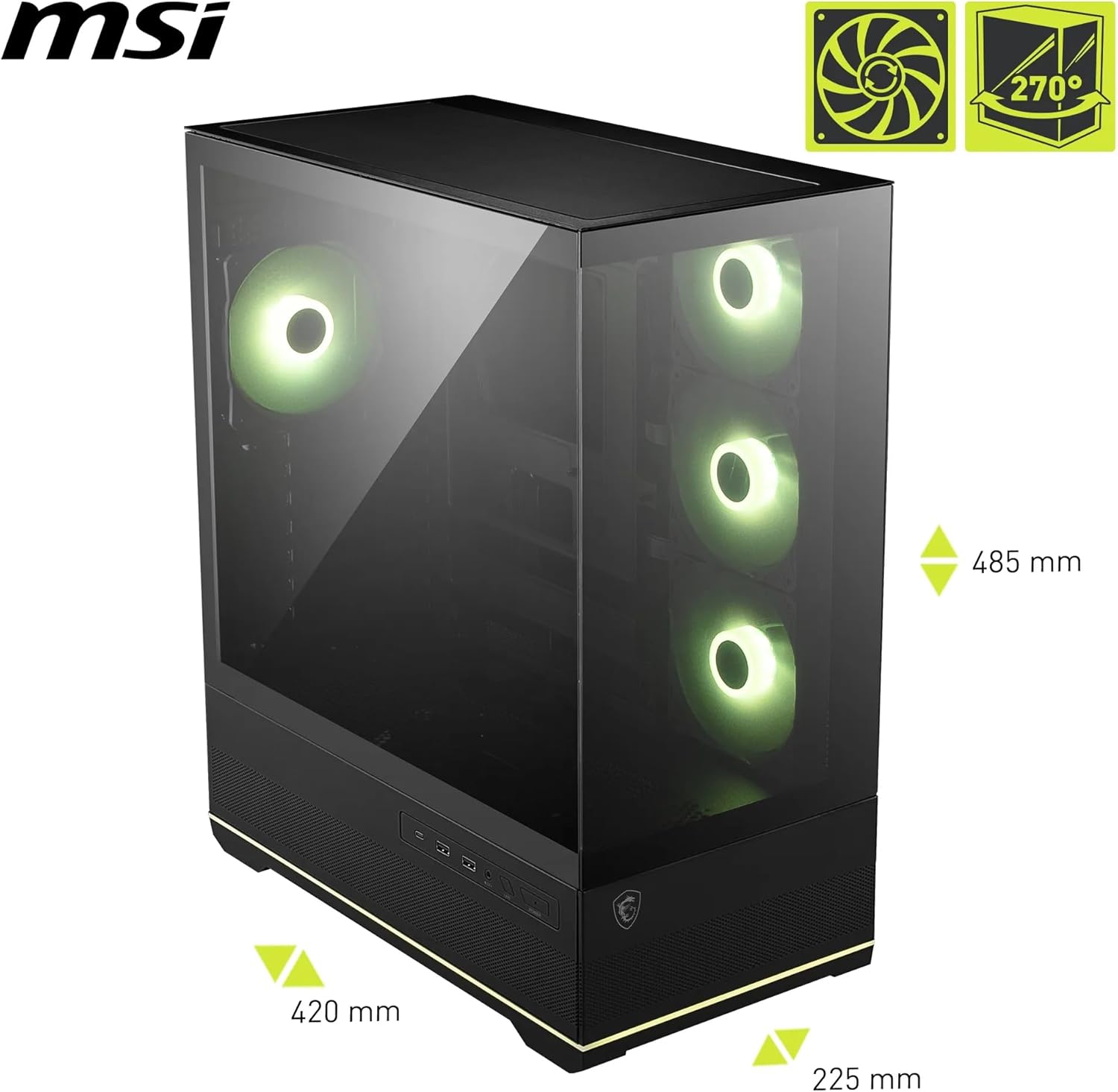

Dimensions (DxWxH): 420 × 225 × 485 mm
-
Maximum GPU Length: 400 mm (≈ 15.75")
-
Maximum CPU Cooler Height: 160 mm
-
Maximum PSU Length: 200 mm
-
Expansion Slots: 7 full-height slots
-

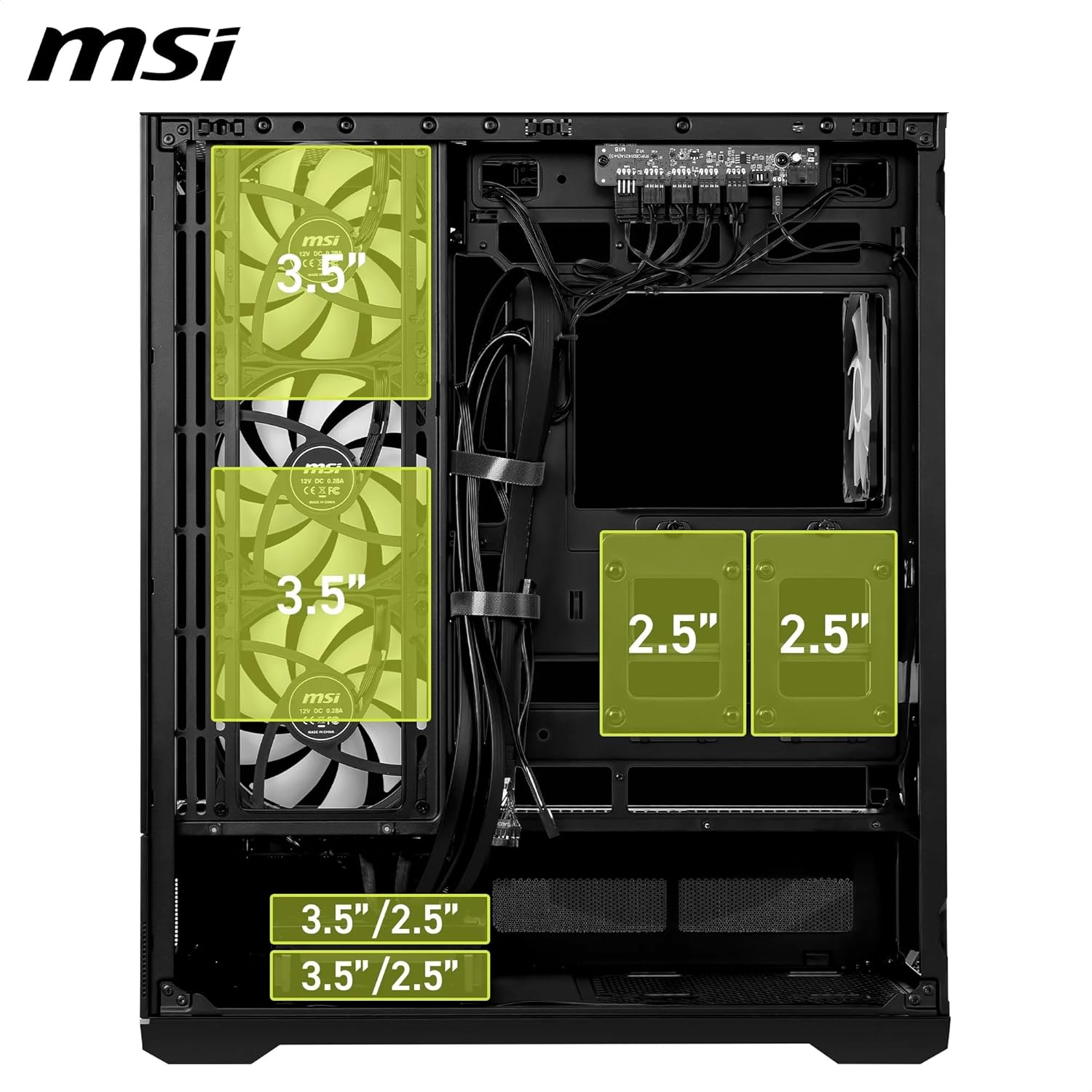

Drive Bays / Storage Support:
- 4 × 2.5″ SSD bays
- 4 × 3.5″ HDD bays Cooling / Fan Support:
- Side: 3 × 120 mm (preinstalled) or 2 × 140 mm
- Top: 3 × 120 mm or 2 × 140 mm; supports radiators up to 360 mm
- Rear: 1 × 120 mm (preinstalled)

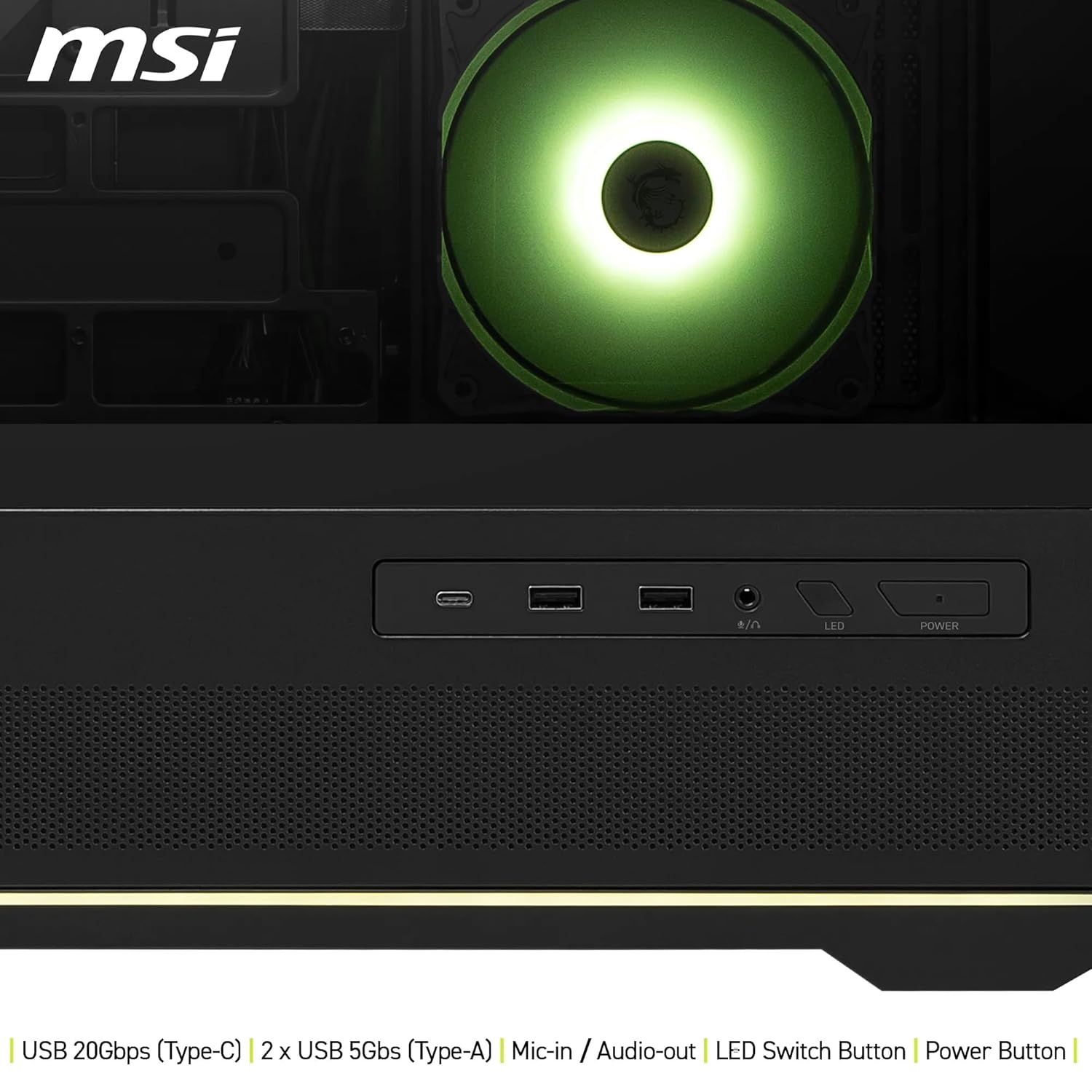

- Bottom (PSU shroud area): support for additional 3 × 120 mm fans I/O Ports & Front Panel:
- 1 × USB-C 20 Gbps Type-C port
- 2 × USB-A 5 Gbps ports
- 1 × combo Audio/Mic jack (4-pole)
- LED mode switch button, Power button
-
Cable Management & Clearances: ~35 mm clearance behind the motherboard tray for cables
-
Materials & Panels: SPCC steel (0.5 mm), tempered glass side / panoramic 270° glass panel
-

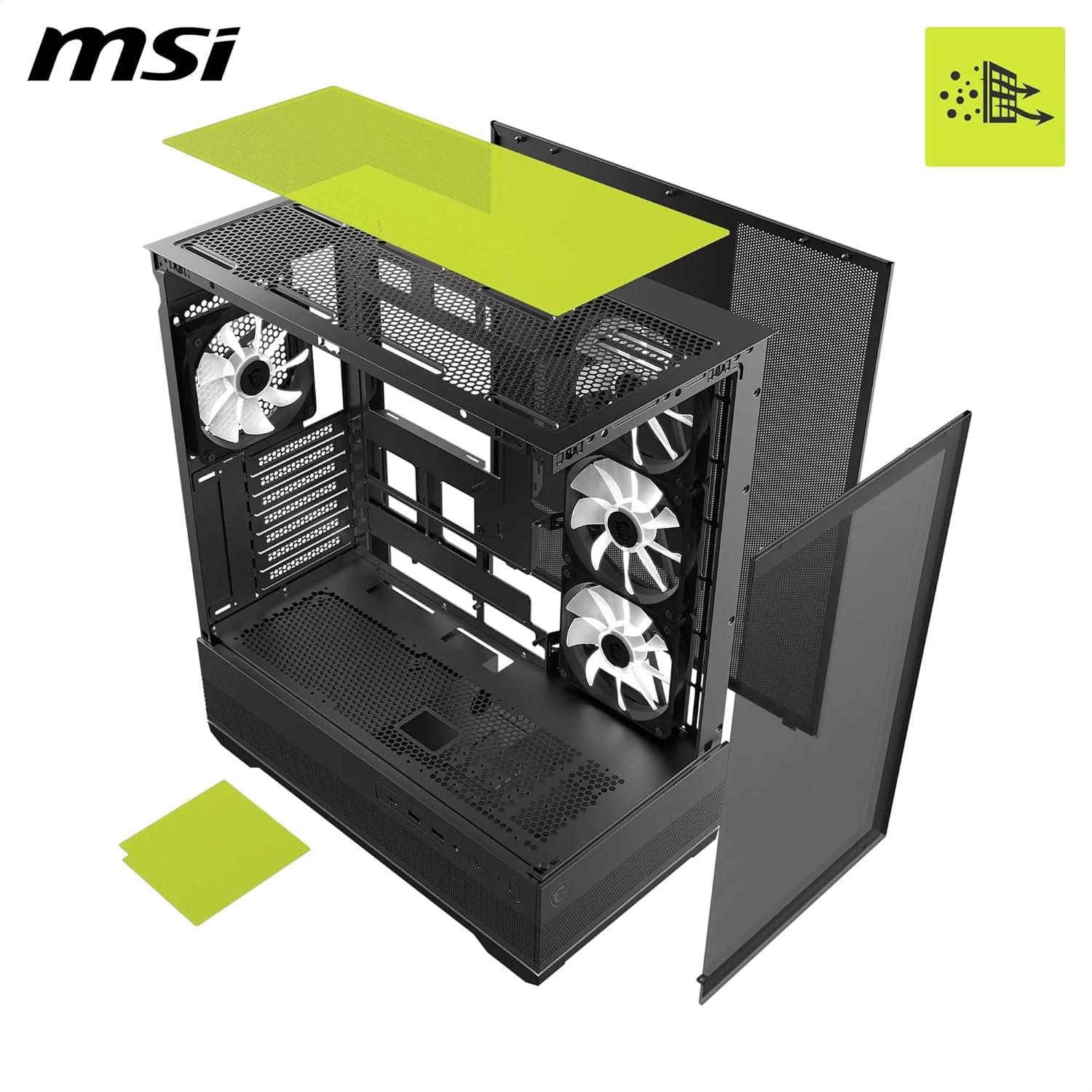

Dust Filters: Magnetic top filter; removable bottom filter for PSU area.
