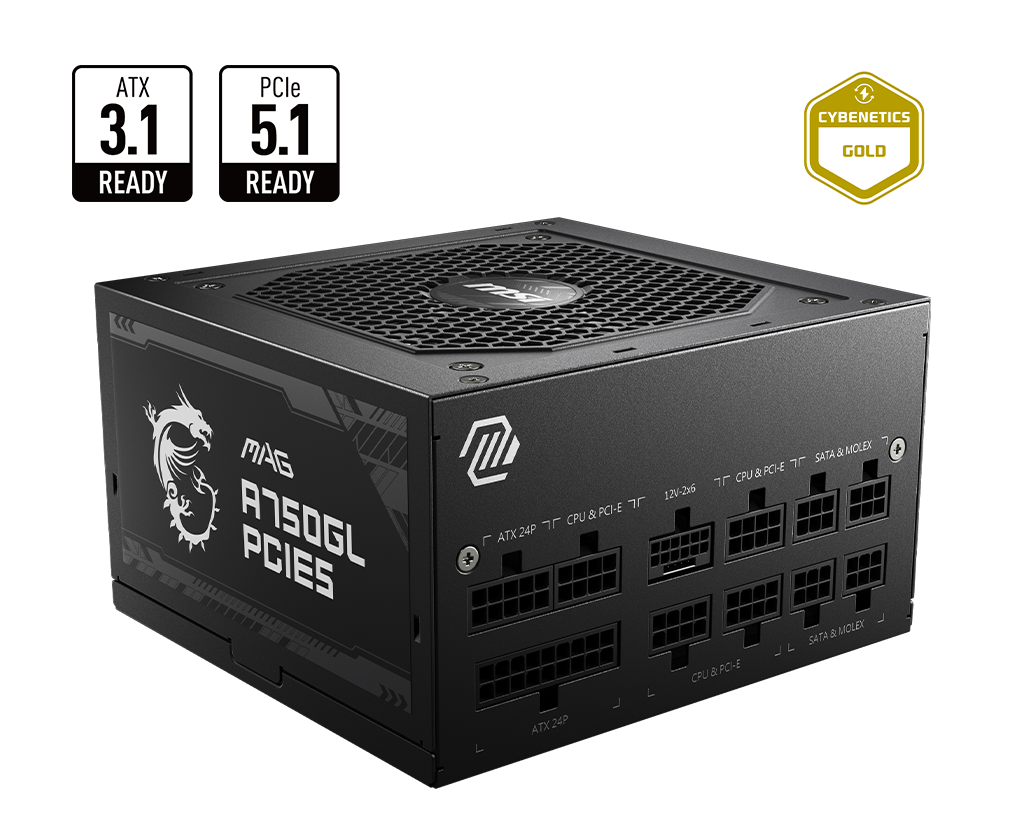

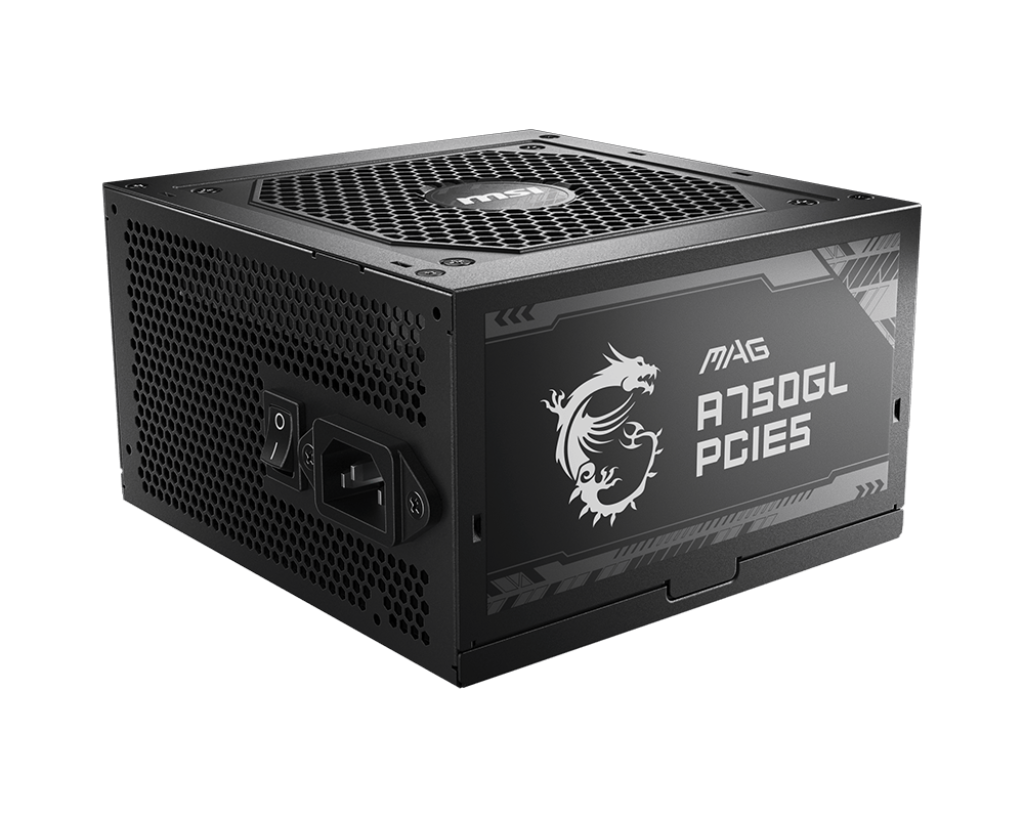

Model & Certification: MSI MAG A750GL PCIE5 – 80 PLUS Gold certified power supply.
Power Rating: 750 W continuous output.
دعم PCIe-5 / GPU: يتضمن كابل طاقة GPU أصلي PCIe 5.1 / 16-pin (12V-2x6) قادر على توصيل حتى 450 واط إلى وحدة معالجة رسومات واحدة.
Form Factor & Size: ATX 3.0 / ATX 3.1 compatible; dimensions are 140 × 150 × 86 mm (D × W × H).

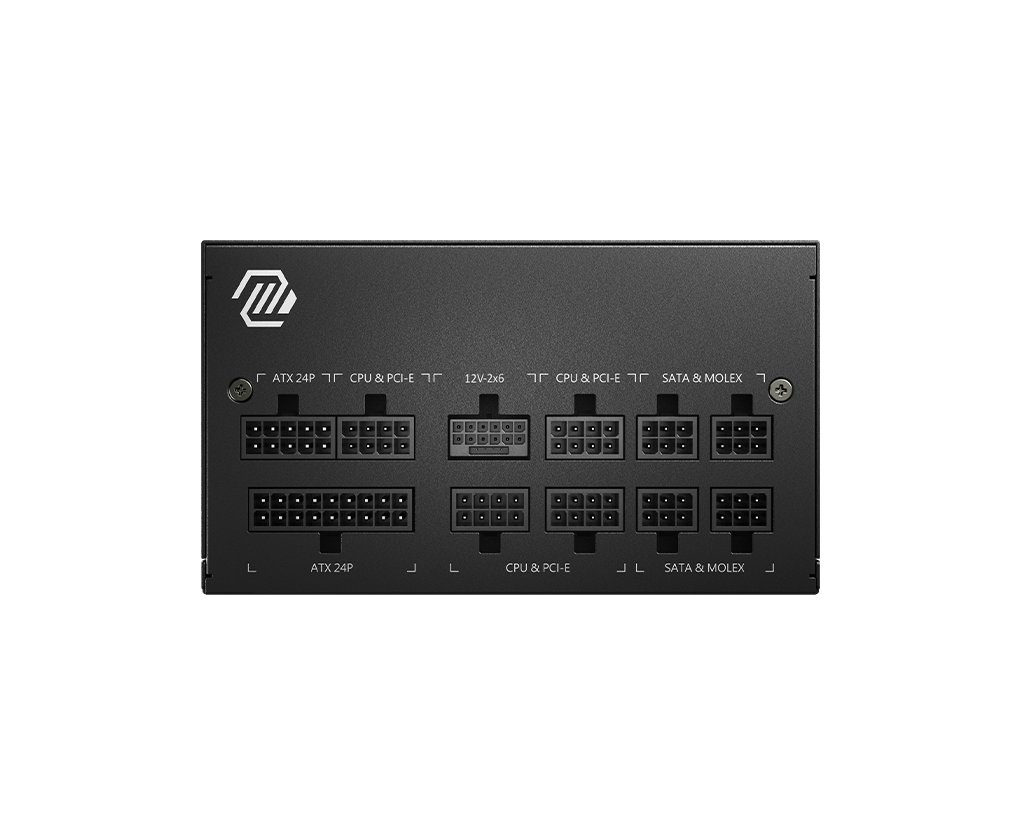

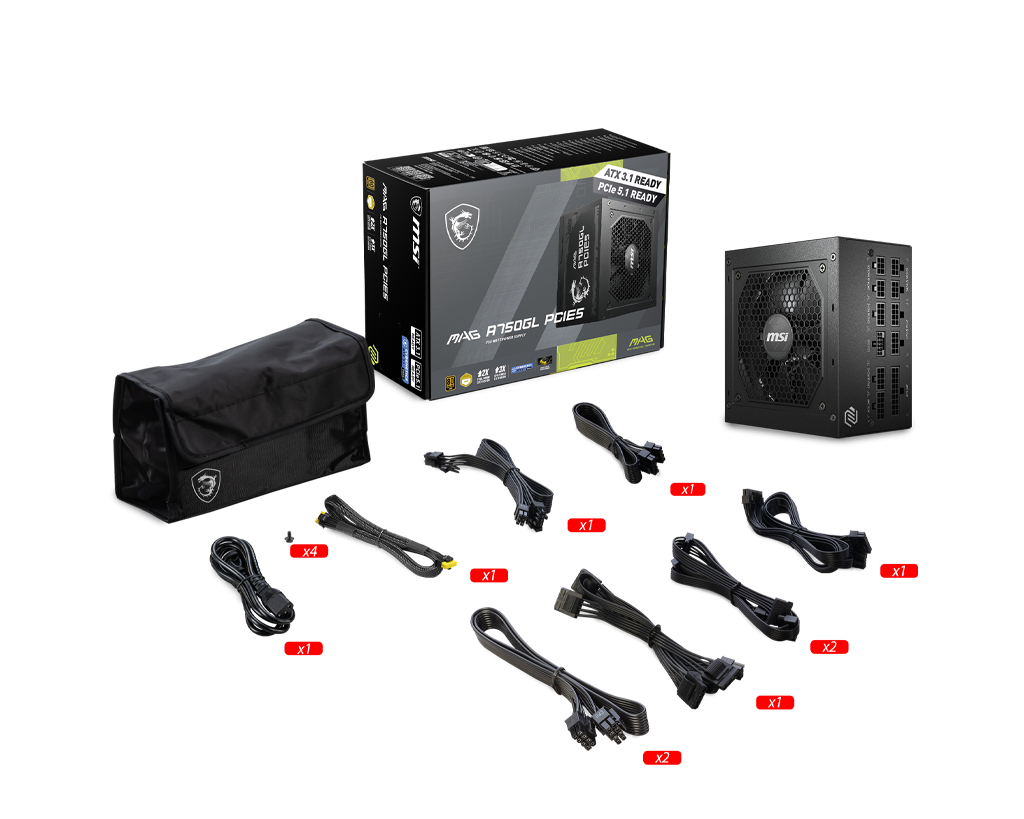

Modularity: Fully modular design with flat black cables.

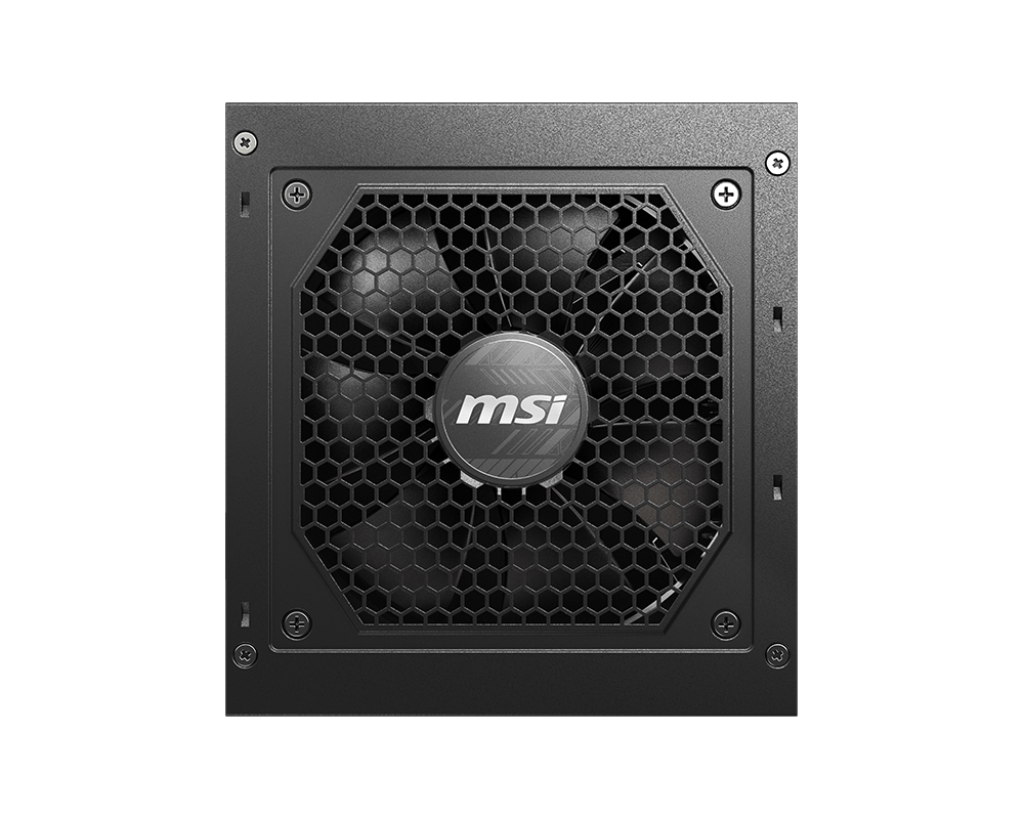

Fan & Cooling: 120 mm fluid dynamic bearing fan; active PFC design.
Input Specifications: 100-240 VAC, 47-63 Hz.
Protections: Over Current Protection (OCP), Over Voltage Protection (OVP), Over Power Protection (OPP), Over Temperature Protection (OTP), Short Circuit Protection (SCP), Under Voltage Protection (UVP).
Auxiliary Rails:
+12 فولت: 62 أمبير.
+5 V & +3.3 V rails: up to 20 A each.-12 V: 0.3 A; +5VSB: 2.5 A.
Peak Excursion: Supports power excursion up to ~1500 W for very short bursts (≈ 100 µs).
