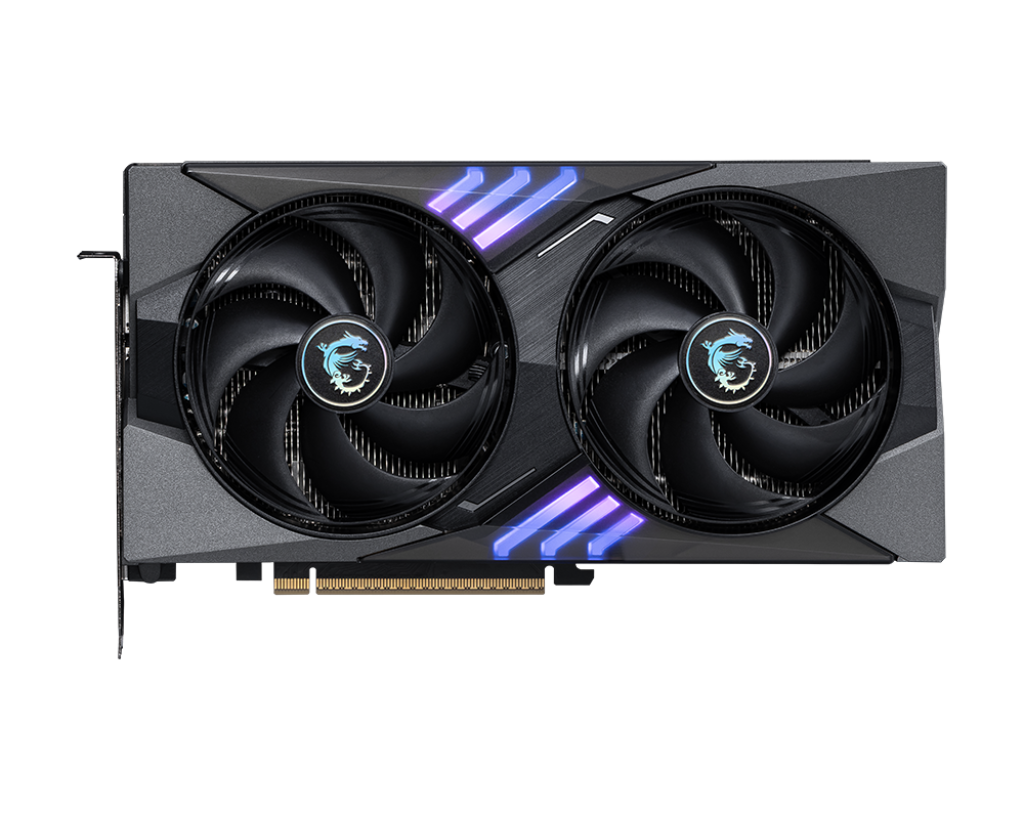

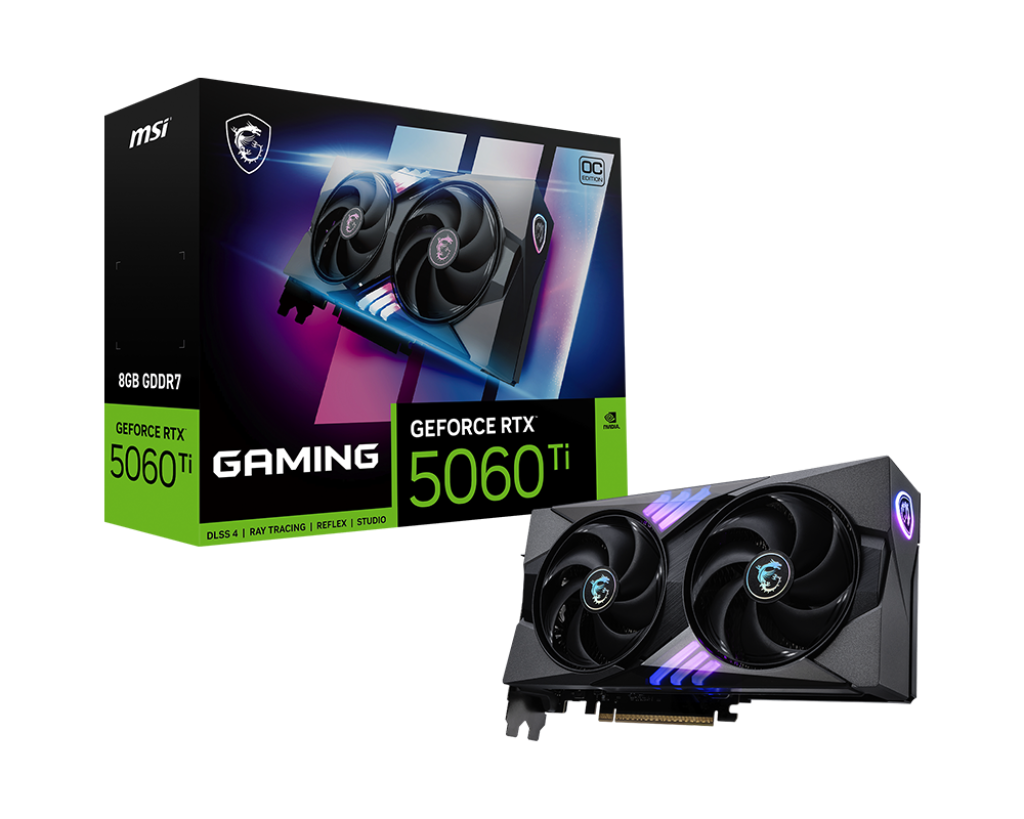

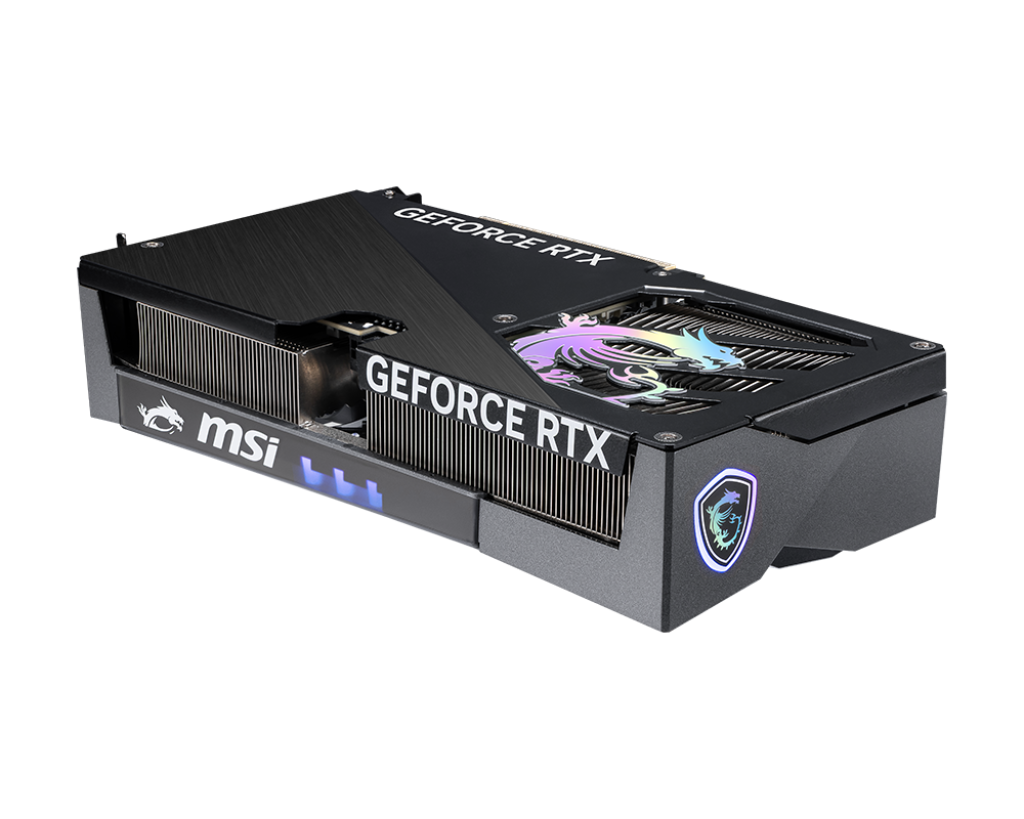

Model: MSI GeForce RTX 5060 Ti 8G GAMING OC (Twin Frozr 10)
-
GPU: NVIDIA GeForce RTX 5060 Ti
-
Memory: 8 GB GDDR7, 128-bit interface; memory speed up to ~ 28 Gbps
-
Core Clocks: Extreme Performance mode ~ 2,662 MHz; Boost clock ~ 2,647 MHz
-
Bus / Interface: PCI Express Gen 5 ×16 (operates electrically at ×8)
-

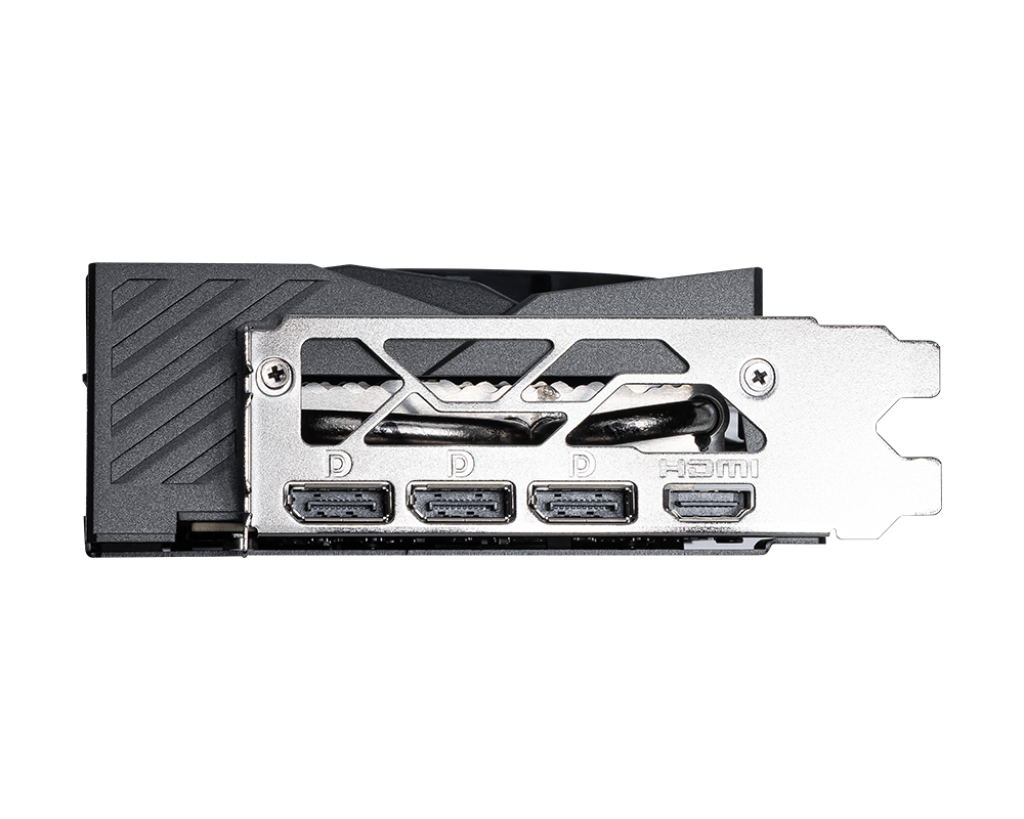

Outputs: 3 × DisplayPort 2.1b + 1 × HDMI 2.1b (supports 4K@480Hz, or 8K@120Hz with DSC; includes Gaming VRR, HDR)
-
Display Support: Up to 4 displays; Max digital resolution ~ 7680 × 4320
-
Cooling / Features:
- Twin Frozr 10 thermal design with StormForce fans (7 blades, claw-textured blades, arc design) for improved airflow and quieter operation.

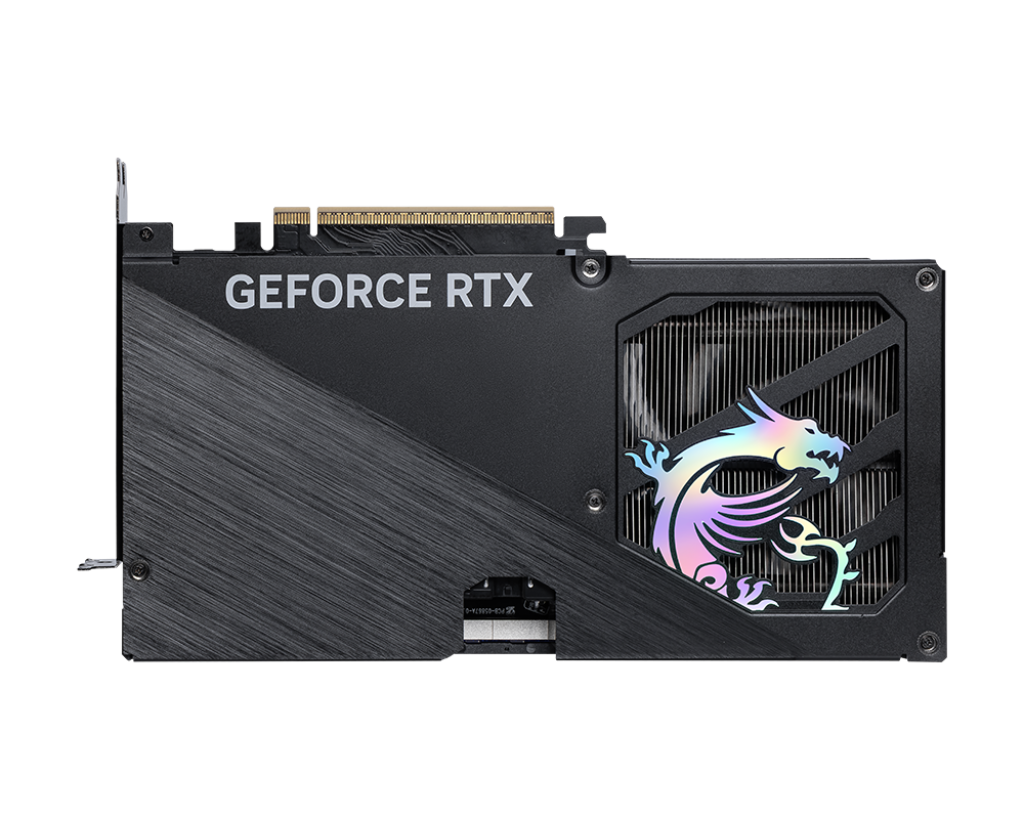

- Nickel-plated copper baseplate, metal backplate with vents and thermal pads.
- Design enhancements like “Wave Curved 4.0” and “Air Antegrade Fin 2.0” to optimize airflow and reduce turbulence.
-

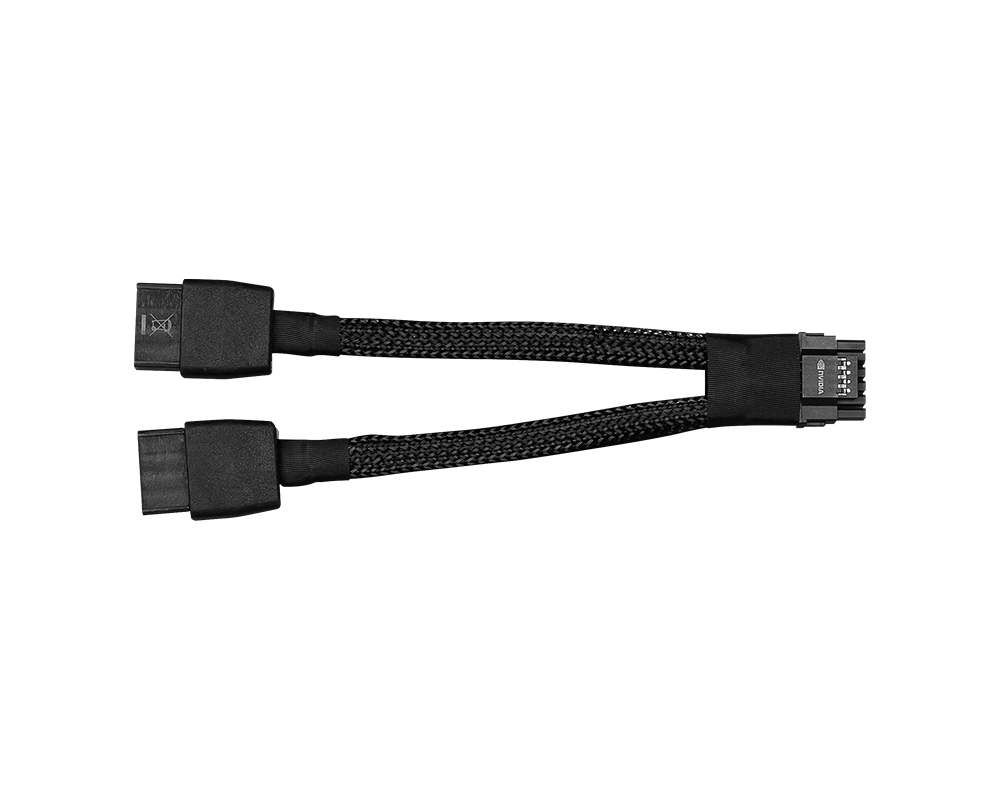

Power / Consumption: Typical board power ~ 180 W; requires one 16-pin power connector; recommended PSU ~ 600 W.
-
Dimensions & Weight: Approx. 247 × 135 × 51 mm; weight ~ 768 g (card only) / ~1219 g (including packaging)
-
API / OS Support: DirectX 12 Ultimate; OpenGL 4.6; G-SYNC support; HDCP support included.
