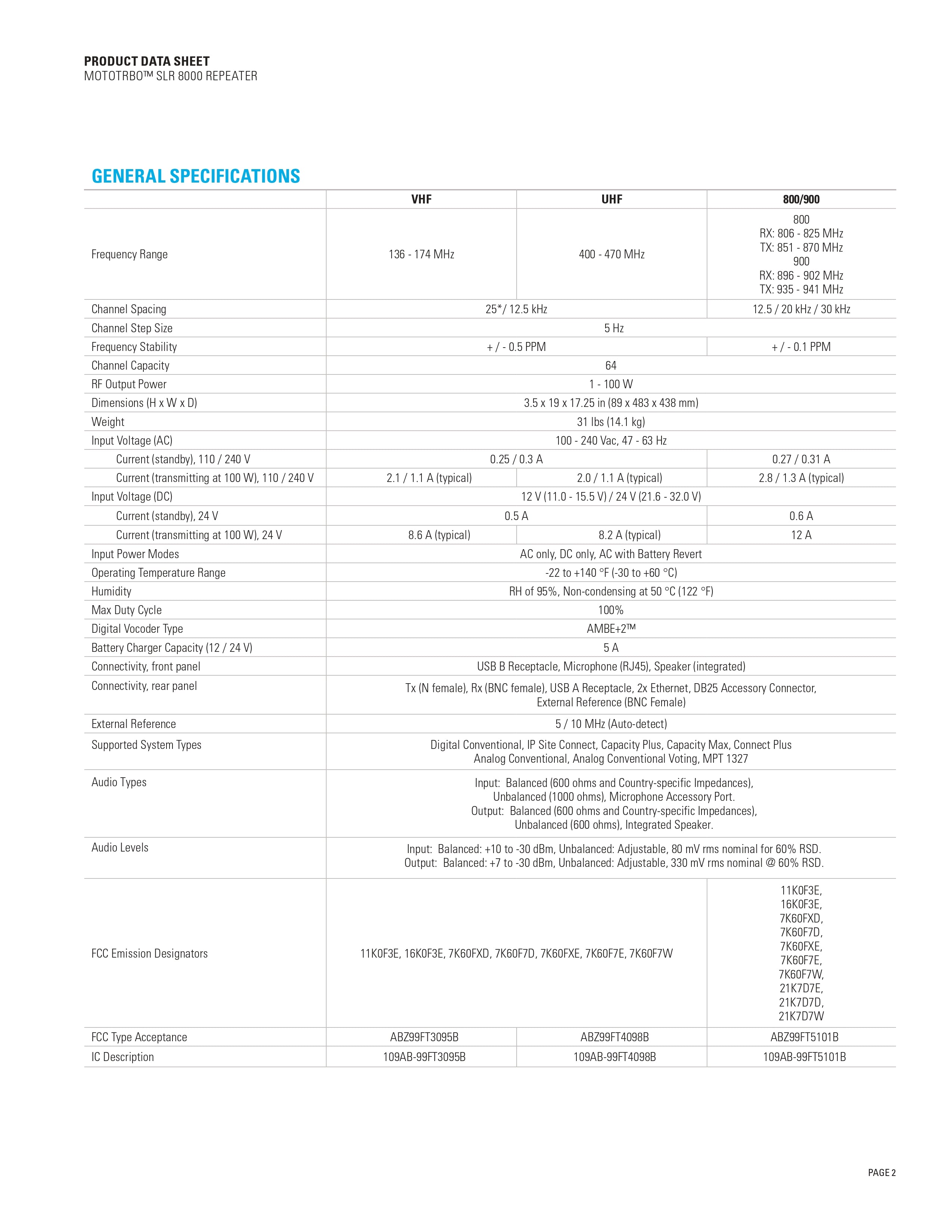

- Frequency Bands: VHF (136–174 MHz), UHF (400–470 MHz), 800/900 MHz
- RF Output Power: 1–100 W (AC or 24V DC), 1–50 W (12V DC)
- 100% continuous duty cycle at full power
- Channel Capacity: Up to 64 channels
- Channel Spacing: 12.5, 20, 25, 30 kHz

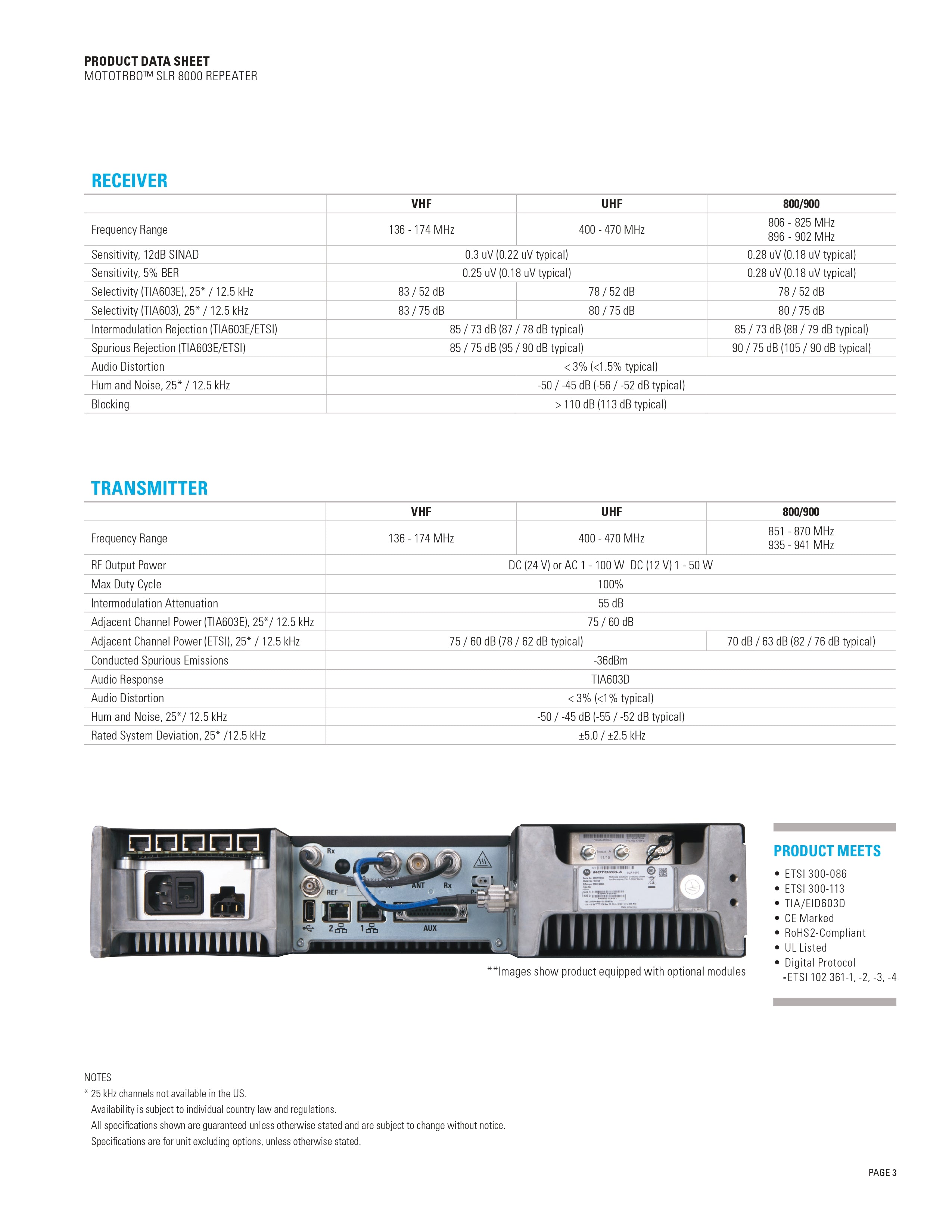

- Receiver Sensitivity: 0.3 μV (12dB SINAD), 0.25 μV (5% BER)
- Audio Distortion: Less than 3% (typical <1%)
- Supports all MOTOTRBO system types: Conventional, IP Site Connect, Capacity Plus, Capacity Max, Connect Plus
- Operates in analog, digital, or mixed mode (analog/digital)
- Integrated 5A battery charger with AC/DC power and battery revert support
- Dimensions (H x W x D): 3.5 x 19 x 17.25 in (89 x 483 x 438 mm)
- Weight: 31 lbs (14.1 kg)
- Modular 2U rack-mount design for efficient installation and maintenance
- Advanced diagnostics, remote management, and field-replaceable modules
- Validated through Motorola’s Accelerated Life Testing (ALT) program for high reliability
