The MAONO AU-AM200 (“Maonocaster Lite”) is a portable podcast/streaming mixer and USB sound card. It takes two 3.5 mm microphones, mixes in music via Bluetooth or line-in, and feeds up to three destinations at once (phone/phone/PC). Built-in DSP gives you voice FX, reverb, and side-chain “dodge” for background music—ideal for beginner creators and mobile streamers.
-
Plug-and-play with phones, tablets, and computers—no drivers needed.
-
2× mic inputs (3.5 mm) plus music in and Bluetooth accompaniment.
-

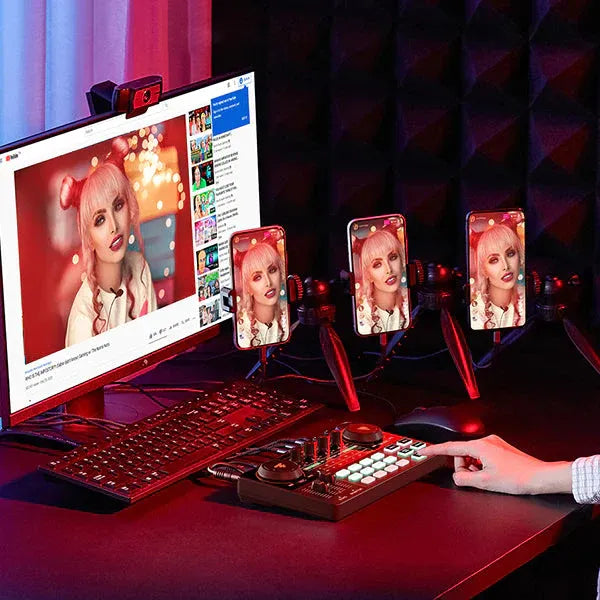

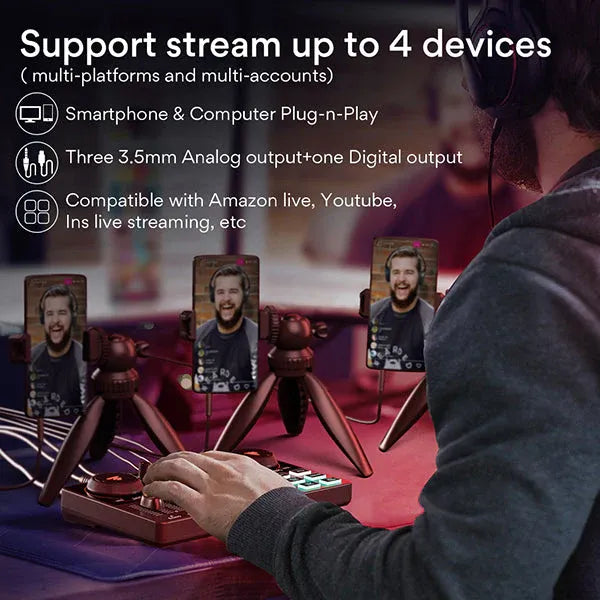

3-way output – stream to two mobile devices and a computer simultaneously.
-

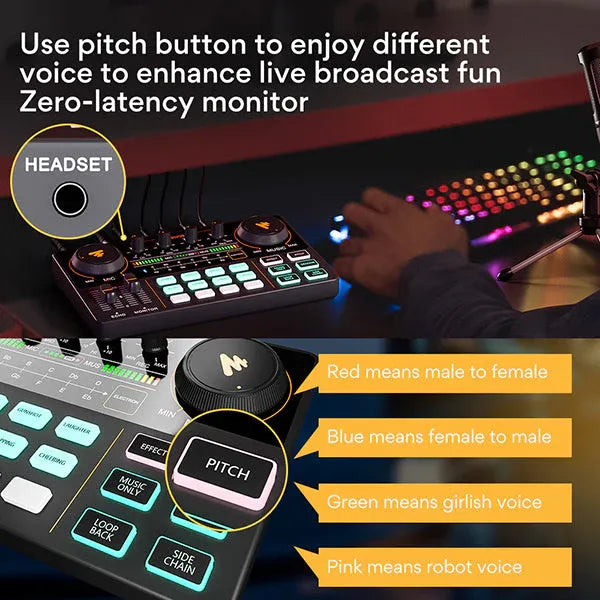

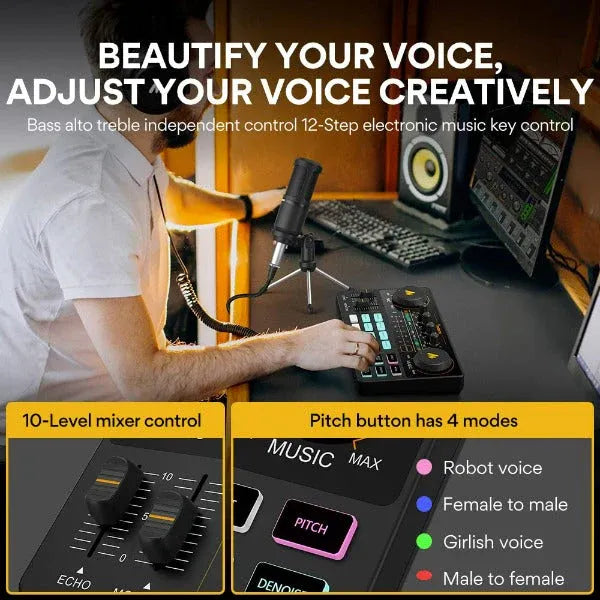

Built-in FX & tools – reverb, voice-change, noise/ambience cut, and side-chain “dodge.”
-
Portable power – internal battery (up to ~8 hrs) or 5 V USB-C power.
Technical Specifications
| Parameter |
Value |
| Brand / Model |
MAONO / AU-AM200 (Maonocaster Lite) |
| Computer Connection |
USB-C (class-compliant USB sound card) |
| Microphone Inputs |
2 × 3.5 mm mic inputs (no phantom power; 3.5 mm mics only) |
| Music Input |
3.5 mm line-in + Bluetooth accompaniment |
| Outputs |
3.5 mm headphone monitor; 2 × 3.5 mm TRRS “LIVE” outs for phones; USB audio to PC/Mac |
| Sample Rate / Bit Depth |
48 kHz / 16-bit |
| Frequency Response |
20 Hz – 20 kHz |
| DSP / Functions |
Voice effects, reverb, noise/ambient cut, loopback, side-chain (music ducking) |
| Power |
5 V via USB-C; built-in rechargeable battery (up to approx. 8 hours) |
| Compatibility |
iOS/Android phones & tablets, Windows/macOS computers |
| Dimensions |
240 × 140 × 42 mm |
| Color |
Black |

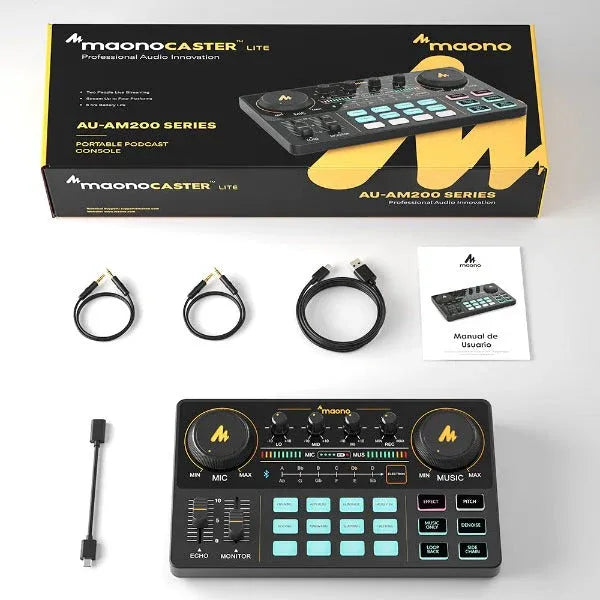

What’s in the Box
- AU-AM200 podcast console
- USB-A to USB-C cable
- 2 × 3.5 mm TRRS audio cables (for phone live-outs)
- User manual
