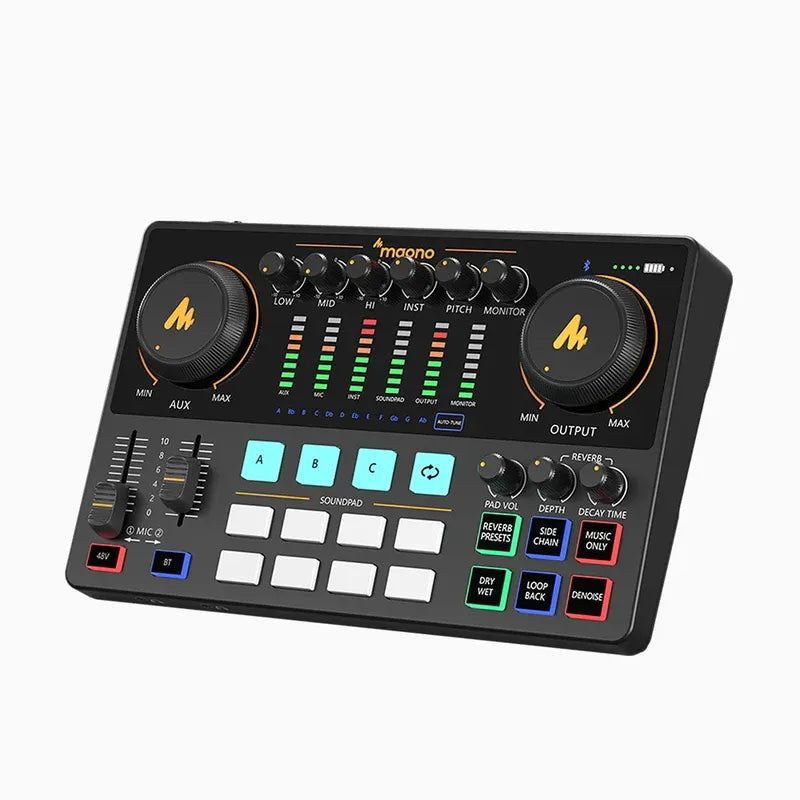

The MAONOCASTER AME2 is an all-in-one podcast/streaming console and USB-C audio interface. Plug in an XLR mic and a 3.5 mm mic, mix in music via Bluetooth or AUX, trigger effects on 11 pads, and send audio to phones and computers—portable with an internal battery for up to 8 hours.
-

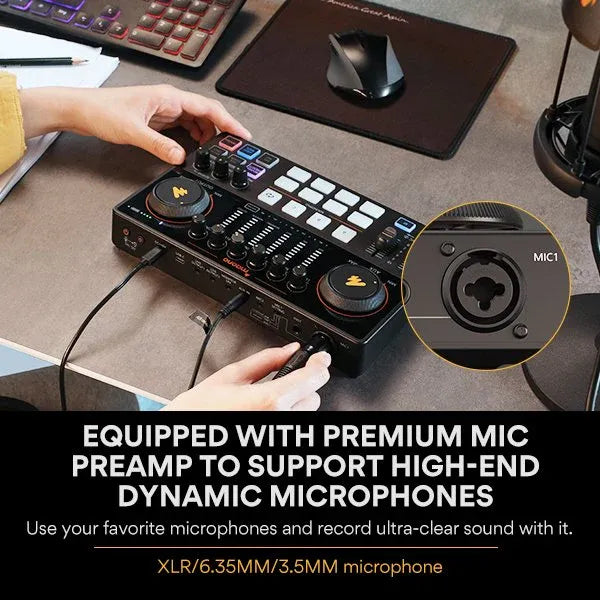

Flexible I/O – 1× XLR/¼″ combo + 1× 3.5 mm mic input, AUX-in, dual “LIVE” outs, headphone outs.
-
Creator tools – 11 sound pads, reverb, pitch/auto-tune, denoise, music ducking (side-chain).
-
USB-C interface – Class-compliant 48 kHz/16-bit recording to PC/Mac; Bluetooth 4.2 BGM.
-
Portable power – 2000 mAh battery (≈8 h), 5 V/1 A USB charging, ~3 h recharge.
-

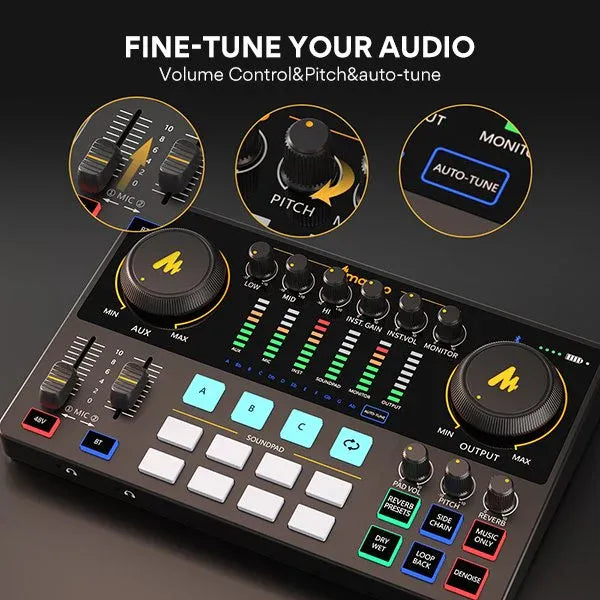

Desk-friendly – Simple knobs for mic, aux, monitor; compact 245×157×55 mm chassis.
Technical Specifications
| Parameter |
Value |
| Brand / Model |
MAONO / Maonocaster AME2 |
| Computer Connection |
USB-C (class-compliant) |
| Mic Inputs |
1× XLR/¼″ combo (mic/line); 1× 3.5 mm mic (TRRS) |
| Other I/O |

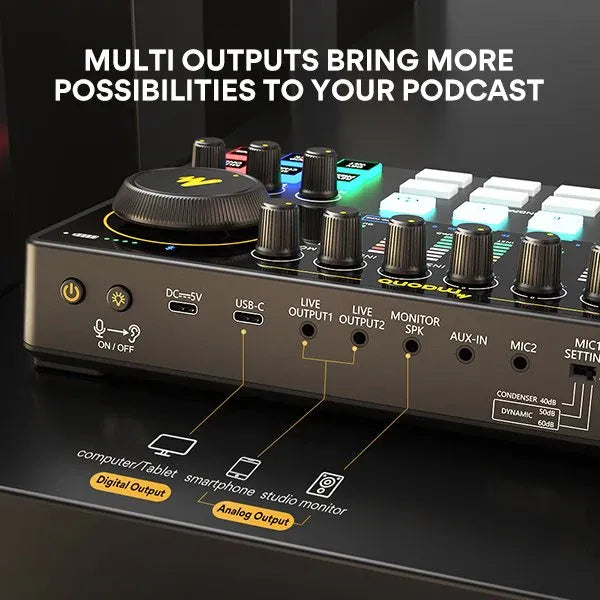

3.5 mm AUX-in; 2× 3.5 mm “LIVE” outs; headphone outs; speaker/monitor out |
| Wireless |
Bluetooth 4.2 (background music) |
| Audio Performance |
48 kHz / 16-bit; 20 Hz–20 kHz; THD < 0.05% @1 kHz |
| Headphone Output |
20 mW @ 32 Ω (1 kHz, THD+N=1%) |
| Battery |
2000 mAh; ≈8 h operation (max brightness); ≈3 h charge (5 V/1 A) |
| Power |
USB 5 V/1 A |
| Dimensions |
245 × 157 × 55 mm |
| Effects / Pads |
Reverb, pitch/auto-tune, denoise, loopback; 11 programmable pads |
| Use Cases |
Podcasting, livestreaming, voiceover, mobile recording |

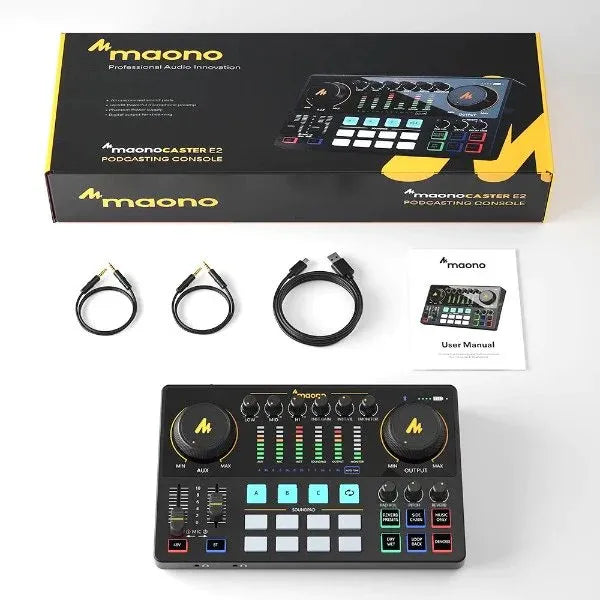

What’s in the Box
- Maonocaster AME2 console
- USB-C cable
- 3.5 mm TRRS audio cables (for LIVE outputs)
- User documentation
