Parameter |
Value |
Series / Model |

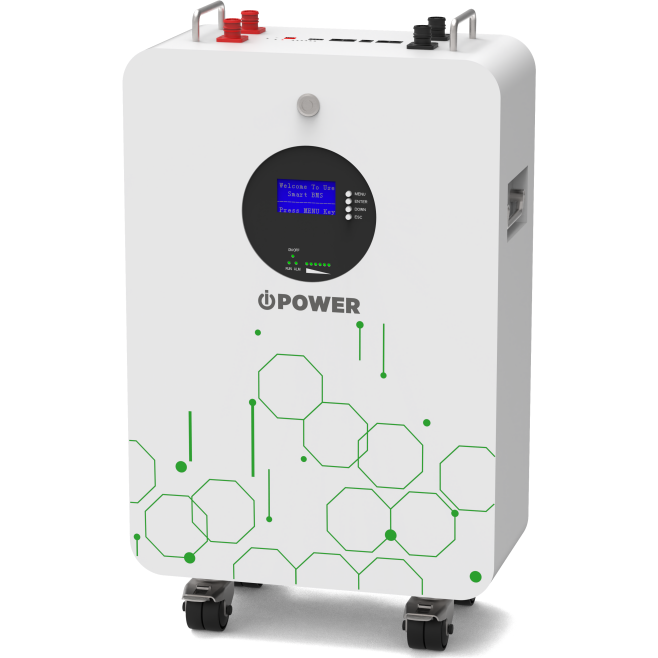

IPL48100 |
Battery Material |
Lithium Iron Phosphate (LiFePO4) |
Rated Voltage (Vdc) |
51.2 V |
Rated Capacity (Ah) |
100 Ah |
Energy Storage (kWh) |
5.12 kWh |
Cycle Life |
≥ 8000 cycles @ 85% DOD |
Charge Efficiency |
100% @ 0.2C |
Discharge Efficiency |
96–99% @ 1C |
Charging Voltage |
58.4 V |
Charge Cut-off Voltage |
58.4 V |
Continuous Current (Standard) |
0.5C (standard) |
Max. Charge Current |
1C @ 25 °C |
Max. Discharge Current |
1C @ 25 °C |
Continuous Current |
100 A |
Discharge Cut-off Voltage (Vdc) |
44.8 V |
Charging Temperature |
0–45 °C (32–113 °F) @ 60±25% RH |
Protection |
IP20 |
Size (L×W×H) |
600 × 420 × 200 mm |
Net / Gross Weight |
52.1 kg / 72.9 kg |
SOC (Optional) |
LCD / LED |
Scope of Application |
Hospital, bank data center, home/enterprise backup, wind-solar complementary systems, office, military, base stations |
