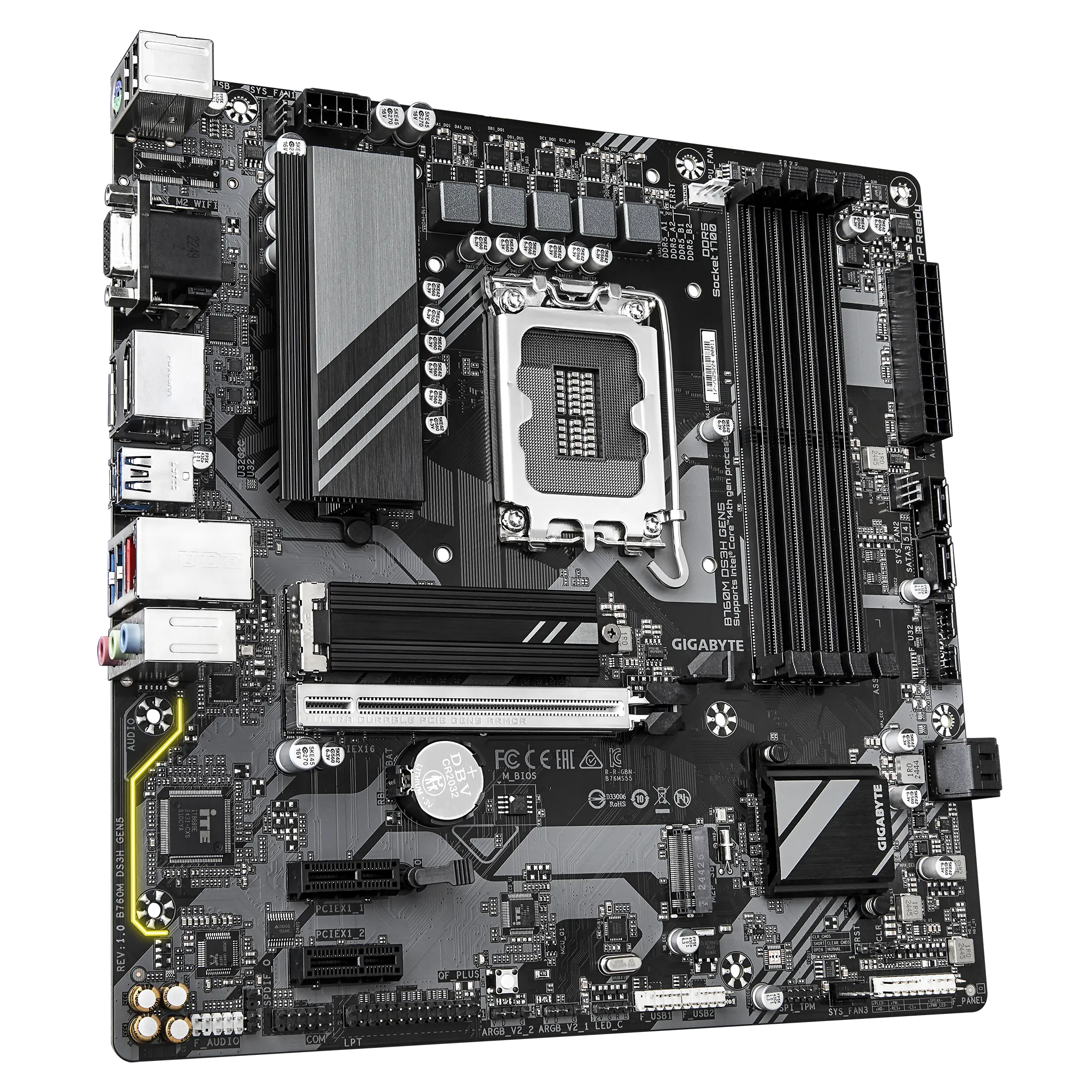

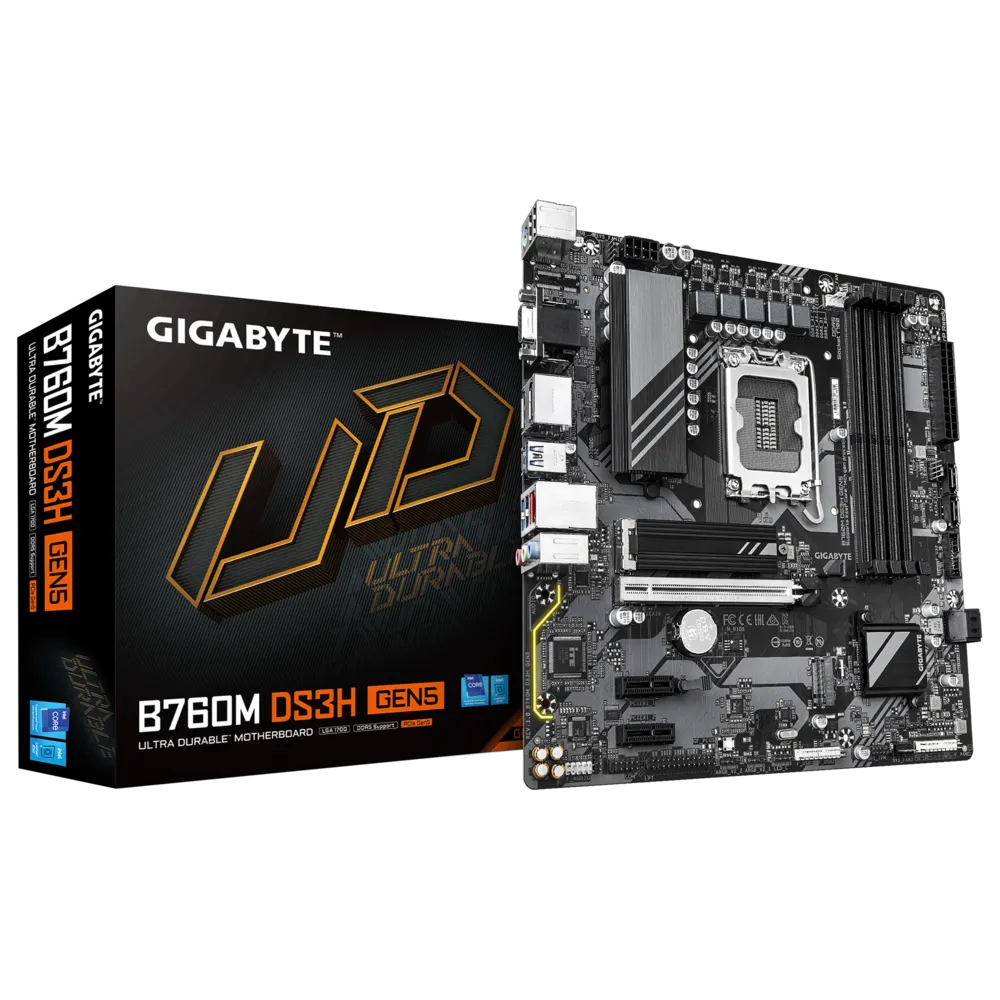

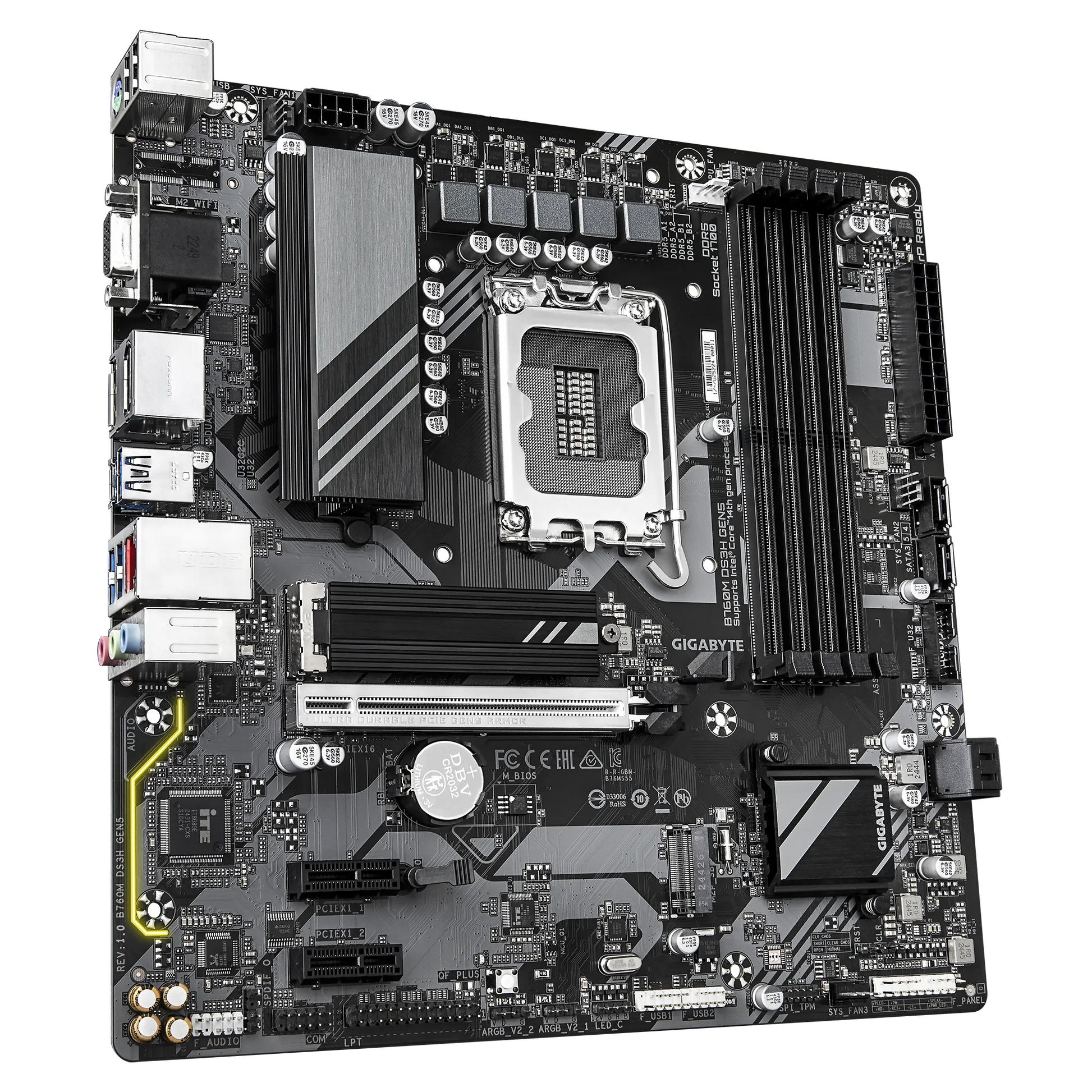

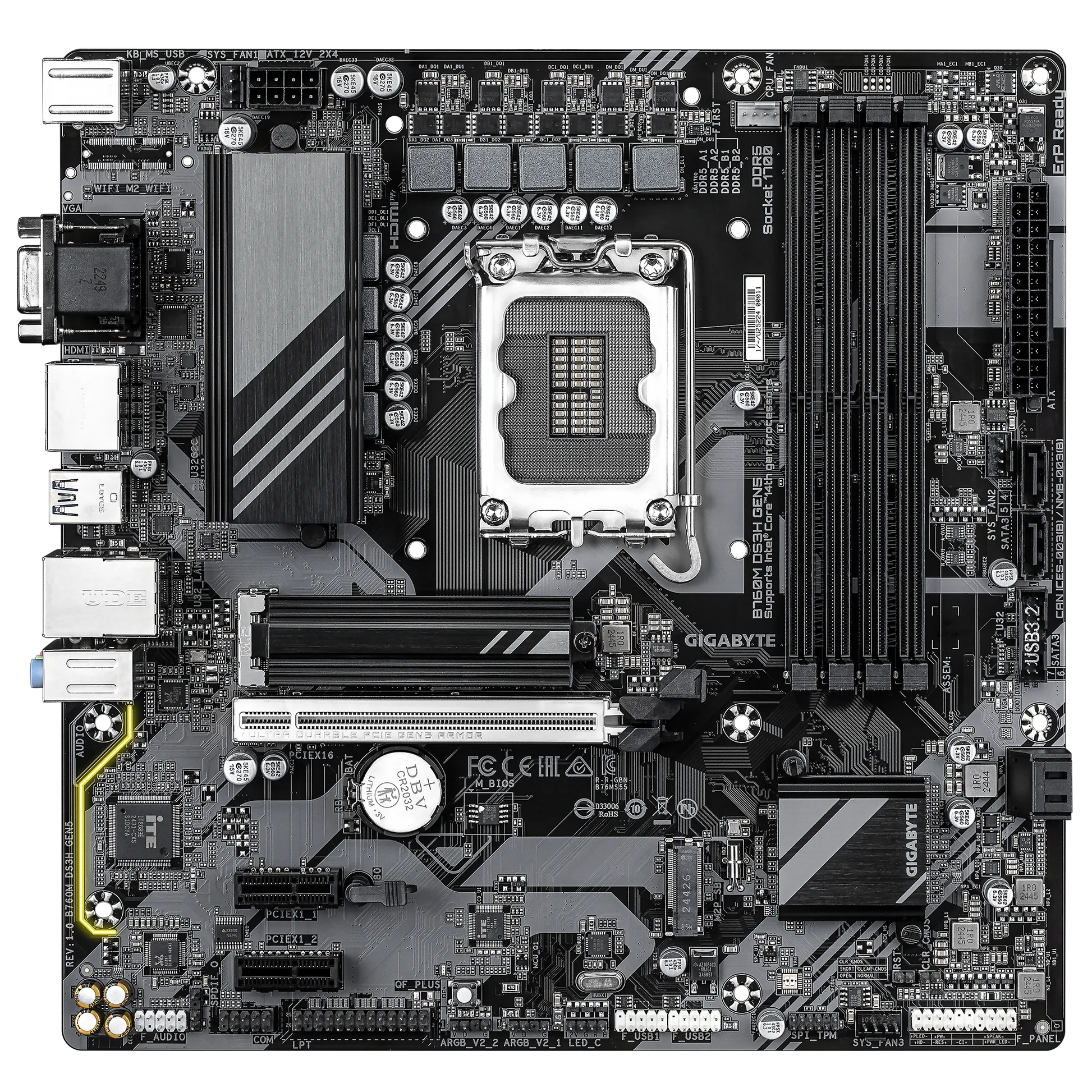

Gigabyte B760M-DS3H GEN5 mATX Motherboard – LGA 1700 for 12th-14th Gen Intel, DDR5, PCIe 5.0 x16, Dual M.2, USB-C, 2.5Gb LAN, Q-FLASH Plus

مرر فوق الصورة للتكبير انقر على الصورة للتكبير

Gigabyte B760M-DS3H GEN5 mATX Motherboard – LGA 1700 for 12th-14th Gen Intel, DDR5, PCIe 5.0 x16, Dual M.2, USB-C, 2.5Gb LAN, Q-FLASH Plus

Name: Gigabyte B760M-DS3H GEN5 mATX Motherboard – LGA 1700 for 12th-14th Gen Intel, DDR5, PCIe 5.0 x16, Dual M.2, USB-C, 2.5Gb LAN, Q-FLASH Plus
Brand: GIGABYTE
SKU: B760M DS3H GEN5
Price: 165000.000 IQD
Availability: InStock

GIGABYTEرمز المنتج: B760M DS3H GEN5

سعر:

165,000 IQD

كمية:

شارك هذا المنتج

Socket & CPU Support: LGA 1700 socket, compatible with 12th/13th/14th Gen Intel Core processors (i9/i7/i5/i3, Pentium® Gold, Celeron®)
Chipset: Intel B760 Express Chipset
Power Design: 6+2+1 phase Hybrid VRM, 6-layer PCIe 5.0-ready PCB, premium chokes and capacitors Memory Support: 4× DDR5 DIMM slots, dual-channel, up to 256 GB, speeds up to DDR5-5600+
Expansion Slots:
- 1× PCIe 5.0 ×16 (with EZ-Latch and PCIe UD Slot)
- 2× PCIe 3.0 ×1
Storage: 2× PCIe 4.0 ×4 M.2 slots; 4× SATA 6 Gb/s ports
Networking: 2.5 GbE LAN; (Note: Wi-Fi not available on this model)

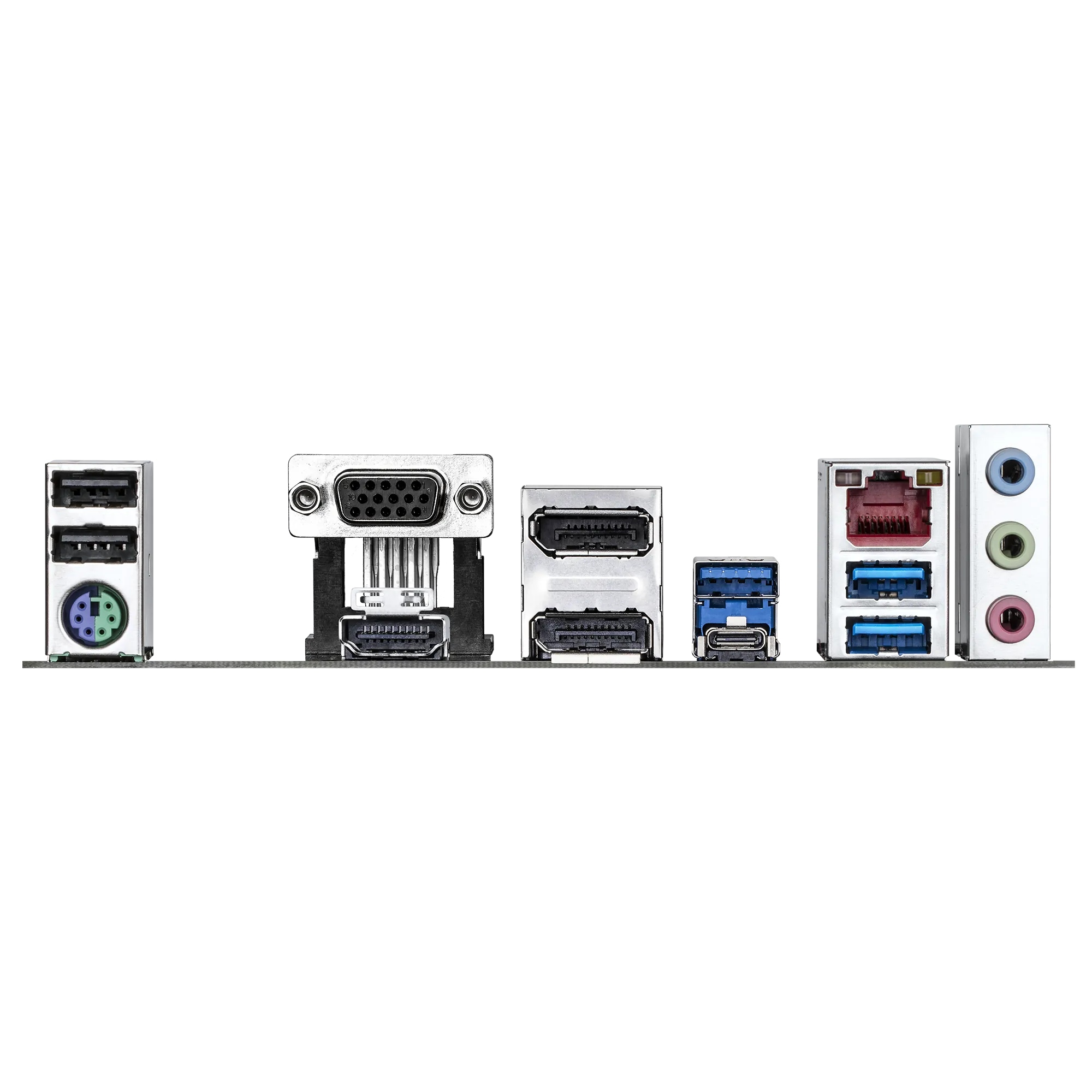

Rear I/O Connectivity:
- 1× HDMI
- 2× DisplayPort
- 1× USB 3.2 Gen2 Type-C
- 3× USB 3.2 Gen1 (Type-A)
- 2× USB 2.0
- Audio jacks (8-ch HD Audio with high-end capacitors)
Audio: 8-channel HD audio with high-end capacitors and Hi-Fi quality
RGB Headers: 2× Addressable RGB headers, 1× RGB header; supports RGB Fusion lighting
BIOS & Tuning Features: Q-FLASH Plus (update BIOS without CPU/RAM/GPU); Gigabyte UEFI with Quick Access and PerfDrive modes for performance tuning
Cooling & Durability: VRM Thermal Armor, M.2 Thermal Guard, Smart Fan 6 with hybrid headers and fan-stop functionality

Gigabyte B760M-DS3H GEN5 mATX Motherboard – LGA 1700 for 12th-14th Gen Intel, DDR5, PCIe 5.0 x16, Dual M.2, USB-C, 2.5Gb LAN, Q-FLASH Plus

وصف

Gigabyte B760M-DS3H GEN5 mATX Motherboard – LGA 1700 for 12th-14th Gen Intel, DDR5, PCIe 5.0 x16, Dual M.2, USB-C, 2.5Gb LAN, Q-FLASH Plus
