- Form factor: Micro-ATX (244 mm × 244 mm)
- Chipset: AMD B550
- CPU support: AMD Socket AM4 – Ryzen™ 5000 Series / 5000 G-Series / 4000 G-Series / 3000 Series processors
- Memory: 4× DDR4 DIMM slots, up to 128 GB total; supports DDR4 2133/2400/2667/2933/3200 MHz and OC up to 4733 MHz†
- Graphics outputs: 1× DisplayPort (up to 5120×2880@60 Hz), 1× HDMI (up to 4096×2160@60 Hz)†
- Expansion slots: 1× PCIe 4.0 x16 (with compatible Ryzen), 1× PCIe 3.0 x1
- Storage: 2× M.2 Socket 3 connectors (one supports PCIe 4.0 x4 or SATA, the other supports PCIe 3.0 x2)†; 4× SATA 6 Gb/s ports, RAID 0/1/10 support

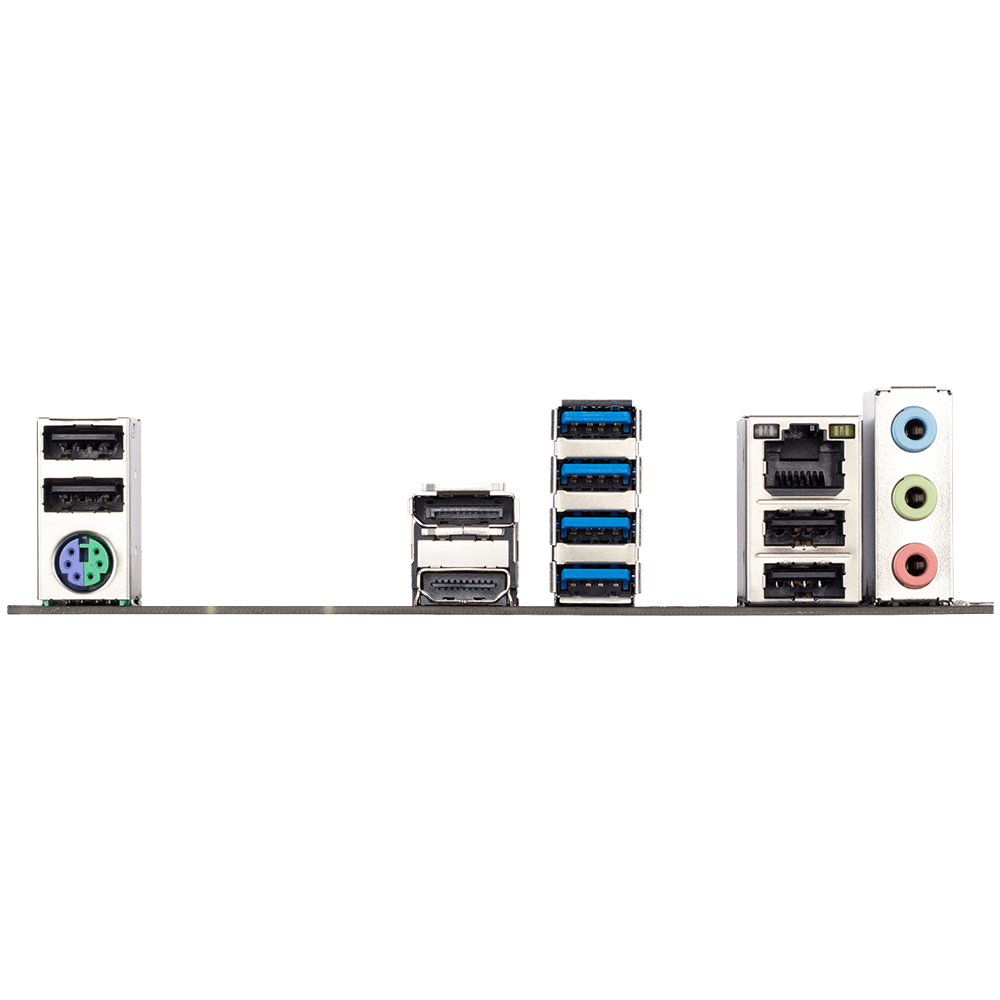

- USB & Networking: Realtek® GbE LAN; rear I/O includes 4× USB 3.2 Gen 1 ports + 4× USB 2.0 ports†
- Audio: Realtek® High Definition Audio codec, supports 2/4/5.1/7.1-channel output
- Cooling & durability: Smart Fan 5 with multiple temperature sensors and hybrid fan headers; Ultra Durable components including anti-sulfur resistors
- Ideal for: Cost-effective gaming and productivity builds with Ryzen processors, dual M.2 storage, and Micro-ATX compatibility
