كابل FiberHome 24Core 4KM GYFC8Y

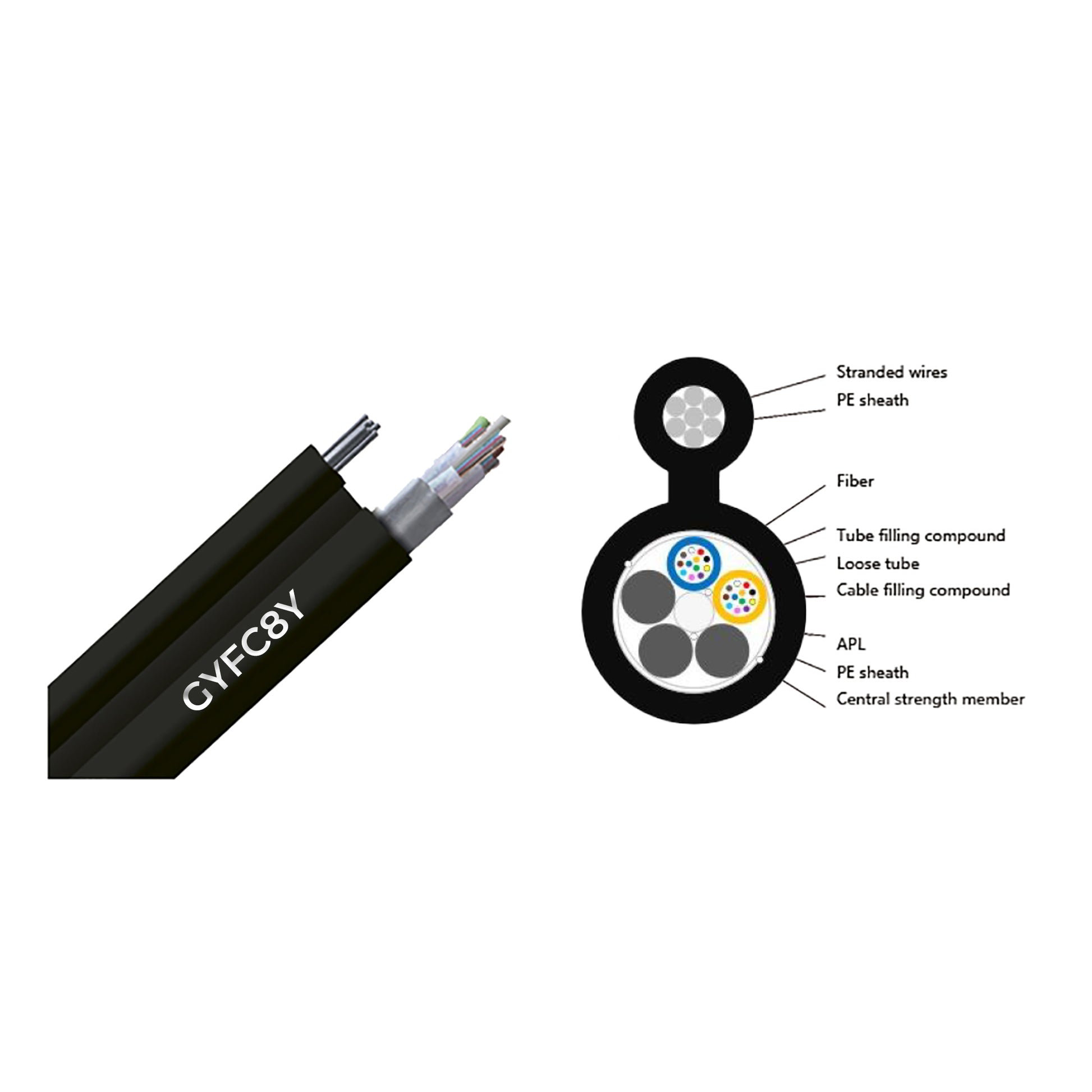

Mechanical & Physical Features

• Tube & Fiber Structure:

  • 24-core: 2 tube, 12 fibers per tube

• Fillers:

  • 24-core: 3 fillers


• Strength Member:

  • GFRP (Glass Fiber Reinforced Plastic), Ø2.1 mm

• Sheath & Dimensions:

  • Outer Sheath: Black HDPE

  • Thickness: 1.5 mm

  • Cable Diameter: 9.5 ± 0.5 mm

  • Weight: 69-70 kg/km

• Water Blocking:

  • Wet core with filling compound

• Ripcords:

  • 2 Polyester Ripcords

• Standard Reel Length: 4000 m

Optical Fiber Performance (G.652D Standard)

• Attenuation:

  • ≤0.35 dB/km @1310nm

  • ≤0.22 dB/km @1550nm

• Mode Field Diameter: 9.2 ± 0.4 μm @1310nm

• Chromatic Dispersion: ≤18 ps/(nm·km) @1550nm

• Zero Dispersion Wavelength: 1300 – 1324 nm

• Cut-off Wavelength: ≤1260 nm

• Cladding Diameter: 125 ± 1.0 μm

• Core/Cladding Concentricity Error: ≤0.6 μm

• Proof Test: ≥0.69 GPa (100kpsi)
