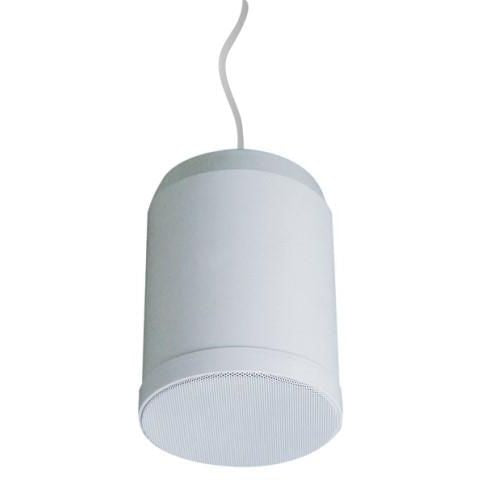

The CMX PSK-20PS is a compact pendant speaker for background music and paging in open-ceiling spaces. A built-in 100V/70V transformer with selectable taps and an 8Ω bypass deliver installation flexibility, while the sealed ABS enclosure and hanging kit make for fast, clean installs.
-
Flexible power taps – 2.5/5/10/20 W at 100 V with 8 Ω bypass for low-impedance runs.
-
Clear full-range sound – 6.5″ waterproof cone; 92 dB (1W/1m) for efficient coverage.
-
Install friendly – Supplied adjustable hanging wire & security steel ring; cable-tail connector.
-
Durable build – IP55 sealed design with ABS body and aluminum grille for commercial use.
-
Ideal applications – Malls, showrooms, warehouses, supermarkets, and atriums.
Technical Specifications
| Parameter |
Value |
| Brand / Model |
CMX Audio / PSK-20PS |
| Type |
Pendant speaker with 100V/70V transformer & 8 Ω bypass |
| Power Taps (100V) |
2.5 W / 5 W / 10 W / 20 W |
| Low-Impedance |
8 Ω (bypass) |
| Driver |
6.5″ full-range waterproof woofer |
| Frequency Response |
110 – 15,000 Hz |
| Sensitivity (1W/1m) |
92 dB |
| Line Input |
100 V or 70 V (cable tail) |
| IP Rating |
IP55 |
| Material / Finish |
ABS enclosure, aluminum grille (white) |
| Connector |
Speaker cable tail |
| Mounting |
Adjustable hanging wire with security steel ring |
| Dimensions (Dia × H) |
Ø 170 × 245 mm |
| Net Weight |
1.7 kg |
| Applications |
BGM & paging for retail, warehouses, showrooms, supermarkets |
