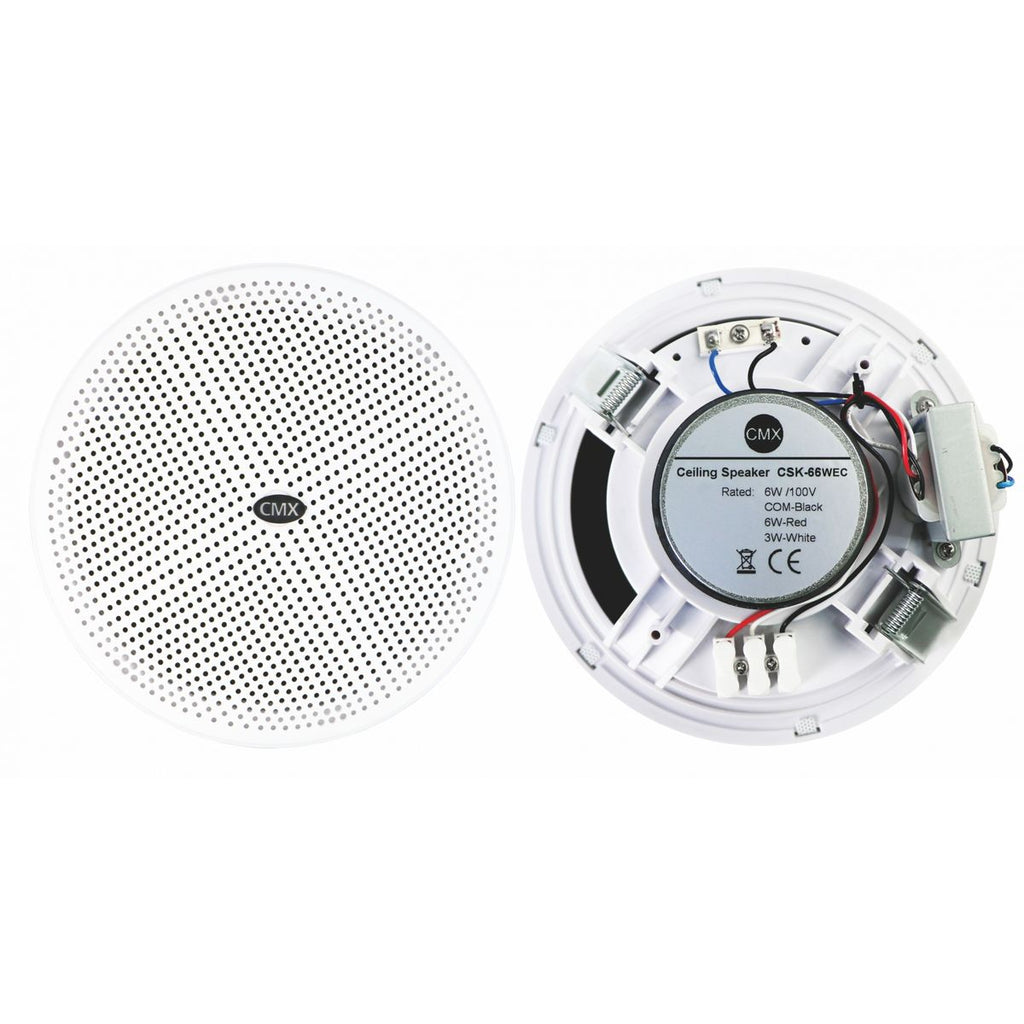

The CMX CSK-66WE is a cost-effective waterproof ceiling speaker for bathrooms, kitchens and other damp areas. With a built-in 100V/70V transformer and selectable 6W/3W power taps, it’s ideal for background music and paging.
-
Waterproof & durable – IP55 rating with robust ABS construction for humid environments.
-
Easy install – Quick spring-clip mounting with compact cutout for clean ceiling finishes.
-
100V/70V compatible – Built-in transformer with 6W/3W taps for PA/BGM systems.
-
Clear full-range sound – 6.5″ full-range waterproof cone tuned for speech and music.
-
Discrete design – Low-profile round grille blends into modern interiors.
Technical Specifications
| Parameter |
Value |
| Brand / Model |
CMX Audio / CSK-66WE |
| Type |
Waterproof ceiling speaker with 100V/70V transformer |
| Driver |
6.5″ full-range waterproof PP cone |
| Power Taps (100V) |
6 W / 3 W |
| Line Input |
100 V or 70 V |
| Frequency Response |
100 – 15,000 Hz |
| Sensitivity (1W/1m) |
≈ 91 dB |
| IP Rating |
IP55 |
| Material / Finish |
ABS enclosure and grille, white |
| Cutout Size |
Ø 165–170 mm (typ.) |
| Dimensions (Dia × H) |
Ø 186 × 65–71 mm (typ.) |
| Mounting |
In-ceiling spring-clip |
| Net Weight |
≈ 0.5–0.52 kg |
| Applications |
Bathrooms, kitchens, washrooms, marine, covered outdoor, BGM/PA |
