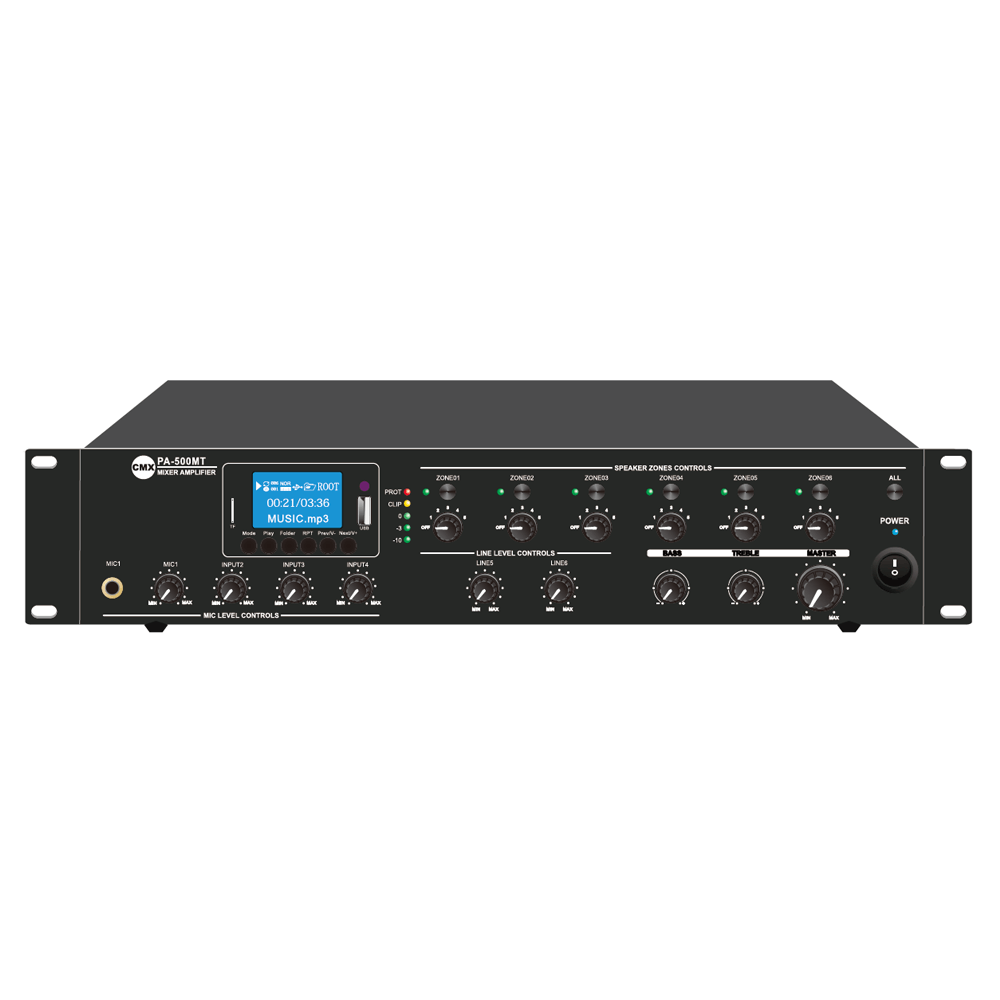

- Public address (PA) 6 zone commercial mixer power amplifier.
- 19” rack mount amplifier of 2U height.
- Rated outputs of 500W.
- 6 zone speaker outputs of 100V.
- Six zone speaker outputs with independent volume control.
- Built-in MP3 player by USB & SD and FM tuner.
- Four microphone inputs, Mic1(6.3mm) and Mic/Line input 2-4 (XLR).
- Line 1-2 inputs on rear panel by RCA.
- EMC input on rear panel with highest priority by RCA.
- One amplifier capacity of 6 remote paging microphones DA-500RM up to 300 meters.
- Microphone1 of VOX features of highest input priority except EMC input.
- Volume control for Mic1-4 and line 1-2, bass & treble and zone volume control on front panel.
- AC and DC Power, protection, clip six zone status indicators and output level meters.
- Overload, short circuit and high temp protection.
- AC 230V and DC24V operation system.
