- Category 6 SF/UTP 23AWG LAN Cable, 4 Pair, PVC+PE
-

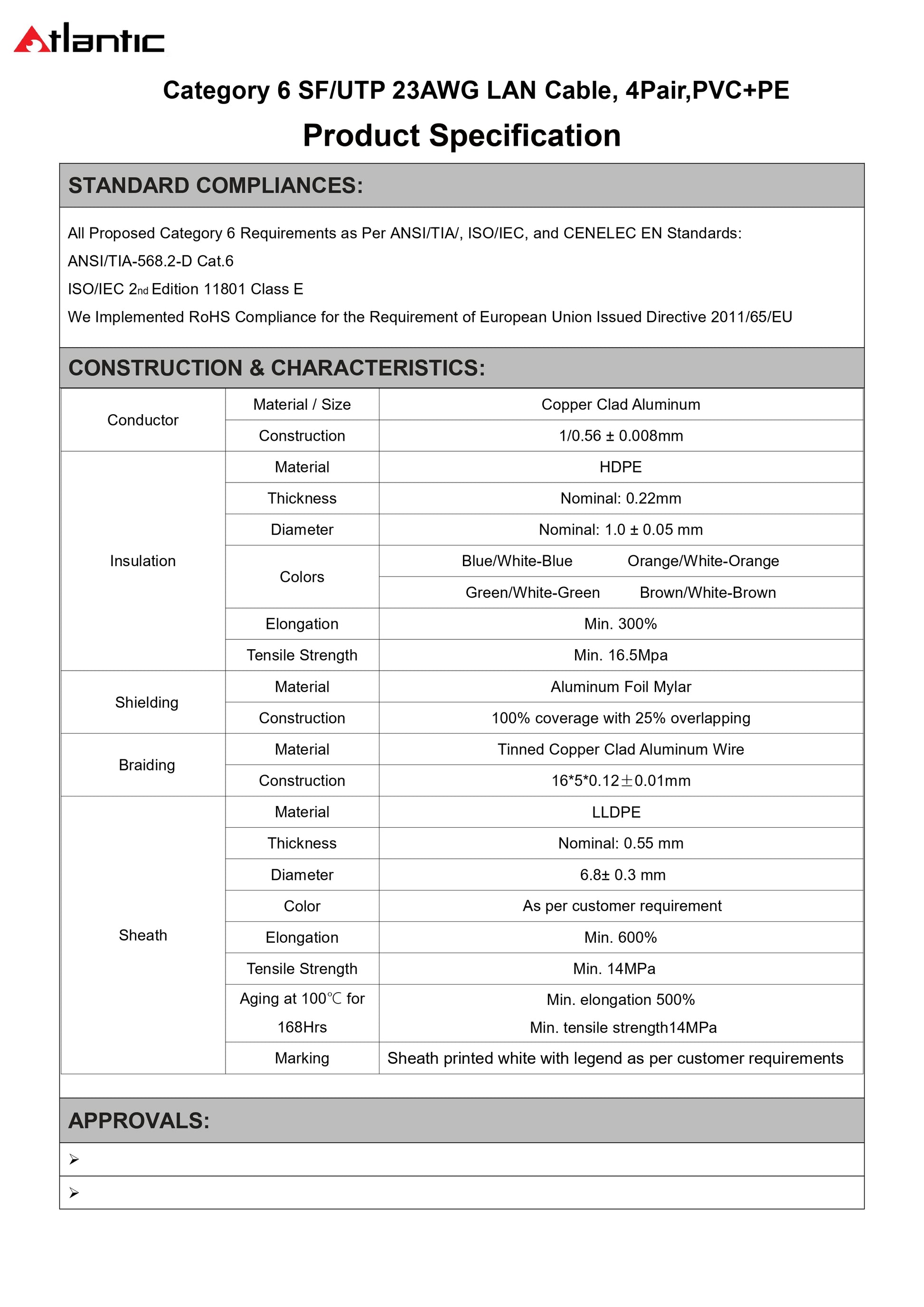

Conductor:
- Material / Size: Copper Clad Aluminum
- Construction: 1/0.56 ± 0.008 mm
-
Insulation:
- Material: HDPE
- Thickness: Nominal 0.22 mm
- Diameter: Nominal 1.0 ± 0.05 mm
- Colors: Blue/White-Blue, Orange/White-Orange, Green/White-Green, Brown/White-Brown
- Elongation: Min. 300%
- Tensile Strength: Min. 16.5 MPa
-
Shielding:
- Material: Aluminum Foil Mylar
- Construction: 100% coverage with 25% overlapping
-
Braiding:
- Material: Tinned Copper Clad Aluminum Wire
- Construction: 16*5*0.12 ± 0.01 mm
-
Sheath:
- Material: LLDPE
- Thickness: Nominal 0.55 mm
- Diameter: 6.8 ± 0.3 mm
- Color: As per customer requirement
- Elongation: Min. 600%
- Tensile Strength: Min. 14 MPa
- Aging at 100°C for 168 hours: Min. elongation 500%, Min. tensile strength 14 MPa
- Marking: Sheath printed white with legend as per customer requirements
-
Standard Compliances:
- ANSI/TIA-568.2-D Cat.6
- ISO/IEC 2nd Edition 11801 Class E
- RoHS Compliant (Directive 2011/65/EU)
-

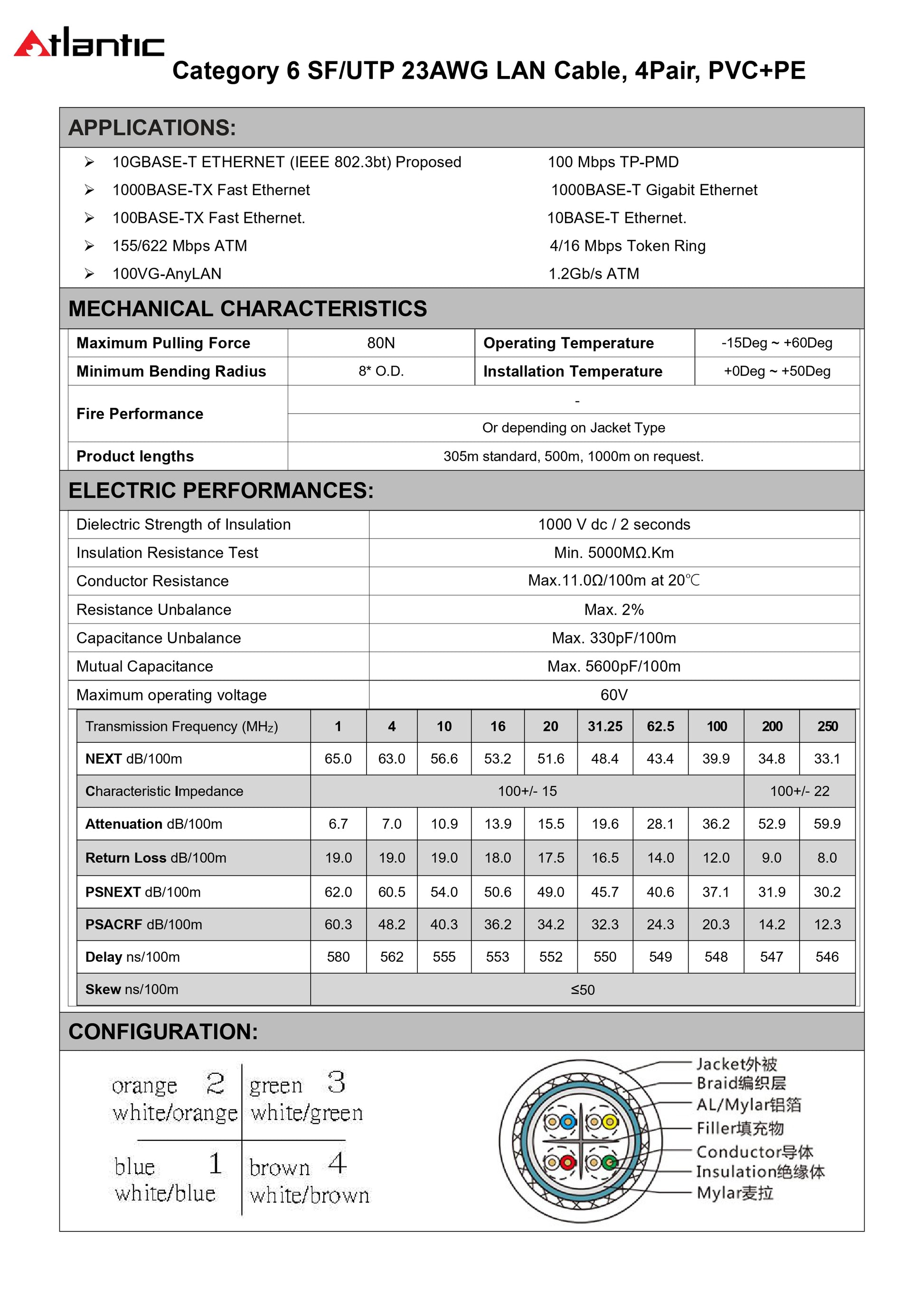

Applications:
- 10GBASE-T Ethernet (IEEE 802.3bt) Proposed
- 1000BASE-TX Gigabit Ethernet
- 100BASE-TX Fast Ethernet
- 10BASE-T Ethernet
- 155/622 Mbps ATM
- 100 Mbps TP-PMD
- 4/16 Mbps Token Ring
- 1.2 Gb/s ATM
-
Mechanical Characteristics:
- Maximum Pulling Force: 80 N
- Minimum Bending Radius: 8× O.D.
- Operating Temperature: -15°C to +60°C
- Installation Temperature: 0°C to +50°C
- Product Lengths: 305m standard, 500m, 1000m on request
-
Electrical Performances:
- Dielectric Strength of Insulation: 1000 V DC / 2 seconds
- Insulation Resistance: Min. 5000 MΩ·km
- Conductor Resistance: Max. 11.0 Ω/100m at 20°C
- Resistance Unbalance: Max. 2%
- Capacitance Unbalance: Max. 330 pF/100m
- Mutual Capacitance: Max. 5600 pF/100m
- Maximum Operating Voltage: 60V
- Characteristic Impedance: 100 ± 15 (to 62.5 MHz), 100 ± 22 (up to 250 MHz)
-
Performance by Frequency (dB/100m):
- NEXT: 65.0 (1 MHz) to 33.1 (250 MHz)
- Attenuation: 6.7 (1 MHz) to 59.9 (250 MHz)
- Return Loss: 19.0 (1 MHz) to 8.0 (250 MHz)
- PSNEXT: 62.0 (1 MHz) to 30.2 (250 MHz)
- PSACRF: 60.3 (1 MHz) to 12.3 (250 MHz)
- Delay: 580 ns (1 MHz) to 546 ns (250 MHz)
- Skew: ≤50 ns/100m
