Yokogawa FG410 Arbitrary/Function Generator – 1 Channel, 30 MHz
Overview:
The Yokogawa FG410 is a high-performance arbitrary/function generator offering exceptional waveform versatility, precision, and control. Featuring a 3.5" TFT LCD screen, wide output range up to 30 MHz, and support for advanced sweep and modulation modes, it is ideal for test and development in electronics, automotive, and communications.
Key Features:
- 1 output channel (Isolated, up to 42 V)
- Frequency range: 0.01 μHz to 30 MHz (Sine), 15 MHz (Square/Pulse), 5 MHz (Others)
- Amplitude: Up to 20 Vp-p (Open), 10 Vp-p (50 Ω)

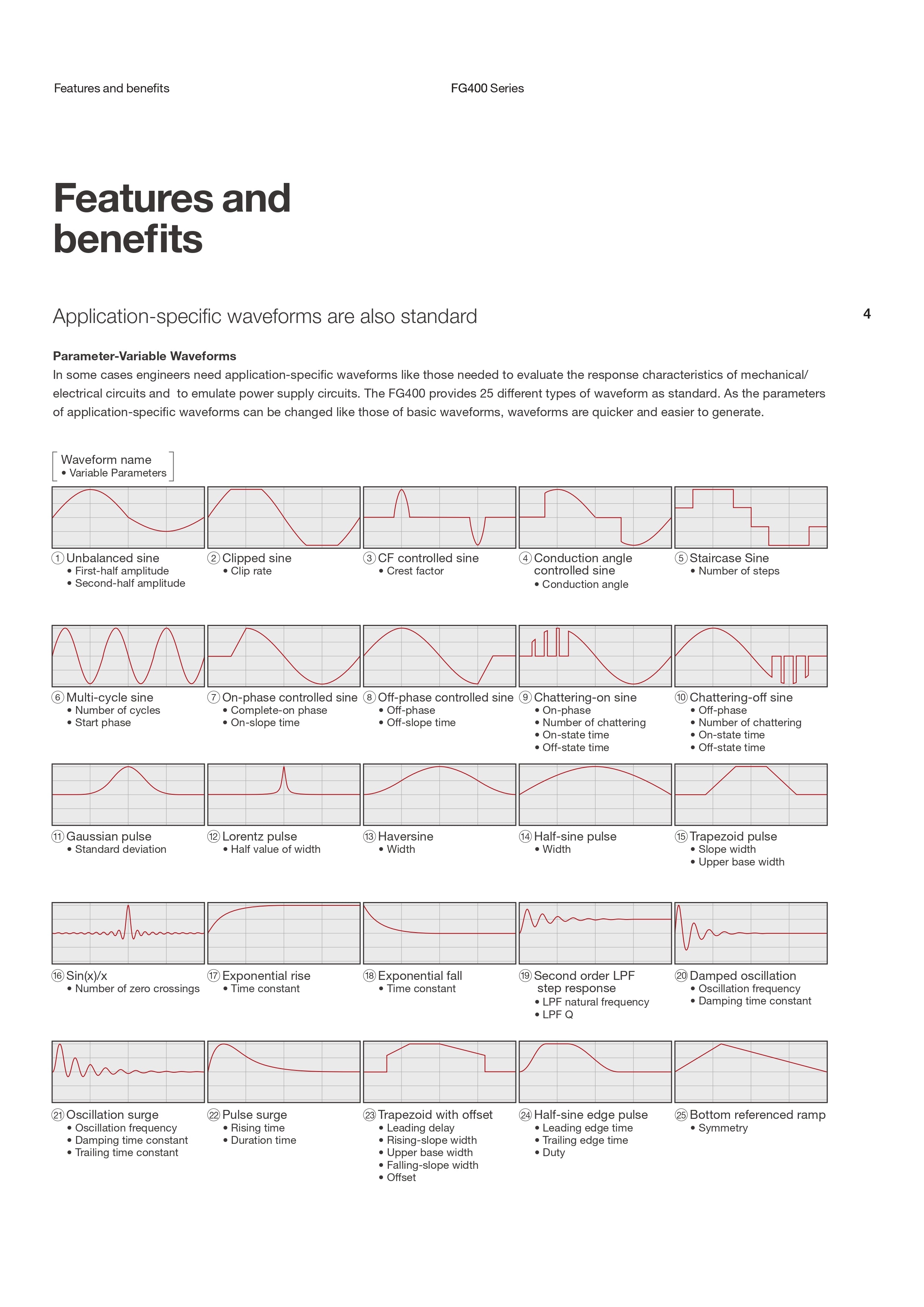

- Output waveforms: Sine, Square, Pulse, Ramp, Noise, DC, Arbitrary, Parameter-variable

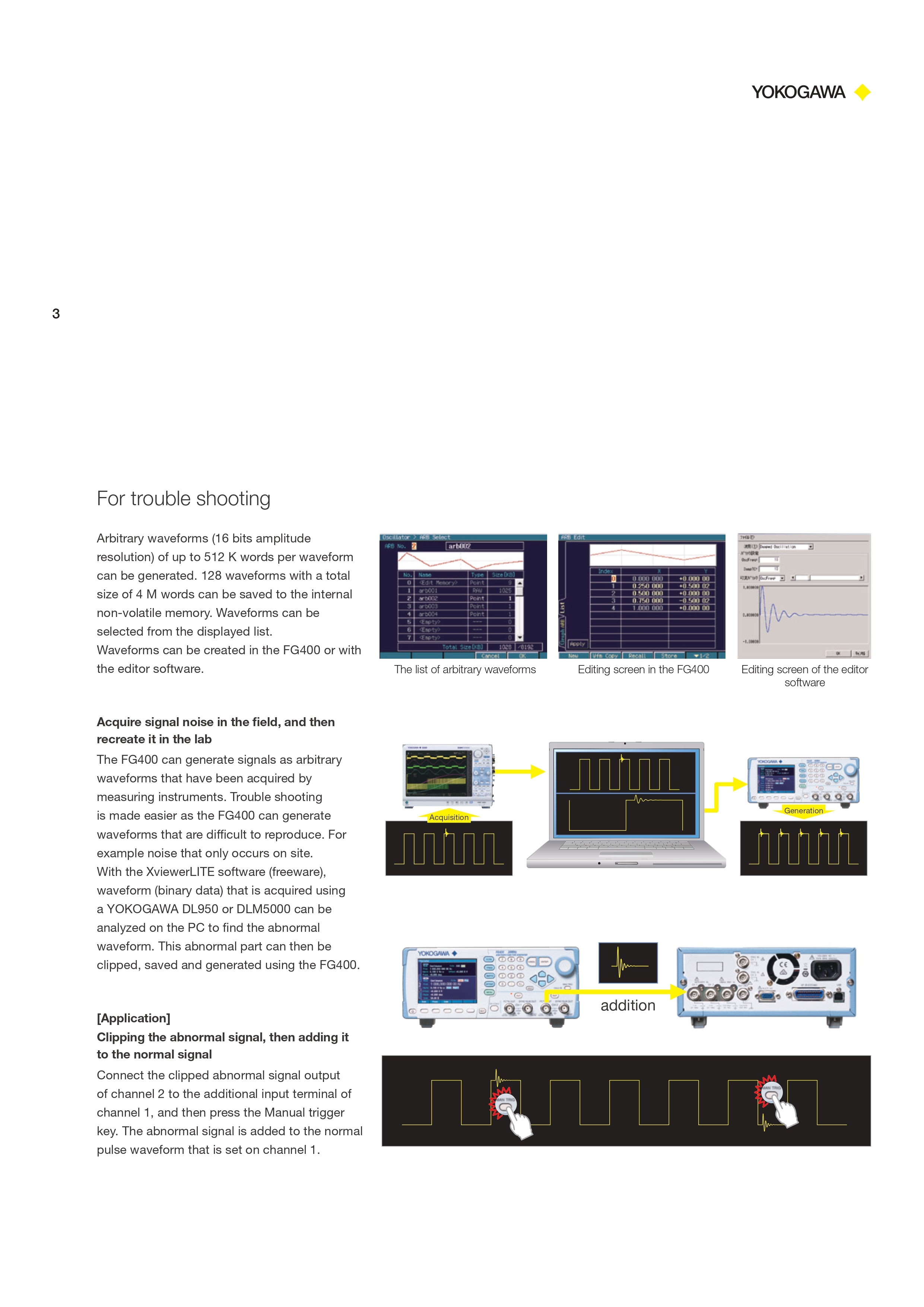

- Waveform resolution: 16-bit, up to 512 K words per arbitrary waveform
- 3.5” color LCD for intuitive navigation and waveform editing
- Internal memory for 128 waveforms / 4M words

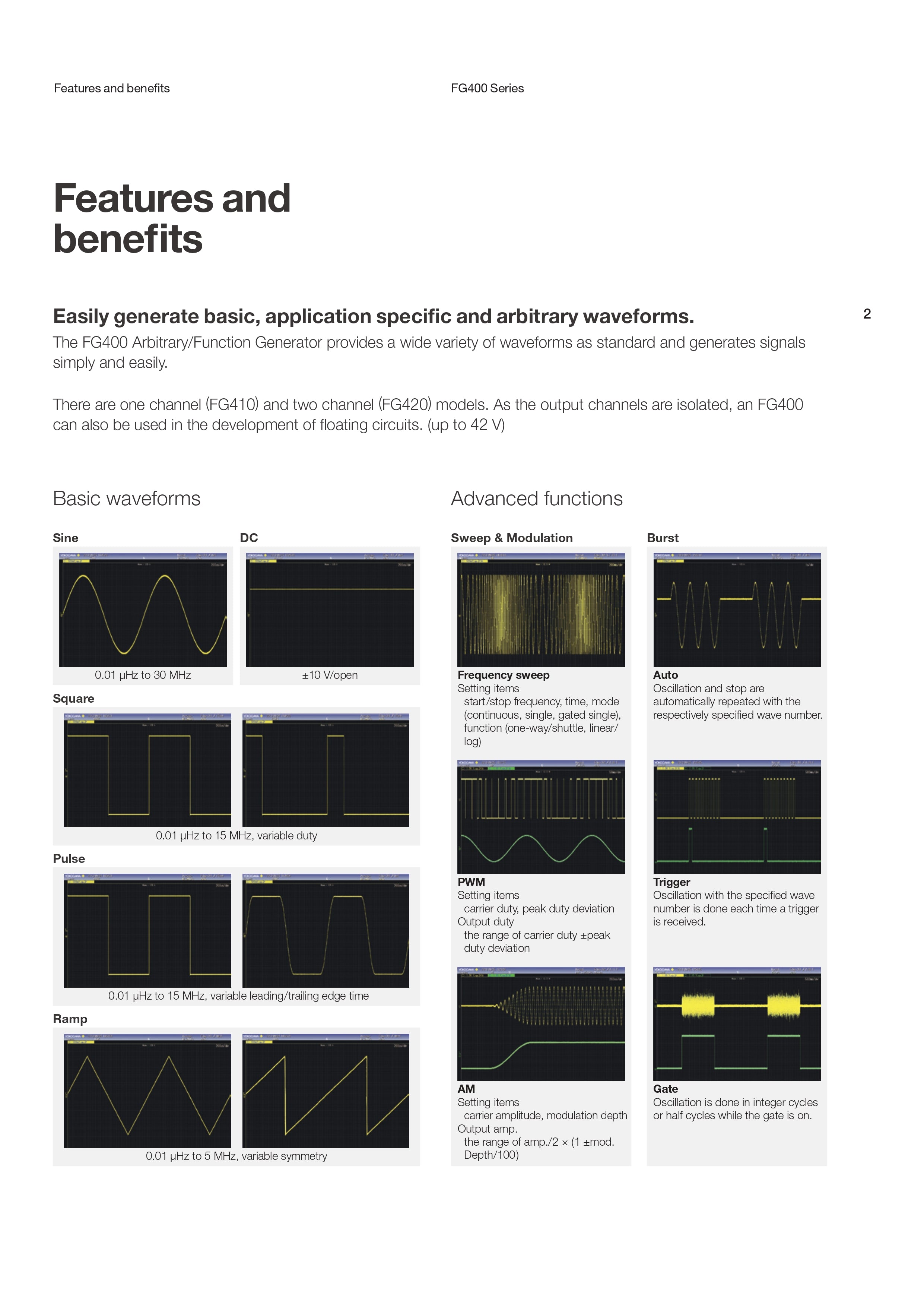

Advanced Functions:
-
Modulation: AM, FM, PM, FSK, PSK, PWM
-
Sweep: Frequency, Phase, Amplitude, DC offset, Duty (linear/log) with various modes
-
Burst: Auto/Trigger/Gate/Triggered Gate modes with phase control
-

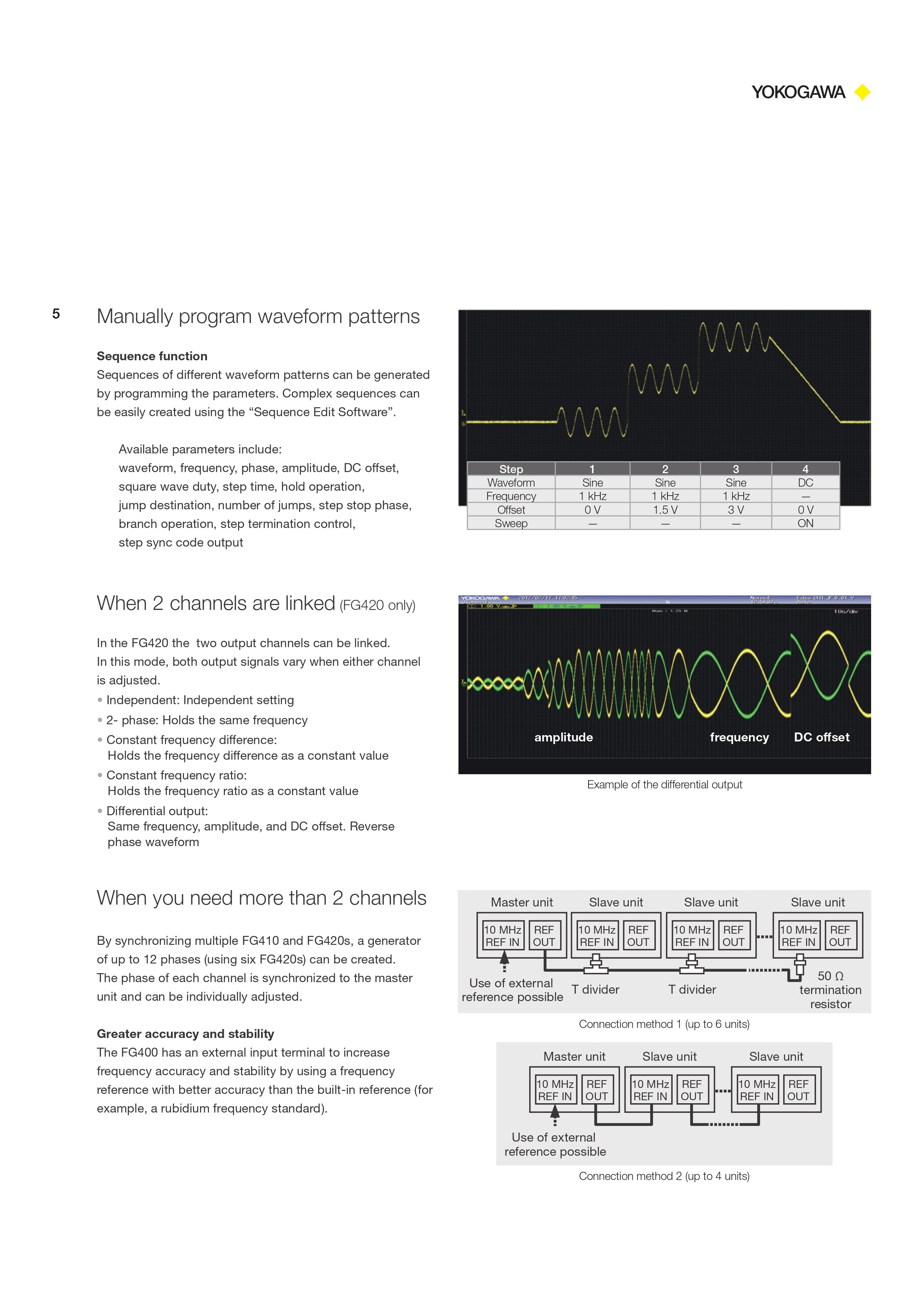

Sequence Mode: 255-step sequence with control over frequency, amplitude, phase, offset, and waveform
-
Sync Output: TTL level for trigger or marker signal

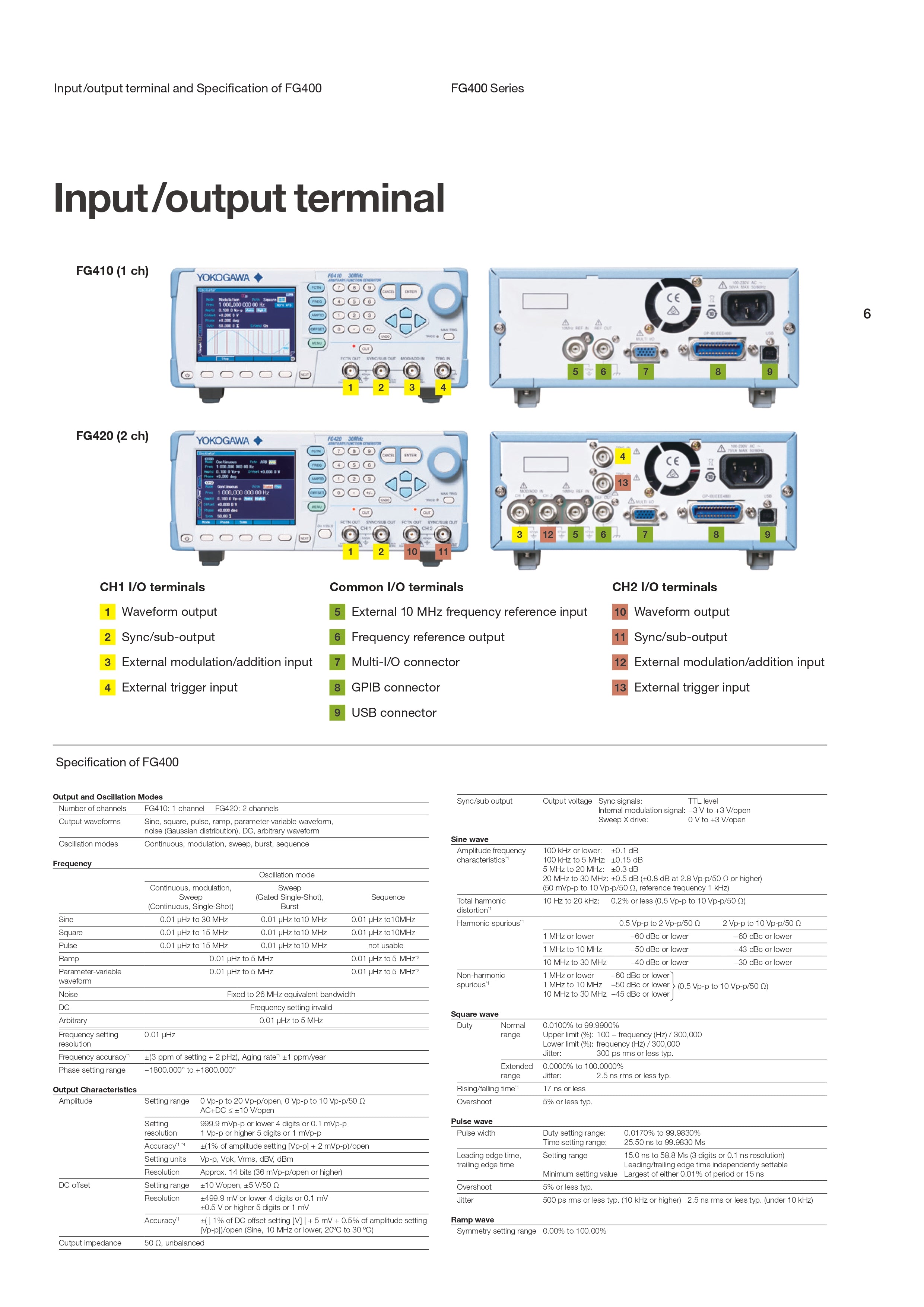

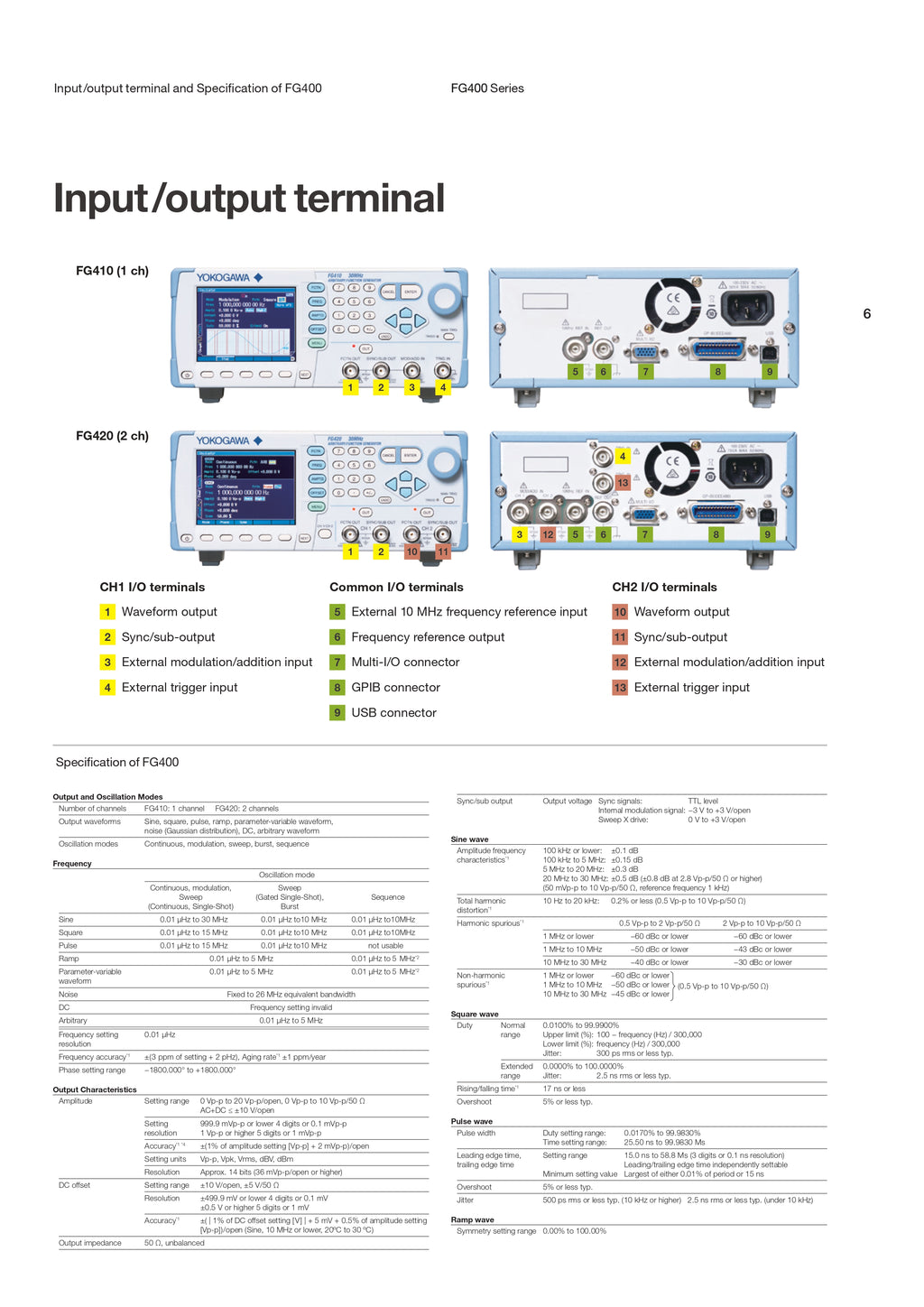

Connectivity:
- Interfaces: USB (Type A/B), GPIB
- External modulation input and sync output
- External 10 MHz reference input/output for synchronization

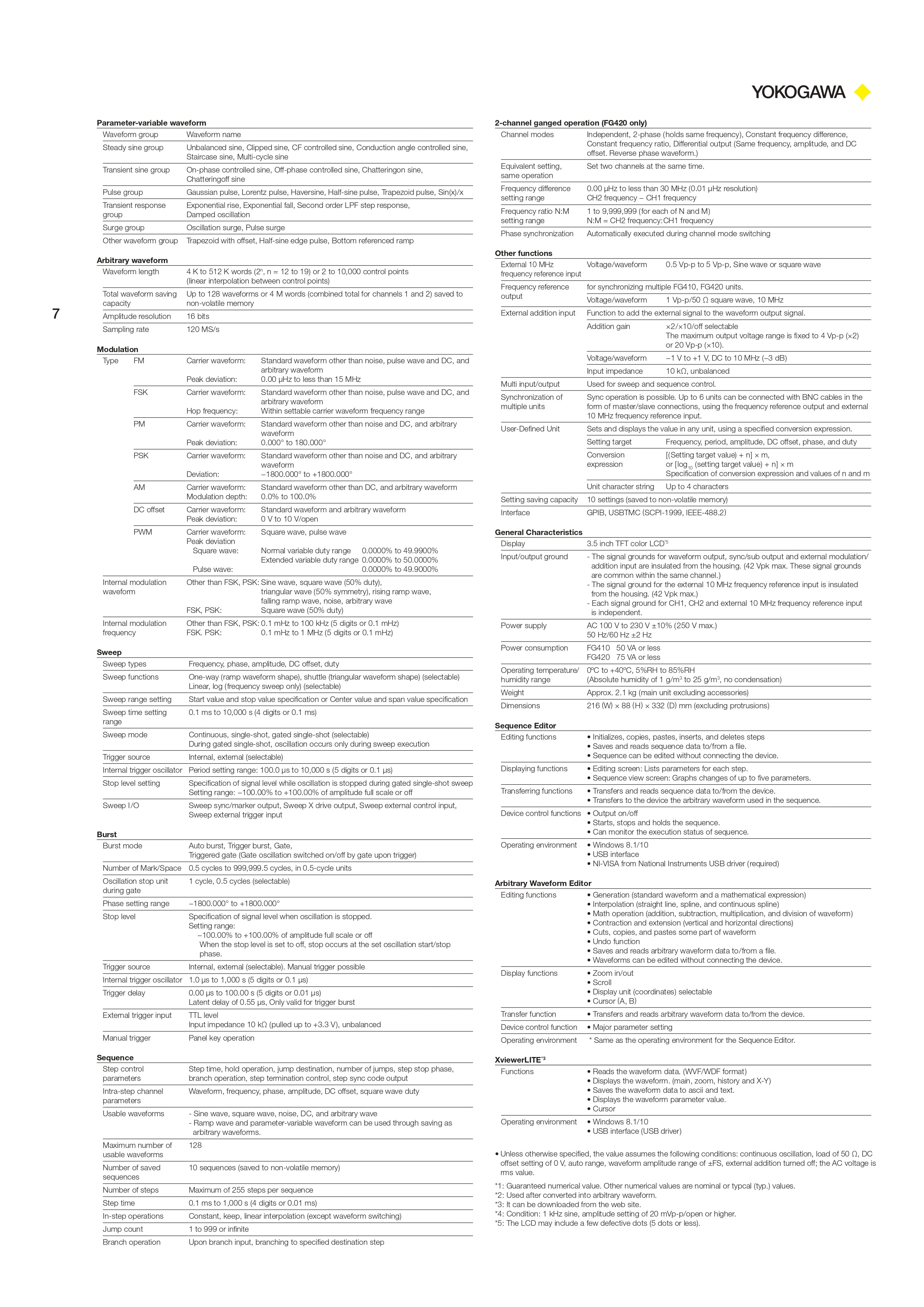

General Specifications:
- Display: 3.5” TFT Color LCD

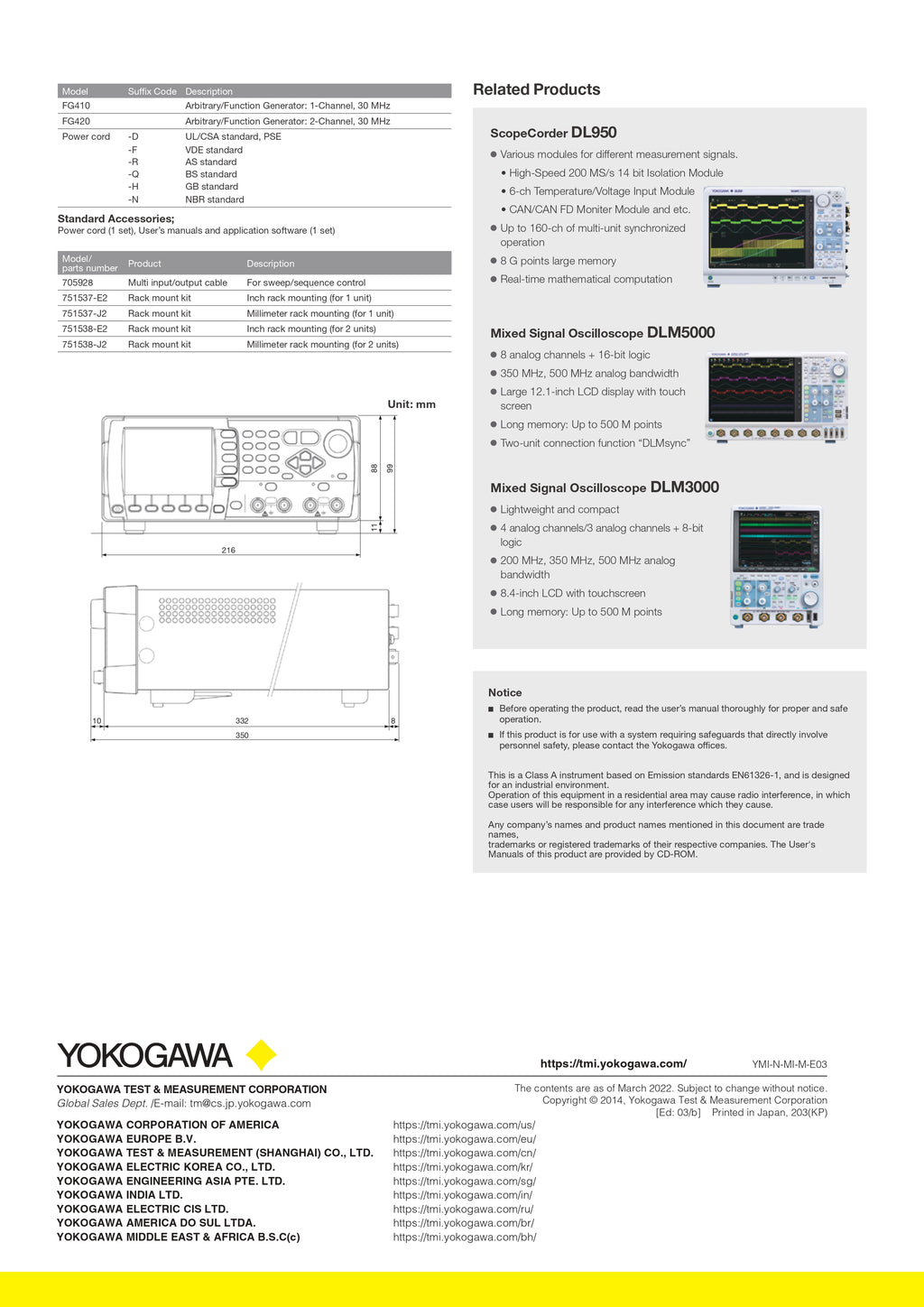

- Dimensions: 216(W) × 88(H) × 332(D) mm
- Weight: Approx. 2.1 kg
- Power Supply: 100–230 V AC, 50/60 Hz
Applications:
Ideal for analog circuit testing, waveform simulation, sensor emulation, embedded systems validation, and multi-phase signal generation.
