Product Description

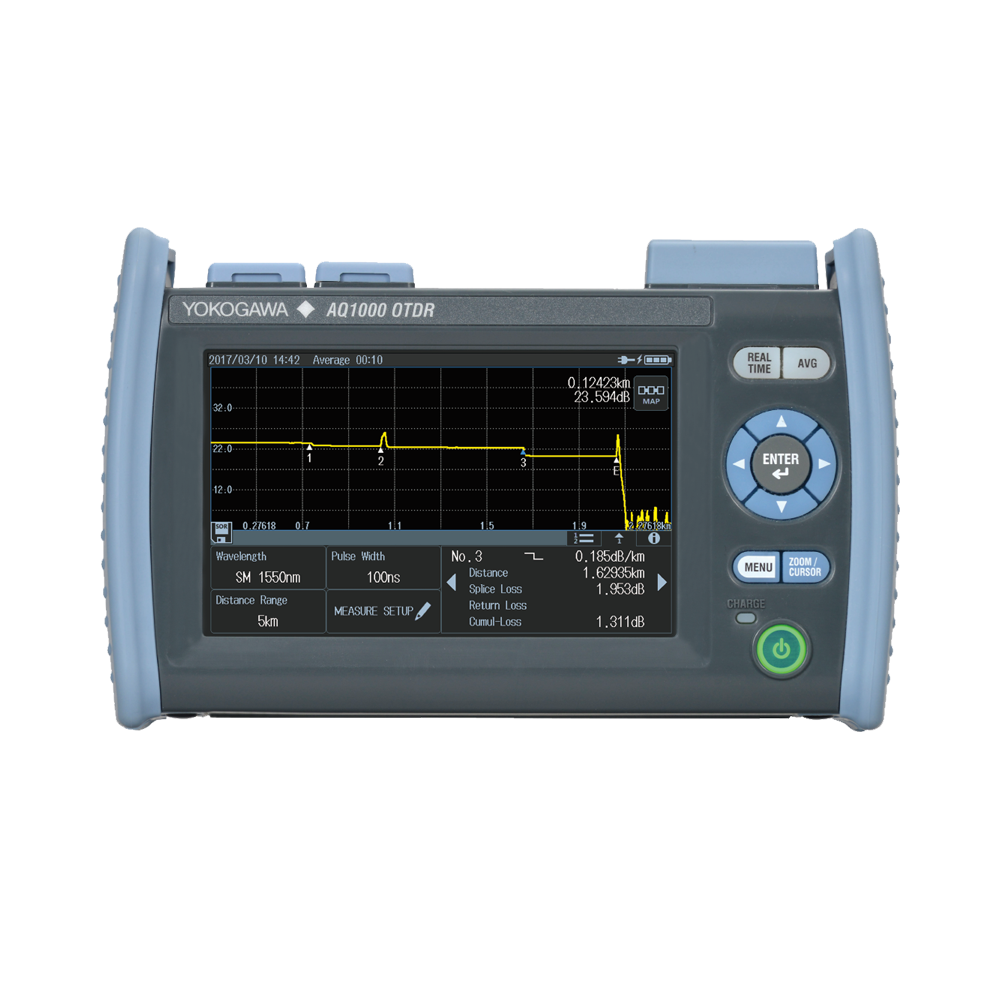

The Yokogawa AQ1000 Optical Time Domain Reflectometer (OTDR) is a compact, intuitive, and high-performance tool designed for access network fiber testing. Ideal for field technicians, the AQ1000 features a 5.0-inch multi-touch screen, long battery life, fast boot-up, and dual 1310/1550 nm wavelengths with up to 32 dB dynamic range. With optional Visible Light Source (VLS) and Wireless LAN capabilities, this OTDR offers rapid, one-button measurements and streamlined reporting—making it perfect for both quick diagnostics and detailed network analysis.

Key Features

• Wavelengths: 1310 ±20 nm / 1550 ±20 nm
• Dynamic Range: 32 dB (1310 nm) / 30 dB (1550 nm)
• Event Dead Zone: ≤ 0.8 m | Attenuation Dead Zone: 4/5 m
• 5.0" color capacitive touchscreen (800 × 480 resolution)
• Measurement modes: Trace view, Map view
• Power Checker, Stabilized Light Source, and optional VLS

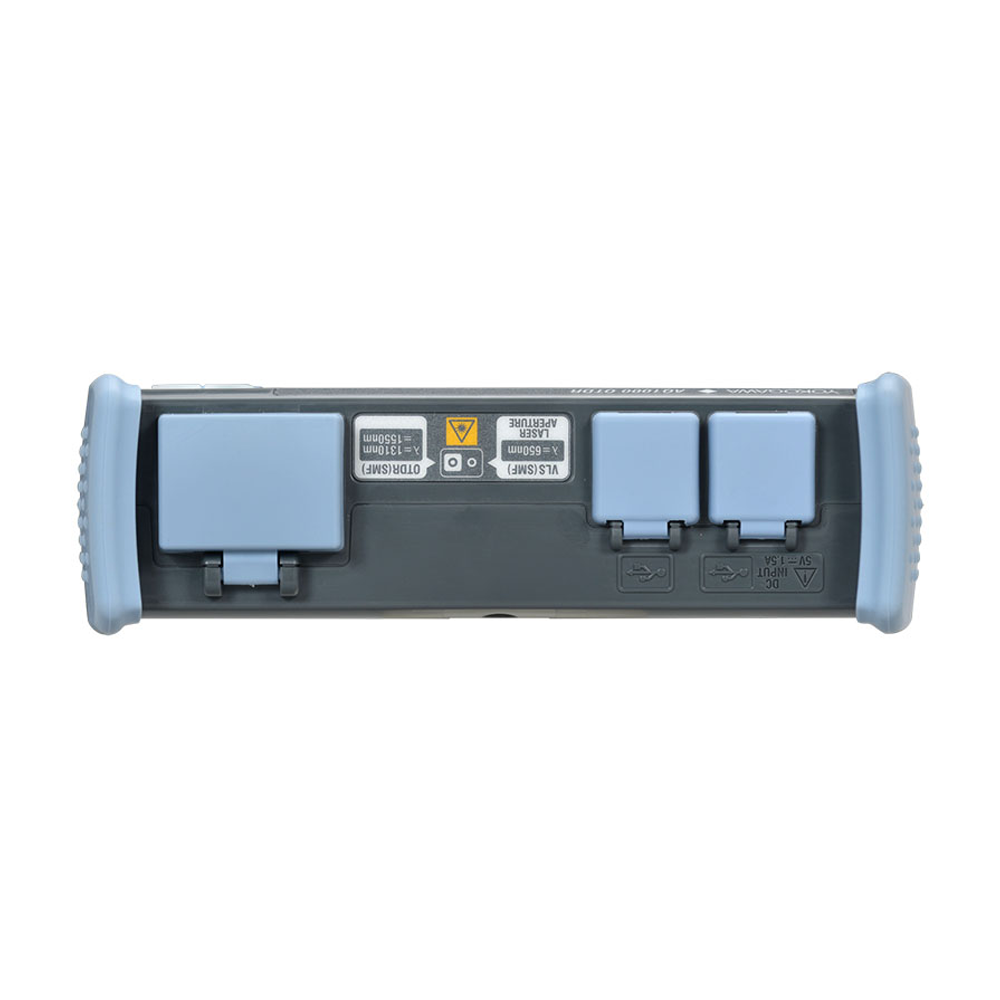

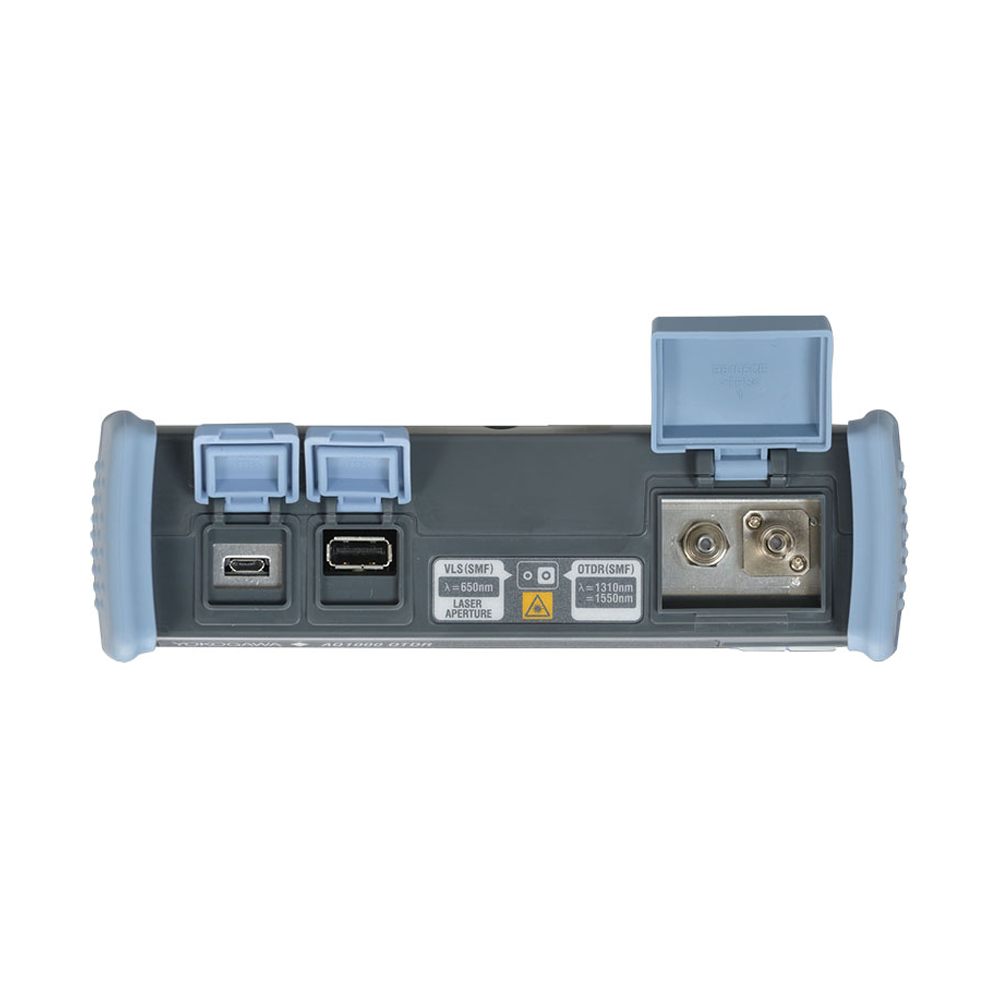

• USB and Wireless LAN (/WLN option) for remote control and data transfer
• 10+ hour battery runtime; USB power charging (AC adapter not required)
• Quick boot-up: under 10 seconds
• Pass/Fail auto analysis with direct PDF reporting

Specifications

• Distance Range: 0.2 km to 256 km
• Pulse Widths: 3 ns to 20,000 ns
• Sampling Resolution: Min. 5 cm
• Max Sample Points: 256,000
• Power: DC 5V ±10%, 1.5A max (via USB)
• Operating Temperature: –10°C to 50°C
• Battery: Li-ion polymer, 10+ hours operation
• Dimensions: 185 x 116 x 56 mm
• Weight: Approx. 660 g

Included in the Box

• Yokogawa AQ1000 OTDR Main Unit
• User Manual
• Standard USB Cable
• Universal Optical Adapter (SC or FC type)
• Wrist Strap
