- Interface: PCIe Gen5 x4, NVMe 2.0 M.2 2280 form factor
- Sequential Read/Write: Up to 14,000/13,000 MB/s – ~2× Gen4 speeds, 8× Gen3 speeds
- Capacities: 2TB (232-layer 3D NAND)
- NAND & Controller: 3D NAND, SM2508 controller

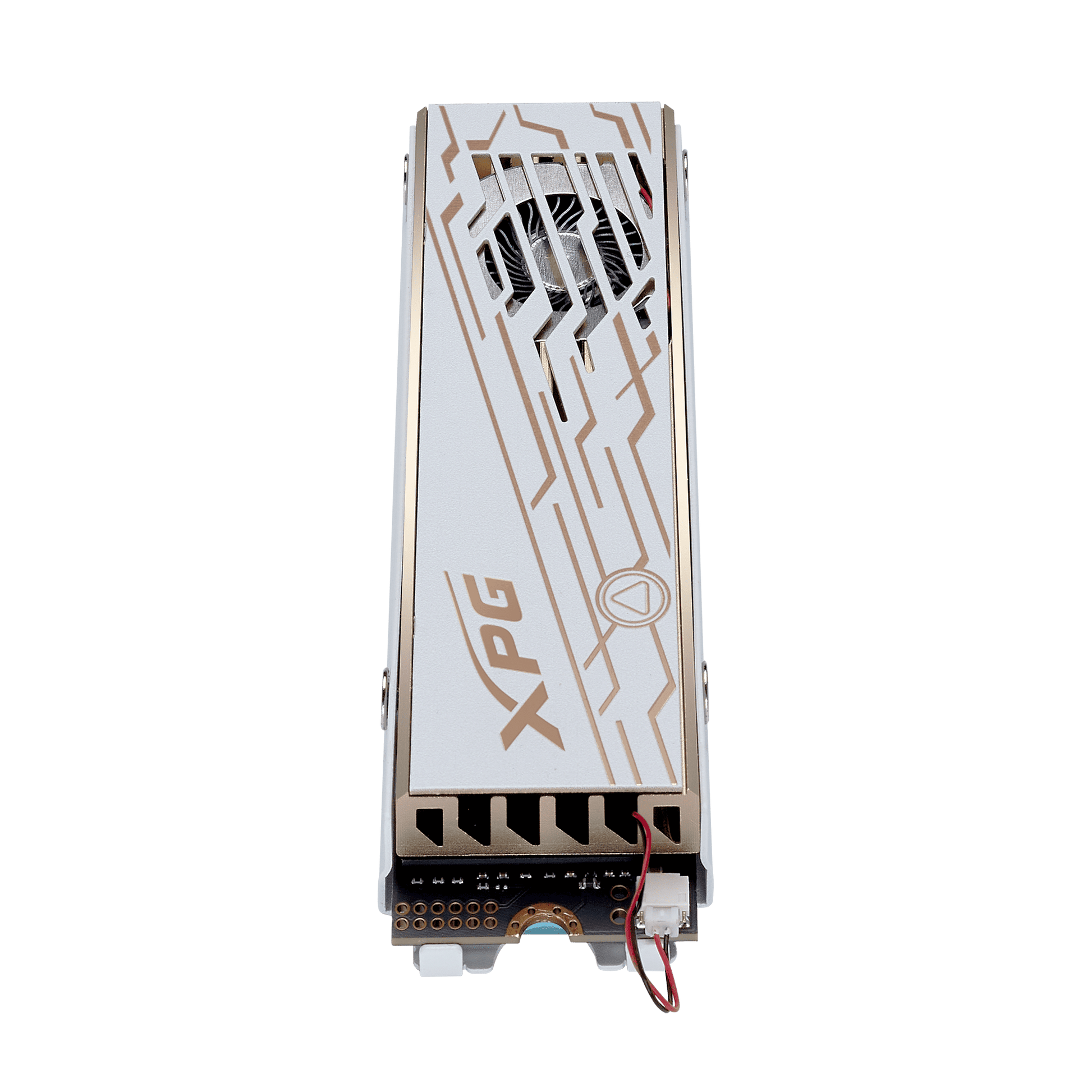

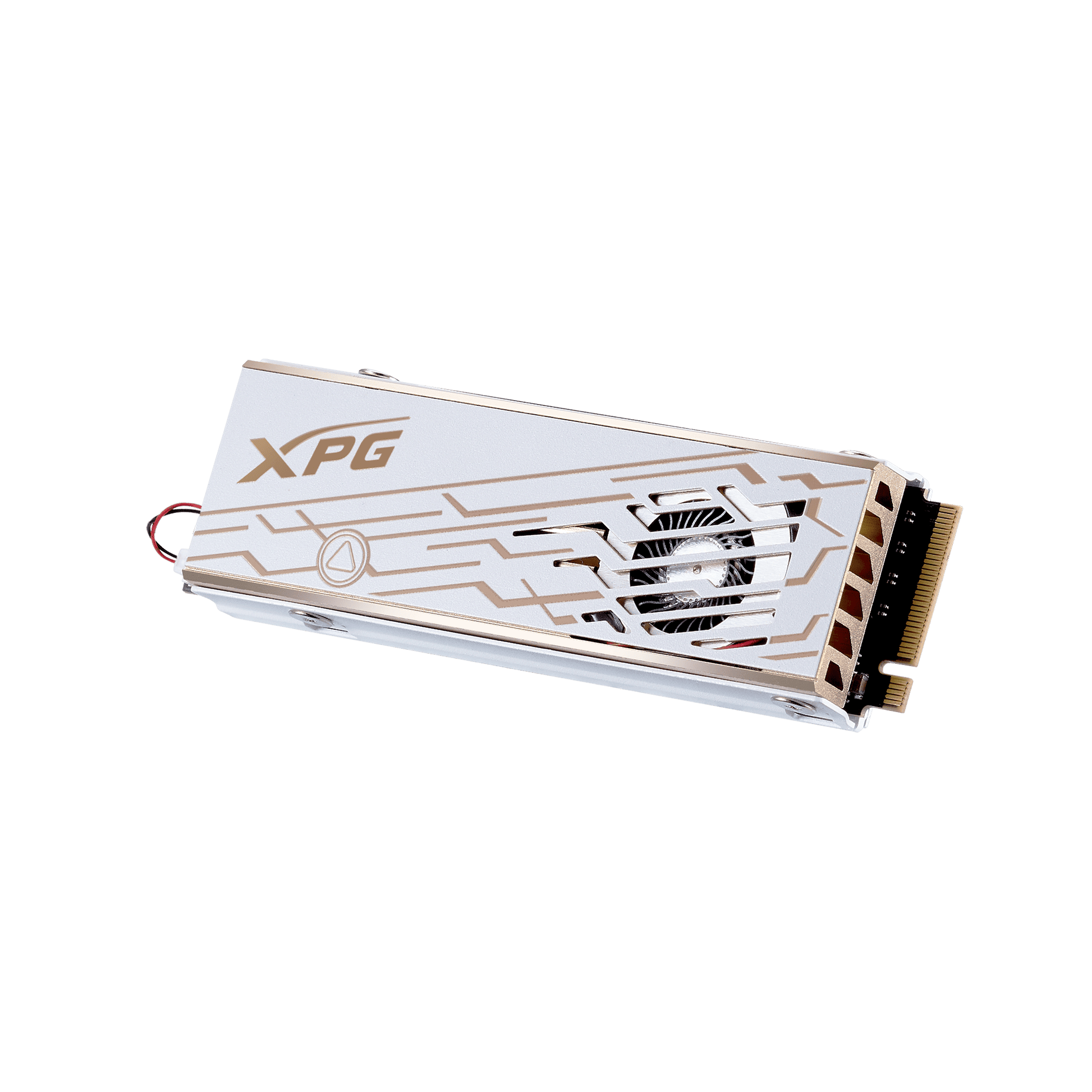

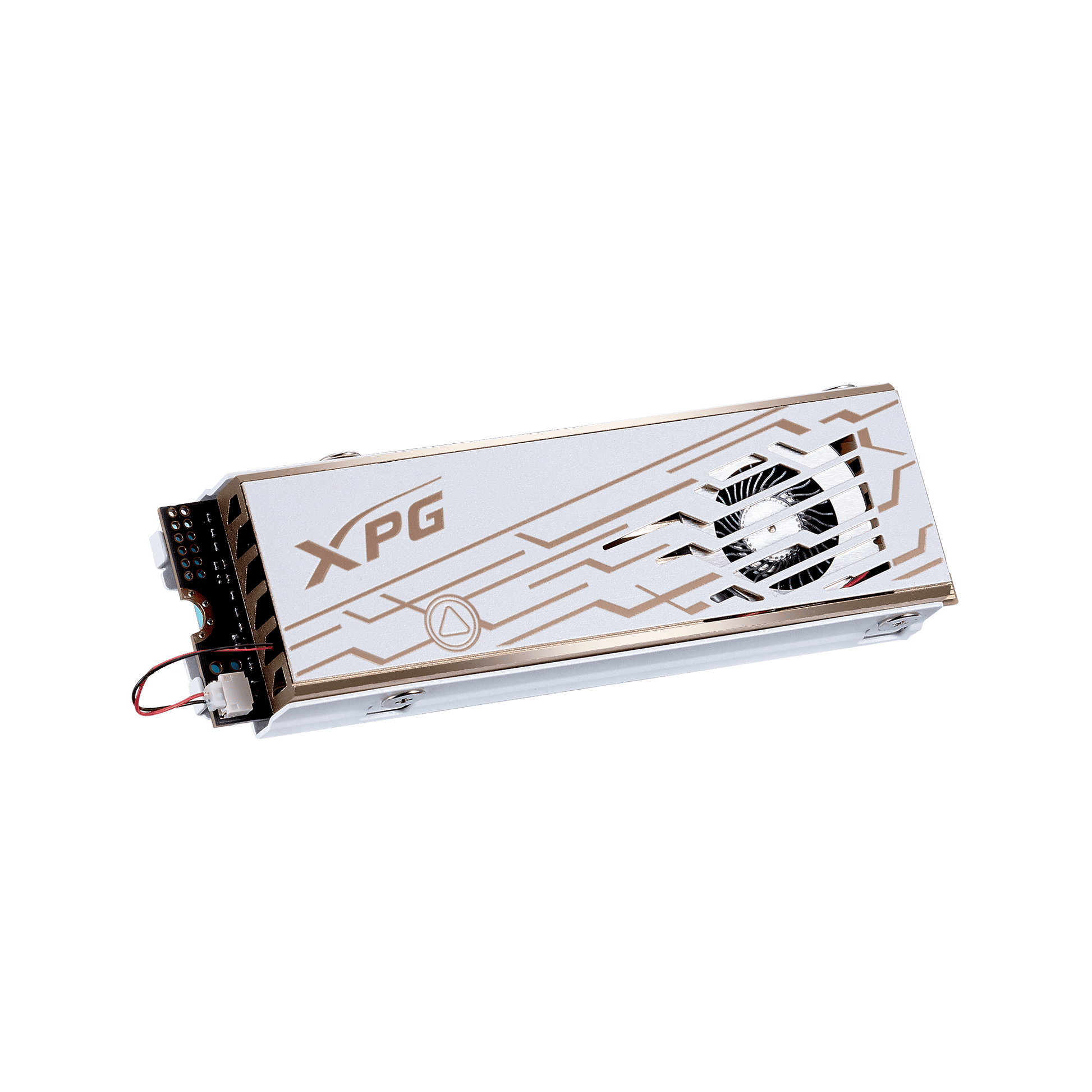

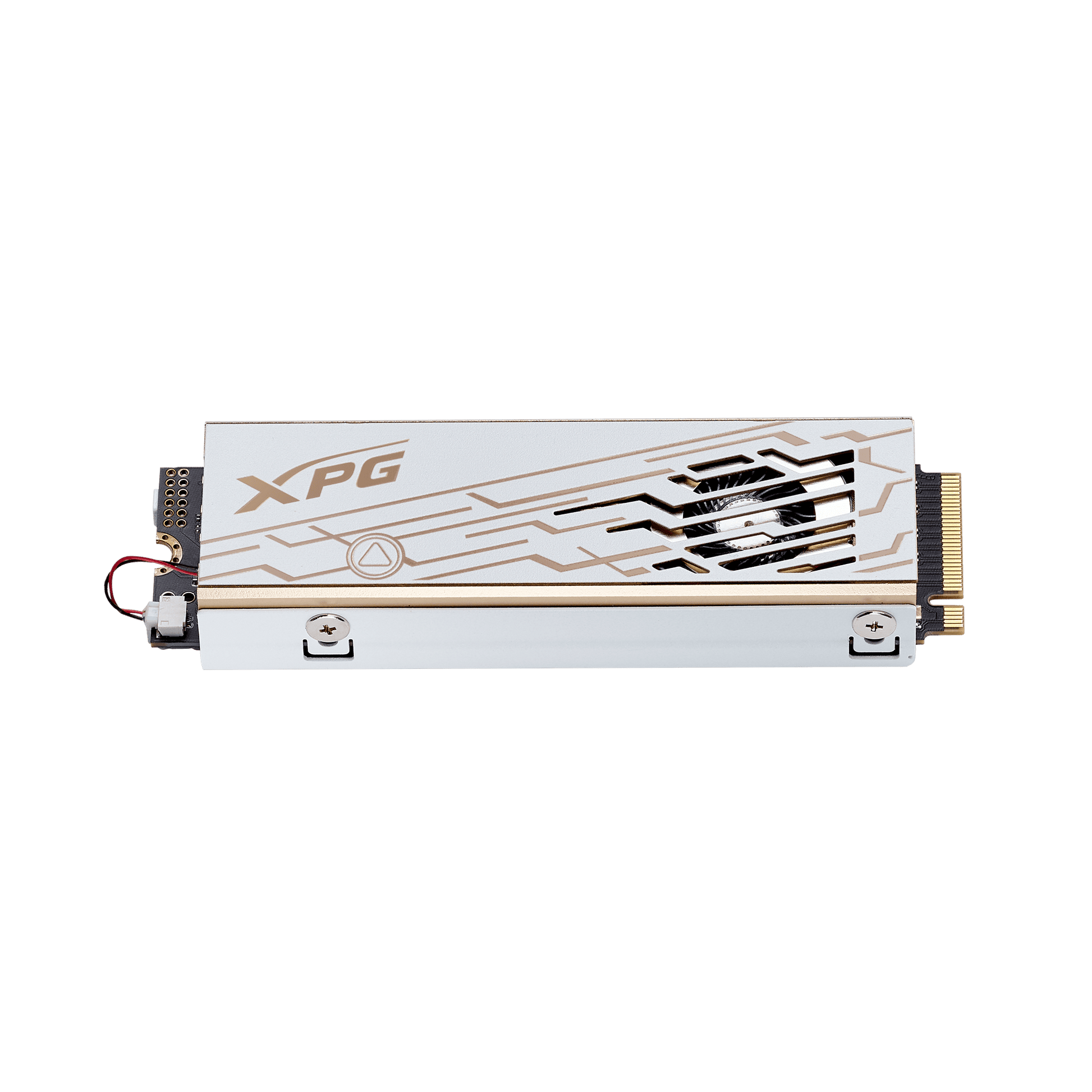

- Cooling: Built-in aluminum heatsink + turbo fan; reduces temperature by ~15–20% vs passive designs
- Random 4KB IOPS: Up to 2,000K read / 1,650K write

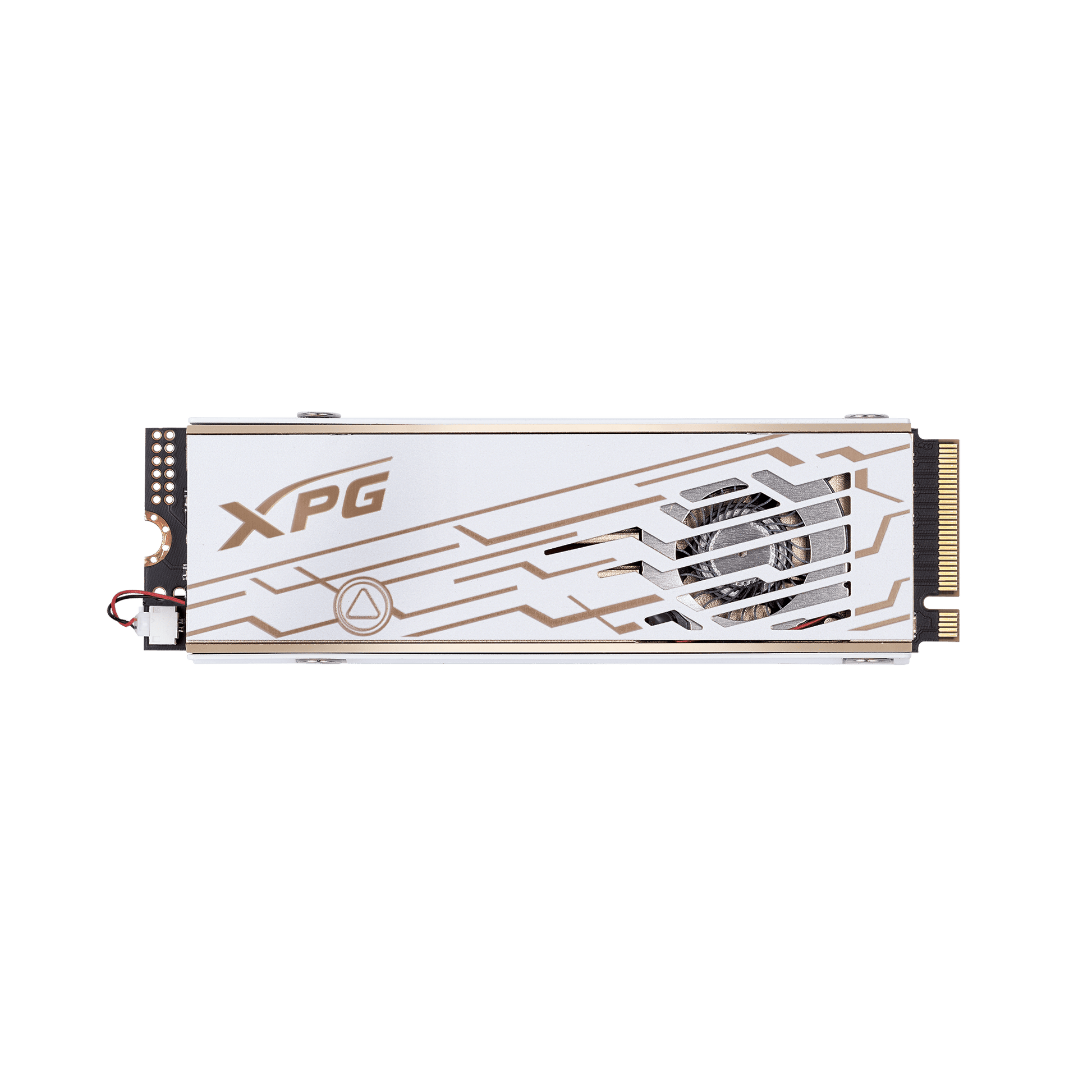

- Dimensions & Weight (w/ cooler): 80.5 × 24.2 × 11.2 mm, 30.3 g
- Reliability: MTBF 2,000,000 hrs; Shock resistance 1,500G; TBW up to 2,960 TB
- Operating Temp: 0–70 °C; Storage Temp: –40–85 °C
- Backward Compatibility: PCIe 4.0/3.0 supported

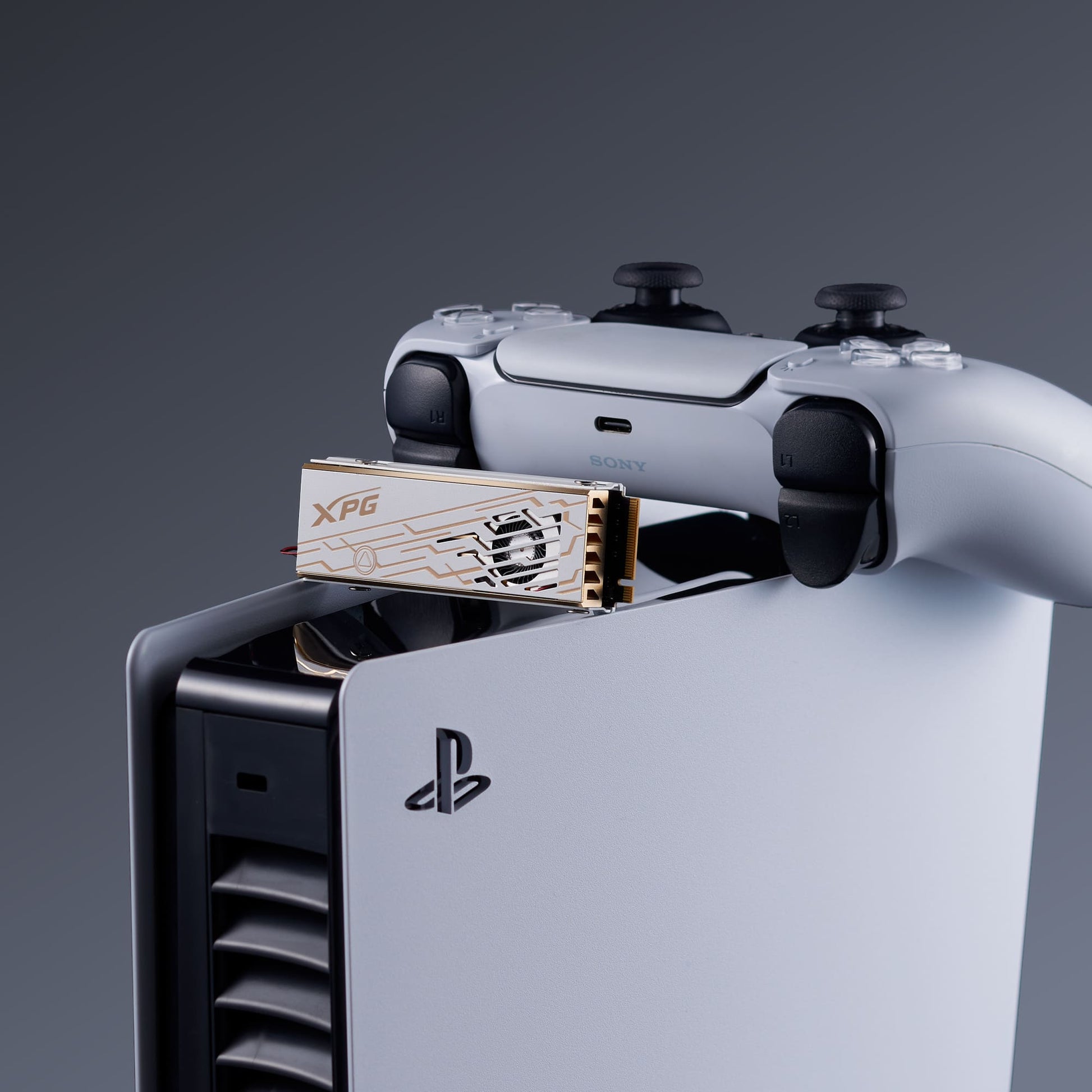

- PS5 Compatible: Officially supported as PS5 expansion storage
- Software: XPG SSD Toolbox for firmware, SMART, health & temperature monitoring
