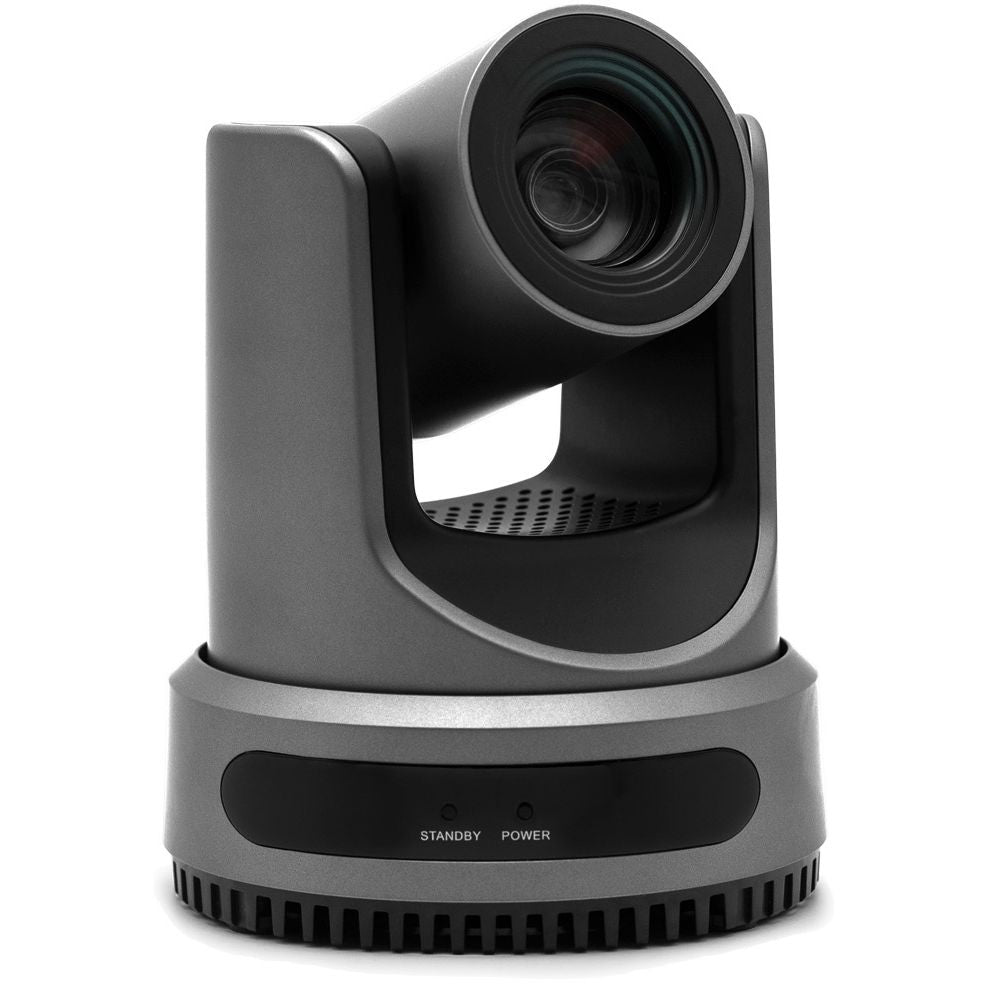

VISSONIC VIS-CDC-H20 Full HD PTZ Camera with 20× Optical Zoom and Multi-Output Streaming
The VIS-CDC-H20 is a high-performance PTZ camera designed for video conferencing, streaming, education, and broadcasting. It features a 2.07MP CMOS sensor for clear 1080p video at 60fps, a 20× optical zoom lens, and supports USB 3.0, HDMI, SDI, and IP outputs simultaneously. With H.265/H.264 encoding, advanced noise reduction, and smooth remote control over RS232/RS485 or IP, it delivers exceptional flexibility and image quality in any professional setup.
Key Features
• 1080p Full HD video at up to 60fps
• 20× optical zoom and 32× digital zoom
• Supports USB 3.0, HDMI, 3G-SDI, and IP streaming
• H.265, H.264, and MJPEG video compression
• USB plug-and-play for Zoom, Teams, OBS, etc.
• Advanced low-light CMOS sensor with 2D/3D noise reduction
• AAC audio encoding with line-in mic support
• Simultaneous output over all video interfaces
• VISCA over IP, RS232, and RS485 remote control support
• Up to 255 preset positions with fast, precise switching
Specifications
| Sensor |
1/2.8" CMOS, 2.07 Megapixels |
| Resolution |
1080p60/50/30/25, 720p60/50/30/25, 480i, 576i |
| Optional Frame Rates |
720p120, 640x480p240 (network only, optional) |
| Lens |
f4.42–88.5mm, F1.8–F2.8 |
| Zoom |
20× Optical, 32× Digital |
| Min. Illumination |
0.5 Lux (F1.8, AGC ON) |
| Horizontal Angle of View |
60.7° – 3.36° |
| Vertical Angle of View |
34.1° – 1.89° |
| Pan Range |
±170° |
| Tilt Range |
-30° to +90° |
| Pan Speed |
1.7° – 100°/s |
| Tilt Speed |
1.7° – 69.9°/s |
| Presets |
255 Positions, 0.1° Accuracy |

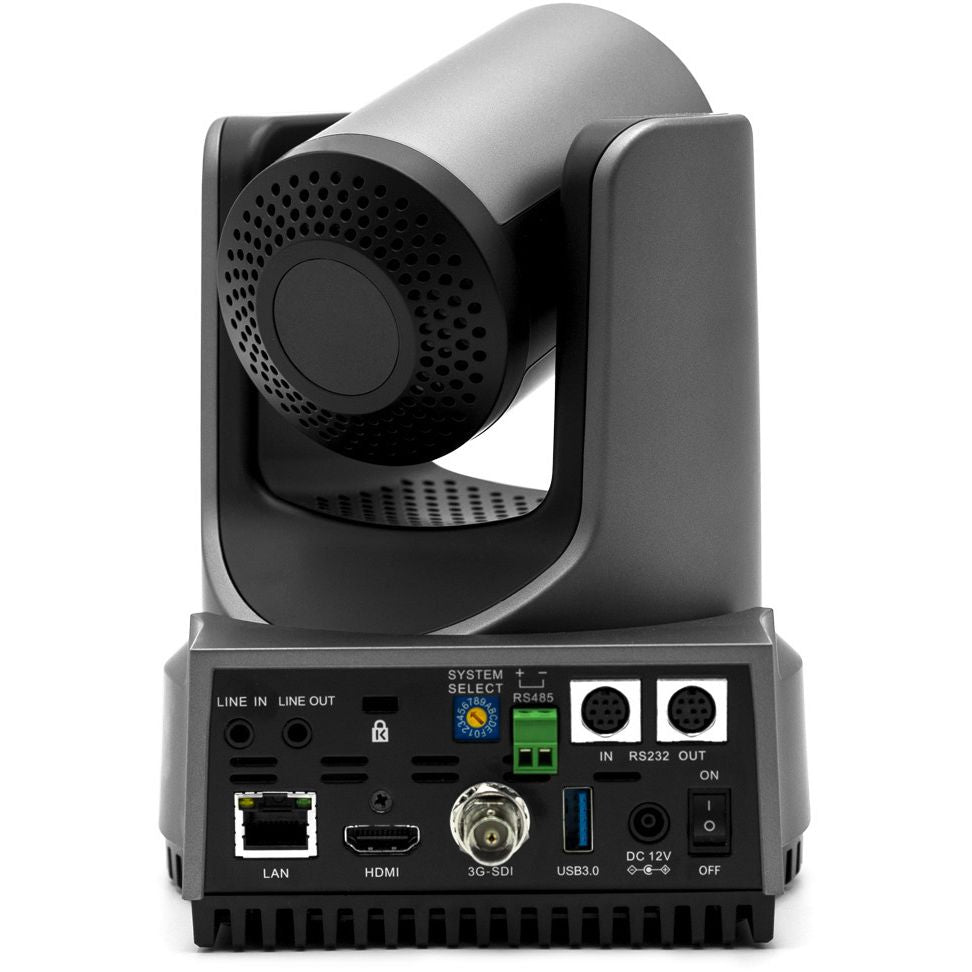

| Video Outputs |
HDMI (v1.3), 3G-SDI (BNC), CVBS (3.5mm) |
| USB |
1× USB 3.0 Type-A |
| Audio Input |
3.5mm Line-In, AAC (96/128/256 Kbps) |
| Network Interface |
RJ45 (10/100M), supports RTSP, RTMP, ONVIF, DHCP, Multicast |
| Control Interfaces |
RS232 In/Out, RS485, VISCA, Pelco-D/Pelco-P |
| Compression |
H.265, H.264, MJPEG |
| Power |
DC 12V, Max 12W |
| Dimensions |
169 × 142 × 164 mm |
| Weight |
1.35 kg |
| Operating Temp |
-10°C to 40°C |
| Storage Temp |
-40°C to 60°C |
| MTBF |
≥30,000 hours |
In the Box
• VISSONIC VIS-CDC-H20 PTZ Camera
• Power Adapter
• USB Cable
• RS232 Control Cable
• IR Remote Control
• Mounting Accessories
• Quick Start Guide
