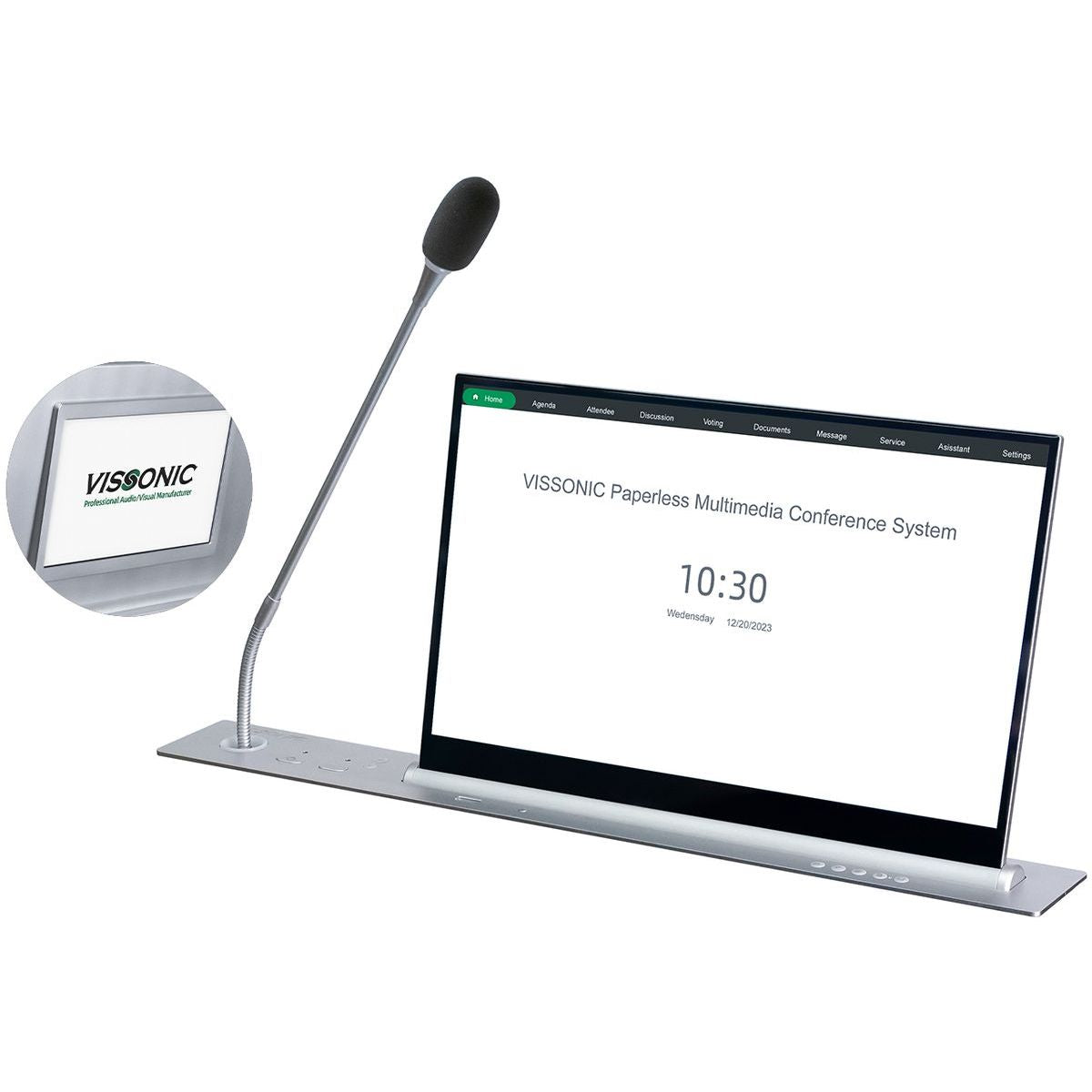

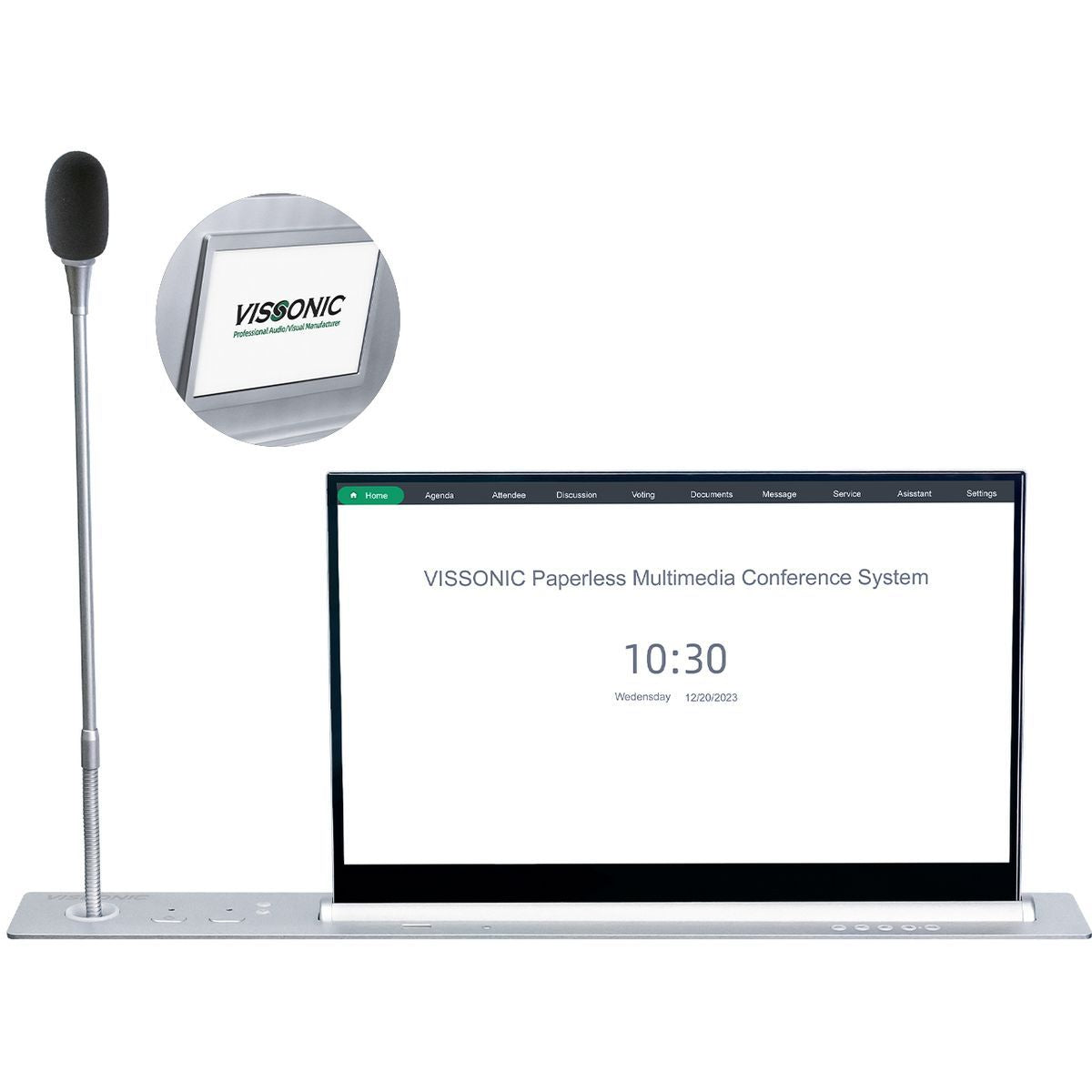

VISSONIC VIS-17LDSCM2-A Adjustable Digital Seat Control Module for NETLINK G2 Conference Systems
The VIS-17LDSCM2-A is an enhanced version of the retractable digital seat control module tailored for NETLINK G2 paperless conference platforms. Featuring a motorized lifting screen, touch-sensitive LED interface, microphone, and nameplate, it integrates with server-side applications via B/S architecture to manage voting, speaking rights, and real-time seat display.
Key Features
• Motorized ultra-thin LCD with smooth up/down/retract motion
• Touch-sensitive control panel for voting, mic on/off, and speaking request
• Onboard digital microphone with LED status ring
• Built-in nameplate synchronized from server database
• Seat layout, participant info, and agenda managed via browser interface
• Remote RS-232/RS-485 control for seamless integration with central system
• CAT5/6 wired network connection under the desk, tidy installation
• Designed for modern boardrooms with IEEE-compliant EMShielding
Specifications (estimated)
| Screen Size |
17″ Full HD retractable LCD |
| Microphone |
Cardioid capacitive, LED indicator ring |
| Interface |
Touch buttons + LED seat/status display |
| Network |
CAT5/6 wired, POE via conference switch |
| Control Channels |
Voting, speaking request, nameplate, volume |
| Control Ports |
RS‑232 / RS‑485 (master sync/lifter control) |
| Mounting |
Desk-recessed with flip-down cabling |
| Power Method |
POE or 12 V DC from central unit |
| EMI Protection |
Contact-type 6 kV, shielding per IEC standards |
In the Box
• VIS-17LDSCM2-A Seat Module with Built-in Mic & Display
• Desk Mounting Kit & Screws
• 1 × CAT5/6 Cable (pre-wired)
• Quick Installation Guide
