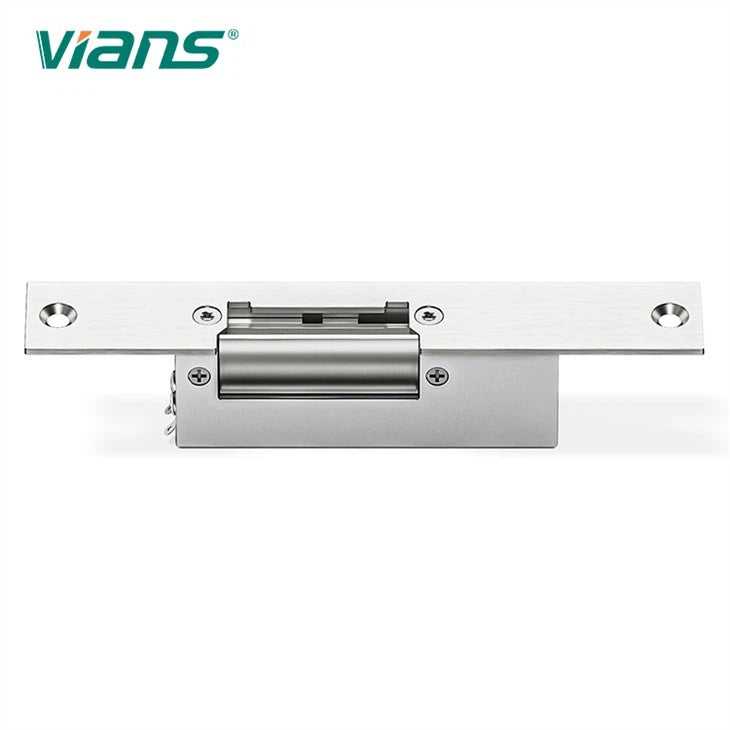

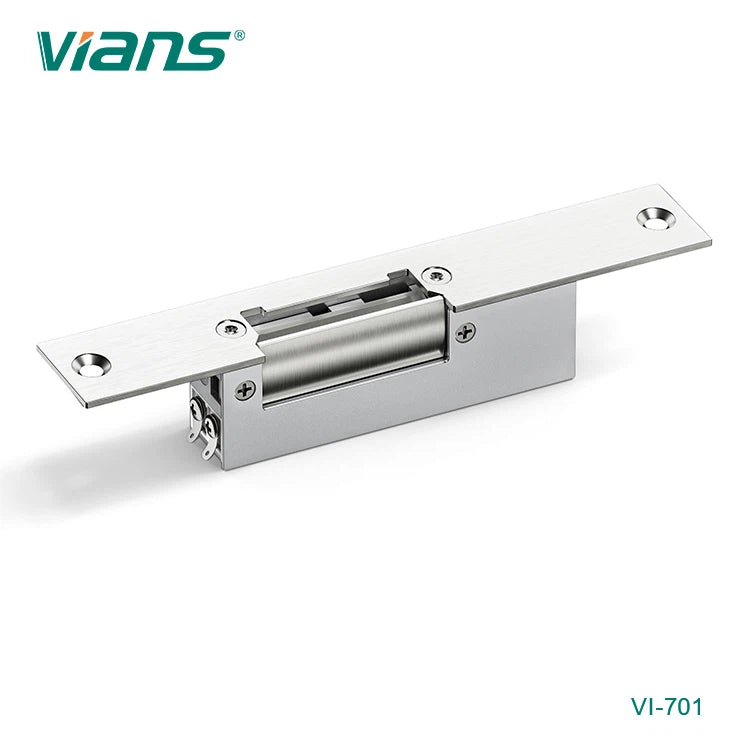

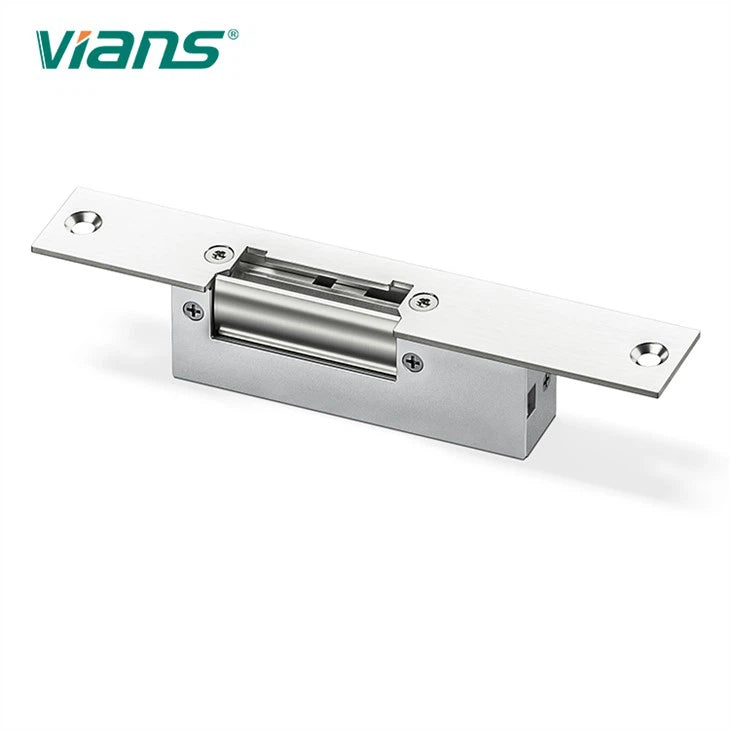

VIANS VI-701 Fail Secure Short Panel Electric Strike
VIANS VI-701 Fail Secure Short Panel Electric Strike
Available in stock
Features
-
Adjustable Electric Strike with Narrow Frame: Designed to fit a variety of door types, offering flexibility in installation.
-
Works with Mechanical Lock: Can be used alongside mechanical locks for enhanced security.
-
Anti-Residual Magnetism Design: Prevents the strike from retaining magnetism after release, ensuring smooth operation.
-
Supports Doors with 90° Opening: Compatible with doors that open up to 90 degrees, allowing for greater flexibility in door swing.
-
Made from Hardened Stainless Steel: Built to withstand heavy-duty use, capable of bearing up to 500 kg of impact pressure, ensuring durability and security.
Specifications
-
Model: VI-701
-
Product Name: Short Panel Electric Strike
-
Lock Size: 160L x 25W x 31H (mm)
-
Holding Strength: 500 kg
-
Input Voltage: DC 12V ± 10%
-
Working Current: 200 mA
-
Opening Mode: Supports 90° Swing Door
-
Bolt Housing: Stainless steel, with silk polishing for a smooth finish
-
Strike Structure: Stainless Steel for durability and resistance
-
Applicable Door Types: Suitable for wooden doors, glass doors, metal doors, and fireproof doors
-
Signal Output: None
-
Feature:
-
Fail Secure (NO): Strike remains locked when power is off
-
Fail Safe (NC): Strike unlocks when power is off
-
-
Surface Temperature: Within +20℃
-
Suitable Temperature Range: -10℃ to +55℃ (14℉ to 131℉)
-
Weight: 0.35 kg
-
Standard Package: 70 PCS per carton
-
Carton Weight: 24.5 kg
-
Carton Size: 54.5 x 20 x 30.5 cm
