VIANS PS07 12V 5A Access Control Power Supply with Battery Backup – Linear PSU for Electric Locks & Access Systems
VIANS PS07 12V 5A Access Control Power Supply with Battery Backup – Linear PSU for Electric Locks & Access Systems
Regular price
50,000 IQD
Sale price
50,000 IQD
Regular price
Shipping calculated at checkout.
Available in stock

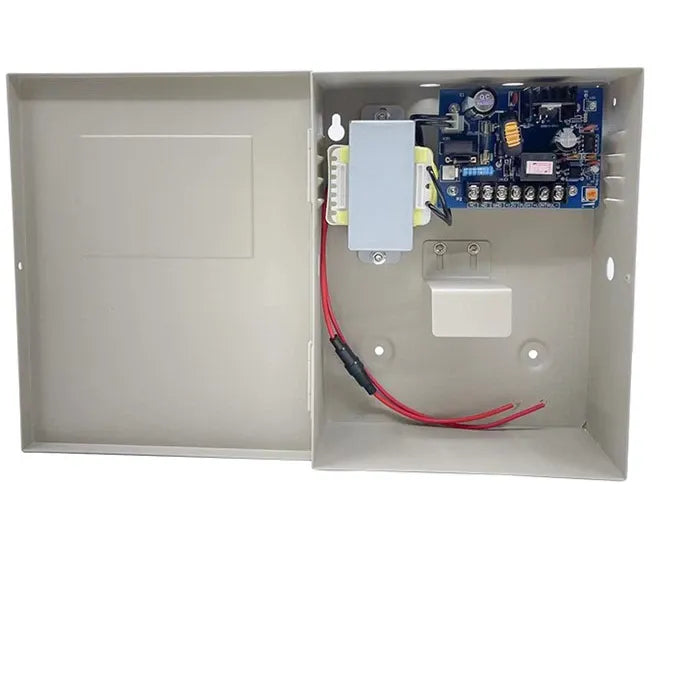

The PS07 is a linear access control power supply with battery backup, designed for access controllers, keypads, electric locks, exit buttons, and building intercom systems. It supports a 12V lead-acid battery and provides stable power with built-in protection functions.
Product Parameters
| Model | PS07 |
|---|---|
| Product Name | Linear Power Supply with Battery Backup |
| Dimensions | 214 × 169 × 70 mm |
| AC Input Voltage | AC 220V, 50 Hz |
| Output Voltage | DC 12V |
| Output Current | 5 A |
| Persistent Current | 2 A / 1.2 A |
| Suitable Battery | 12V / 7Ah Lead Acid Battery |
| Ripple | ≤ 120 mV |
| Humidity | ≤ 90% |
| Ambient Temperature | -20°C to 60°C |
| Net Weight | 1.9 kg |
| Standard Package | 10 pcs |
| Carton Weight | 19 kg |
| Carton Size | 420 × 370 × 240 mm |
Product Details
- Designed for access control systems, keypads, electric locks, exit buttons, and intercom systems
- Supports 12V lead-acid battery installation for backup power
- Controls electric locks via access controller signal or external switch signal
- Reduces access controller load and improves system safety
- Supports normally-open (NO) and normally-closed (NC) electric locks
- Adjustable unlock delay time and open button input
- Built-in automatic protection for short circuit, overload, high temperature, and over-voltage
- Automatic signal recovery after fault removal
- Fuse-protected design with replaceable fuse
