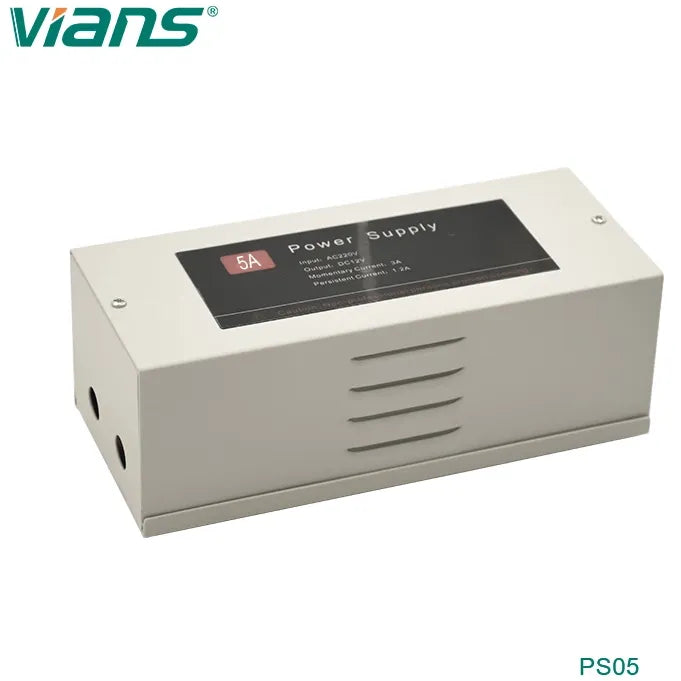

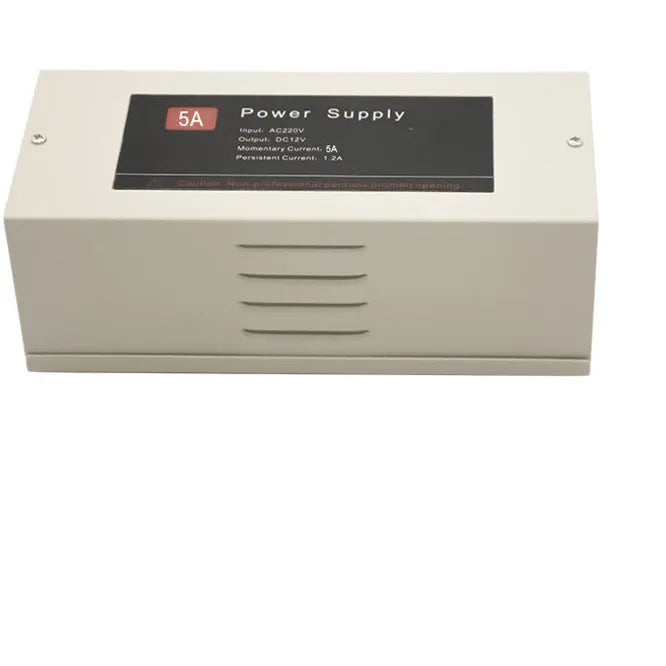

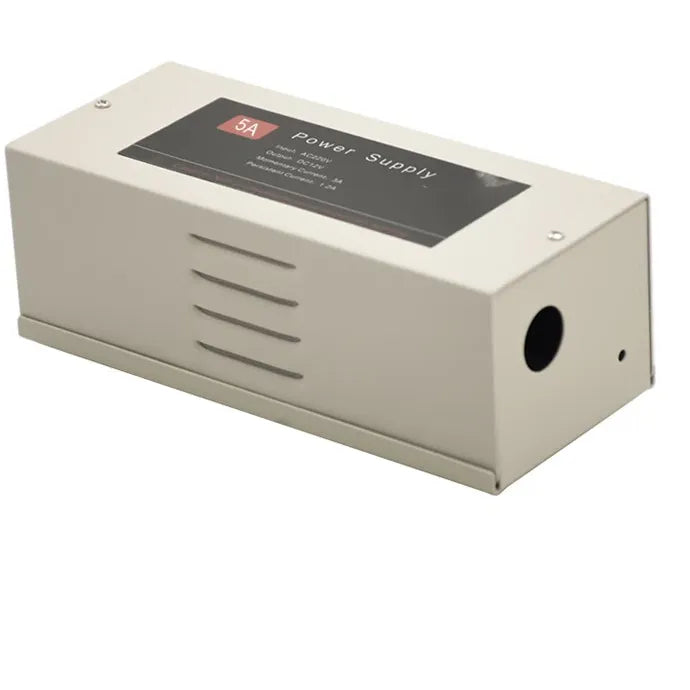

VIANS PS05 12V 5A Access Control Power Supply – Linear PSU for Electronic Locks, Access Controllers & Elevators
VIANS PS05 12V 5A Access Control Power Supply – Linear PSU for Electronic Locks, Access Controllers & Elevators
Regular price
38,000 IQD
Sale price
38,000 IQD
Regular price
Shipping calculated at checkout.
Available in stock
The PS05 is a linear access control power supply designed for electronic locks, access controllers, and elevator control systems. It provides stable DC 12V output and supports lock control via switch signal or direct power output to reduce controller load.
Product Parameters
| Model | PS05 |
|---|---|
| Product Name | Linear Power Supply |
| Dimensions | 183 × 78 × 65 mm |
| Input | 190–265 VAC, 50–60 Hz |
| Output Voltage | DC 12V ±15% |
| Output Current | 5 A |
| Charging Current | No |
| Overload Protection | No |
| Battery Support | No |
| Ripple | ≤ 100 mV |
| Humidity | 30% – 90% |
| Ambient Temperature | -20°C to 50°C |
| Net Weight | 1.25 kg |
| Standard Package | 20 pcs |
| Carton Weight | 25 kg |
| Carton Size | 438 × 398 × 165 mm |
Product Details
- Designed for access controllers, elevator systems, and electronic locks
- Controls locks via controller switch signal or direct DC 12V output
- Helps reduce overload on access controllers
- Supports normally-open and normally-closed lock modes
- Adjustable door open delay time
- Built with high-quality imported components
