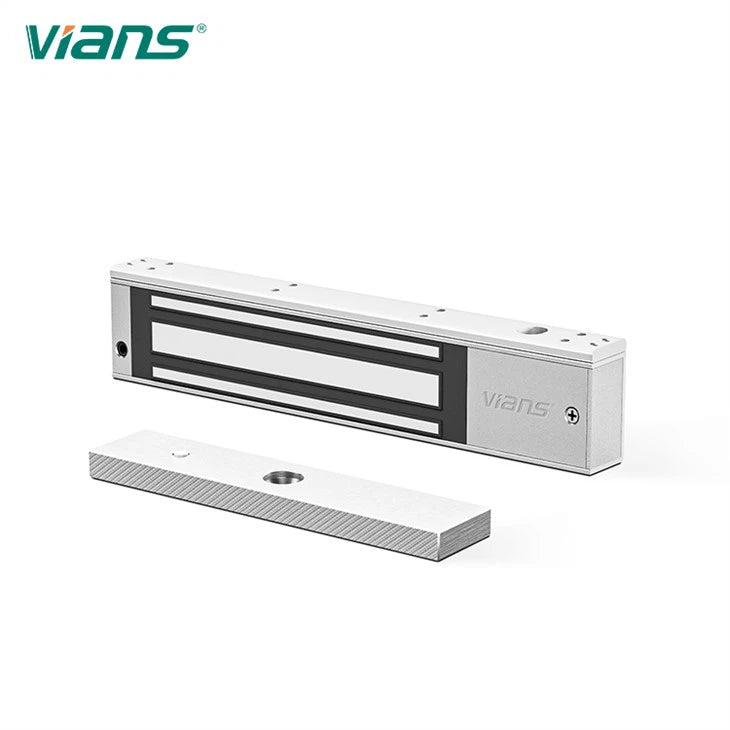

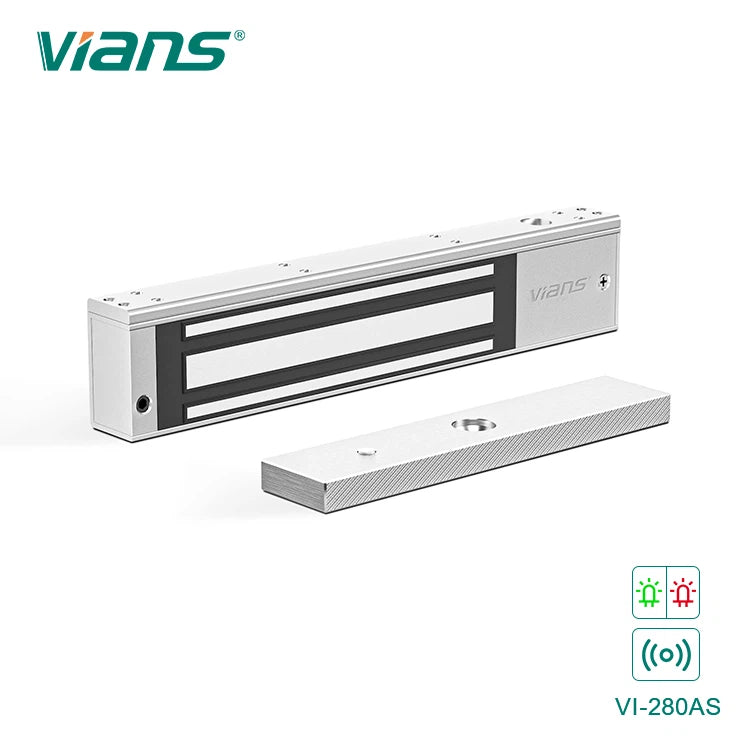

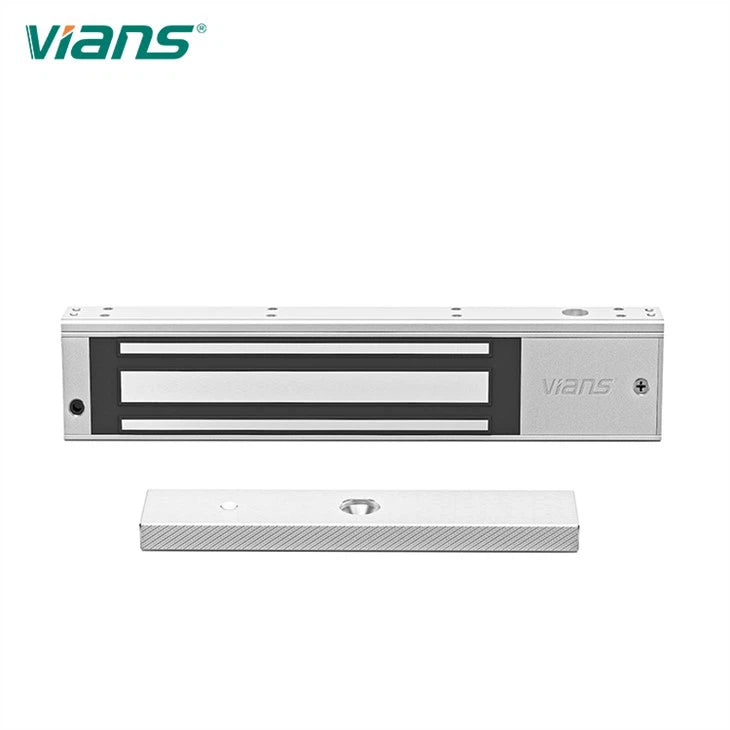

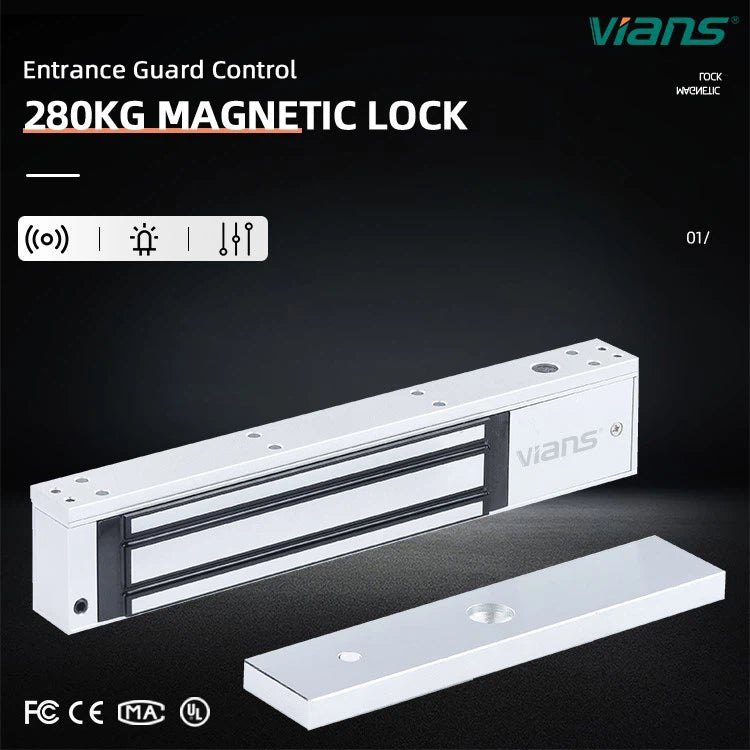

Product Name: 280KG 600LBS Single Door EM Lock with LED

Model: VI-280AS

Lock Size: 250L x 47W x 26H (mm)

Armature Plate Dimension: 180L x 38W x 11H (mm)

Holding Force: 280KG (600LBS)

Input Voltage: DC 12V / DC 24V

Red & Green LED Indicator: Yes

Lock Sensor: Yes

Door Sensor: No

Time Delay: No

Current Consumption:

• 12V: 480mA (±10%)

• 24V: 240mA (±10%)

Security Type: Fail Safe

Suitable For: Wooden doors, glass doors, metal doors, and fireproof doors

Surface Temperature: ≤ +20℃

Operating Temperature: -20℃ to +55℃ (-4°F to 131°F)

Operating Humidity: 0-90% (Non-condensing)

Certification: CE, RoHS, FCC, UL

Unit Weight: 2.02 kg

Standard Package: 12 PCS per carton

Carton Weight: 24.24 kg

Carton Size: 28 x 26.5 x 20 cm
