VIANS K30 Waterproof Smart Access Control Keypad, TTLock Bluetooth, NFC IC Card Reader, Touch Keypad, 1000 Cards, Zinc Alloy, 12-24V

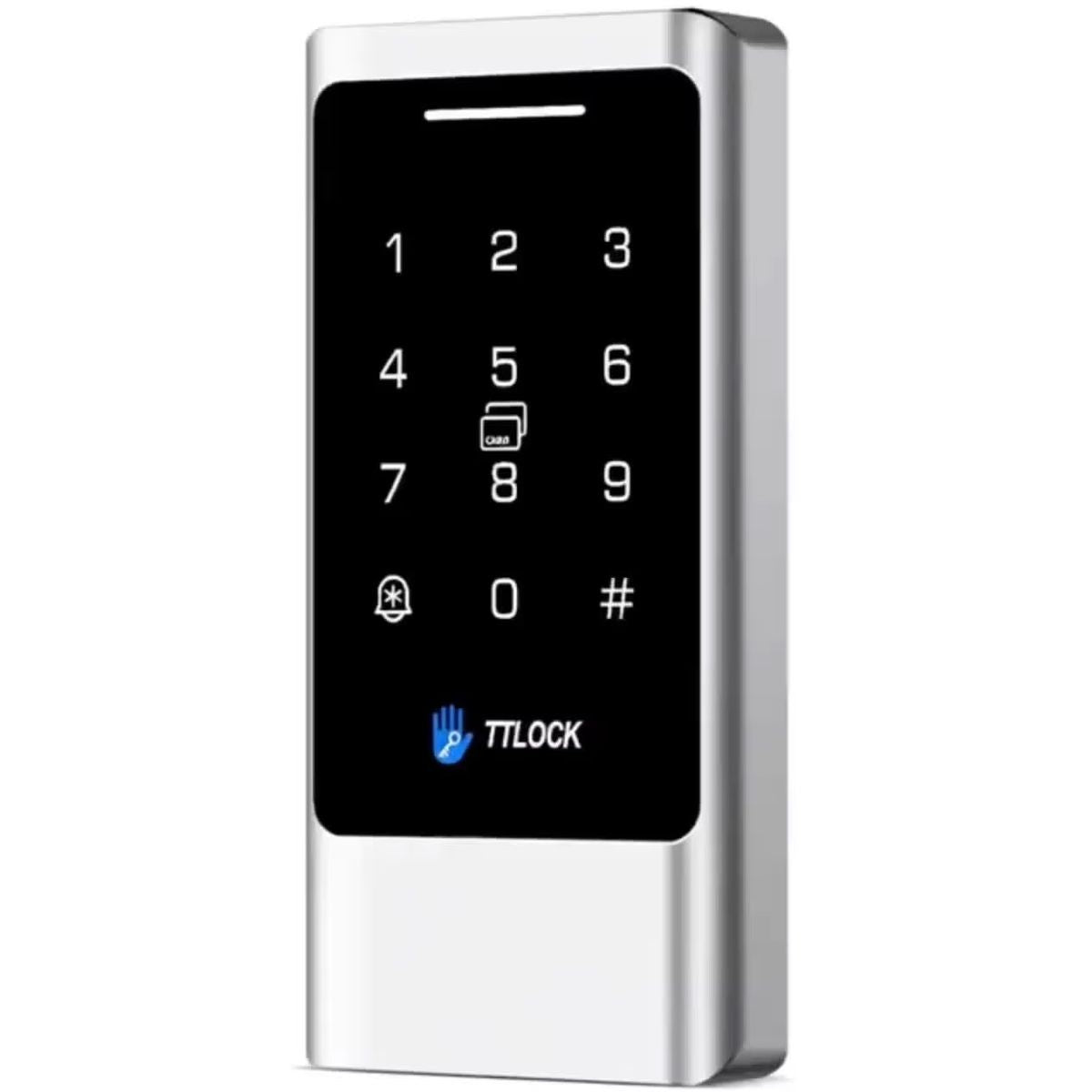

VIANS K30 Waterproof Smart Access Control Keypad

Product Overview

The VIANS K30 is a waterproof smart access control keypad designed for secure and convenient door entry management. Featuring a tempered glass touch panel and durable zinc alloy housing, it combines modern design with reliable access control functionality.

Supporting TTLock password access, NFC IC cards, and Bluetooth connectivity, the K30 provides flexible authentication options for residential, commercial, and office environments. Optional Wi-Fi connectivity allows additional smart access management capabilities when used with compatible equipment.

With support for up to 1,000 cards, a reading distance of 1–10cm, and an operating voltage of AC/DC 12–24V, the VIANS K30 is suitable for various electronic door access control installations. Its encapsulated waterproof construction provides protection against moisture and challenging environmental conditions.

Key Features

• Smart Access Control: Supports TTLock password access and contactless IC card authentication.
• Bluetooth Connectivity: Enables wireless communication with compatible smart access management systems.
• Optional Wi-Fi: Supports Wi-Fi connectivity through compatible optional equipment.
• NFC Card Reader: Supports IC (NFC) MF cards for convenient contactless entry.
• Touch Keypad: Features a responsive touch-sensitive keypad for password entry.
• 1,000 Card Capacity: Supports registration of up to 1,000 access cards.
• Waterproof Construction: Uses encapsulation waterproofing technology for improved moisture resistance.
• Premium Materials: Zinc alloy housing with a tempered glass front panel.
• Flexible Power Input: Supports AC/DC 12–24V power supplies.
• Low Power Consumption: Operating current below 100mA.
• Contactless Reading: Card reading distance of 1–10cm.
• Wide Temperature Range: Operates in ambient temperatures from -20°C to +60°C.
• Compact Design: Slim dimensions of 146 × 70 × 20mm.

Technical Specifications

Item	Specification
Brand	VIANS
Model	K30
Product Type	Waterproof Smart Access Control Keypad
Operating Voltage	AC/DC 12–24V
Operating Current	<100mA
Operating Temperature	-20°C to +60°C
Waterproofing Method	Encapsulation Waterproofing
Button Type	Touch Keys
Housing Material	Zinc Alloy
Front Panel Material	Tempered Glass
User Capacity	1,000 Cards
Access Methods	TTLock Password / IC Card
Card Reading Type	IC (NFC) MF
Network Connectivity	Bluetooth / Optional Wi-Fi
Card Reading Distance	1–10cm
Dimensions	146 × 70 × 20mm
Installation Environment	Indoor / Outdoor Protected Installations

Applications

• Residential smart door access control
• Office and corporate building entrances
• Commercial building security systems
• Apartment and residential complex access management
• TTLock-compatible access control installations
• Electronic door locking systems
• Restricted areas and staff entrances
• Bluetooth-enabled smart access management
