| Function |
VE150AR |
VE150AT |

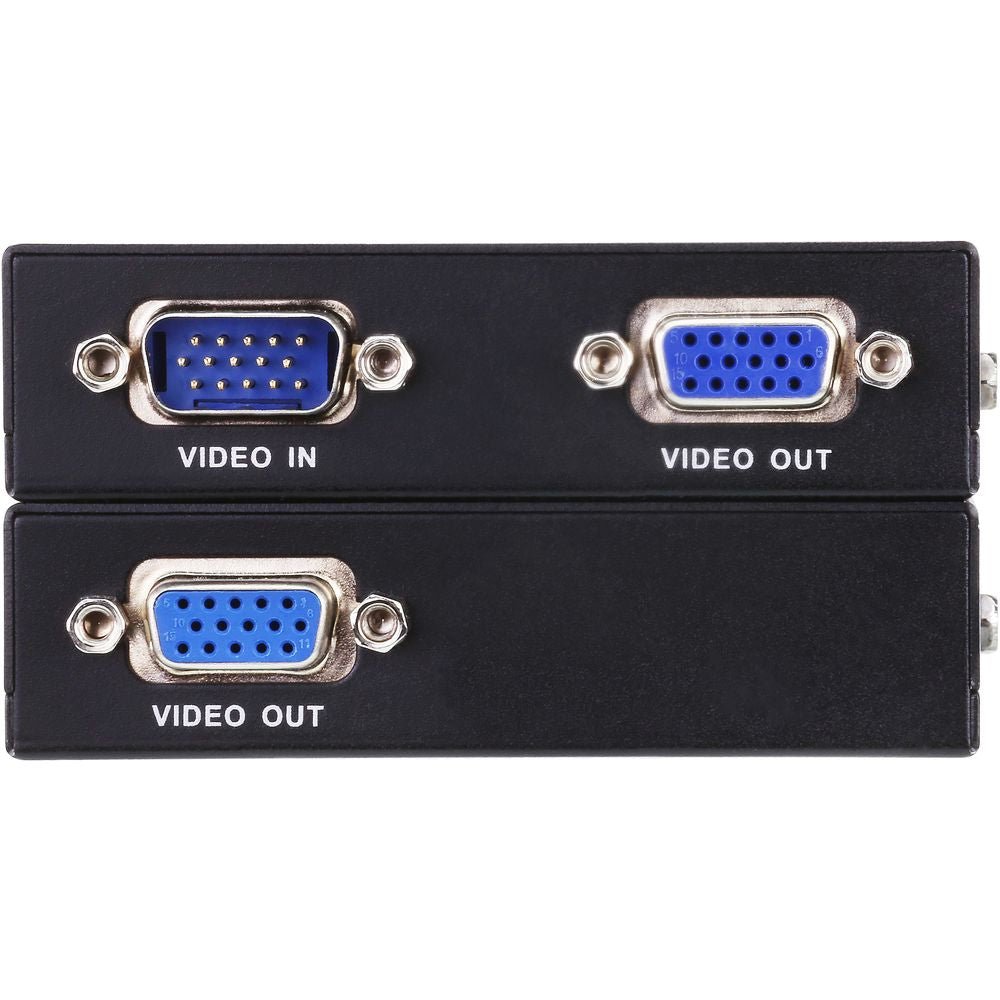

| Video Input |
| Interfaces |
N/A |
1 x HDB-15 Male (Blue) |
| Impedance |
N/A |
75 Ω |
| Max. Distance |
N/A |
1.8 m |
| Video Output |
| Interfaces |
1 x HDB-15 Female (Blue) |
1 x HDB-15 Female (Blue) |
| Impedance |
75 Ω |
75 Ω |
| Video |
| Max. Bandwidth |
300 MHz |
300 MHz |
| Max. Resolutions / Distance |
Up to 1920 x 1200@30m; 1280 x 1024@150m |
Up to 1920 x 1200@30m; 1280 x 1024@150m |
| Connectors |
| Power |
1 x DC Jack |
1 x DC Jack |
| Power Consumption |
DC5.3V:0.87W:8BTU/h
Note:
● The measurement in Watts indicates the typical power consumption of the device with no external loading.
● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded. |
DC5.3V:1.35W:11BTU/h
Note:
● The measurement in Watts indicates the typical power consumption of the device with no external loading.
● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded. |
| Environmental |
| Operating Temperature |
0 - 50°C |
0 - 50°C |
| Storage Temperature |
-20 - 60°C |
-20 - 60°C |
| Humidity |
0 - 80% RH, Non-Condensing |
0 - 80% RH, Non-Condensing |
| Physical Properties |
| Dimensions (L x W x H) |
12.77 x 9.04 x 2.26 cm
(5.03 x 3.56 x 0.89 in.) |
12.77 x 9.04 x 2.26 cm
(5.03 x 3.56 x 0.89 in.) |
| Housing |
Metal |
Metal |
| Weight |
0.24 kg ( 0.53 lb ) |
0.24 kg ( 0.53 lb ) |
| Carton Lot |
5 pcs |
5 pcs |
