UNITREE B2 Industrial Quadruped Robot
The UNITREE B2 is a high-performance, rugged quadruped robot engineered for industrial inspection, rescue, power systems monitoring, and advanced robotics research. With exceptional speed, load capacity, terrain adaptability, and endurance, B2 is built to perform in extreme environments.
Key Specifications:
- Weight: ~60 kg (including battery)
- Standing Size: ~1098 × 450 × 645 mm; lies down: ~880 × 460 × 330 mm
- Max Speed: > 6 m/s (≈ 21.6 km/h)
- Peak Joint Torque: ~360 N·m
- Max Jump Distance: > 1.6 m
- Payload Capacity: Up to 120 kg standing; > 40 kg while walking
- Battery: 45 Ah (2250 Wh), 58 V; over 5 h runtime unloaded, > 4 h with 20 kg load
- Climbing & Obstacles: Crosses up to 40 cm obstacles, climbs slopes > 45°, handles 20–25 cm stairs
- Ingress Protection: IP 67 dust‑ and water‑resistant
- Operating Temp.: −20 °C to 55 °C
- Computing Options: Intel Core i5 standard; optional Core i7 or up to 3× NVIDIA Jetson Orin NX
- Sensors & Interfaces: 3D LiDAR (×1), depth cameras (×2), optical cameras (×2); Ethernet ×4, USB 3.0 ×4; power ports: 12 V ×4, 5 V ×1, 24 V ×4, BAT ×1
Advanced Capabilities:
- High-Speed Mobility: Among fastest industrial quadrupeds—exceeds 6 m/s :contentReference[oaicite:1]{index=1}
- Exceptional Torque: Joint performance increased by ~170%, peak ~360 N·m for industrial-grade flexibility :contentReference[oaicite:2]{index=2}
- Extended Endurance: > 5 h runtime without load, over 15 km with 20 kg payload :contentReference[oaicite:3]{index=3}
- All-Terrain Adaptability: Handles slippery, uneven surfaces, stairs and slopes up to 45° with ease :contentReference[oaicite:4]{index=4}
- Modular Wheeled Option: Convertible to a wheeled‑leg hybrid configuration for efficiency and terrain switching (optional) :contentReference[oaicite:5]{index=5}
- Advanced Sensor Suite: Combines LiDAR, depth, and optical cameras for precision mapping and autonomous navigation :contentReference[oaicite:6]{index=6}
- Autonomous Charging: Supports plug-in and intelligent charging systems (optional) for uninterrupted operation :contentReference[oaicite:7]{index=7}
Applications:

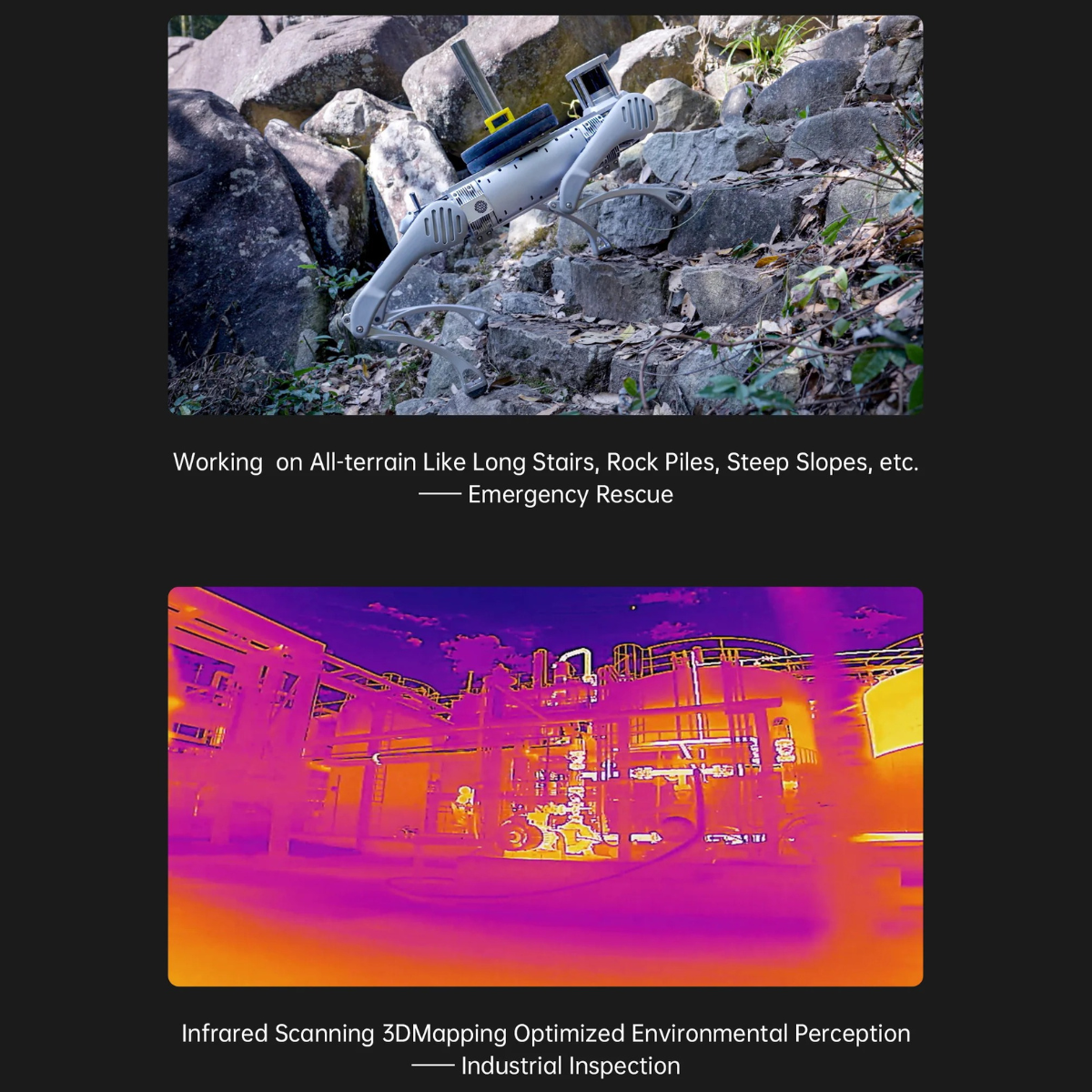

- Industrial inspection & facility automation
- Search & rescue in hazardous terrains

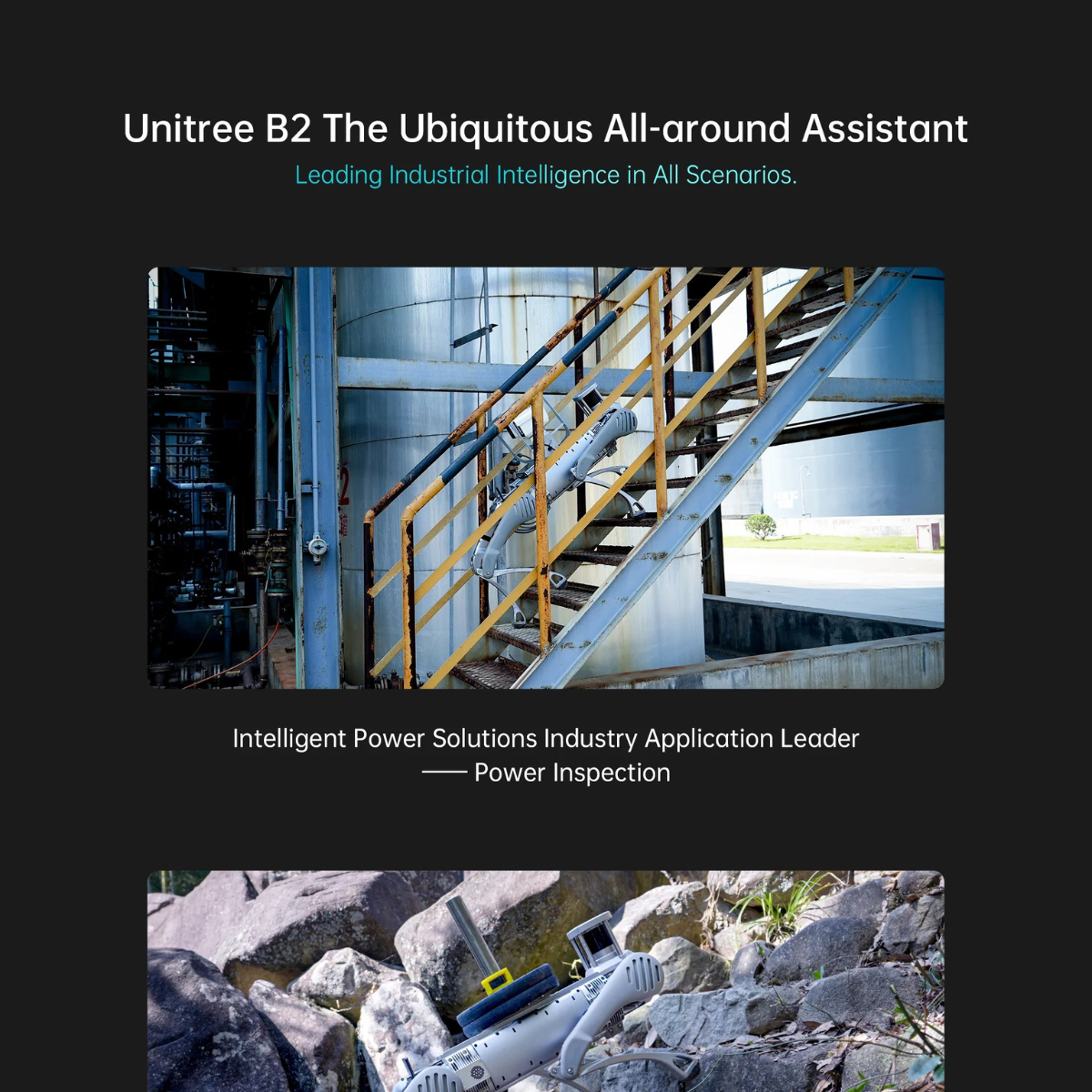

- Utility and power grid monitoring
- Advanced robotics education & R&D
Customization & Ordering:
The B2 platform is fully customizable. Options include battery modules, computing upgrades, sensor packages, wheeled mobility, and smart charging solutions. Pricing varies by configuration and shipping.
Use the Contact Us button to share your requirements and receive a custom quote.
