Description

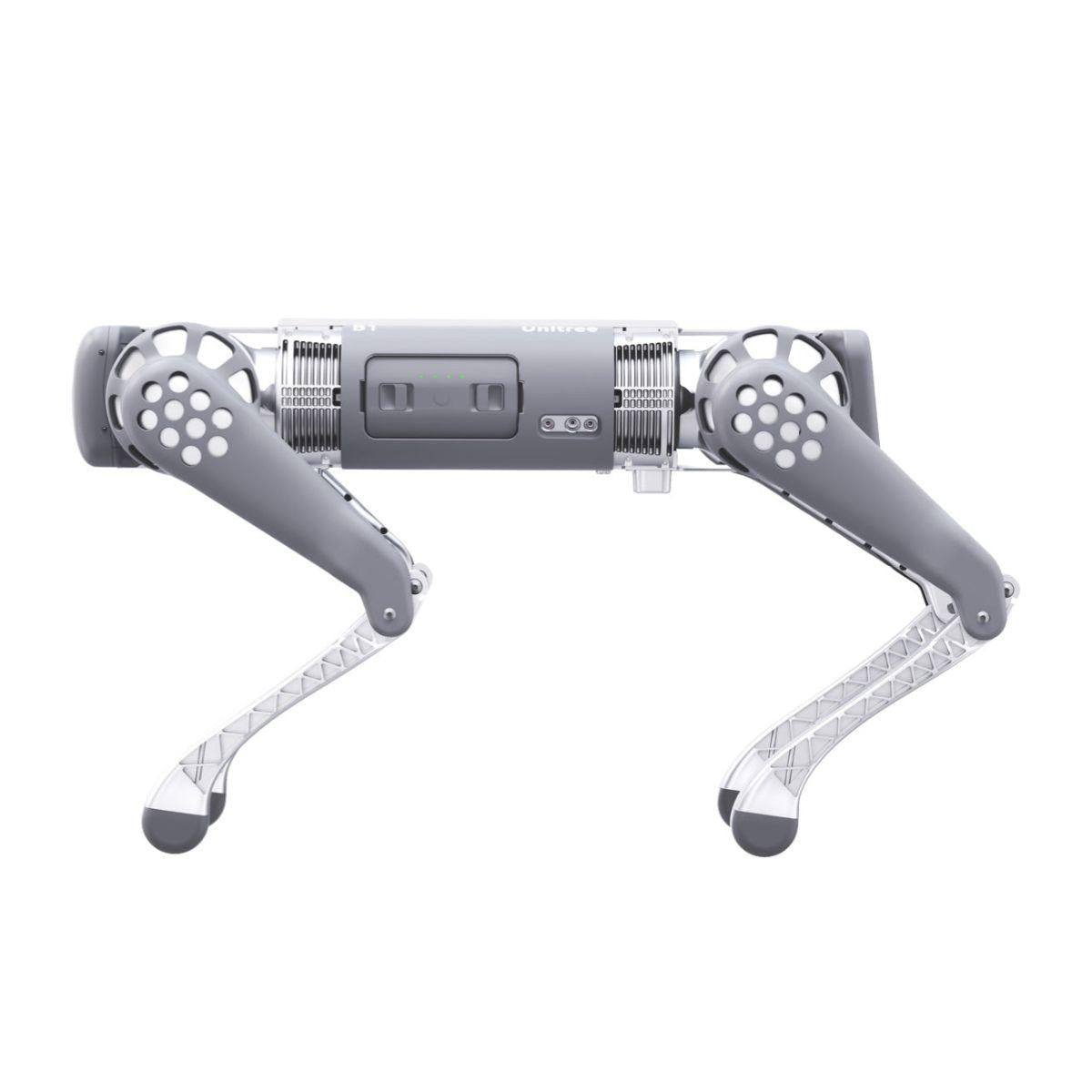

UNITREE B1 Industrial Quadruped Robot
The UNITREE B1 is an industrial-grade, weatherproof quadruped robot engineered for rugged terrain, heavy loads, and multi-dimensional sensing. Ideal for inspection, security, agriculture, and rescue operations in challenging environments.
Key Specifications:
- Weight: ~50 kg (including battery)
- Dimensions (Standing / Folded): 1126 × 467 × 636 mm / 1202 × 467 × 297 mm
- Load Capacity: 20 kg while walking; up to 80 kg when standing
- Max Speed: ~1.8 m/s (≈6.5 km/h)
- Joint Torque: Knee torque up to ~210 N·m
- Battery: 18,000 mAh, 51.8–58.8 V, 932 Wh
- Runtime: ~2 hours walking (no load); up to 5 hours standing
- Processing: Intel i5-1135G7 + up to 3× Jetson Xavier NX
- Vision Sensors: 5× Intel RealSense D430 depth cameras
- Interfaces: USB, Ethernet, RS485, CAN, power outputs (12 V / 24 V)
- Ingress Protection: IP67 standard; optional IP68
- Operating Temperature: −5 °C to 45 °C
Advanced Capabilities:
- Waterproof & Rugged: IP67-rated with optional IP68 upgrade for rain, dust, and rough environments
- Heavy-Duty Load Handling: Carries up to 80 kg static; 20 kg while walking
- Obstacle Mastery: Jumps, climbs stairs, performs agile maneuvers like backflips
- Perception-Driven Navigation: Equipped with 5 depth cameras for SLAM and obstacle avoidance
- Expandable & Programmable: Supports ROS, Python, and advanced autonomy modules
Applications:
- Industrial inspection and remote monitoring
- Security and surveillance patrols
- Agricultural automation and terrain scouting
- Search & rescue in disaster zones
- Higher education and research labs
Customization & Ordering:
This robot is fully customizable—from waterproofing to sensor configurations, compute power, and mobility modules. Let us help you design a solution that meets your operational needs.
Click the Contact Us button on this page to discuss your requirements and receive a tailored quotation.
