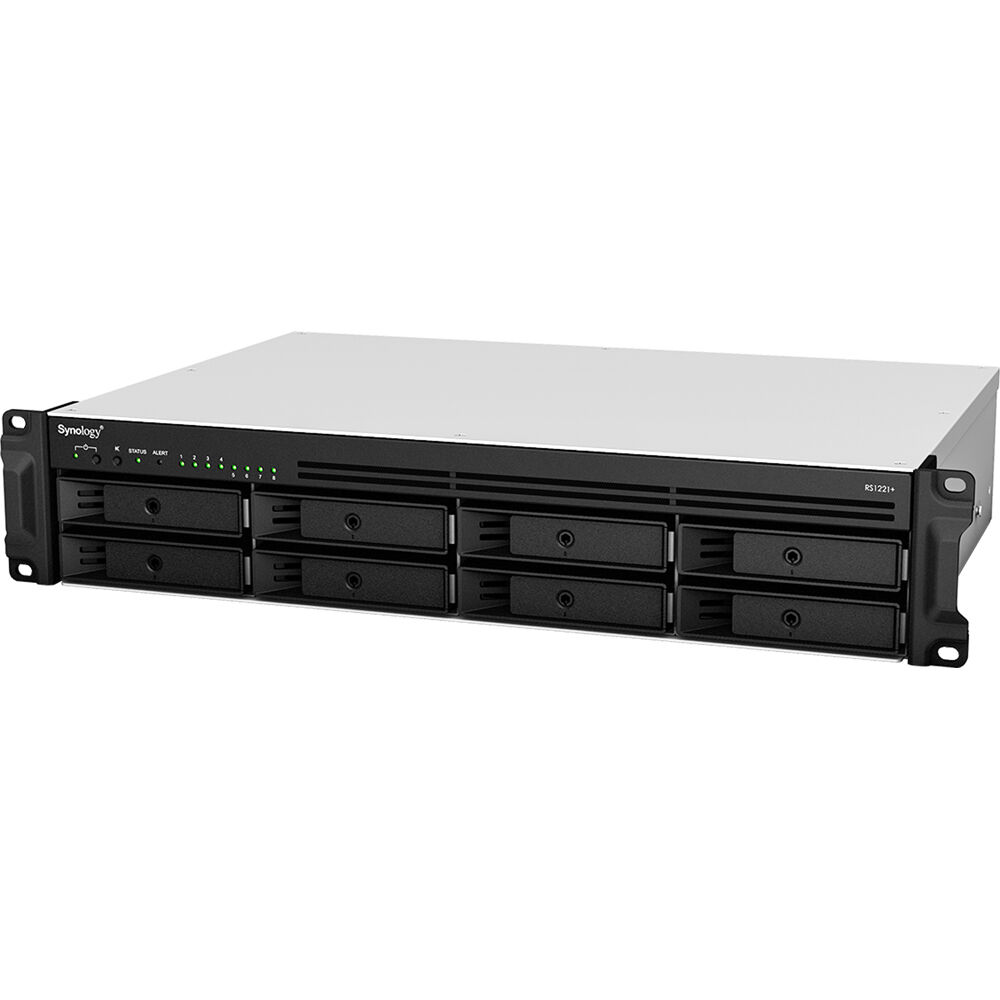

Model: Synology RackStation RS1221+
-
Form Factor: 2U Rackmount
-
CPU: AMD Ryzen V1500B, Quad-Core 2.2 GHz
-
Hardware Encryption Engine: Yes (AES-NI)
-
Memory: 4 GB DDR4 ECC SODIMM (expandable up to 32 GB)
-
Memory Slots: 2 x DDR4 ECC SODIMM
-
Drive Bays: 8 x 3.5"/2.5" SATA HDD/SSD
-
Hot Swappable Drives: Yes
-
Maximum Drive Bays with Expansion: 12 (with 1 x RX418 expansion unit)
-
LAN Ports: 4 x RJ-45 1GbE (Link Aggregation / Failover support)
-
PCIe Expansion: 1 x PCIe 3.0 x8 slot (x4 link) for optional 10/25GbE NICs or M.2 NVMe SSD adapter cards
-
USB Ports: 2 x USB 3.2 Gen 1
-
Expansion Ports: 1 x eSATA (for RX418)
-
File System: Internal: Btrfs, EXT4; External: Btrfs, EXT4, EXT3, FAT, NTFS, HFS+, exFAT (exFAT Access purchased separately)
-
RAID Support: Synology Hybrid RAID (SHR), Basic, JBOD, RAID 0, RAID 1, RAID 5, RAID 6, RAID 10
-
Maximum Internal Raw Capacity: 128 TB (16 TB drive x 8)
-
Maximum Capacity with Expansion: 192 TB (with 1 x RX418)
-
Sequential Read/Write Performance: Up to 2,315 MB/s read, 1,147 MB/s write
-
iSCSI Random Read IOPS: Over 100,000
-
SSD Cache: Supported via SATA SSDs or M.2 NVMe SSDs using optional adapter cards
-
Cooling: 2 x 80 mm fans with Full-Speed, Cool, and Quiet modes
-
Power Consumption: 49.89 W (access), 22.64 W (HDD hibernation)
-
Dimensions (H x W x D): 88 mm x 482 mm x 306.6 mm
-
Weight: 6.9 kg
-
Operating Temperature: 0°C to 35°C (32°F to 95°F)
-
Operating System: Synology DiskStation Manager (DSM)
