Model: Synology DiskStation DS423
-
CPU: Realtek RTD1619B, Quad-Core 1.7 GHz, 64-bit
-
Hardware Encryption Engine: Yes
-
Memory: 2 GB DDR4 non-ECC (non-expandable)
-
Drive Bays: 4 x 3.5"/2.5" SATA HDD/SSD
-
Hot Swappable Drives: Yes
-

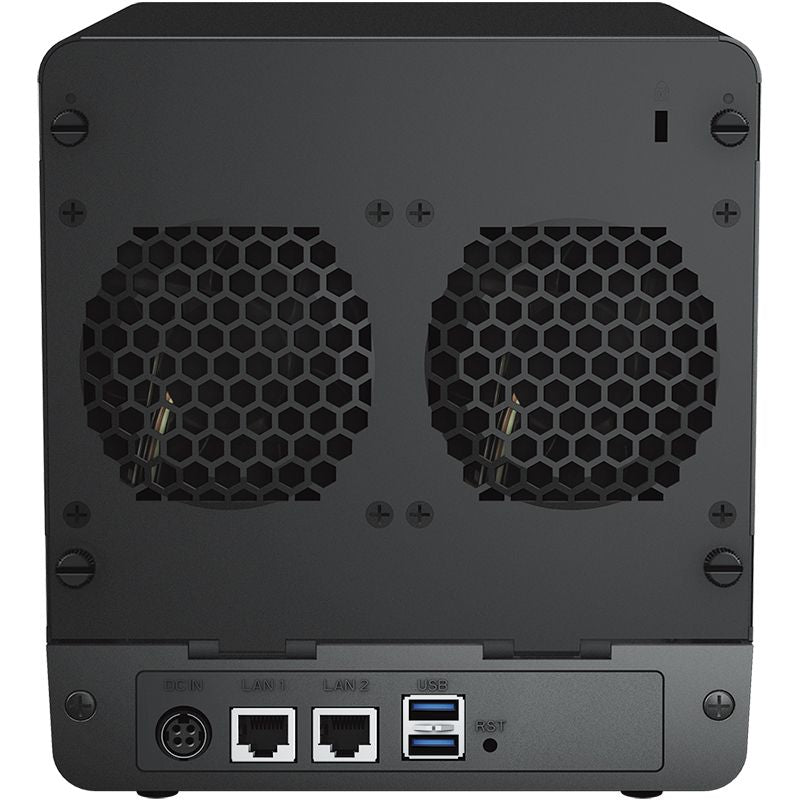

LAN Ports: 2 x RJ-45 1GbE
-
USB Ports: 2 x USB 3.2 Gen 1
-
File System: Btrfs
-
RAID Support: Basic, JBOD, RAID 0, RAID 1, RAID 5, RAID 6, RAID 10
-
Maximum Internal Raw Capacity: 72 TB (18 TB drive x 4)
-
Maximum Single Volume Size: 108 TB
-
Cooling: 2 x 80 mm fans with Full-Speed, Cool, and Quiet modes
-
Noise Level: 20.6 dB(A)
-
Power Consumption: 32.41 W (access), 4.97 W (HDD hibernation)
-
Dimensions: 184 mm x 168 mm x 230 mm
-
Weight: 2.21 kg
-
Operating Temperature: 0°C to 40°C
-
Operating System: Synology DiskStation Manager (DSM)
