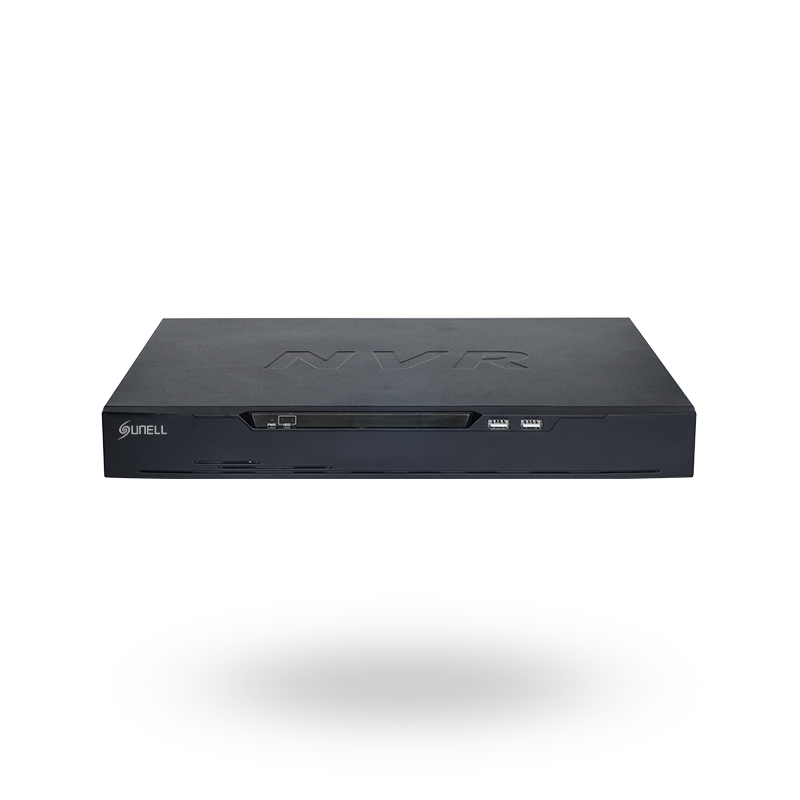

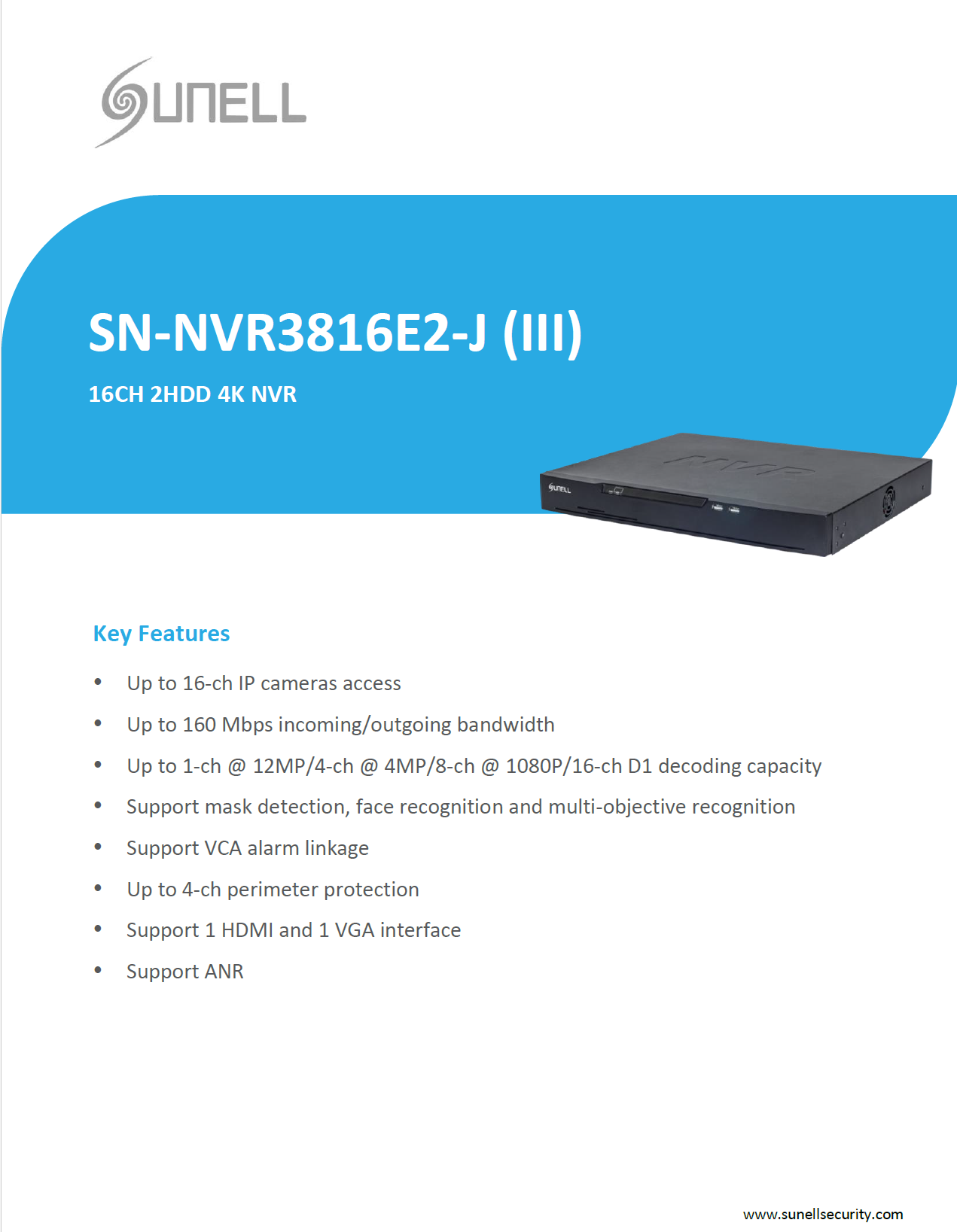

16-Channel 4K AI Network Video Recorder with 12MP Recording & Smart Detection
The SN-NVR3816E2-J (III) is a high-performance 16-channel NVR designed for advanced surveillance applications. It supports up to 12MP recording, intelligent analytics, and offers robust connectivity options, making it ideal for medium to large-scale security systems requiring reliable performance and smart features.
-
Camera Support: Up to 16 IP channels with ONVIF compatibility.
-
Recording Resolution: Supports up to 12MP recording for ultra-high-definition surveillance.
-
Video Outputs: Simultaneous HDMI (4K/30Hz, 1080p/30/60Hz) and VGA (1080p/60Hz) outputs.
-
Bandwidth: 112 Mbps incoming and 112 Mbps outgoing bandwidth.
-
Compression: H.265 (Smart), H.265, and H.264 for efficient storage utilization.
-
AI Features: Supports face recognition, multi-objective recognition, and 4-channel intrusion detection.
-
Storage: 2 SATA slots supporting up to 12TB HDD each.
-
Audio I/O: 1 channel input and 1 channel output for two-way audio communication.
-
Alarm I/O: 8 inputs and 2 outputs for event-based triggers.
-
Network Interface: 1 × RJ-45 10/100/1000 Mbps Ethernet port.
-
Remote Access: Supports P2P cloud access and mobile app connectivity.
-
USB Ports: 3 × USB 2.0 ports for backup and peripheral connections.
-
Power Supply: AC100 ~ 240V with power consumption less than 15W (without HDD).
-
Operating Conditions: Temperature: -10°C to 50°C (14°F to 122°F); Humidity: Less than 90% RH.
-

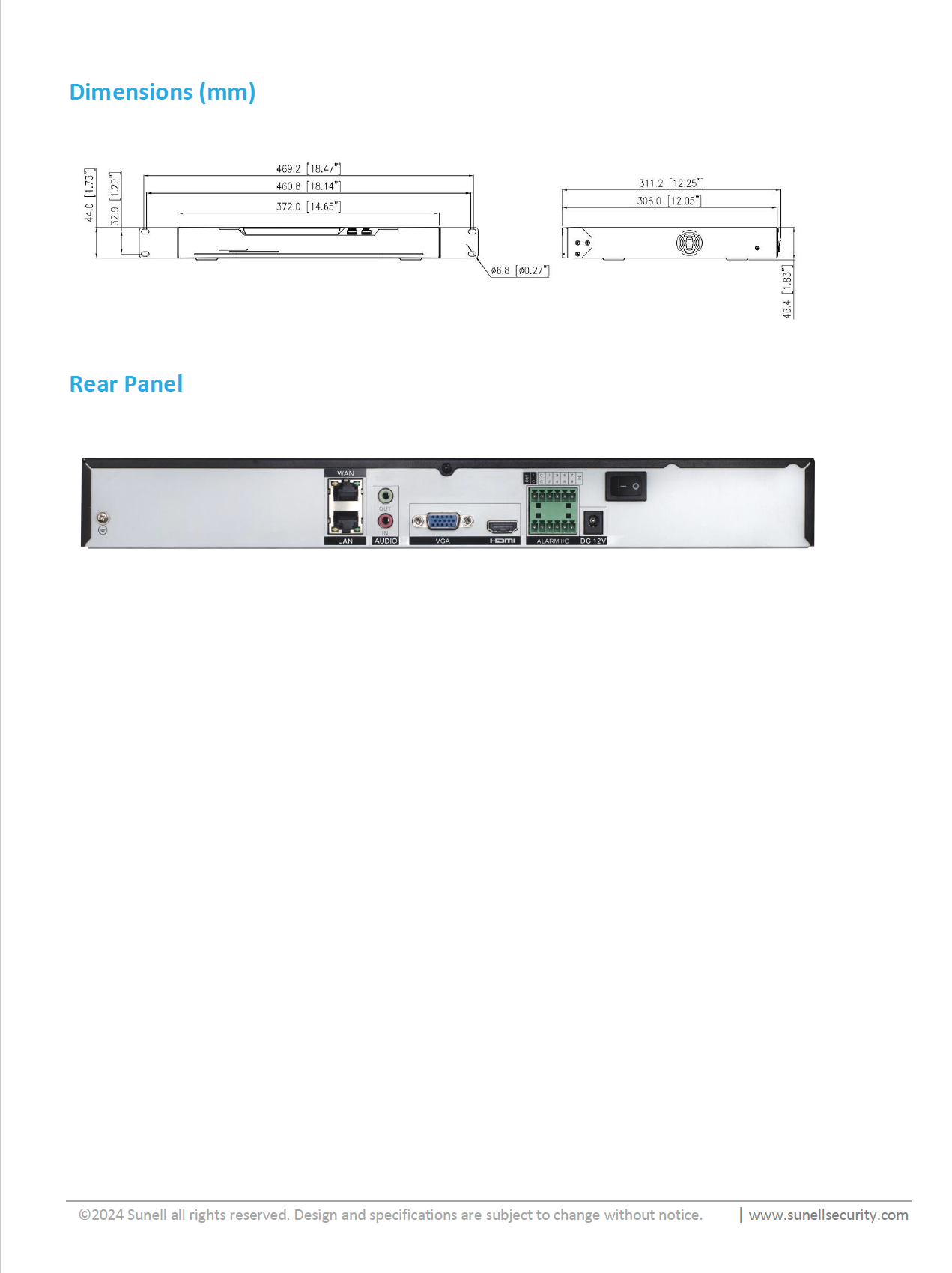

Dimensions: 372 × 310.5 × 46.5 mm (14.65 × 12.22 × 1.83 inch)
-
Weight: 2.75 kg (6.06 lb) without HDD
Package Includes: NVR Unit, Power Adapter, USB Mouse, User Manual
