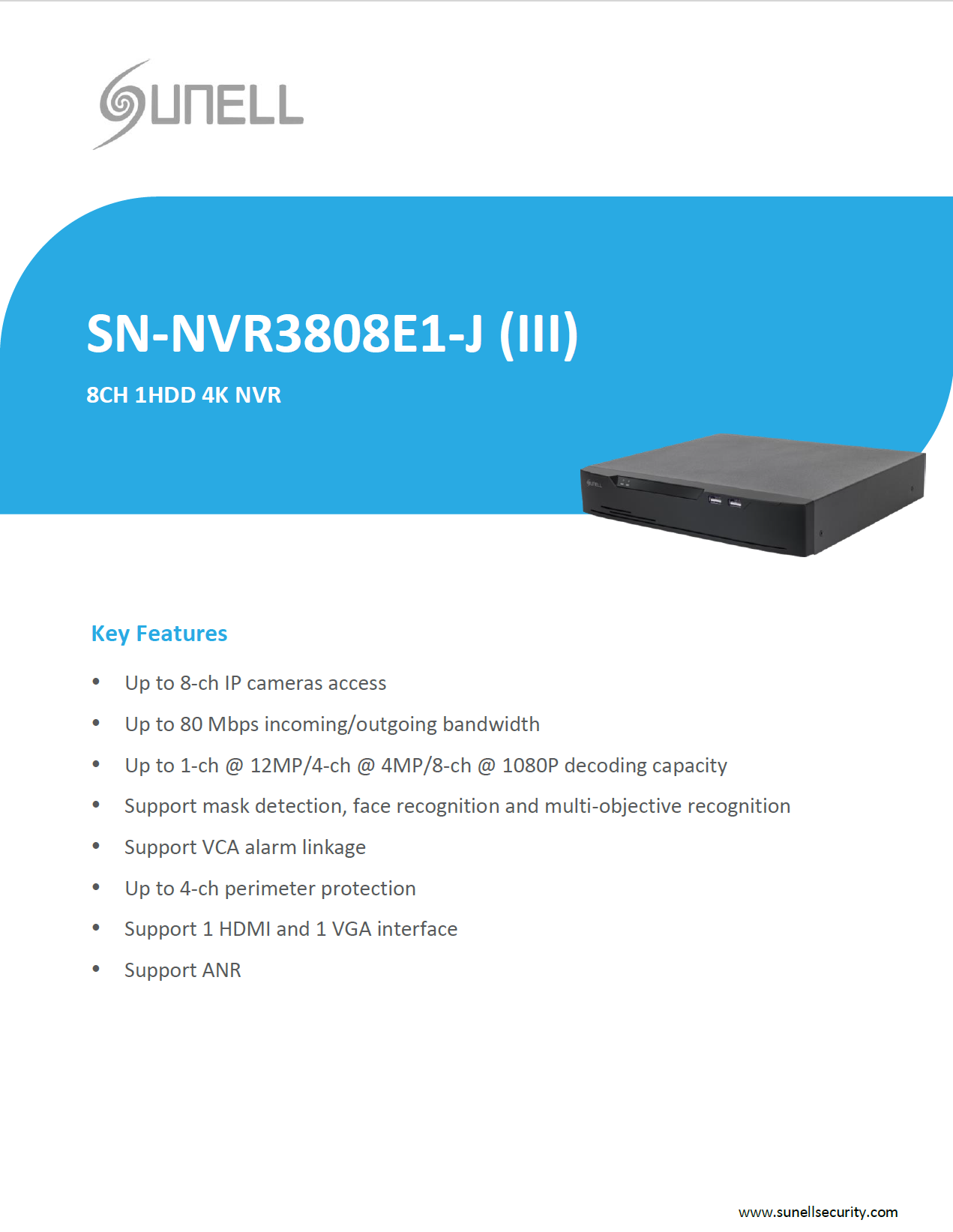

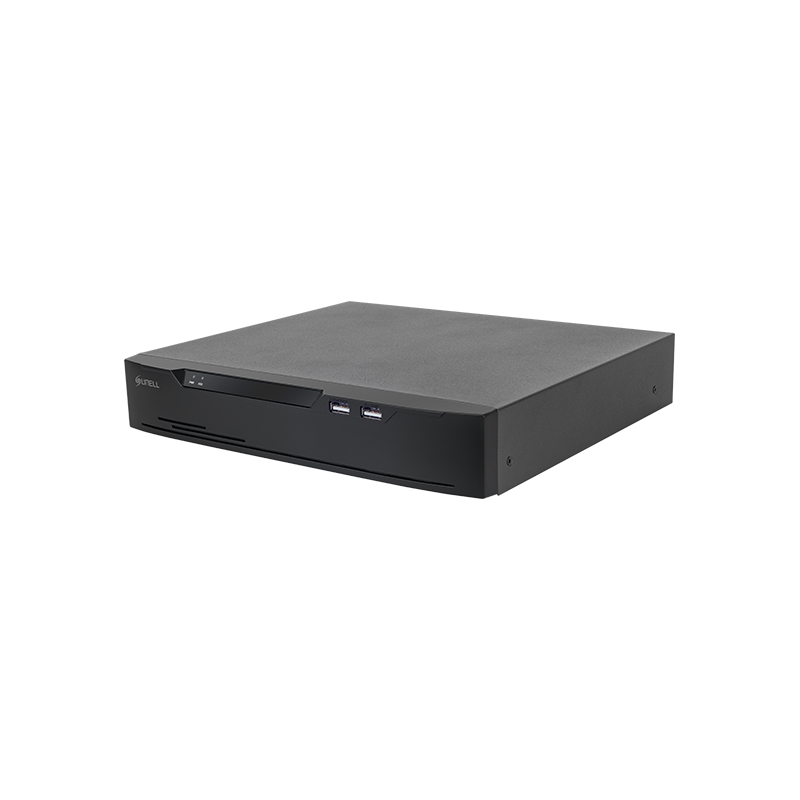

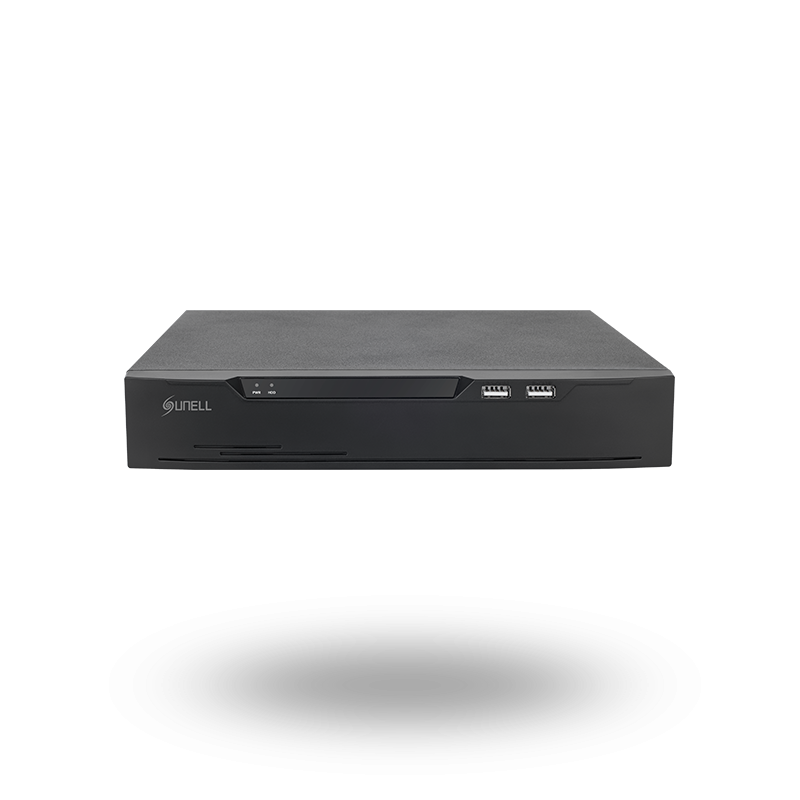

8-Channel 4K AI Network Video Recorder with 12MP Recording & Smart Detection

The SN-NVR3808E1-J (III) is a high-performance 8-channel NVR designed for advanced surveillance applications. It supports up to 12MP recording, intelligent analytics, and offers robust connectivity options, making it ideal for medium to large-scale security systems requiring reliable performance and smart features.

• Camera Support: Up to 8 IP channels with ONVIF compatibility.
• Recording Resolution: Supports up to 12MP recording for ultra-high-definition surveillance.
• Video Outputs: Simultaneous HDMI (4K/30Hz, 1080p/30/60Hz) and VGA (1080p/60Hz) outputs.
• Bandwidth: 56 Mbps incoming and 56 Mbps outgoing bandwidth.
• Compression: H.265 (Smart), H.265, and H.264 for efficient storage utilization.
• AI Features: Supports face recognition, multi-objective recognition, and 4-channel intrusion detection.
• Storage: 1 SATA slot supporting up to 8TB HDD.
• Audio I/O: 1 channel input and 1 channel output for two-way audio communication.
• Alarm I/O: 4 inputs and 1 output for event-based triggers.
• Network Interface: 2 × RJ-45 10/100 Mbps Ethernet ports.
• Remote Access: Supports P2P cloud access and mobile app connectivity.
• USB Ports: 2 × USB 2.0 ports for backup and peripheral connections.
• Power Supply: DC12V/3A with power consumption less than 10W (without HDD).
• Operating Conditions: Temperature: -10°C to 50°C (14°F to 122°F); Humidity: Less than 90% RH.
• Dimensions: 255 × 235.1 × 47.5 mm (10.04 × 9.26 × 1.87 inch)
• Weight: 0.8 kg (1.76 lb) without HDD

Package Includes: NVR Unit, Power Adapter, USB Mouse, User Manual
