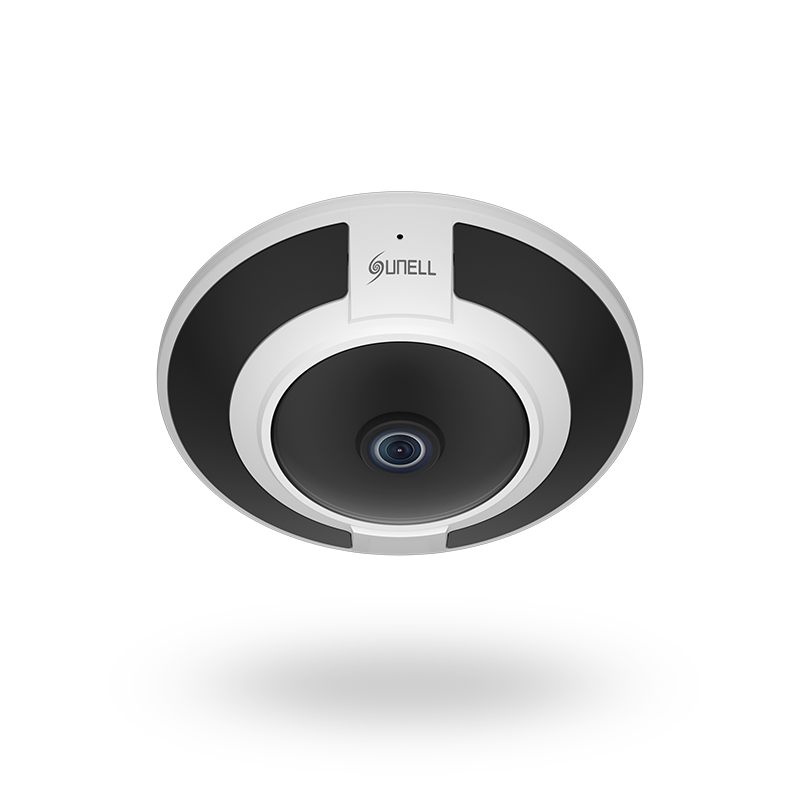

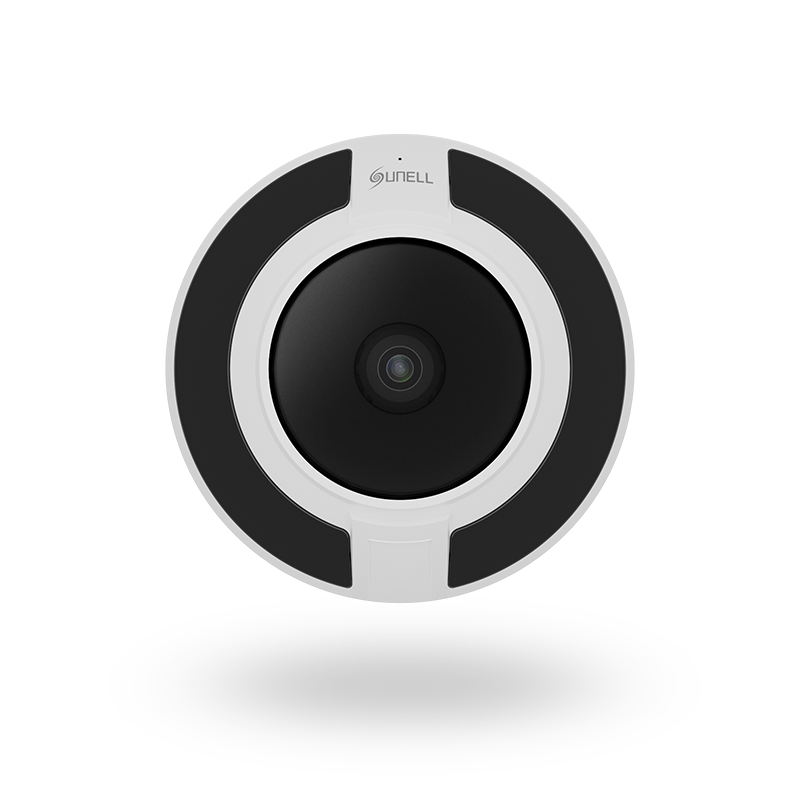

6MP Fisheye Network Camera with AI Detection & Multi Dewarping Modes
The SN-IPV8060ECAR-B is a high-performance 6MP fisheye network camera designed for advanced surveillance applications. It features a 1/2.8” progressive scan CMOS sensor, delivering sharp and clear images at a resolution of 2560 × 2560. The camera supports multiple dewarping modes and front-end image correction, providing flexible viewing options. With AI-based face, human, and vehicle detection, it enhances perimeter security.
-
Image Sensor: 1/2.8” progressive scan CMOS
-
Max. Resolution: 6MP (2560 × 2560) @25/30fps
-
Lens: 1.4mm fisheye lens
-
Illumination: Smart dual illumination with infrared and white light
-
Min. Illumination: Color: 0.01 Lux @F2.0; 0 Lux with IR on
-
Day/Night Mode: Auto (ICR), Day, Night, Schedule
-
WDR: True Wide Dynamic Range (WDR)
-
Noise Reduction: 3D DNR
-
Backlight Compensation: BLC, HLC
-
Defog: Supported
-
Video Compression: H.265, H.264, MJPEG
-
Audio: Built-in microphone and speaker for two-way audio
-
Alarm: Motion detection, intrusion detection, line crossing detection
-
Storage: Micro SD card slot, up to 256GB
-
Network Interface: 1 × RJ-45 Ethernet port (10/100 Mbps), supports PoE (IEEE 802.3af)
-
Power Supply: DC 12V ±10% / PoE (IEEE 802.3af)
-
Power Consumption: Max. 9.5W
-
Operating Conditions: -30°C ~ 60°C (-22°F ~ 140°F), humidity ≤90% RH (non-condensing)
-
Ingress Protection: IP66-rated weatherproof housing
-

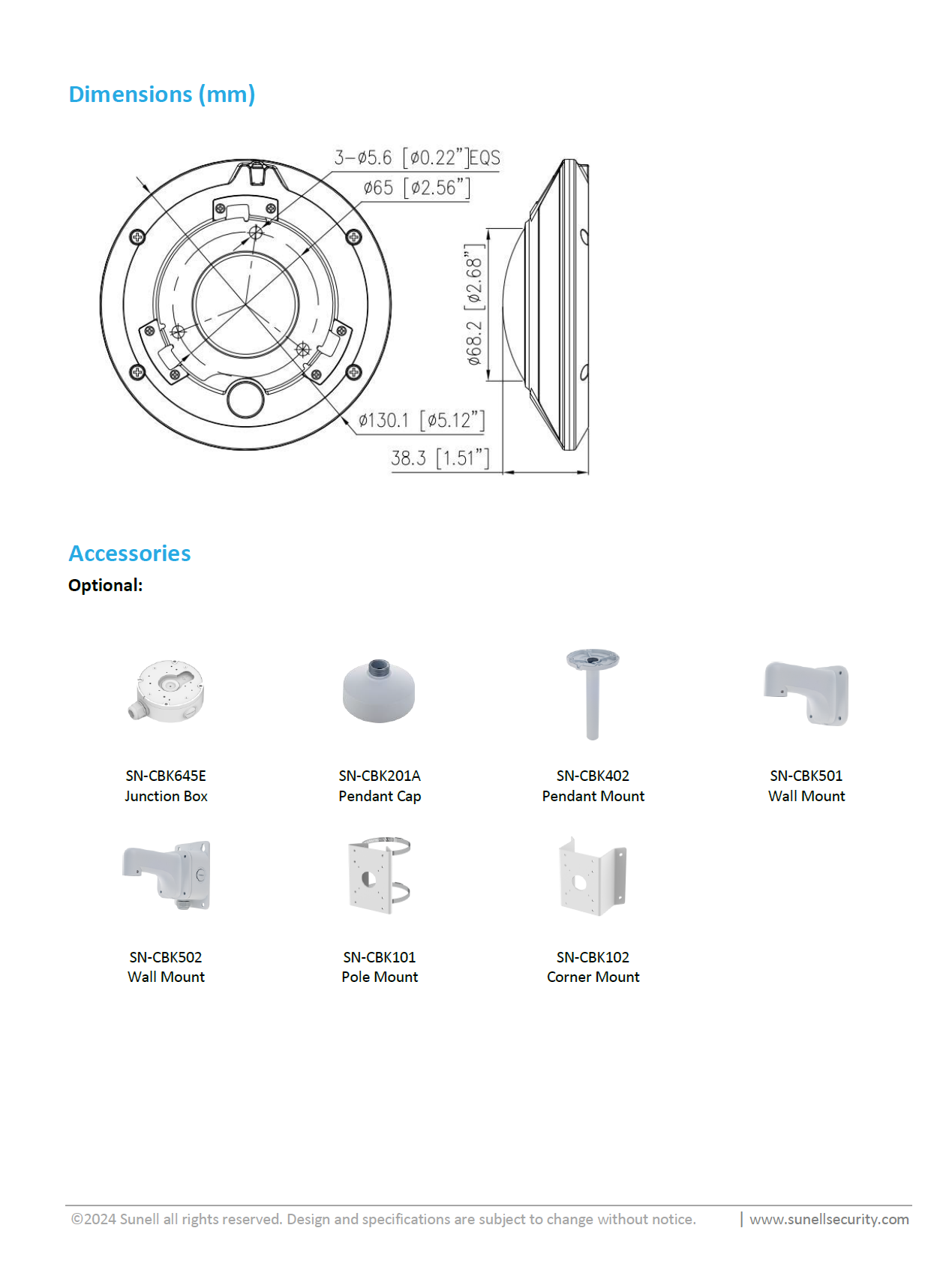

Dimensions: 160 × 160 × 60 mm (6.30 × 6.30 × 2.36 inch)
-
Weight: 0.85 kg (1.87 lb)
Package Includes: Camera Unit, Mounting Accessories, User Manual
