Product Description:

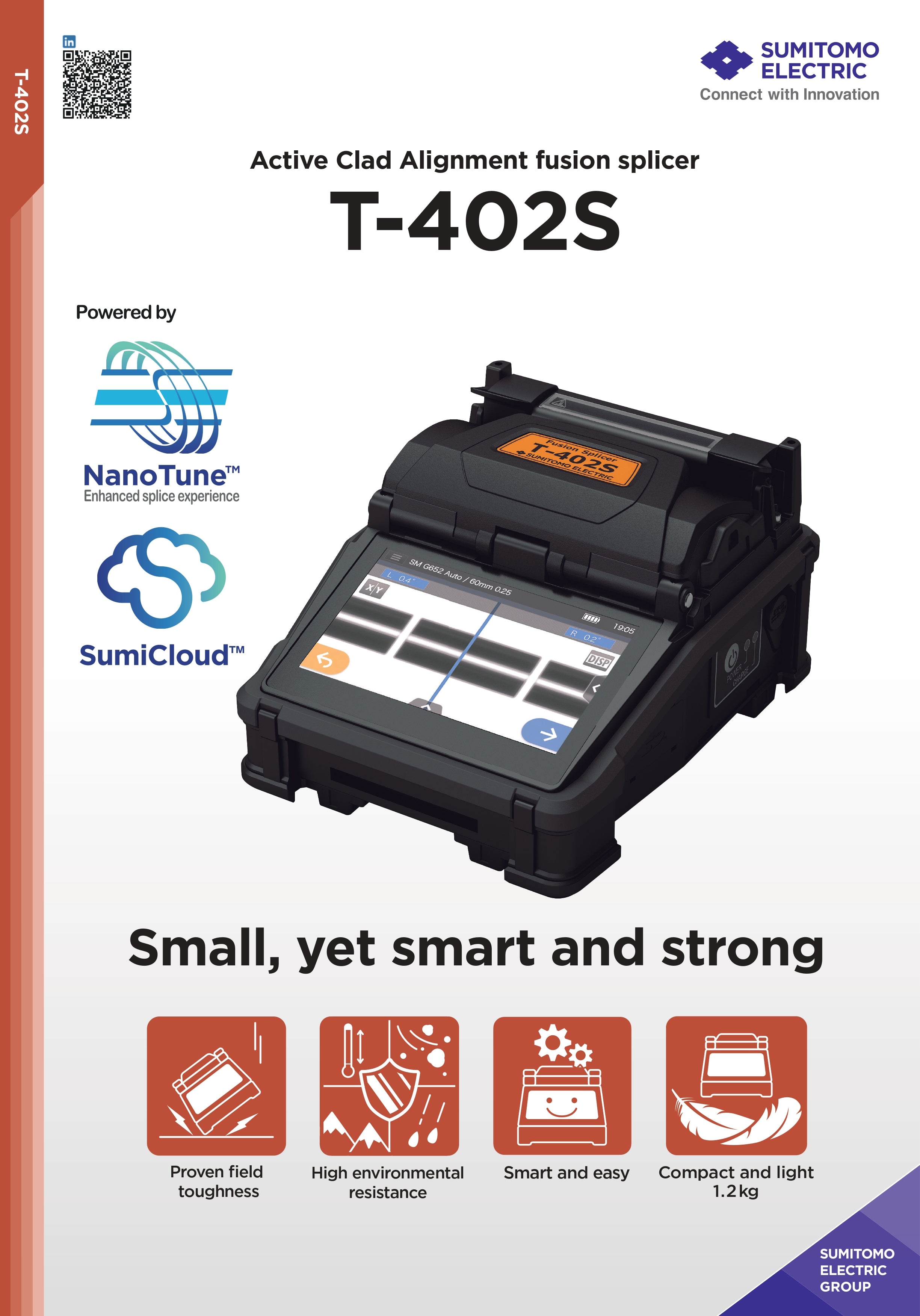

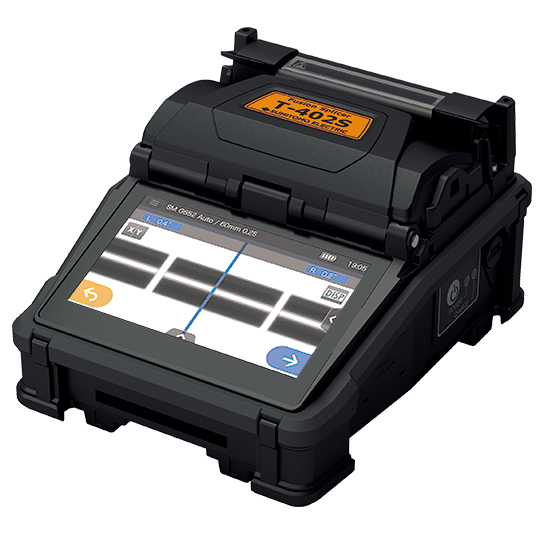

The Sumitomo Electric T-402S Fusion Splicer delivers powerful, smart fiber splicing performance in a compact and rugged design. Powered by NanoTune™ for an enhanced splice experience and connected via SumiCloud™ for easy data management, it ensures faster, more reliable splicing anywhere your work takes you.
Key Features:
- Active Clad Alignment splicing for precision fiber optic connections
- NanoTune™ technology for consistent, high-quality splices
- SumiCloud™ compatibility for cloud-based data storage and analysis

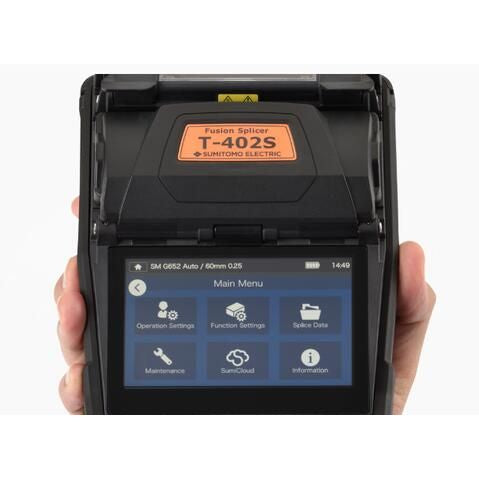

- 4.3-inch color LCD display for easy viewing and operation
- Lightweight at just 1.2kg (with battery) for maximum portability

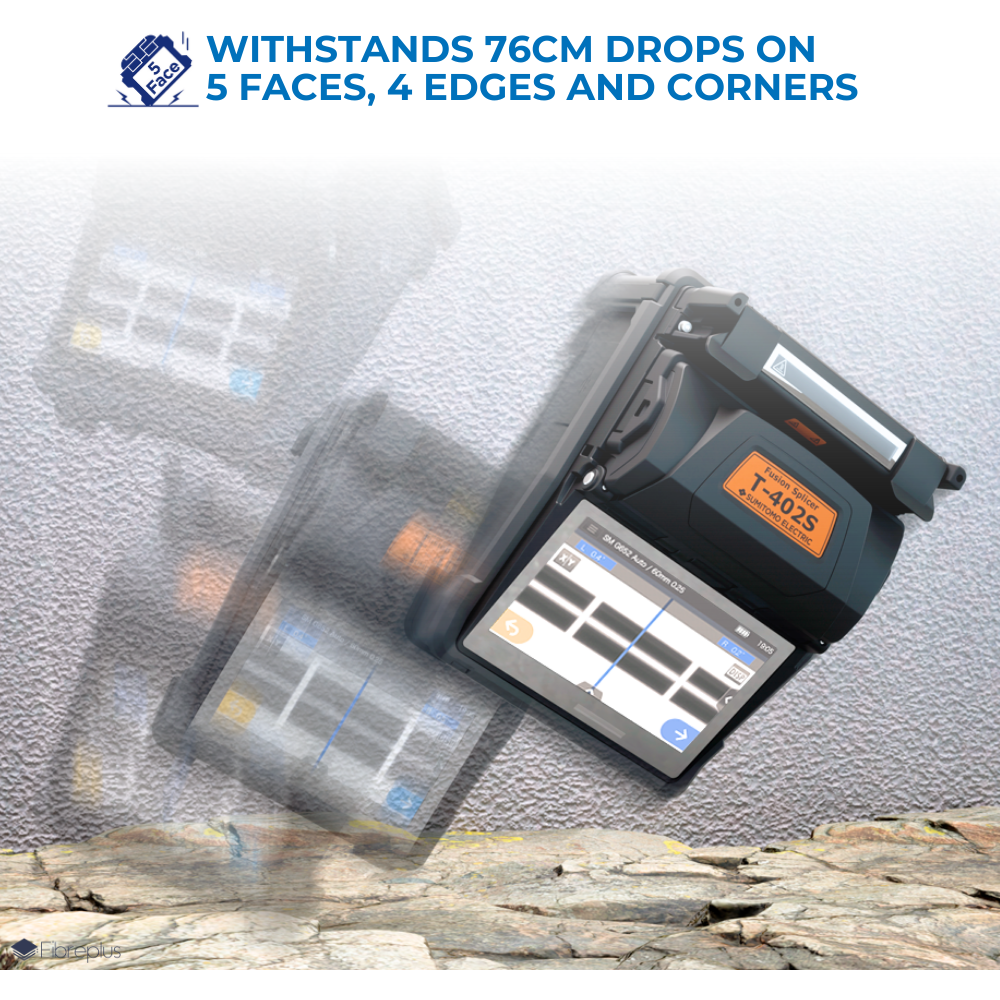

- Rugged design with proven field toughness, shock tested on 5 faces and 4 edges
- Water and dust resistant, equivalent to IPX2/IP5X standards
- Fast splice time of approximately 6 seconds and heating time of approximately 12 seconds
- Battery powered for up to 250 splice and heat cycles per charge (BU-17 battery)
- Supports various fiber types: SMF (G.652), MMF (G.651), DSF (G.653), NZDSF (G.655), BIF (G.657)
What's Included:
- T-402S Fusion Splicer
- BU-17 Battery Pack
- AC Adapter and Power Cord
- Carrying Case (CC-18)
- Working Tray (WT-18)
- Quick Reference Guide
- Working Tray Strap Kit (WSK-18)
Optional Accessories:
- Fiber Cleaver (FC-7LS)
- Jacket Remover (JR-M03)
- Tripod Adapter (TA-18)
- Fiber Protection Sleeves

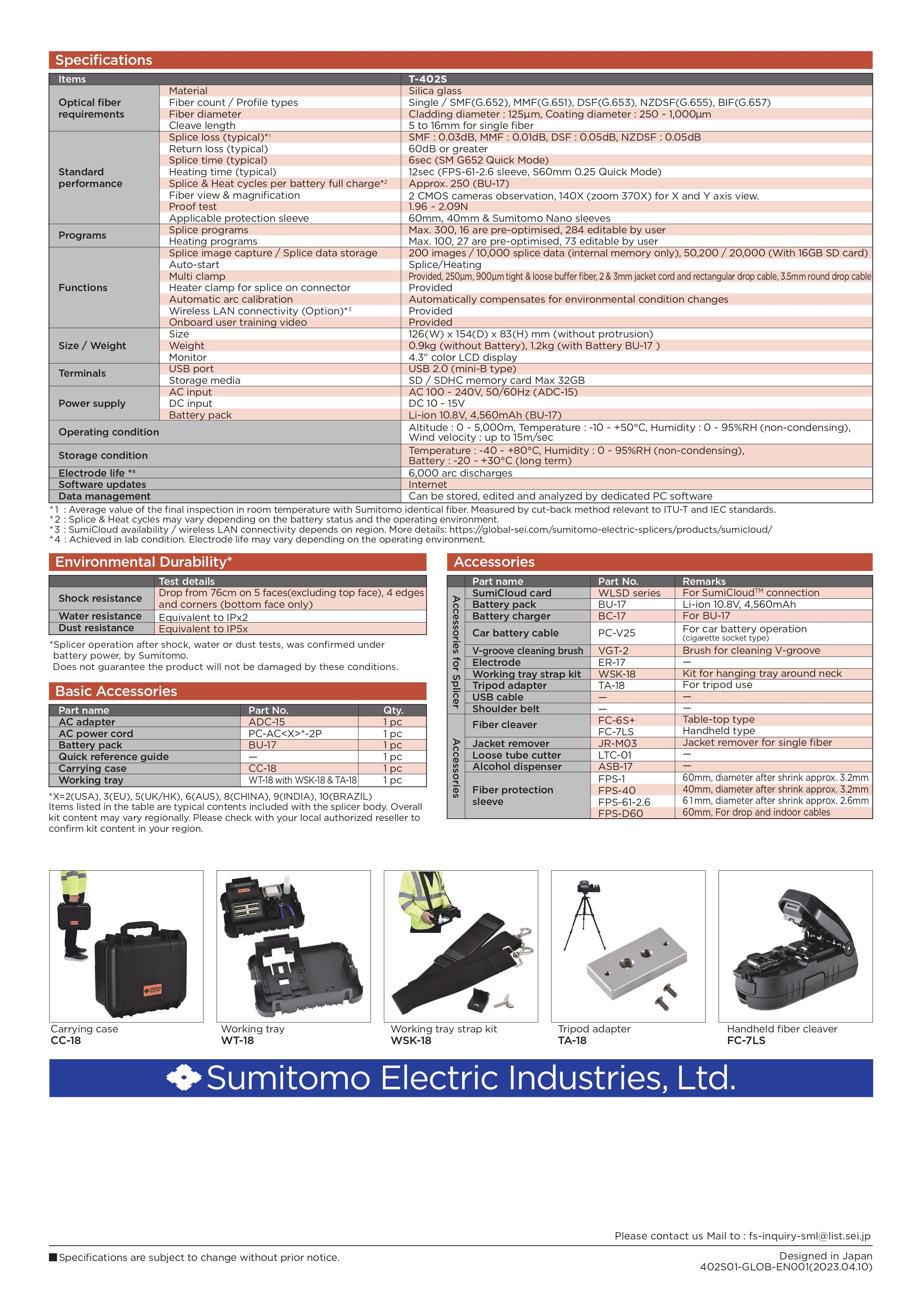

Specifications:
- Splice Loss: SMF ≤0.03dB, MMF ≤0.01dB
- Tensile Strength: 5N
- Operating Temperature: -10°C to 50°C
- Storage Temperature: -40°C to 80°C
- Humidity: 0 to 95% RH (non-condensing)
- Electrode Life: Up to 6,000 arc discharges
