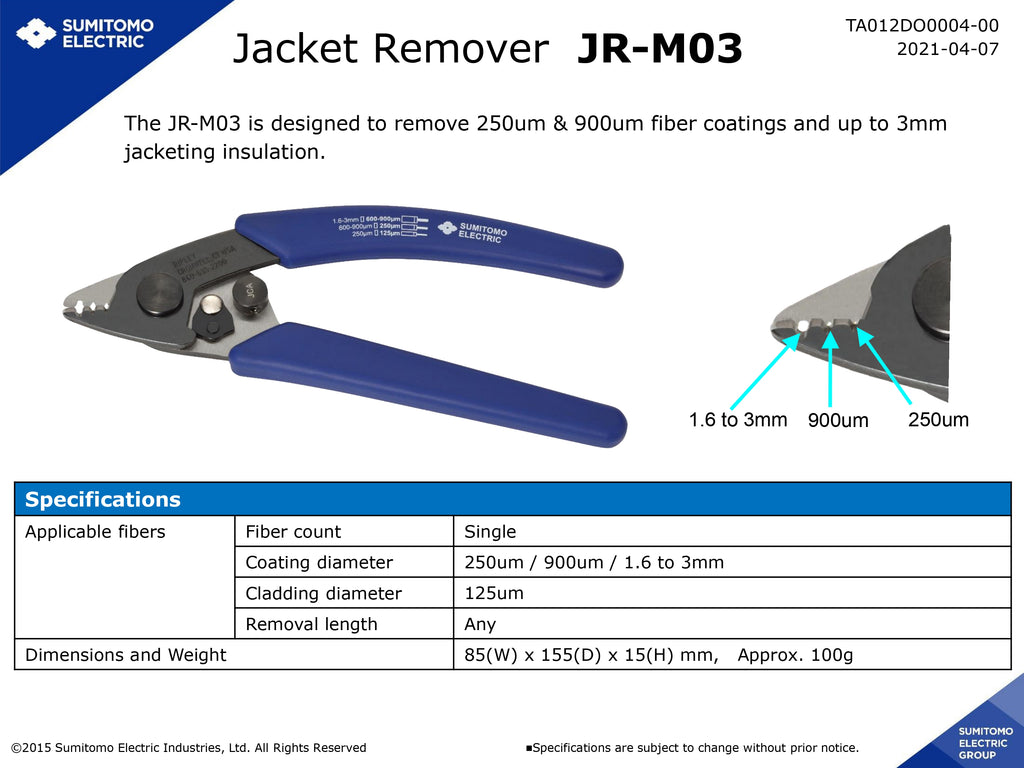

Sumitomo JR-M03 Fiber Jacket Remover, Strips 250µm, 900µm Coatings and 1.6–3mm Jackets, Lightweight Hand Tool for Single Fiber

Jacket Remover JR-M03

Model: JR-M03

Part Number: TA012DO0004-00

Release Date: 2021-04-07

Overview:

The JR-M03 is designed to remove 250µm and 900µm fiber coatings, as well as jacketing insulation up to 3mm in diameter. It is a versatile and lightweight hand tool ideal for single fiber applications.

Specifications:

Applicable Fibers

• Single fiber

Fiber Count

• Single

Coating Diameter

• 250µm
• 900µm
• 1.6 to 3mm

Cladding Diameter

• 125µm

Removal Length

• Any length

Dimensions and Weight

• 85mm (W) x 155mm (D) x 15mm (H)
• Approx. 100g

Specifications are subject to change without prior notice.
