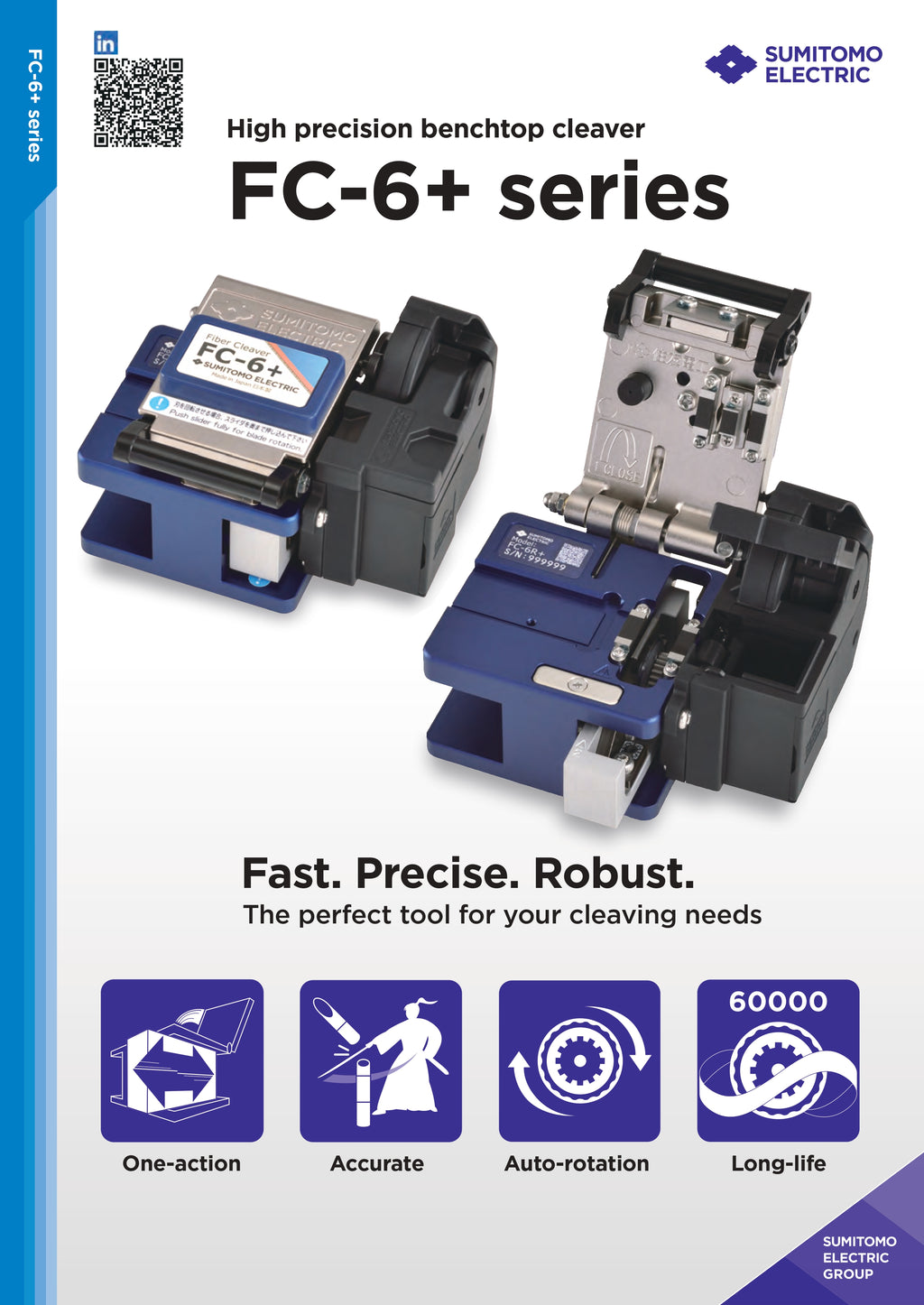

FC-6+ Series

High precision benchtop cleaver

Fast. Precise. Robust.

The perfect tool for your cleaving needs

The FC-6+ Series offers fast, accurate, and robust fiber cleaving with a high-precision auto-rotating blade, long-life performance, and simple one-action operation. Designed to meet the needs of both single and ribbon fiber applications, this cleaver ensures superior results every time.

With automatic blade rotation and a compact, durable design, the FC-6+ Series is the ideal solution for professionals seeking maximum reliability and efficiency in fiber preparation tasks.

Accurate and stable cleaving is achieved thanks to its pre-fitted single fiber adapter and optional ribbon fiber support. A carrying case, O-cut collector, and field-replaceable spare blade are included for convenience and extended tool life.

Designed in Japan, the FC-6+ Series cleavers are built to deliver consistent quality even in demanding environments.

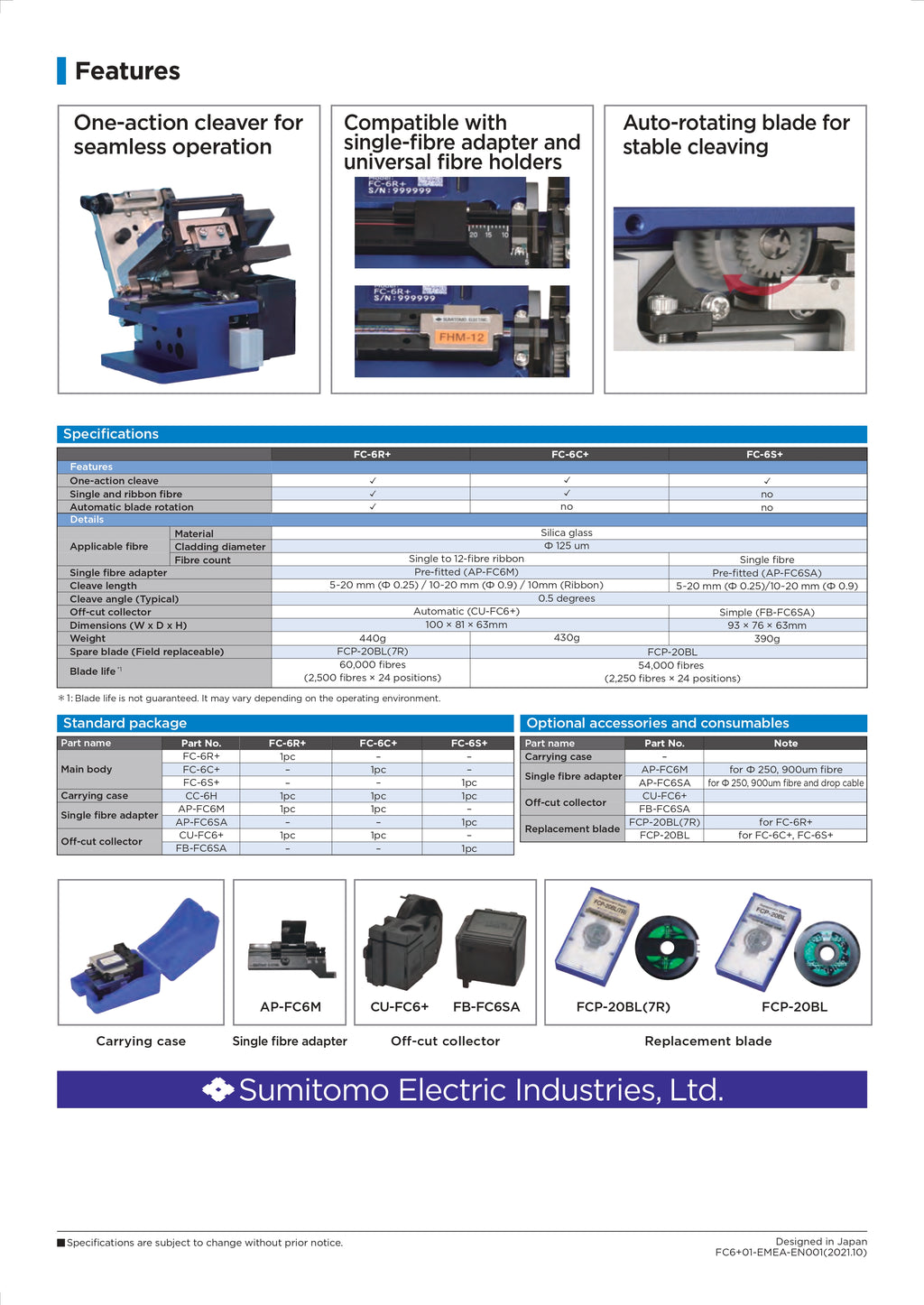

Specifications

• One-action cleave
• Compatible with single and ribbon fiber (up to 12 fibers)
• Automatic blade rotation (CU-FC6+ O-cut collector)
• Material: Silica glass fiber
• Cladding diameter: Φ125 μm
• Single fiber cleave length: 5–20 mm (Φ0.25), 10–20 mm (Φ0.9)
• Ribbon fiber cleave length: 10 mm
• Cleave angle (typical): 0.5 degrees
• Dimensions: 100 × 81 × 63 mm (FC-6R+ model)
• Weight: 430g (FC-6R+), 440g (with O-cut collector)
• Spare blade: Field replaceable (FCP-20BL or FCP-20BL(7R))
• Blade life: Up to 60,000 fibers (FCP-20BL(7R))

Included Parts

• Main body (FC-6R+, FC-6C+, or FC-6S+ depending on model)
• Carrying case (AP-FC6M)
• Single fiber adapter (AP-FC6SA)
• O-cut collector (CU-FC6+)

Optional Accessories

• Replacement blade (FCP-20BL or FCP-20BL(7R))
• Single fiber adapter (AP-FC6SA)
• O-cut collector (CU-FC6+)

*Blade life may vary depending on operating environment.

FC-6+ Series – Seamless operation. Reliable performance. Built for the future.
