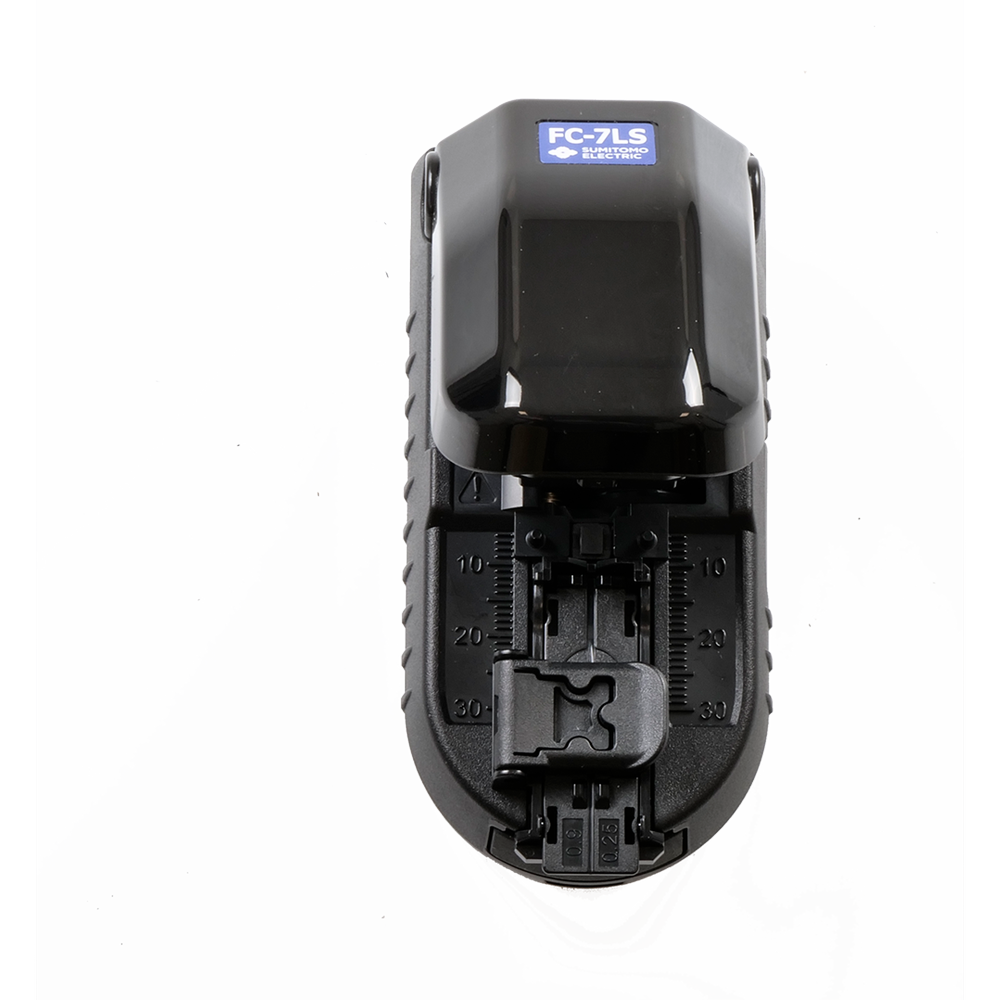

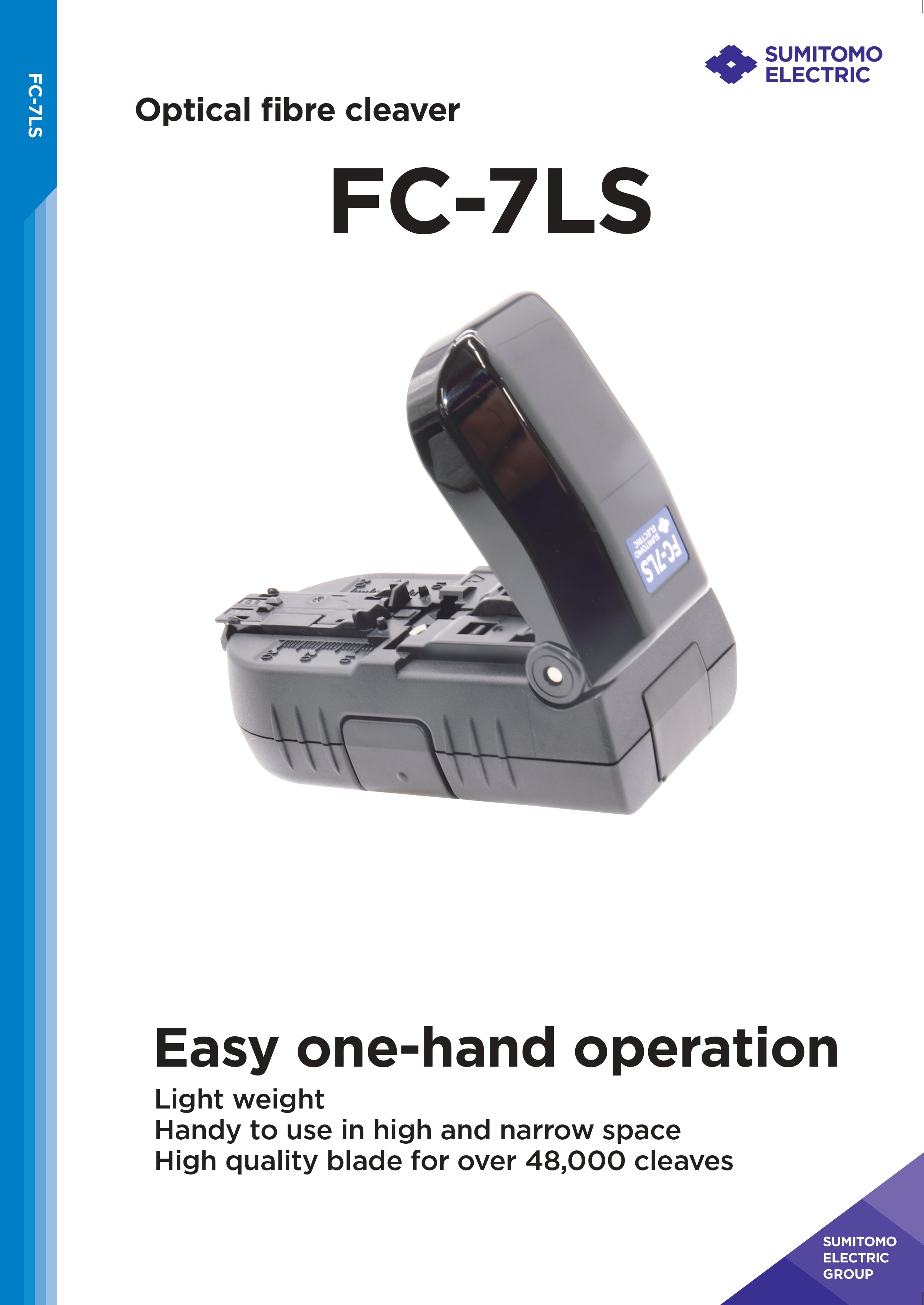

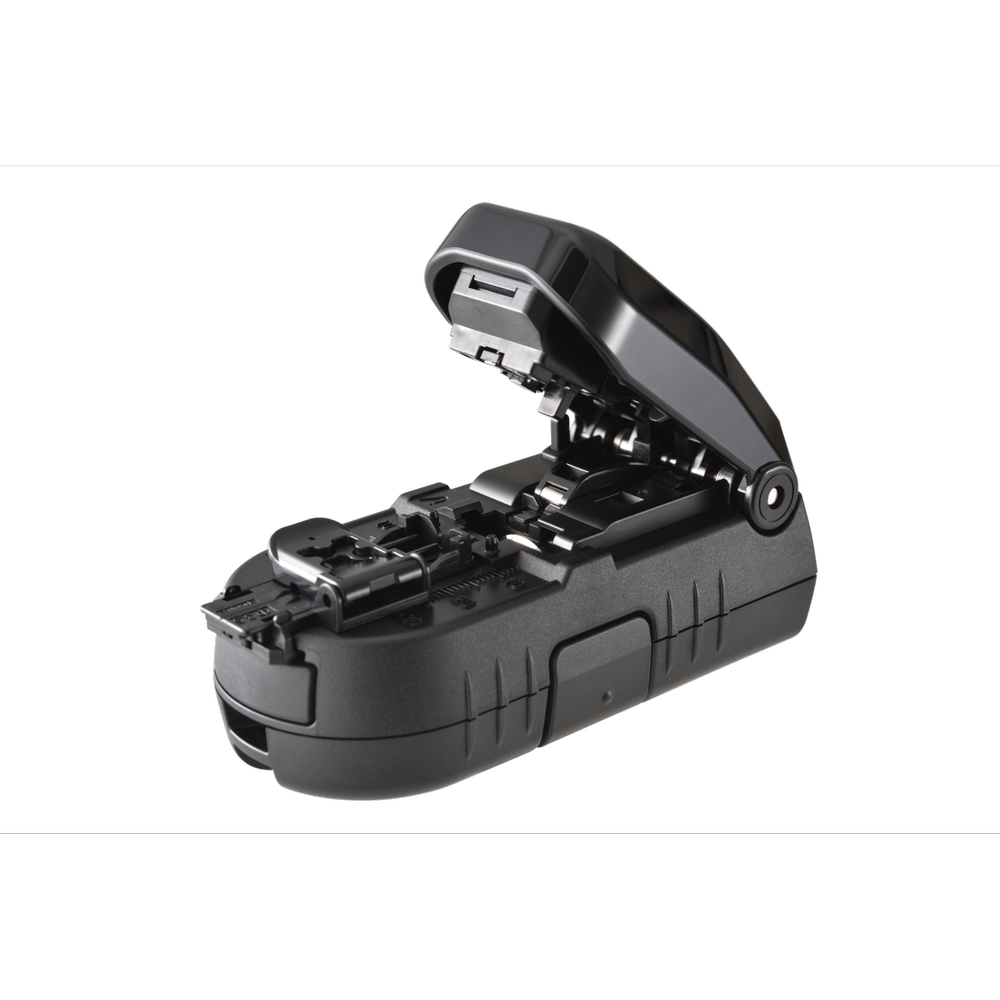

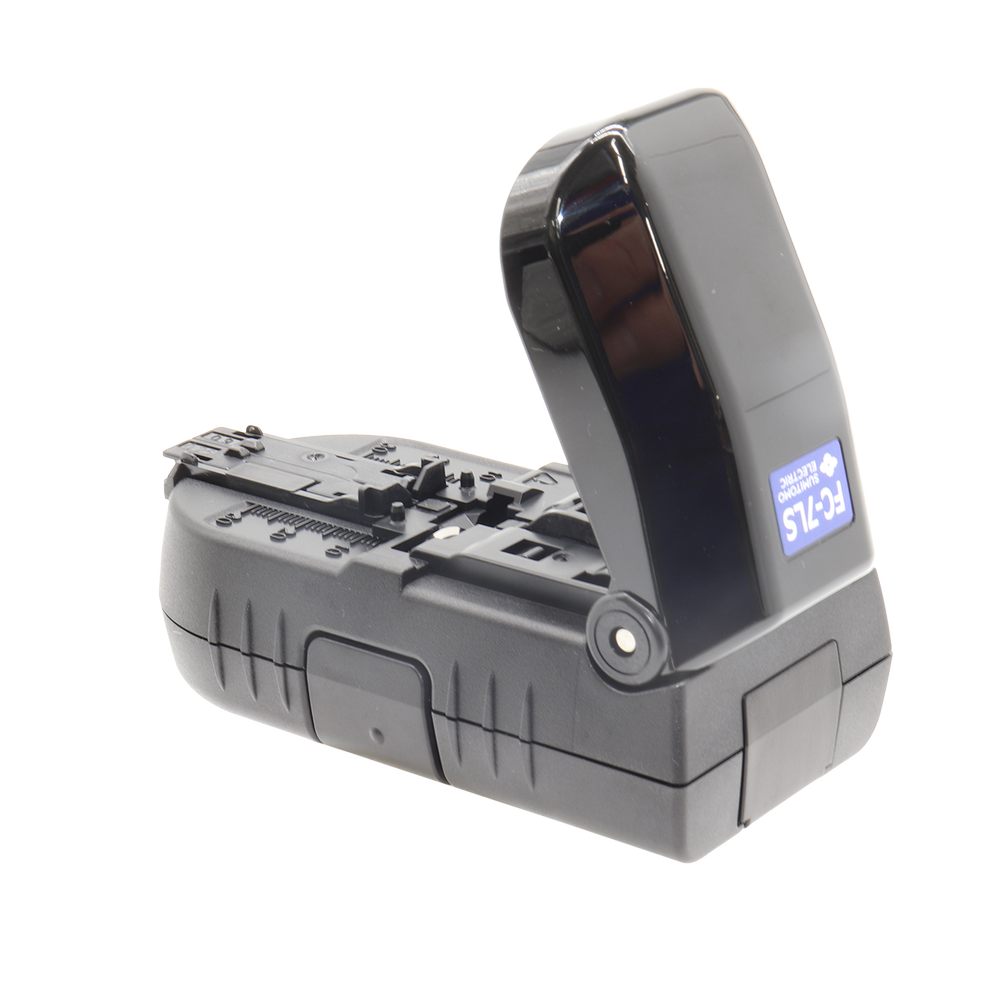

FC-7LS Optical Fiber Cleaver

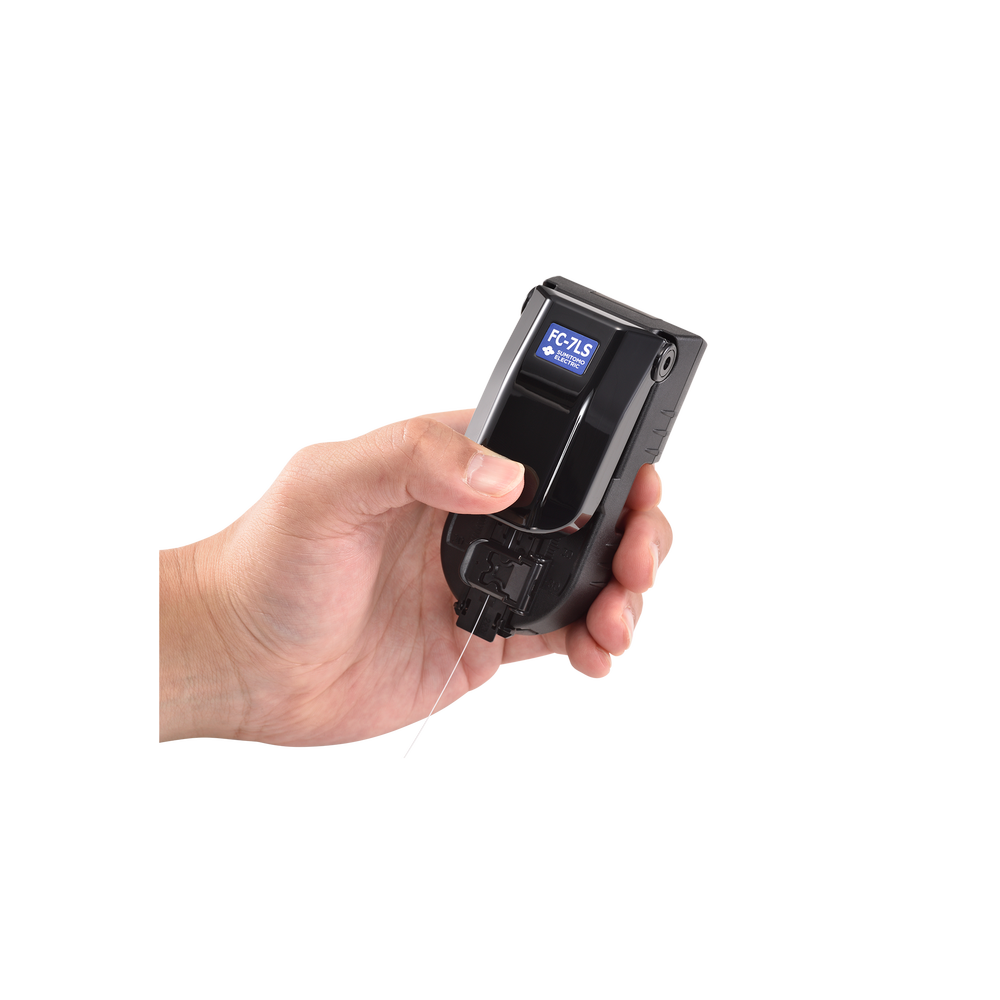

- Easy one-hand operation
- Lightweight and compact design
- Handy to use in high and narrow spaces
- High quality blade for over 48,000 cleaves

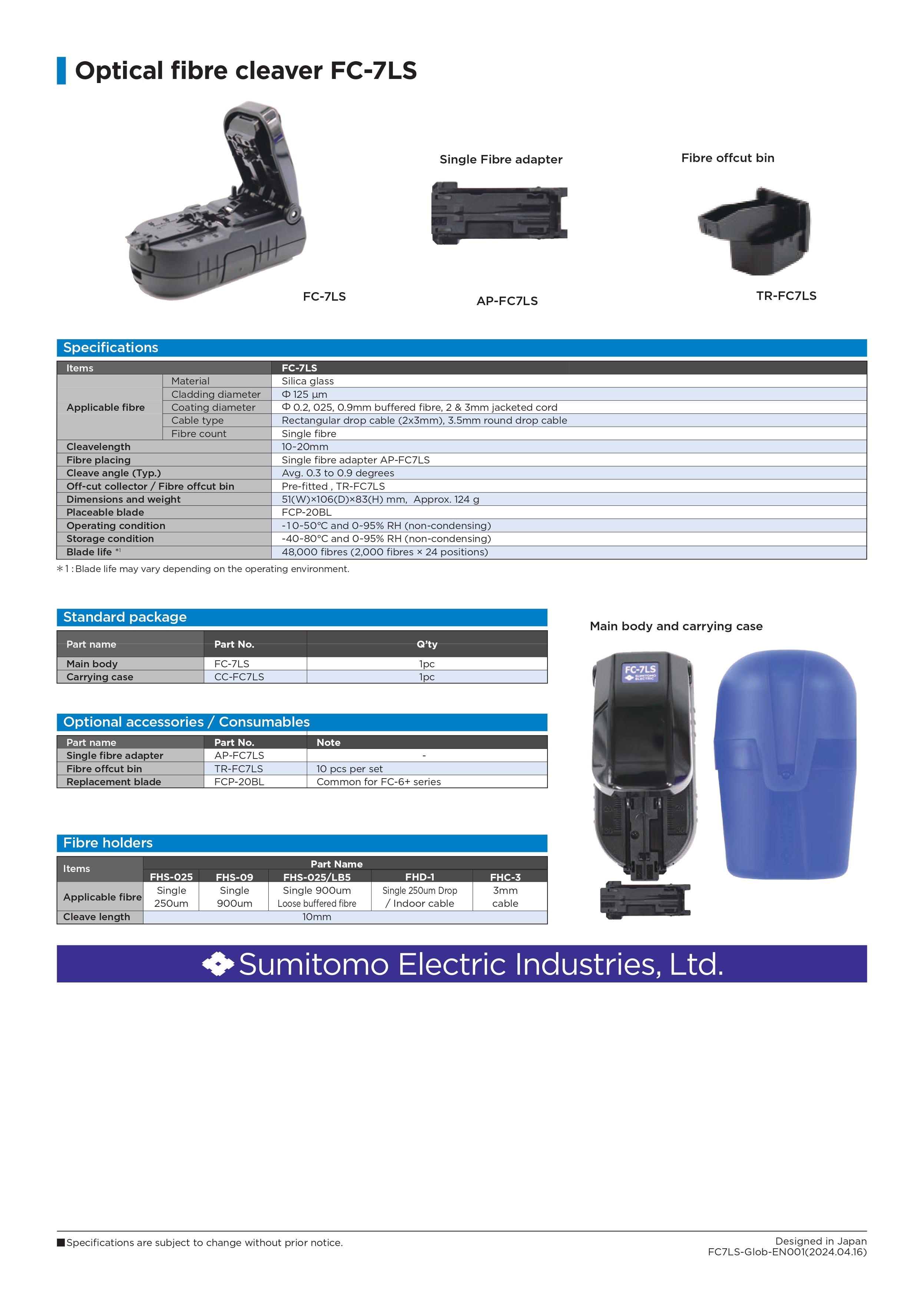

Specifications
| Material |
Silica glass |
| Cladding Diameter |
125 μm |
| Coating Diameter |
0.2 mm, 0.25 mm, 0.9 mm buffered fiber, 2 mm & 3 mm jacketed cord |
| Cable Types Supported |
Rectangular drop cable (2x3 mm), 3.5 mm round drop cable |
| Fiber Count |
Single fiber |
| Cleave Length |
10–20 mm |
| Adapter |
Single fiber adapter AP-FC7LS |
| Typical Cleave Angle |
0.3° to 0.9° |
| Off-Cut Collector / Fiber Bin |
Pre-fitted, TR-FC7LS |
| Dimensions |
51(W) × 106(D) × 83(H) mm |
| Weight |
Approx. 124 g |
| Blade Life |
48,000 fibers (2,000 fibers × 24 blade positions) |
| Operating Conditions |
-10°C to 50°C, 0–95% RH (non-condensing) |
| Storage Conditions |
-40°C to 80°C, 0–95% RH (non-condensing) |
Standard Package
- Main body (FC-7LS) - 1pc
- Carrying case (CC-FC7LS) - 1pc
Optional Accessories / Consumables
- Single fiber adapter (AP-FC7LS)
- Fiber off-cut bin (TR-FC7LS) - 10 pcs per set
- Replacement blade (FCP-20BL) - Common with FC-6+ series
- Fiber holders:
- FHS-025: Single 250μm
- FHS-09: Single 900μm
- FHS-025/LB5: Single loose buffered 900μm
- FHD-1: Single 250μm drop/indoor cable
- FHC-3: 3mm cable
Designed in Japan. Specifications are subject to change without prior notice. Document code: FC7LS-Glob-EN001 (2024.04.16)
