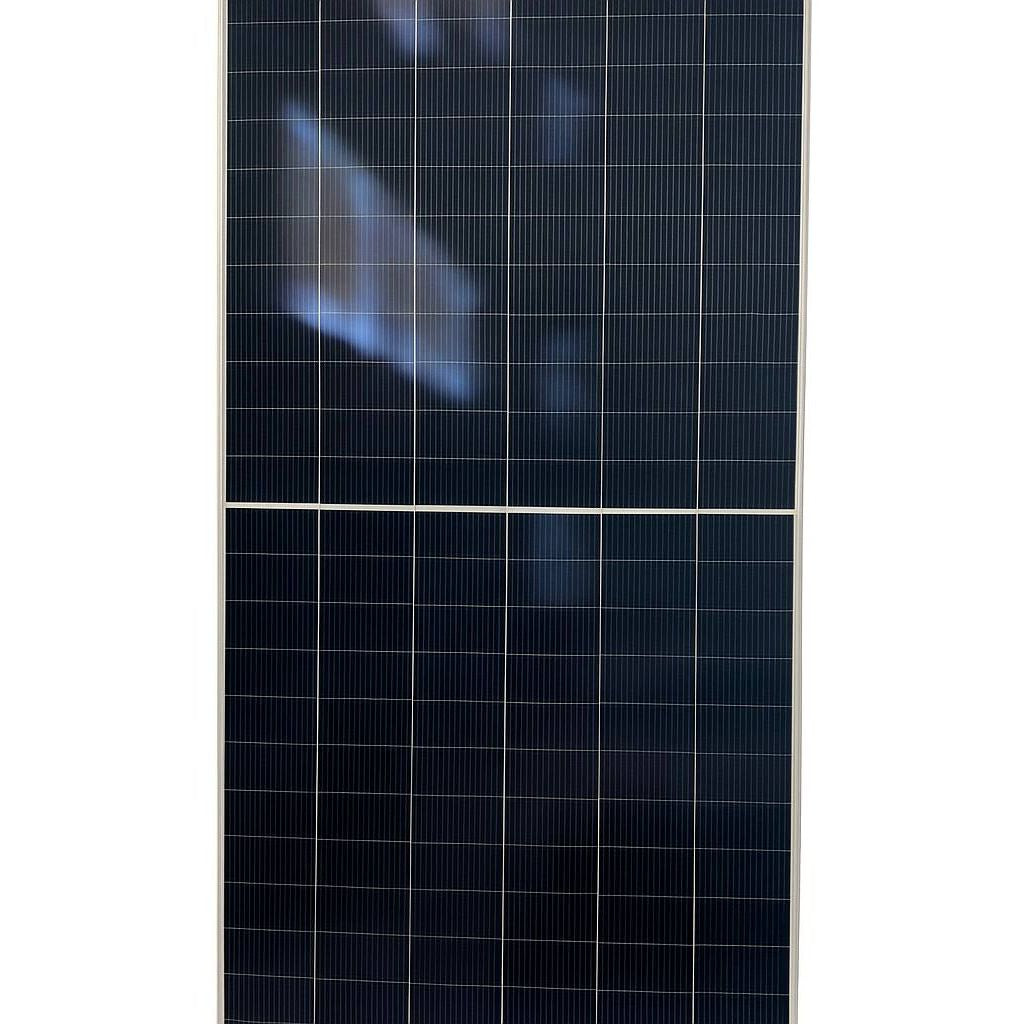

SOLAR N PLUS 580W N-Type TOPCon Solar Panel, 144 Cells, 22.5% Efficiency, 45.15V Vmpp, 12.85A Impp, 2278×1134×30mm

Roll over image to zoom in Click on image to zoom

SOLAR N PLUS 580W N-Type TOPCon Solar Panel, 144 Cells, 22.5% Efficiency, 45.15V Vmpp, 12.85A Impp, 2278×1134×30mm

Name: SOLAR N PLUS 580W N-Type TOPCon Solar Panel, 144 Cells, 22.5% Efficiency, 45.15V Vmpp, 12.85A Impp, 2278×1134×30mm
Brand: SOLAR N PLUS
SKU: SOL-PANG580
Price: 100000.000 IQD
Availability: InStock

SOLAR N PLUSSKU: SOL-PANG580

Price:

100,000 IQD

Quantity:

Share this product

Technical Specifications

Parameter	Value
Model / Series	SOLAR N PLUS
Cell Technology	N-Type TOPCon
Maximum Power (Pmax)	580 W
Voltage at Pmax (Vmpp)	45.15 V
Current at Pmax (Impp)	12.85 A
Open-Circuit Voltage (Voc)	52.6 V
Short-Circuit Current (Isc)	13.57 A
Module Efficiency	22.5 %
Dimensions (L×W×H)	2278 × 1134 × 30 mm
Weight	31.5 kg
Number of Cells	144

SOLAR N PLUS 580W N-Type TOPCon Solar Panel, 144 Cells, 22.5% Efficiency, 45.15V Vmpp, 12.85A Impp, 2278×1134×30mm

Description

Technical Specifications

SOLAR N PLUS 580W N-Type TOPCon Solar Panel, 144 Cells, 22.5% Efficiency, 45.15V Vmpp, 12.85A Impp, 2278×1134×30mm
