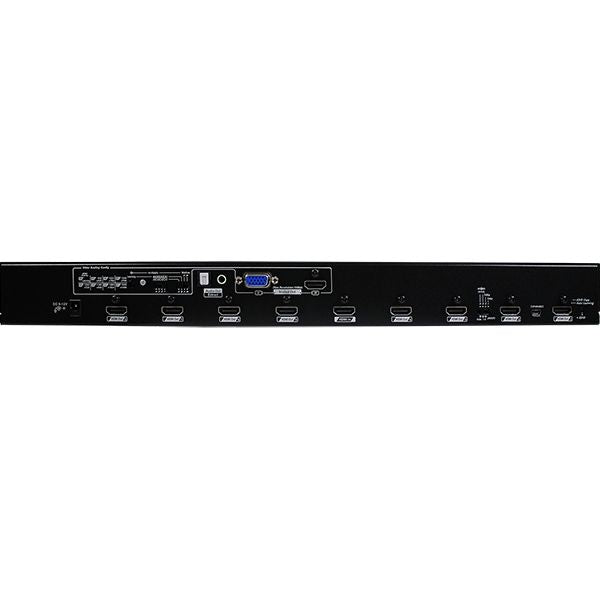

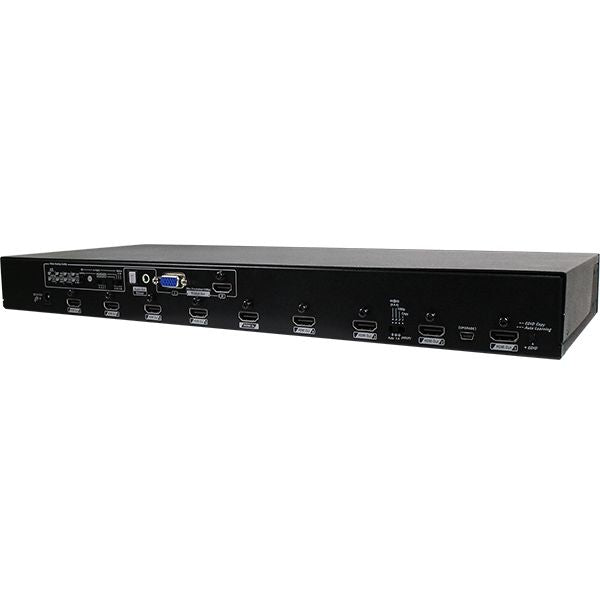

Rextron VKSM-K618 10-Port True 4K HDMI Splitter, 8 HDMI + VGA/HDMI Outputs, Audio Extractor, EDID, HDCP 2.2

Rextron VKSM-K618 10-Port True 4K HDMI Splitter with Scaler

The Rextron VKSM-K618 is a professional True 4K HDMI splitter designed to distribute one HDMI source to multiple displays with advanced scaling and audio extraction features. It provides 8 HDMI 2.0 outputs plus 1 additional HDMI and 1 VGA output, making it ideal for conference rooms, showrooms, digital signage, and professional AV installations.

• Model: VKSM-K618
• Input: 1 × HDMI 2.0
• Outputs: 8 × HDMI 2.0 + 1 × HDMI + 1 × VGA
• Max Resolution: 4K@60Hz (4:4:4)
• Scaling: Per-port auto scaling with true-scaling output options
• Audio Extraction: Stereo out + Toslink (SPDIF)
• HDCP Support: HDCP 2.2 / 1.4
• EDID Management: EDID Copy & Auto EDID

Key Features

• Distributes 1 HDMI source to 10 display outputs
• Supports True 4K 60Hz (4:4:4) video transmission
• Auto easy-scaling available on each HDMI output
• Additional HDMI and VGA outputs with 1080p true scaling
• Built-in audio de-embedding via SPDIF and analog stereo output
• HDCP and EDID management for broad source/display compatibility
• Rackmount form factor for professional installations

Applications

Suitable for conference rooms, meeting spaces, showrooms, public broadcasting, digital signage, education environments, and multi-display AV systems.

Technical Specifications
