Rextron VKSM-6G14 4-Port 4K HDMI Splitter, 1x4 HDMI 2.0, 4K@60Hz 4:4:4, EDID, HDCP 2.2, Metal Housing
Available in stock

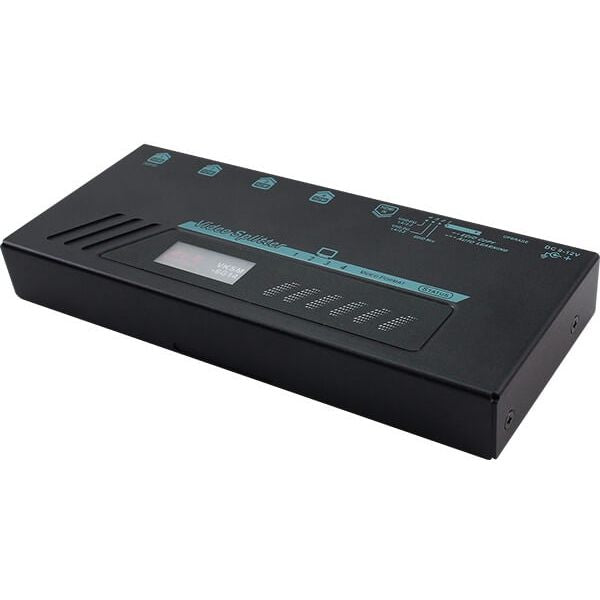

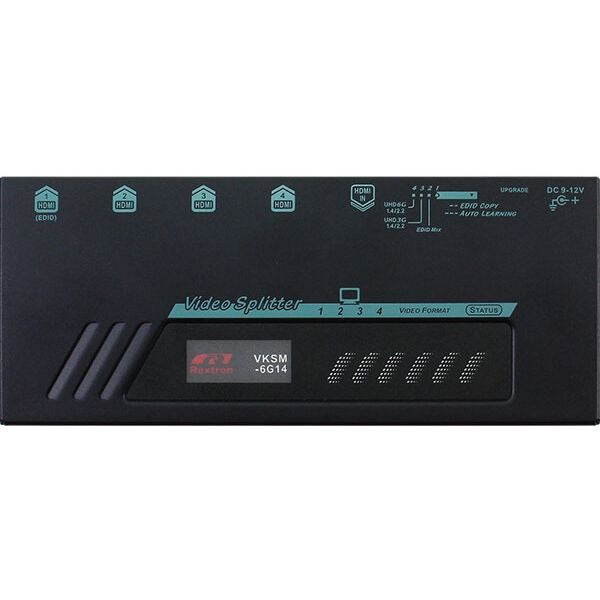

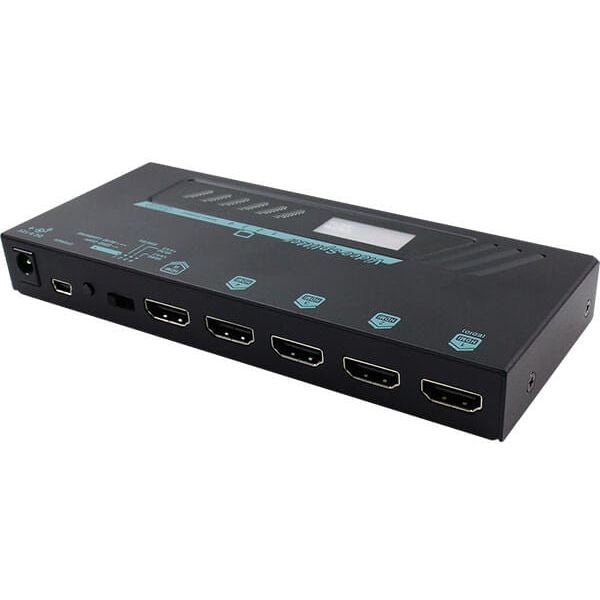

Rextron VKSM-6G14 4-Port 4K HDMI Splitter
The Rextron VKSM-6G14 is a compact HDMI video splitter designed to duplicate one HDMI source to four displays simultaneously. It supports HDMI 2.0, HDCP 2.2, and True 4K resolution up to 4K@60Hz, making it suitable for professional AV distribution, meeting rooms, retail displays, and digital signage.
- Input: 1 × HDMI 2.0
- Outputs: 4 × HDMI 2.0
- Max Resolution: 4K@60Hz (4:4:4)
- HDCP Support: HDCP 2.2 / HDCP 1.4
- EDID Management: EDID Copy, Auto EDID Learning, Auto EDID Mixing
- Design: Metal enclosure
Key Features
• Duplicates one HDMI input to four HDMI displays
• Supports HDMI 2.0 and True 4K 60Hz video output
• EDID copy and auto-learning for display compatibility
• HDCP 2.2 compliant for protected content playback
• Cascadable for expanded signal distribution
• Automatic power-save when input signal is lost
Applications
Ideal for conference rooms, classrooms, retail display systems, digital signage, and multi-screen AV setups.
Technical Specifications
| Brand | Rextron |
| Model | VKSM-6G14 |
| Video Input | HDMI 2.0 × 1 |
| Video Output | HDMI 2.0 × 4 |
| Maximum Resolution | 4K@60Hz (4:4:4) |
| HDCP Compliance | HDCP 2.2 / HDCP 1.4 |
| EDID & HDCP Management | EDID Copy / Auto EDID Learning / Auto EDID Mixing |
| Firmware Update | Mini USB Port × 1 |
| Power Supply | DC 12V |
| Operating Temperature | 0~40°C |
| Dimensions | 20 × 156 × 65 mm |
| Weight | 305 g |
