Rextron VKSM-6G116 16-Port True 4K HDMI 2.0 Splitter, 4K@60Hz 4:4:4, Easy Scaling, EDID, HDCP 2.2, Rackmount

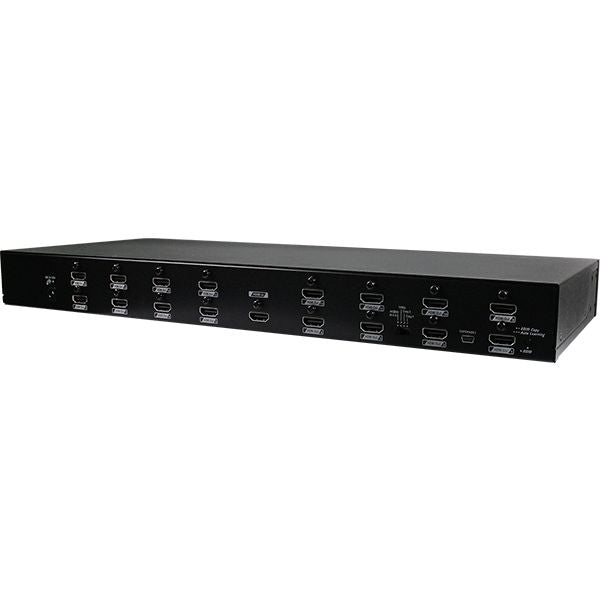

Rextron VKSM-6G116 16-Port True 4K HDMI Video Splitter

The Rextron VKSM-6G116 is a professional 16-port HDMI splitter designed to distribute one HDMI source to 16 displays with support for True 4K resolution. Built for conference rooms, meeting spaces, showrooms, and public broadcasting, it features per-port easy scaling, EDID management, and HDCP compliance for reliable multi-display deployment.

• Model: VKSM-6G116
• Input: 1 × HDMI 2.0
• Outputs: 16 × HDMI 2.0
• Max Resolution: 4K@60Hz (4:4:4)
• Scaling: Auto easy-scaling on each port
• HDCP Support: HDCP 2.2 / HDCP 1.4
• EDID Management: EDID Copy & Auto EDID
• Mounting: Rackmount metal enclosure

Key Features

• Supports popular HDMI display resolutions up to 4K 60Hz (4:4:4)
• Unique 4K 60Hz and 1080p format settings for different applications
• Easy scaling helps ensure reliable 1080p/4K output
• Cascade operation for increased signal outputs
• LED indicators for signal activity monitoring
• Plug-and-play setup with no software required

Applications

Ideal for conference calls, meeting rooms, showrooms, public broadcasting, and professional AV environments requiring one-to-many HDMI distribution.

Technical Specifications
