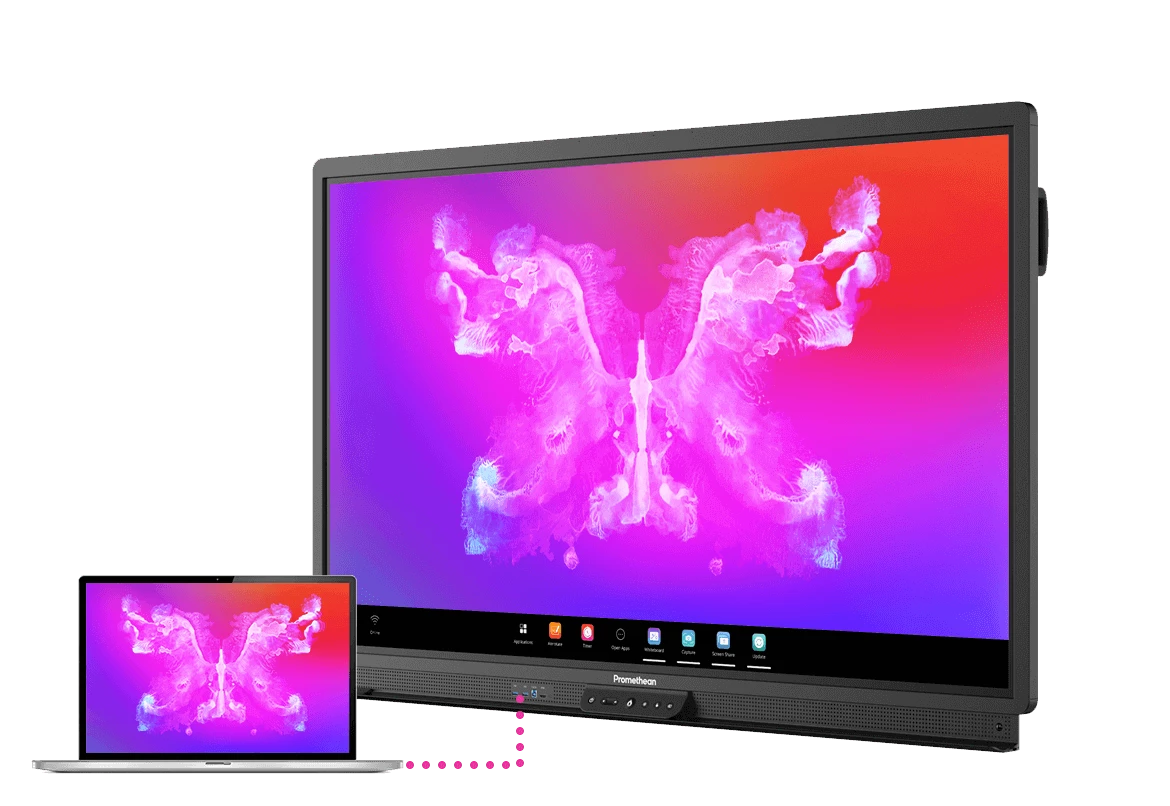

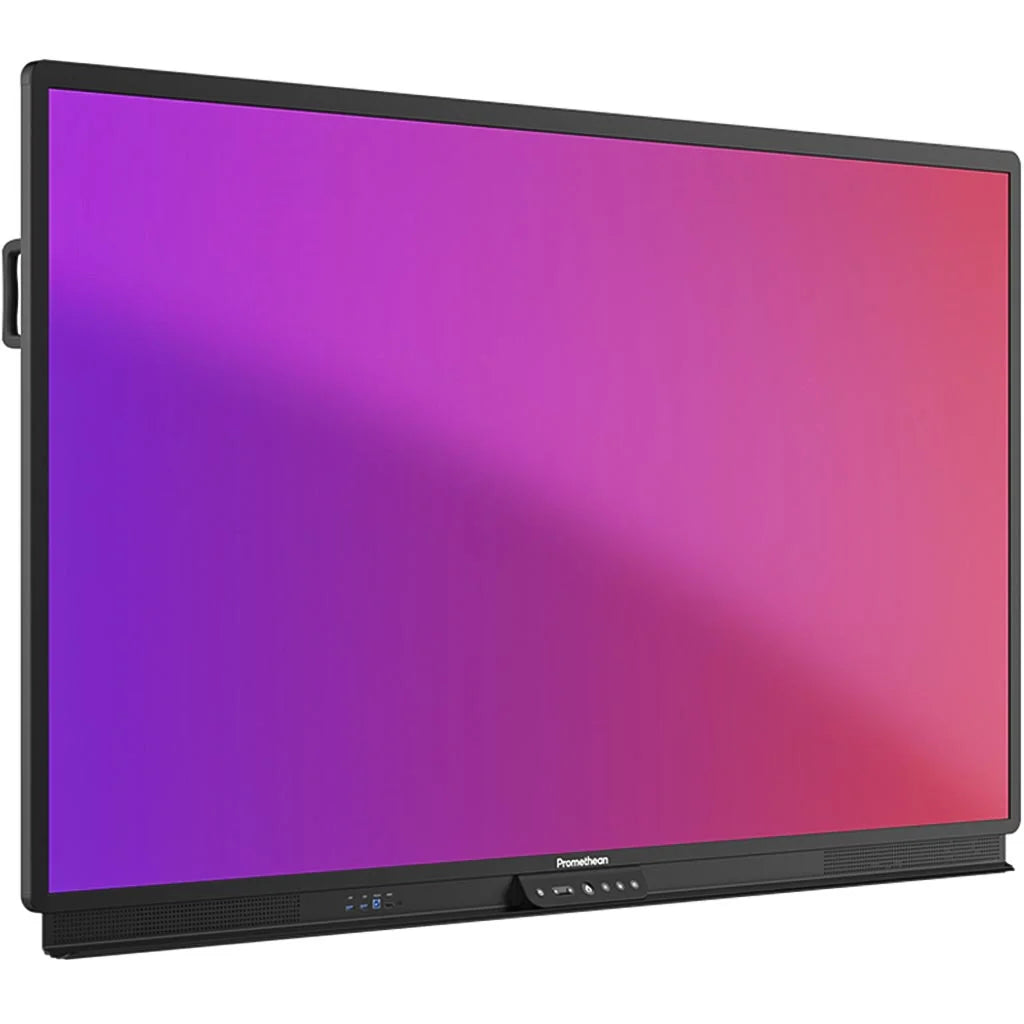

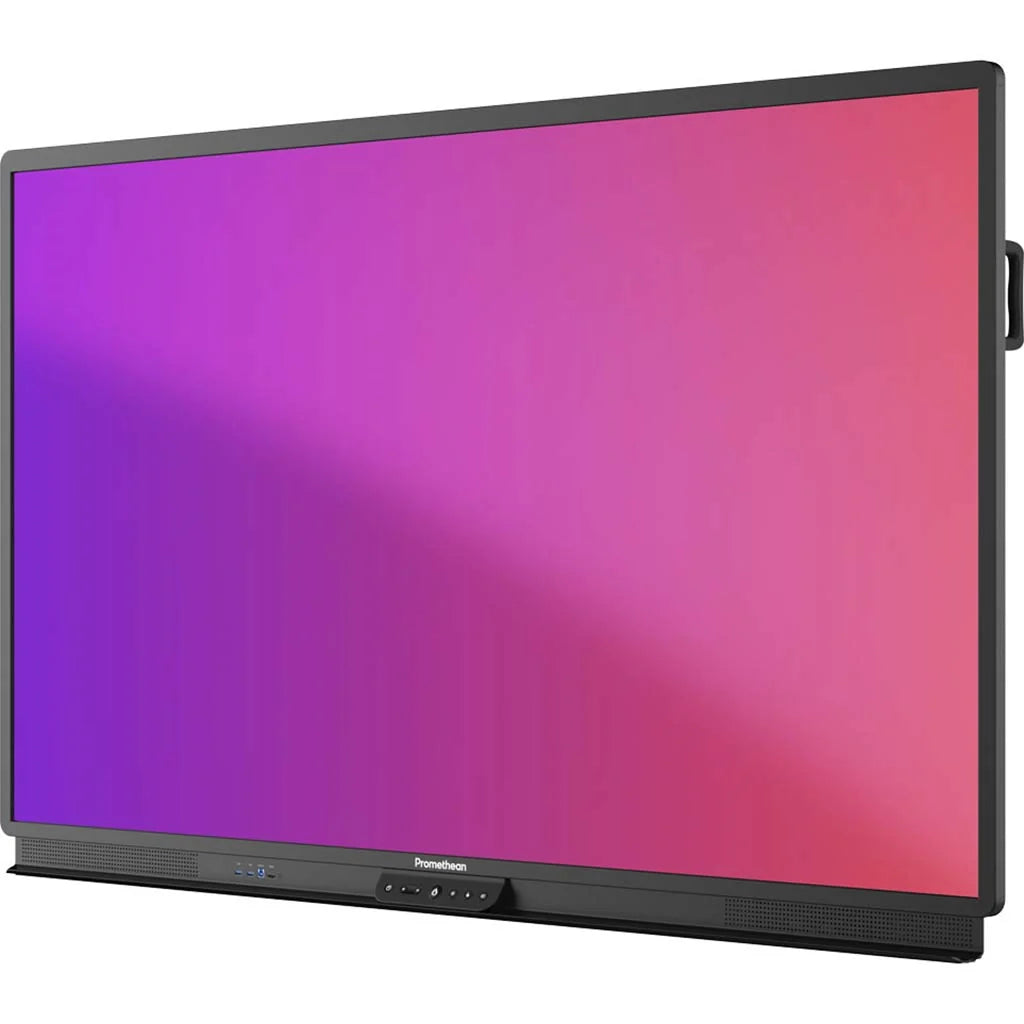

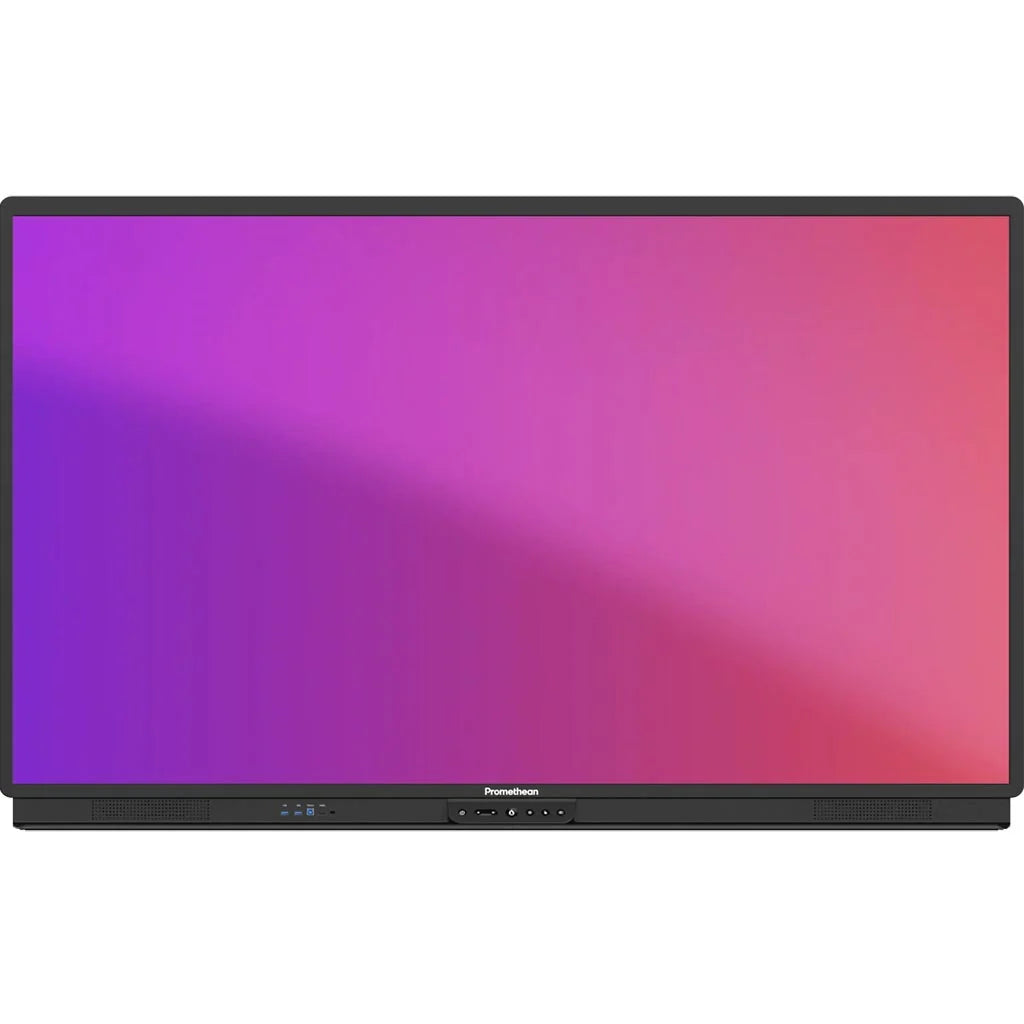

Promethean ActivPanel 9 65" 4K UHD Interactive Display – AP9-A65

Product Overview

The Promethean ActivPanel 9 65" is a professional 4K UHD interactive display designed for modern classrooms, training spaces, meeting rooms, and collaborative environments. Featuring Vellum® Touch Technology, Promethean's ActivPanel OS, integrated classroom tools, and extensive wired and wireless connectivity, it provides an intuitive platform for interactive teaching, presentations, and teamwork.

The 65-inch 4K UHD display delivers detailed visuals with bonded anti-glare glass, 400 cd/m² brightness, and a wide 178° viewing angle. Up to 20 simultaneous touch points, pen and touch differentiation, palm rejection, and palm erase provide a natural writing and interaction experience.

Key Features

• 65-inch 4K UHD display with 3840 × 2160 resolution at 60 Hz
• Vellum® Touch Technology with up to 20 simultaneous touch points
• Pen and touch differentiation with palm rejection and palm erase
• Bonded, heat-tempered anti-glare glass
• 400 cd/m² brightness and 178° viewing angle
• ActivPanel OS with Promethean Classroom Essential Apps
• 4 GB RAM and 32 GB internal storage
• ARM Cortex-A73 quad-core processor
• Dual 15 W front-facing speakers
• Wi-Fi 6 support and Bluetooth 5.0
• USB-C 3.2 with video, data, touch, and up to 60 W Power Delivery
• 3 × HDMI inputs, DisplayPort, HDMI output, USB, LAN In/Out, microSD, and OPS slot
• Promethean Panel Management and over-the-air updates

Interactive Teaching and Collaboration

Promethean's Vellum® Touch Technology supports precise writing, drawing, navigation, and multi-user interaction. The ActivPanel 9 supports up to 20 continuous touch points and includes two battery-free pens, allowing teachers, students, presenters, and teams to interact naturally with digital content.

Built-in Promethean Classroom Essential Apps include Whiteboard, Annotate, Timer, Spinner, Screen Capture, Screen Share, Browser, PDF Reader, and Media Player, providing essential tools for lessons, presentations, and collaborative sessions.

Specifications

Brand	Promethean
Series	ActivPanel 9
Model	AP9-A65
Screen Size	65"
Resolution	3840 × 2160 (4K UHD) at 60 Hz
Display Type	TFT LCD with Direct LED Backlight
Aspect Ratio	16:9
Brightness	400 cd/m²
Viewing Angle	178°
Display Colors	1.07 Billion (10-bit)
Glass	Bonded, heat-tempered anti-glare glass
Touch Technology	Vellum® Touch Technology
Touch Points	Up to 20
Touch Accuracy	1 mm
Operating System	ActivPanel OS
Processor	ARM Cortex-A73 Quad-Core
Graphics	ARM Mali-G71 MP3
Memory	4 GB RAM
Internal Storage	32 GB
Speakers	2 × 15 W front-facing speakers
Wireless	Wi-Fi 6, Bluetooth 5.0
Video Inputs	3 × HDMI 2.0, 1 × DisplayPort 1.2, USB-C
Connectivity	HDMI, DisplayPort, USB-A, USB-B Touch, USB-C, LAN In/Out, microSD, Audio Out, Mic In, RS-232, OPS
USB-C Power Delivery	Up to 60 W
Panel Dimensions	1509 × 946 × 113 mm
Net Weight	43.2 kg
VESA Mount	600 × 400 mm

What's in the Box

• Promethean ActivPanel 9 65" Interactive Display
• 3 m HDMI Cable
• 3 m USB A-B Cable
• Regional Power Cable
• 2 m USB-C Cable
• Remote Control with Batteries
• 2 × Battery-Free Pens
• VESA Mount Screws
• Mini PC Bracket
• Quick Installation Guide

Ideal For

• Classrooms and educational institutions
• Interactive teaching and digital learning
• Training rooms and workshops
• Meeting and conference rooms
• Presentations and collaborative workspaces
