| Image Sensor |
CIS x 2 (Duplex) |
| Light Source |
LED |
| Optical Resolution |
600 dpi |
| Hardware Resolution |
600 x 600 dpi |
| Scan Modes |
Color: 48-bit input, 24-bit output
Grayscale: 16-bit input, 8-bit output
B/W: 1-bit |
| ADF Capacity |
1. 100 sheets (A4/ Letter, 70 g/㎡ or 18 Lbs)
2. 30 sheets (Business Cards)
3. Plastic Card, Max. thickness under 1.2 mm.
Note: Maximum ADF capacity varies, depending upon paper weight. |
| Scanning Speed ( ADF ) |
50 ppm/ 100 ipm (Grayscale/B&W mode, 200 dpi, A4 Portrait)
50 ppm/ 100 ipm (Grayscale/B&W mode, 300 dpi, A4 Portrait)
45 ppm/ 90 ipm (Color mode, 200 dpi, A4 Portrait)
30 ppm/ 60 ipm (Color mode, 300 dpi, A4 Portrait)
Note: Results may vary depending upon your scanning application, computer processor and system memory. |
| Scanning Area (W x L) |
Max: 216 x 5080 mm (8.5” x 200”)
Min: 13.2 x 13.2 mm (0.52” x 0.52”) |
| Acceptable Paper Sizes (W x L) |
Max: 216 x 5080 mm (8.5” x 200”)
Min: 50.8 x 50.8 mm (2” x 2”) |
| Acceptable Paper Weight (Thickness) |
40 to 220 g/㎡ (10 to 58 Lbs) |
| Multi-feed Detection |
With ultrasonic technology |
| Daily Duty Scan ( Sheets ) |
6000 |
| Roller Lifetime (Scans) |
300,000 |
| Pad Lifetime (Scans) |
100,000 |
| Action Button |
4 Buttons: Up, Down, Scan, Standby
9 function keys are all customizable. |
| Power Supply |
24 Vdc/ 1.25 A |
| Interface |
USB 2.0 x 1, USB 2.0 (Host) x 1 |
| Net Weight |
2.7 Kgs (5.95 Lbs) |

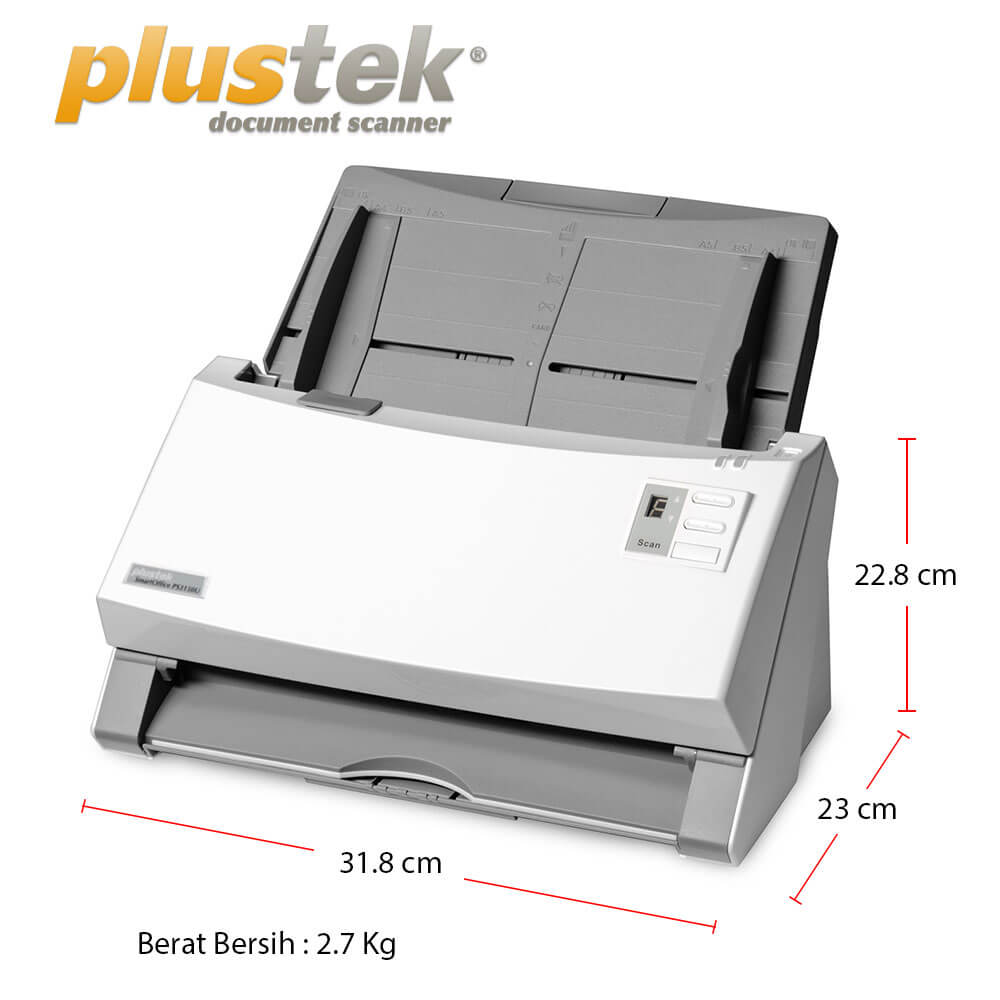

| Dimensions (W x D x H) |
318.7 x 230.7 x 228.3 mm (12.55" x 9.08" x 8.99") |
| Protocol |
TWAIN Compliant
|
| Operating System |
Windows XP / Vista / 7 / 8 / 10 / 11
macOS 10.12.x/ 10.13.x/ 10.14.x/ 10.15.x/ 11.x/ 12.x/ 13.x
Linux compatibility is only available for system integrators. Please contact sales@plustek.com for more info. |
