ONV POE58052PFM 52-Port L3 Managed PoE+ Switch, 48 Gigabit RJ45, 4× 10G SFP+ Uplinks, 600W, 1U Rackmount
Regular price
850,000 IQD
Sale price
Regular price
Shipping calculated at checkout.
Low stock
ONV ONV-POE58052PFM 52-Port L3 Managed PoE+ Switch
Product Overview

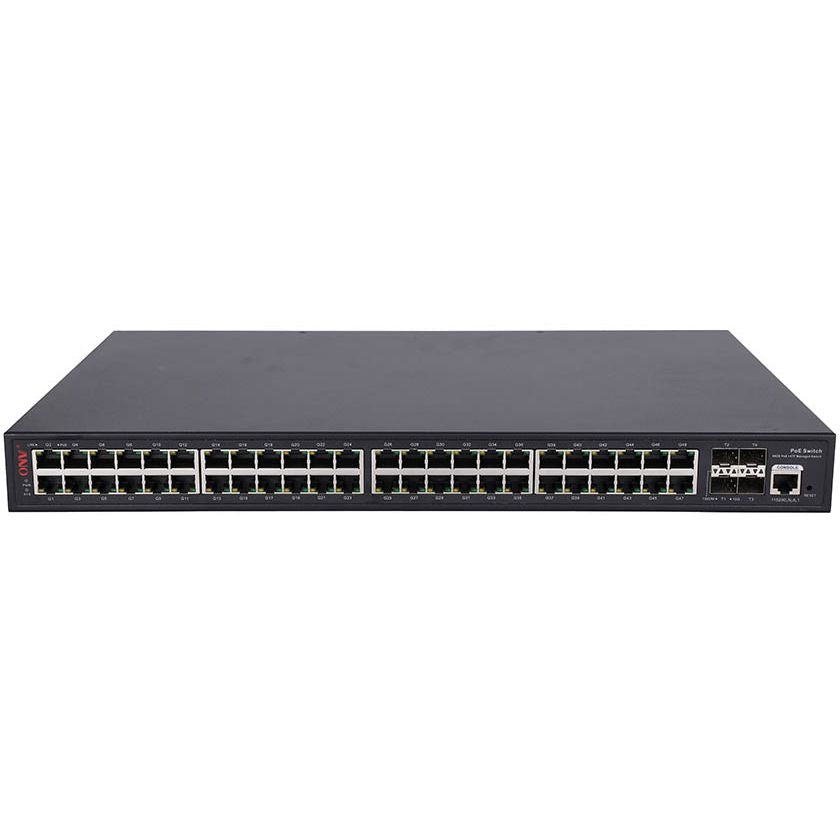

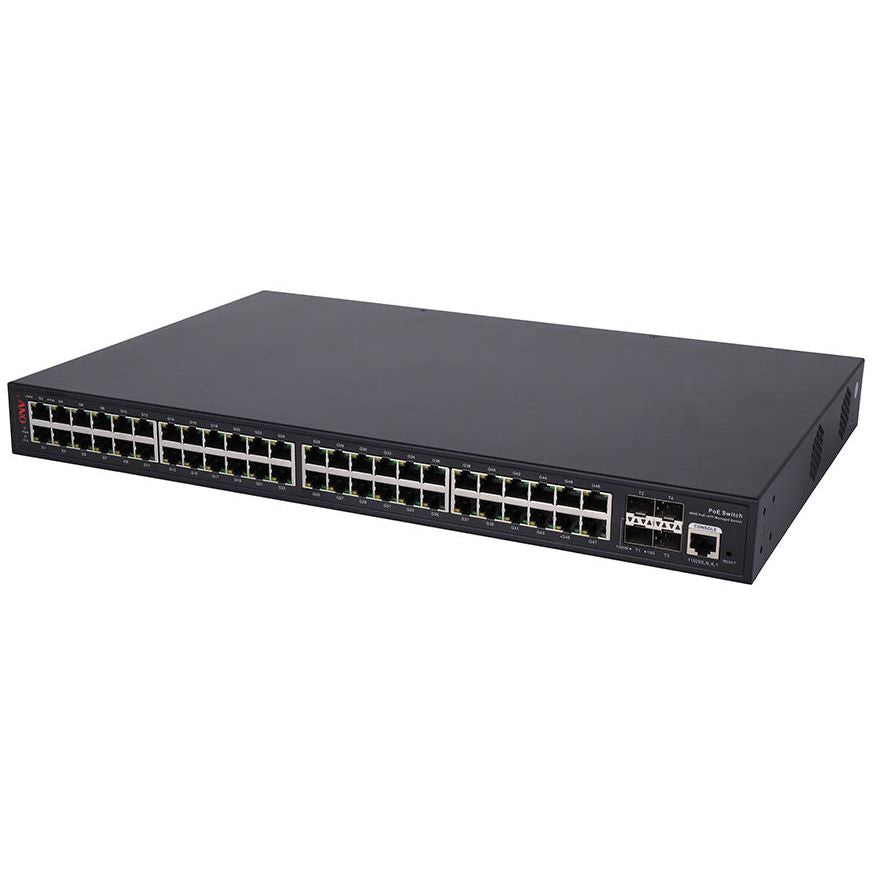

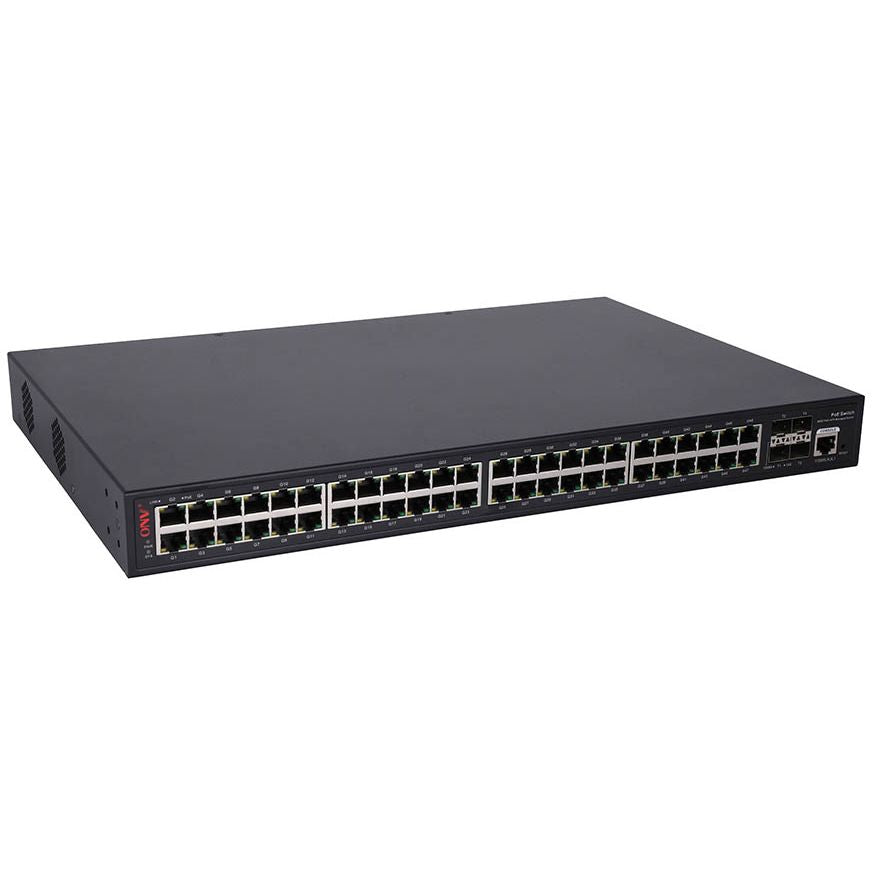

The ONV ONV-POE58052PFM is a 52-port Layer 3 managed PoE+ switch designed for enterprise networks and IP surveillance systems. It features 48 Gigabit Ethernet PoE+ ports, 4 high-speed 10G SFP+ uplinks, and a built-in 600W power supply for high-density network installations.
Key Features
- 48 × 10/100/1000Mbps RJ45 PoE+ ports.
- 4 × 1/10Gbps SFP+ fiber uplink ports.
- IEEE 802.3af/at PoE support with up to 30W per port.
- Layer 3 management with IPv4/IPv6 and dynamic routing.
- Supports VLAN, QoS, ACL, STP/RSTP/MSTP, and ERPS.
- Web, CLI, and SNMP network management.
- Standard 1U rackmount design.
Technical Specifications
| Item | Specification |
|---|---|
| Brand | ONV |
| Model | ONV-POE58052PFM |
| Product Type | Layer 3 Managed PoE+ Switch |
| Total Network Ports | 52 |
| PoE Ethernet Ports | 48 × 10/100/1000Mbps RJ45 |
| Fiber Uplink Ports | 4 × 1/10Gbps SFP+ |
| Console Port | 1 × RS232 |
| PoE Standard | IEEE 802.3af/at |
| Maximum PoE Per Port | 30W |
| Built-in Power Supply | 600W |
| Switching Capacity | 216Gbps |
| Packet Forwarding Rate | 131Mpps |
| MAC Address Table | 32K |
| Buffer Memory | 16MB |
| Jumbo Frame | 12KB |
| CPU | 1GHz Dual-Core |
| RAM | 2GB |
| Flash Memory | 256MB |
| Management | Web, CLI, SNMP v1/v2/v3 |
| Routing | Layer 3, IPv4/IPv6, Dynamic Routing |
| Network Features | VLAN, QoS, ACL, STP, RSTP, MSTP, ERPS |
| Power Input | AC 100–240V, 50/60Hz |
| Maximum Power Consumption | 600W |
| Operating Temperature | -20°C to +55°C |
| Dimensions | 440 × 290 × 44.5mm |
| Net Weight | 4.8kg |
| Installation | Desktop / 1U 19-Inch Rackmount |
